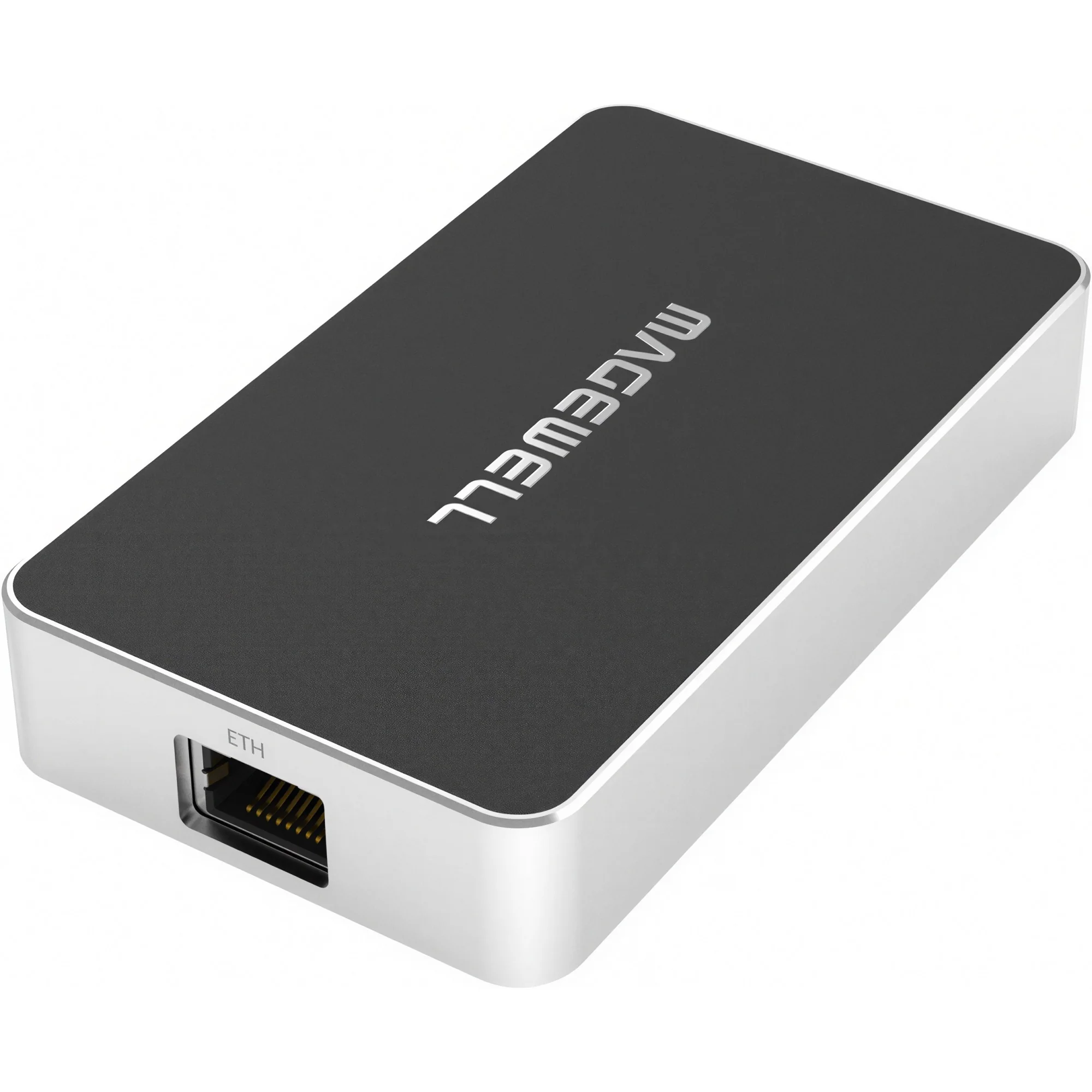

Magewell Pro Convert IP to USB (62300) Decoder

    623000000
    Price: €369.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

    Magewell Pro Convert IP to USB solves a very specific problem in modern production and conferencing spaces: how to bring an NDI or compressed IP video stream into software that only sees a standard USB camera. Instead of asking the host computer to decode network video, this compact converter handles that stage internally and presents the result as a UVC/UAC USB device. For operators working with Zoom Rooms, Microsoft Teams, OBS Studio, vMix or recording tools that expect webcam input, that means a cleaner installation, lower CPU load and fewer variables to manage on the workstation.

    On the network side, the unit accepts one source at a time, including NDI High Bandwidth, NDI HX2, NDI HX3 and H.264/H.265 streams delivered through RTSP, RTMP, RTP, UDP, SRT or HTTP. On the USB side, it feeds software with video up to 1080p60 in YUY2 or NV12, or 1080p30 MJPEG, together with 2-channel 16-bit/48 kHz audio. This makes it useful for integrating a remote PTZ camera into a meeting room, decoding an SRT contribution feed for streaming software, receiving an NDI camera in a temporary control position, or turning an IP source into a USB signal where local driver installation is restricted by IT policy.

    For integrators and technical teams, Pro Convert IP to USB goes further than simple signal conversion. A built-in Web GUI is available for configuration, diagnostics and firmware handling, while Control Hub support and HTTP API access make the unit easier to standardise across multiple rooms or managed systems. The decoder supports DHCP for automatic network setup and can also work with USB NET access for administration. Where camera control matters, the device supports PTZ operation through compatible NDI sources or VISCA over UDP, which is especially relevant in conference systems and lecture capture installations.

    From an SEO and buying perspective, this is not just an IP to USB converter; it is a practical bridge between AV-over-IP and software-centric production. It fits broadcast prep areas, corporate meeting rooms, education spaces, live streaming kits and flypack systems where operators need NDI to USB, SRT to USB, RTSP to USB or a dependable USB webcam output from network video. When the requirement is to ingest one network stream quickly, keep the host computer lighter, and make professional IP sources behave like a native USB camera, this Magewell unit answers that brief with very little friction.

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    The new Magewell Pro Convert IP to USB is a plug-and-play device that enables computers, including laptops, to capture an NDI®, NDI® HX or other streaming sources through a USB interface with no external power required. It is ideal for use in conference rooms, production studios, and in environments where existing users' software does not natively support NDI® or other IP protocols and/or the installation of additional software is not permitted.

    Pro Convert IP to USB Specifications

    Output Features
    Max output UVC: 1080p60 YUY2/NV12. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.):
    1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 60/59.94/50/48/40/30/29.97/25/24/20/15
    Max output UVC: 1080p30 MJPEG. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.):
    1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 30/29.97/25/24/20/15
    UAC: 2-channel, 16-bit, 48KHz

    Decoding Capabilities
    Decoding 1 stream of NDI High Bandwidth/NDI HX2/NDI HX3/RTMP/RTSP/RTP/UDP/SRT/HTTP at up to 1080p60
    Decoding SpeedHQ/H.264/H.265
    Supports NDI 6.2

    Configuration Management
    Register with Control Hub
    Remote control via WebUI and Control Hub
    Web UI enables users to easily check and set the process-and-capture parameters, upgrade firmware and export info for troubleshooting
    Provide HTTP APIs
    Support USB NET

    Host Interface
    USB 3.0 (5 Gbps) Type-C
    5V/1A power supply
    USB NCM

    Network Connections: Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T

    Recommended OS
    Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above
    Linux x86, x64 & ARM architecture, with 2.6.35 and above
    Mac OS X 10.9 and above
    macOS 10.12 and above

    Supported Software
    Zoom Rooms
    Microsoft Teams
    VLC
    OBS Studio
    XSplit
    QuickTime Player
    vMix
    Any other software that can detect USB webcam

    LED Indicators
    Status LED indicates:
    Power supply: on/off

    Form Factor: 3.8622 in (L) x 2.2354 in (W) x 0.7087 in (H) (98.1 mm x 56.78 mm x 18 mm)

    Power Consumption
    5V max current: ~ 1A
    Max power consumption: ~ 3.8W

    Working Environment
    Operating temperature: 0 to 50 deg C
    Storage temperature: –20 to 70 deg C
    Relative humidity: 5% to 90% non-condensing

    623000000
    10 Items

    Data sheet

    Video Input
    NDI
    RJ-45 (IP)
    Video Output
    USB
    Audio Input
    NDI Embedded
    RJ-45
    Audio Output
    USB
    Max Output Resolution
    1080p 50/60 fps
    Output colour sampling
    YUV/YCbCe/YPbPr 4:2:2 8-bit
    Built-in scaler
    No
    Network Connection
    Ethernet

    Specific References

    ean13
    6936572401652
    mpn
    623000000

    Contact us

    optional

    Reviews

    Write your review

    Magewell Pro Convert IP to USB (62300) Decoder

    Magewell Pro Convert IP to USB solves a very specific problem in modern production and conferencing spaces: how to bring an NDI or compressed IP video stream into software that only sees a standard USB camera. Instead of asking the host computer to decode network video, this compact converter handles that stage internally and presents the result as a UVC/UAC USB device. For operators working with Zoom Rooms, Microsoft Teams, OBS Studio, vMix or recording tools that expect webcam input, that means a cleaner installation, lower CPU load and fewer variables to manage on the workstation.

    On the network side, the unit accepts one source at a time, including NDI High Bandwidth, NDI HX2, NDI HX3 and H.264/H.265 streams delivered through RTSP, RTMP, RTP, UDP, SRT or HTTP. On the USB side, it feeds software with video up to 1080p60 in YUY2 or NV12, or 1080p30 MJPEG, together with 2-channel 16-bit/48 kHz audio. This makes it useful for integrating a remote PTZ camera into a meeting room, decoding an SRT contribution feed for streaming software, receiving an NDI camera in a temporary control position, or turning an IP source into a USB signal where local driver installation is restricted by IT policy.

    For integrators and technical teams, Pro Convert IP to USB goes further than simple signal conversion. A built-in Web GUI is available for configuration, diagnostics and firmware handling, while Control Hub support and HTTP API access make the unit easier to standardise across multiple rooms or managed systems. The decoder supports DHCP for automatic network setup and can also work with USB NET access for administration. Where camera control matters, the device supports PTZ operation through compatible NDI sources or VISCA over UDP, which is especially relevant in conference systems and lecture capture installations.

    From an SEO and buying perspective, this is not just an IP to USB converter; it is a practical bridge between AV-over-IP and software-centric production. It fits broadcast prep areas, corporate meeting rooms, education spaces, live streaming kits and flypack systems where operators need NDI to USB, SRT to USB, RTSP to USB or a dependable USB webcam output from network video. When the requirement is to ingest one network stream quickly, keep the host computer lighter, and make professional IP sources behave like a native USB camera, this Magewell unit answers that brief with very little friction.
