Rack the multiplexer at the camera end, put the demultiplexer in the control room, and one strand of single-mode fibre carries the whole rig. That is the working principle of the FieldCast Mux + Demux Three 12G Plus, a matched 1RU pair that moves 16 independent 12G-SDI channels alongside full-duplex 1 Gb Ethernet over a single 9/125 optical core. Thin-film xWDM does the combining. Nothing is compressed, nothing re-processed, so what leaves the camera position reaches the gallery bit for bit.
On the multiplexer, sixteen 75 Ω BNC inputs each carry a reclocked SDI loop-through, keeping a local recorder or confidence monitor fed without a separate distribution amplifier. The demultiplexer answers with dual SDI outputs on every channel — enough to drive a switcher and a multiviewer at once. SMPTE 259M, 344M, 292M, 424M, ST 2081 and ST 2082 are supported, from SD through to 2160p60, so a rig mixing 4K main cameras with HD specials travels the same link without format juggling.
Reach is where the pair earns its keep: up to 20 km on 12G-SDI and up to 40 km at 3G, which puts a far-side stadium camera, a satellite studio or a second building inside the envelope. The RJ-45 gigabit port behaves like an ordinary Cat5 run stretched across the same fibre — camera control, PTZ commands, tally, intercom over IP and file transfers share the strand with the video, so no second cable is pulled for the data side. A secondary optical port (UPG) sits beside the COM connector for cascading, keeping a stacked system on one core as channel counts grow.
Each unit runs on 110–240 VAC through a locking PowerCon inlet and draws under 50 W — modest enough for a mobile rack on generator power. Units leave the shelf unidirectional; bidirectional channel splits and SC or ST fibre terminations can be specified at order time, which matters when the FieldCast Mux + Demux Three 12G Plus has to drop into existing venue infrastructure rather than a fresh install. For OB trucks, arena fit-outs, REMI operations and multi-studio campuses, the return shows up as fewer strands leased, fewer patch points to fail, and a fibre budget that stops capping the camera count.

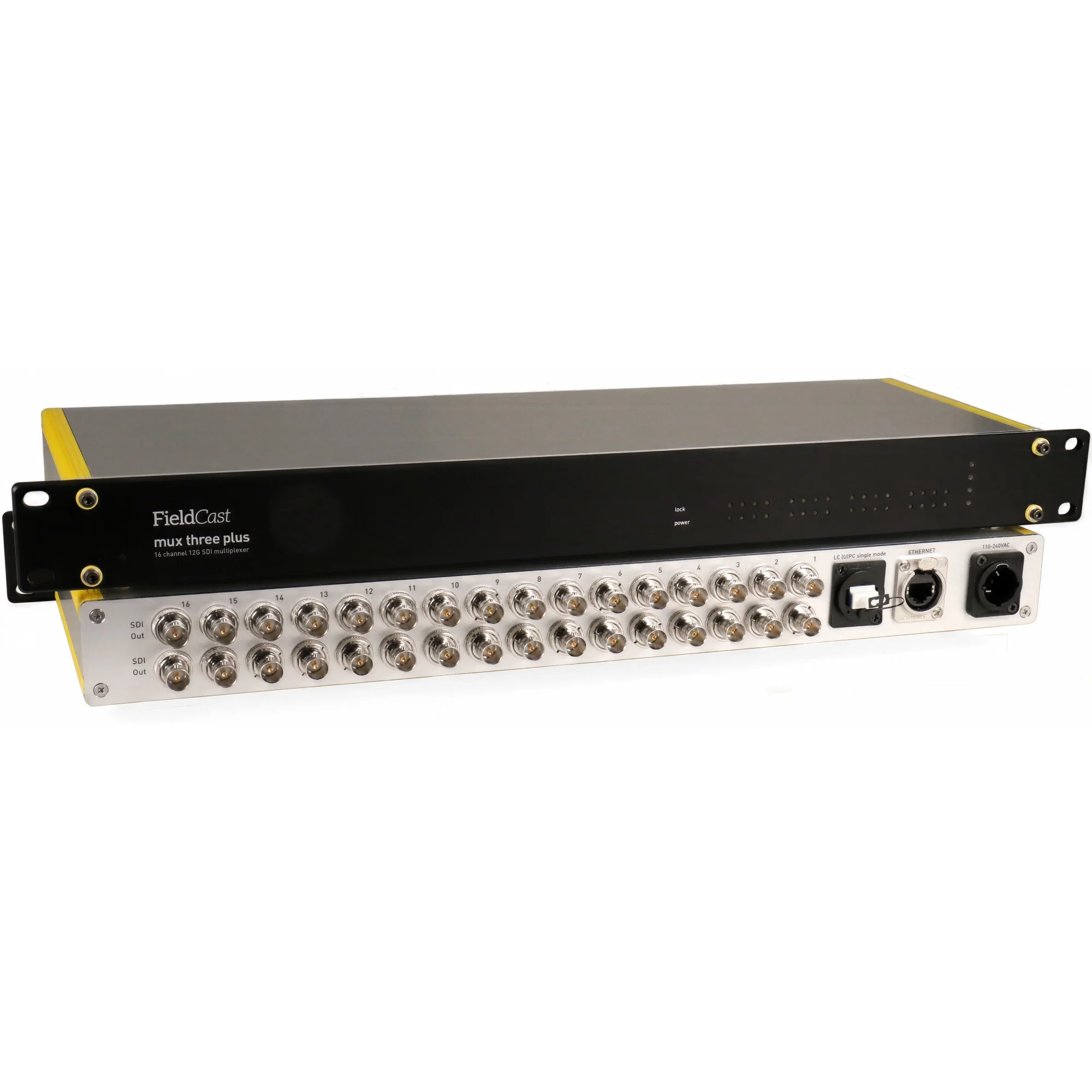

FieldCast Mux + Demux Three 12G Plus 16x 12G-SDI over One Fiber
CO145
Price: €15,299.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Rack the multiplexer at the camera end, put the demultiplexer in the control room, and one strand of single-mode fibre carries the whole rig. That is the working principle of the FieldCast Mux + Demux Three 12G Plus, a matched 1RU pair that moves 16 independent 12G-SDI channels alongside full-duplex 1 Gb Ethernet over a single 9/125 optical core. Thin-film xWDM does the combining. Nothing is compressed, nothing re-processed, so what leaves the camera position reaches the gallery bit for bit.
On the multiplexer, sixteen 75 Ω BNC inputs each carry a reclocked SDI loop-through, keeping a local recorder or confidence monitor fed without a separate distribution amplifier. The demultiplexer answers with dual SDI outputs on every channel — enough to drive a switcher and a multiviewer at once. SMPTE 259M, 344M, 292M, 424M, ST 2081 and ST 2082 are supported, from SD through to 2160p60, so a rig mixing 4K main cameras with HD specials travels the same link without format juggling.
Reach is where the pair earns its keep: up to 20 km on 12G-SDI and up to 40 km at 3G, which puts a far-side stadium camera, a satellite studio or a second building inside the envelope. The RJ-45 gigabit port behaves like an ordinary Cat5 run stretched across the same fibre — camera control, PTZ commands, tally, intercom over IP and file transfers share the strand with the video, so no second cable is pulled for the data side. A secondary optical port (UPG) sits beside the COM connector for cascading, keeping a stacked system on one core as channel counts grow.
Each unit runs on 110–240 VAC through a locking PowerCon inlet and draws under 50 W — modest enough for a mobile rack on generator power. Units leave the shelf unidirectional; bidirectional channel splits and SC or ST fibre terminations can be specified at order time, which matters when the FieldCast Mux + Demux Three 12G Plus has to drop into existing venue infrastructure rather than a fresh install. For OB trucks, arena fit-outs, REMI operations and multi-studio campuses, the return shows up as fewer strands leased, fewer patch points to fail, and a fibre budget that stops capping the camera count.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
16 channels of 12G SDI video plus Ethernet over one fiber core
Mux Three Plus 12G and its twin brother Demux Three Plus 12G, as a pair, allow you to transport sixteen independent channels of 12G SDI video plus full duplex 1 Gb Ethernet over just one fiber optic channel.
Is your infrastructure such that you only have access to one single mode (simplex) fiber optic connection? Mux Three Plus and Demux Three Plus can help you to get this all done, plain and simple.
Or else, do you want to roll out a minimum number of cables in live event environments? Just use Mux Three and Demux Three, multiplex up to sixteen channels of video plus Ethernet, and get all data from A to B using only one strand of fiber!
No hidden processing involved! All 12G video signals preserve full data integrity! What goes in comes out, unchanged.
And the Ethernet connection simply behaves like a Cat5 cable connecting your hubs!
Transport over long distance
The mux/demux pair can transport video over distances of up to 20 km/12 mi for 12G SDI and up to 40 km/24 mi for 3G SDI. The mux is typically placed at the camera side, and the demux at the control room side.
16 independent video channels with loop-through and dual output
The set supports 16 independent SDI video channels. The SDI inputs have a reclocked loop-through. The SDI outputs are dual. Hence, monitoring on both sides (input and output) is possible. The SDI input is typically connected to the camera’s SDI output. The SDI output is generally connected to the SDI input of a monitor or switcher.
16 independent bidirectional Ethernet channels
Both the Mux and Demux units contain one full-duplex 1Gb Ethernet port. The 1Gb Ethernet port is typically used to transport camera control data between the camera and the camera controller or switcher. Connect the cameras’ Ethernet ports to a hub, then connect the hub to the Mux’s Ethernet port. On the other side, connect the Demux’s Ethernet port to the camera controller/switcher’s Ethernet port, or connect to a hub if more data controller devices are needed, for instance, a camera controller and a laptop.
Transport over one fiber optic core
All information for up to 16 SDI video channels and their corresponding control data, back and forth, runs over a single fiber optic core. This means a simplex fiber-optic cable is sufficient to bridge the distance between mux and demux, saving on fiber-optic cable costs. Alternatively, if you have a fiber optic cable with 2 cores, you have 1 core (or channel) left for other fiber optic transport. You might, for example, use the free fiber optic core to connect to a second, similar Mux/Demux pair to add redundancy to your setup.
No compression
There is no signal processing involved, so there is no compression; full data integrity is guaranteed.
Unidirectional video by default
The standard model is unidirectional, meaning that 16 SDI signals go from mux to demux; it’s denoted as 16i/o, where ‘i’ stands for input and ‘o’ stands for output.
specifications
mux three plus 12G
• 16 channel SDI input to 1 channel fiber optic output multiplexer
• 1RU all aluminum enclosure design
• 9/125 single mode fiber optic technology
• sixteen 12G (11.88Gb) SDI input channels (1), each with SDI loopthrough (2)
• 75ohm BNC connectors for all SDI inputs and loopthrough outputs
• complies with SMPTE 259M, SMPTE 344M, SMPTE 292M, SMPTE 424M, SMPTE ST 2081 and ST 2082
• accepts all SD and HD standards up to 1080p60
• one LC single mode (U)PC fiber optic channel (COM) for all SDI signals and ethernet (3)
• one LC single mode (U)PC fiber optic upgrade (UPG) channel (4)
• Ethernet protocol: IEEE802.3U IEEE802.3z 1000Base-TxFx
• UTP RJ-45 connector for Ethernet, full duplex or half duplex (10)
• black front panel with 2mm. warm white led indicators
• one led indicator for AC power connection (12)
• one led indicator for power (5)
• led indicators for channel module activity (6), input activity (7), TP/LNK (8) and 1Gb (9)
• power consumption < 50W
• proprietary hybrid WDM multiplexing technology for ultra low dispersion
• minimum distance between Mux and Demux unit > 10km. for all wavelengths
• 110-240VAC input with PowerCon connector (11)
• dimensions: 482(W) x 155(D) x 43(H) mm.
• weight: 2090 grams, total weight boxed product: 2200 grams
• comes with manual and local power cord
demux three plus 12G
• 1 channel fiber optic input to 16 channel SDI output demultiplexer
• 1RU all aluminum enclosure design
• 9/125 single mode fiber optic technology
• sixteen 12G (11.88Gb) SDI channels with dual SDI output (1)(2)
• 75ohm BNC connectors for all SDI outputs
• complies with SMPTE 259M, SMPTE 344M, SMPTE 292M, SMPTE 424M, SMPTE ST 2081 and ST 2082
• accepts all SD, HD and UltraHD standards up to 2160p60
• one LC single mode (U)PC fiber optic channel (COM) for all SDI signals and ethernet (3)
• one LC single mode (U)PC fiber optic upgrade (UPG) channel (4)
• Ethernet protocol: IEEE802.3U IEEE802.3z 1000Base-TxFx
• UTP RJ-45 connector for Ethernet, full duplex or half duplex (10)
• black front panel with 2mm. warm white led indicators
• one led indicator for AC power connection (12)
• one led indicator for power (5)
• led indicators for channel module activity (6), input activity (7), TP/LNK (8) and 1Gb (9)
• power consumption < 50W
• proprietary hybrid WDM multiplexing technology for ultra low dispersion
• minimum distance between Mux and Demux unit > 40km. for all wavelengths
• 110-240VAC input with PowerCon connector (11)
• dimensions: 482(W) x 155(D) x 43(H) mm.
• weight: 2100 grams
• comes with manual and local power cord
CO145
Data sheet
- Video Input
- Fiber Optic
SDI - Video Output
- Fiber Optic
SDI - Audio Input
- Fiber Optic Embedded
SDI Embedded - Audio Output
- Fiber Optic Embedded
SDI Embedded - Max Output Resolution
- 4K (4096 x 2160) 50/60 fps
- Built-in scaler
- No
Specific References
- ean13
- 8719325534573
- mpn
- CO145
