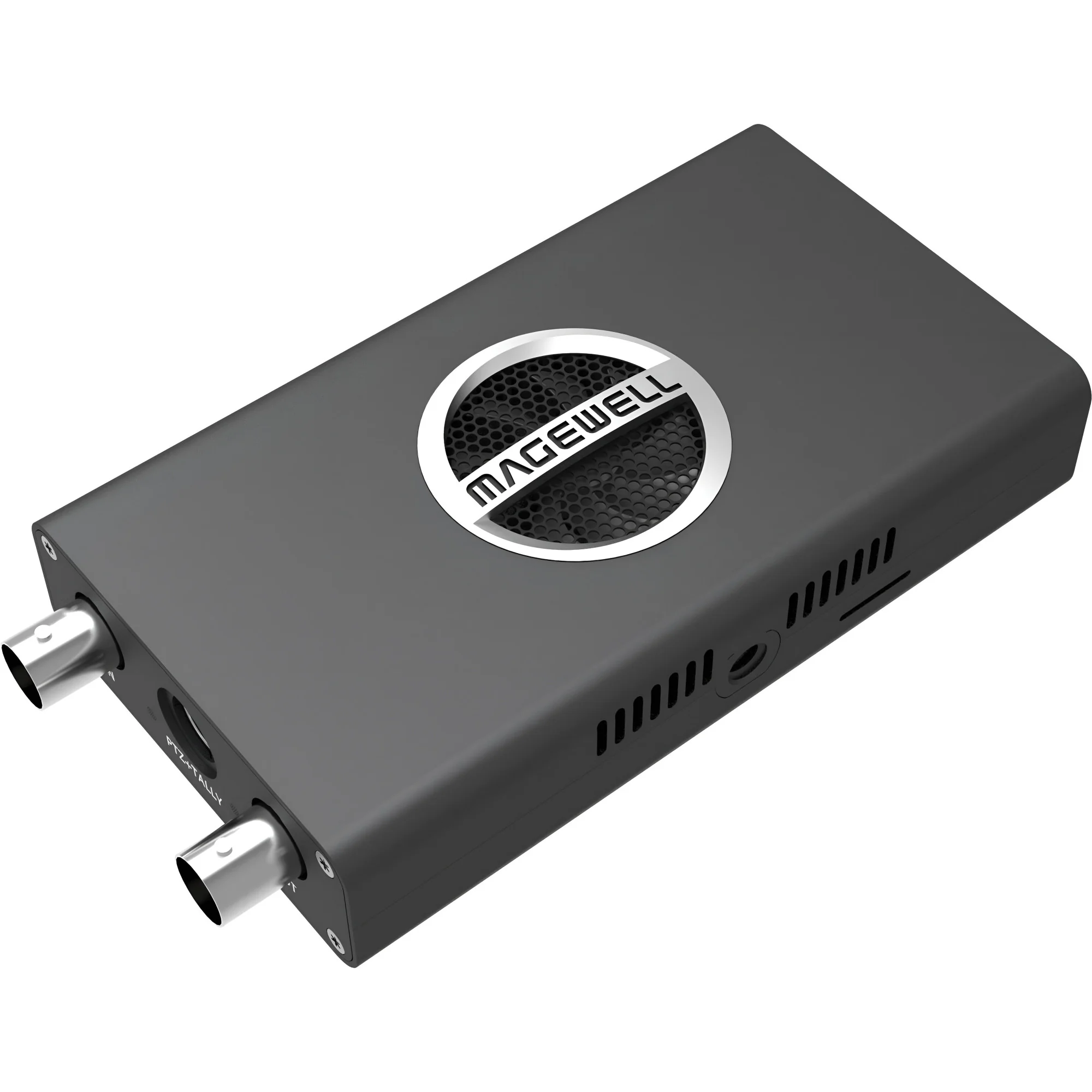

The Pro Convert SDI Plus converts one-channel of 3G-SDI input signal into Full NDI® with loop-through. This encoder supports inputs up to 2048x1080 60fps with 16 mono channels of embedded audio. Connect existing source equipment into NDI-enabled, IP-based media networks. All Magewell encoders are plug and play, which makes them very easy to use. input formats are automatically detected, and network configuration is done through DHCP.

Pro Convert hardware encoders and decoders let you easily and reliably bring baseband video and audio signals into and out of IP production workflows and AV-over-IP networks.

Making your transition to video-over-IP easier and more affordable, the low-latency Pro Convert devices let you connect your existing acquisition, production, presentation, and distribution equipment into flexible, IP based production and streaming workflows. PTZ Camera control is supported over NDI protocol.

- Converts one-channel of 3G-SDI input signal into Full NDI® with loop-through
- Supports up to 2048x1080 60fps input signals
- Connects existing source equipment into NDI-enabled, IP-based media networks
- Plug-and-play ease of use with automatic input format detection and DHCP network configuration
- Supports 16 audio channels

Input & Loop through Features
Max video input & loop through: 2048x1080 60fps. Supported resolutions include:
2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
2048x1080i/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1280x720p 50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)
Support RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth
Support RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support RGB, YUV BT.601/709/2020 video input
16-channel SDI embedded audio inputs
SD/HD/3G-SDI BNC input & loop through
Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards Receive 3G-SDI transmitted up to 200m (656ft)

NDI® Encoding Features
Encoding Full NDI real-time stream at up to 2048x1080 60fps 4:2:2 8-bit
Output the same resolution as input or any custom resolution. Typical outputs include:
2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
2048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/60
1280x720p 50/59.94/60
Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
Encoding 16-channel NDI-embedded audio
Support NDI 5.x

Configuration Management
Register with Magewell Cloud
Remote control via WebUI and Magewell Cloud
Provide comprehensive information regarding the device and signals in real-time
Allow to configure how an input is processed and encoded, including deinterlacing, up/down scaling, frame rate, aspect ratio, as well as the network connection
Update firmware
Support USB RNDIS/ECM
Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs

On-board Control Buttons
16 Position Rotary DIP Switch: set board-index from 0 to F

PTZ Control
Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI
Mini-DIN–8 jack (shared with Tally light)

Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE

USB Interface
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM

Supported Products
NDI Studio Monitor
OBS
vMix
Any other NDI-enabled product

LED Indicators
Status LEDs indicate:
Power supply: on/off
Tally: preview/program
Input signal: locked/unlocked
Loop through signal: on/off

Form Factor
117.5mm (L) x 66.7mm (W) x 23.4mm (H)

Accessories
USB 2.0 A to B cable
5V/2.1A power adaptor
Mini-DIN 8 breakout cable
Tally light
L-bracket

Screw Mounting Hole
1⁄4–20 threaded hole

Power Consumption
5V max current: ~1.5A
Max power consumption: ~7W

Working Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
