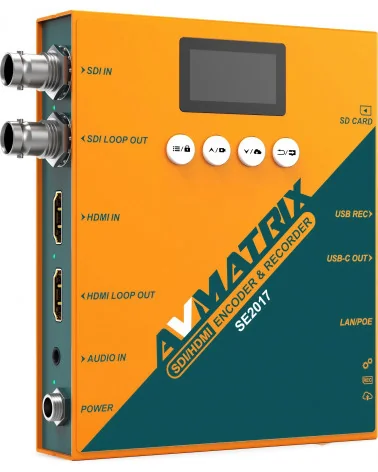

AVMATRIX SE2017 HDMI SDI Streaming Encoder

AVMATRIX SE2017 HDMI SDI Streaming Encoder

Name: AVMATRIX SE2017 HDMI SDI Streaming Encoder
Brand: AVMATRIX
SKU: SE2017
Price: 449.00 EUR
Availability: InStock

MPN: SE2017

Price: €449.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

AVMATRIX SE2017 brings three production tasks into one compact unit: streaming encoder, recorder and USB capture interface. It accepts either HDMI or 3G-SDI as the program source, provides matching loop outputs for confidence monitoring, and adds a 3.5 mm line input for external audio from a mixer, playback device or presentation system. In a church install, lecture hall or mobile webcast kit, that combination lets one operator take a camera feed, add room audio and send the signal onward without another converter in the chain.

For live delivery, the AVMATRIX SE2017 handles resolutions up to 1080p60 and offers selectable encoding bitrates from 2 to 32 Mb/s, with frame-rate options from 24 to 60 fps. RTSP, RTMP, RTP, SRT are available alongside unicast and multicast transport, so the unit fits studio LAN distribution, direct platform streaming and contribution links between rooms or sites. Main and sub streams allow publishing to as many as six destinations, useful for sending a clean feed to a CDN while keeping separate paths for monitoring, backup or a lower-bandwidth endpoint.

Recording is handled internally to SD card or USB storage, with MP4 and TS file options, split-file intervals and overwrite control available in the menu or web interface. That matters on conference stages, sports sidelines and event venues where a safety copy needs to roll locally while the network feed stays live. The USB-C output works as a driver-free capture connection up to 1080p60, so the same unit can feed OBS, vMix, Zoom or Teams on a connected computer without a separate capture box.

Operation stays practical in the field. A built-in OLED screen and hardware buttons expose status and core settings directly on the chassis, while web control gives access to stream, record, video, audio, overlay and network parameters. Users can switch between HDMI and SDI sources, choose CBR or VBR behaviour, set resolution and frame rate, and place logos, text, channel names or date and time overlays on main and sub streams. With Gigabit Ethernet, PoE or 12 V DC powering, and support for SD, HD and Full HD formats, the AVMATRIX SE2017 suits broadcast desks, education capture, worship streaming and compact flypacks that need fewer boxes and faster deployment.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

HDMI & SDI ENCODER & RECORDER
The all-new, all-powerful SE2017 HD audio and video encoder integrates USB and SD card recording network streaming, and USB capture functions

Excellent Recording Via USB disk and SD card
Experience exceptional recording flexibility with this encoder's integrated recorder. Record professional-grade video (up to 1080p60Hz, 32Mbps) onto USB Disk or SD card, eliminating the need for an external setup.

Multi-platform Live Streaming
This encoder adapts to your needs with support for multiple streaming protocols: RTSP, RTMP(S), SRT, HTTP-FLV, unicast, and multicast. Reach your audience on popular platforms like YouTube, Skype, Facebook, and Twitch with easeand enjoy better quality with simpler settings. Share your content with up to 3 platforms simultaneously, using both main and sub-streams.

High Quality Video Capture
The encoder has a USB-C output which works as a webcam for capturing video and audio. No driver required, simply connect to a windows 7/8/10/11/ Linux computer or a Macbook to releaze live stream to various platforms such as Twitch, YouTube, Facebook, Zoom, etc.

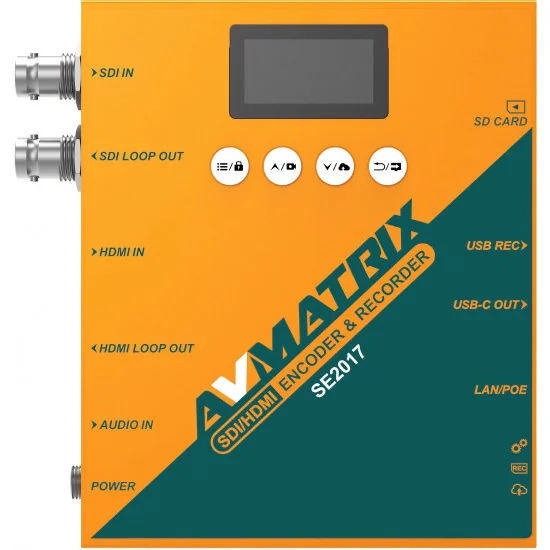

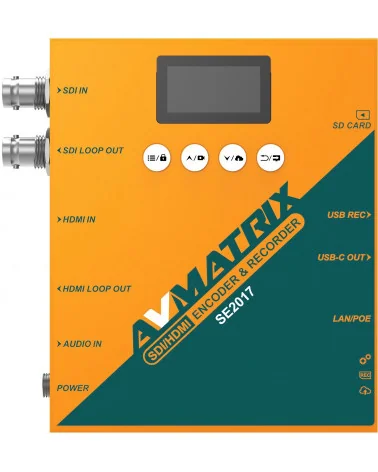

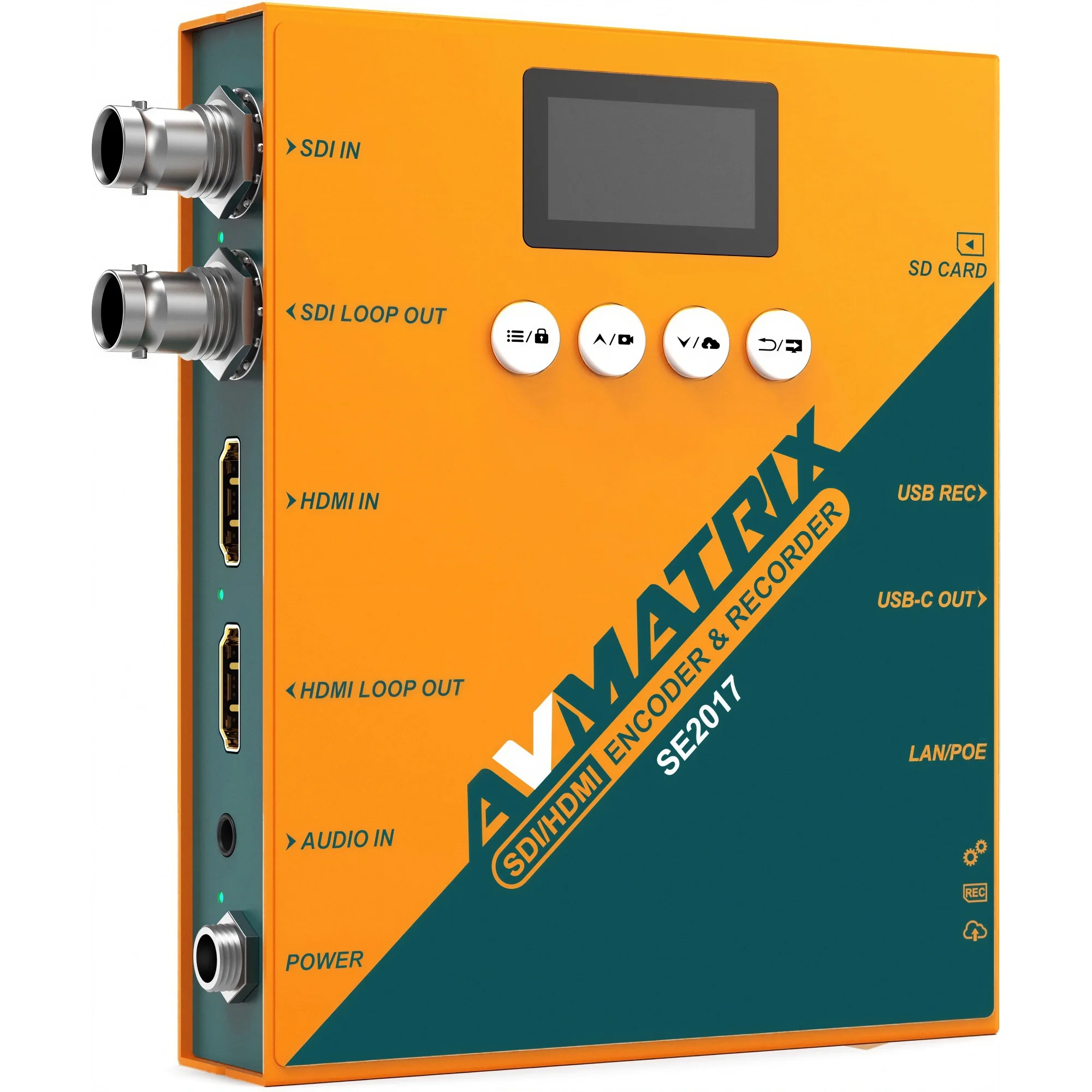

SDI/ HDMI Input and Loopout
Capture high-definition audio and video from both SDI and HDMI sources (1 channel each) simultaneously, while mirroring the captured content to another monitor via the SDI and HDMI loopout outputs (1 channel each). This convenient feature allows you to seamlessly monitor your recording progress or share the live feed with others. There are an external 3.5mm audio available for mixing in your live streaming. It can capture the external audio from equipments like audio mixer, audio media player, etc.

Power-over- Ethernet
The encoder boast versatile power options, supporting both Power over Ethernet (POE) and traditional DC power supply. This dual capability empowers users with flexibility and convenience, allowing them to choose the most suitable power source based on their specific requirements.

Specifications

CONNECTIONS
Video Input: HDMI Type A ×1, SDI ×1
Video Loop Out: HDMI Type A ×1, SDI ×1
Analog Audio In: 3.5mm (line in)x1
Network: RJ-45×1 (100/1000Mbps self-adaptive Ethernet)

RECORD
REC SD Card Format: FAT32/ exFAT/NTFS
REC USB Disk Format: FAT32/ exFAT/NTFS
REC File Segment: 1/ 5/ 10/ 20/30 / 60/90/120mins
Recording Storage: SD Card/USB Disk

FORMAT
HDMI In Format Support: 1080p 60/ 59.94/ 50/ 30 /29.97 /25 /24 /23.98
1080i 50/ 59.94 /60,
720p 60/ 59.94 /50 /30 /29.97 /25 /24 /23.98
576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
SDI In Format Support: 1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98
1080i 50/ 59.94/60
720p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98
525i59.94, 625i50
USB Capture Out: Up to 1080p 60Hz
Video Encoding Bitrate: 2/ 4/ 8/ 12/ 16/ 24/ 32Mbps
Audio Coding: ACC
Audio Encoding Bitrate: 64/ 128/ 256/ 320Kbps
Encoding Resolution: Main Stream: 1920×1080, 1280×720, 720x480 , Sub Stream: 1280×720, 720×480
Encoding Frame Rate: 24/ 25/ 30/ 50/ 60fps

PROTOCOL
Network Protocols: RTSP, RTMP, SRT
Configuration Management: Web configuration, Remote upgrade

OTHERS
Power: DC 12V 0.38A, 4.5W
Temperature: Working: -20°C~60°C, Storage: -30°C~70°C
Dimension (LWD): 104x125.5x24.5mm
Weight: Net weight: 550g, Gross weight: 905g
