Magewell Ultra Encode HDMI Plus Modator Module

Magewell Ultra Encode HDMI Plus Modator Module

Name: Magewell Ultra Encode HDMI Plus Modator Module
Brand: Magewell
SKU: B31510000
Price: 569.00 EUR
Availability: InStock

MPN: B31510000

Price: €569.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

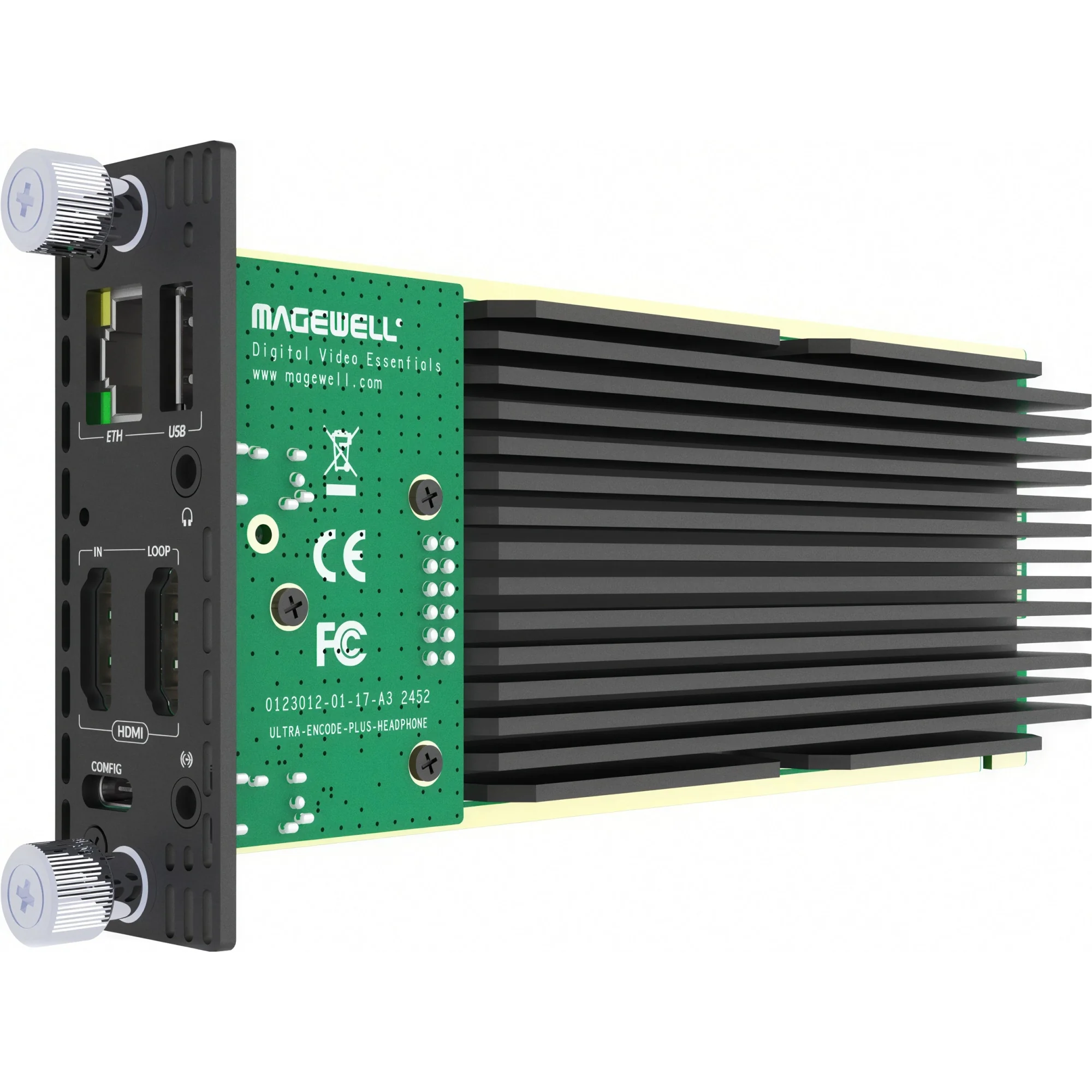

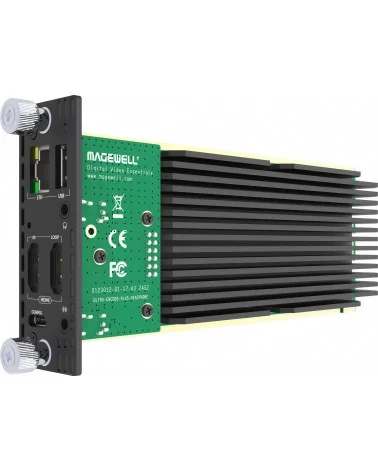

The Magewell Ultra Encode HDMI Plus Modator Module brings high-density 4K encoding to rack-based broadcast and streaming environments. This hot-swappable encoder card slots directly into the Magewell Modator 2U chassis, which holds up to ten modules in a single 2U rack frame — a configuration well suited to master control rooms, mobile production trucks, and large-scale live event setups where multiple HDMI sources require simultaneous encoding.

Each module accepts HDMI signals up to 4096×2160 at 30 fps in 4:4:4/4:2:2 colour space, or up to 60 fps in 4:2:0. A dedicated HDMI loop-through passes the incoming feed to downstream monitoring or switching gear without signal loss. Audio capture covers eight channels of 24-bit embedded HDMI audio, supplemented by a 3.5 mm analog line input for external microphones or mixers. The encoder handles both H.264 and H.265 (HEVC) compression with dual-stream output — main and sub stream running concurrently at resolutions up to 4096×2160p30, with bitrates reaching 62 Mbps over NDI HX3 or 32 Mbps through other delivery paths.

Protocol support spans RTMP, RTMPS, SRT (Caller and Listener), RTSP, HLS, TS over UDP/RTP, NDI HX2, NDI HX3, TVU ISSP, and ZIXI. Up to six streaming sessions run in parallel — enough to feed a CDN, a social media platform, and an internal NDI production network from one source at the same time. Built-in recording saves the main or sub stream to USB storage, SD card, or NAS, with automatic file upload to FTP, Google Drive, or Dropbox. Eight schedule slots per session enable timed recordings and stream starts, which proves handy for unattended house-of-worship broadcasts, recurring corporate webcasts, or campus TV playout.

Eight overlay layers per stream allow on-screen graphics such as logos, lower thirds, or timecodes, while NDI tally lights give real-time program (red) and preview (green) feedback during live production. Configuration runs through a browser-based interface reachable from any device on the network, and Magewell Control Hub provides centralized management of every module across a facility. An HTTP-based API lets integrators tie the module into third-party automation and control systems.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Ultra Encode HDMI Plus Module
A hot-swappable module to be installed in Modator Chassis
Supports common encoding formats and streaming protocols, including NDI® HX3
Powerful encoding performance with support for streaming and recording schedule
Centrally manageable via the Modator Chassis and Magewell Control Hub

Ultra Encode HDMI Plus Module Specifications

Input/Output Ports
1 x RJ45 1000Mbps Ethernet port
1 x USB Type-C port for configuration
2 x HDMI ports (1 x Input, 1 x Loop-through)
1 x 3.5mm LINE IN
1 x 3.5mm LINE OUT
1 x USB Type-A
1 x Micro-SD card slot
1 x Modator interface for connecting to Modator 2U (hot-swappable)

Input Features
Video
Supports HDMI 1.4a, DVI-D
Typical resolution/frame rate:
4096x2160/3840x2160 30fps 4:4:4/4:2:2
2560x1440p/2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1280x720p 25/29.97/30/50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)
Color depth: 8/10/12-bit
Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
Custom EDID
Audio
HDMI embedded audio: 8-Channel, 24-bit, 192kHz sample rate
Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate

Encoding Features
Video
Bitrate:
NDI HX3: up to 62.0Mbps, down to 1.5Mbps
Others: up to 32.0Mbps, down to 256kpbs
Dual-stream encoding: main stream and sub stream
Main stream Resolution/frame rate:
4096x2160p/3840x2160p 30/29.97/25/24/23.976/15/10/5
2560x1440p/2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
Sub stream
Supports enabling/disabling sub stream
Resolution/frame rate:
1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
H.264/H.265 (HEVC) Codec:
System timecode or RP–188 standard timecode for SEI Message setting
H.265 (HEVC) SEI message supports carrying interlacing signal mark
Video aspect ratio conversion
Image rotation: 0°, 90°, 180°, 270°
Cropping
Output 3D video
Audio
Encode up to 8 audio streams
Supports up to 8 source channels
Supports mapping between source channels and encoded audio channels
Contains 1 x 8-channel stream and 7 x 2-channel streams
Bitrate: 256/192/128/96/64/48/32/16 kbps
Output source embedded audio and line in through LINE OUT

Live stream
Natively supports streaming to:
Twitch
YouTube (HLS/RTMP), publishing to timeline or a new event and setting “made for kids”.
Facebook, enabling backup stream and publishing to timeline or a new event.
WOWZA over RTMP, adding token and publishing to timeline or a new event.
WOWZA over SRT, setting AES encryption (AES–128/192/256) and publishing to a channel or a new event.
Supports streaming protocols:
RTSP
RTMP/RTMPS
SRT Caller/SRT Listener
NDI HX2/NDI HX3
HLS
TS over UDP/TS over RTP
TVU ISSP
Supports streaming to 6 destinations simultaneously, containing 1 session of RTSP/SRT Listener/HLS/ISSP (if included), or 2 NDI® HX2 sessions (if included)
Supports 1 NDI® HX3 sessions exclusively
Supports specifying a video stream and an audio stream for each streaming session
Supports live stream schedule
Supports NDI 6.1.1

Record
Supports setting and managing recording function and tasks
Supports recording to local storage (128 GB)
Supports format and performance test
Automatically upload files to remote file storage platforms including FTP server, Google Drive, and Dropbox
Supports recording to external USB storage
Supported system format: FAT32, exFAT and NTFS
Supports recording to network attached storage (NFS/CIFS)
Supported system format: NFS, CIFS
Supports loop recording and normal recording
Supports saving recording files in MP4, MOV or TS format
Supports specifying a video stream and an audio stream for each recording task
Supports customizing recording file name and prefix
Supports splitting recording files by time
MP4, MOV: up to 4 hours
TS: no limit
Supports exporting or downloading files through Web UI
Supports recording schedule

Web UI
Register with Magewell Control Hub for remote centralized management
Supports configuring and managing via Web UI
View real-time device status
Preview encoded video
Set input sources
Customize encoding parameters
Manage streaming destinations, start/stop streaming, view streaming status
Manage recording tasks and recorded files
Set up to 8 overlays for each stream, including text, picture, and clock
Update firmware
Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
Provides HTTP APIs

API: Provides APIs for 3rd party control system

Network Connections
Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
4G/5G USB modem (not supplied)
USB Net

Storage
Micro-SD card (supplied): 128GB
USB flash drive (not supplied): FAT32, NTFS, exFAT
NAS (not supplied): NFS/CIFS

Indicators
Input signal:
On: locked
Off: unlocked

Power Consumption: Max power consumption: 13.08W
Physical Specifications: Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H), Weight: ≈307g

Working Environment
Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing

Reference B31510000

External stock. (Shipping 3-14 working days.) 1 Item

Data sheet

Video Input: DVI
HDMI
Video Output: HDMI
Audio Input: HDMI Embedded
Mini Jack 3.5mm
Audio Output: Mini Jack 3.5mm
Max Output Resolution: 4K (4096 x 2160) 25/30 fps
Built-in scaler: Yes
Max bitrate: 62Mbps
Natively supported platforms: Facebook
Twitch
Wowza
YouTube
Streaming protocols: HLS (push)
NDI®|HX2
NDI®|HX 3
RTMP
RTMPS
RTSP
SRT Caller
SRT Listener
TS over RTP
TS over UDP
TVU ISSP
Network Connection: Ethernet
Mobile modem
