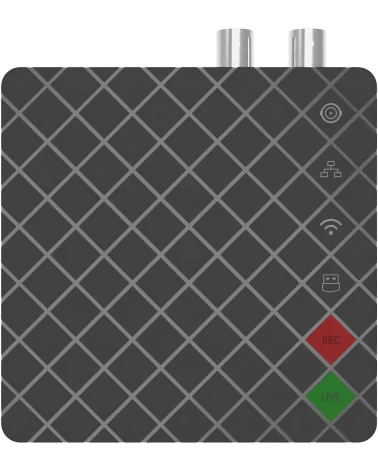

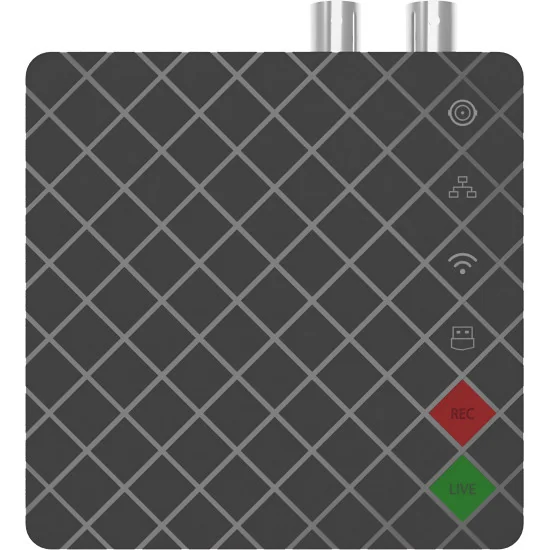

Magewell Ultra Stream SDI (53020) Streaming video Encoder

Magewell Ultra Stream SDI (53020) Streaming video Encoder

Name: Magewell Ultra Stream SDI (53020) Streaming video Encoder
Brand: Magewell
SKU: 530200000
Price: 489.00 EUR
Availability: InStock

MPN: 530200000

Price: €489.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

Magewell Ultra Stream SDI is a compact hardware encoder for productions that need a direct path from an SDI camera feed to streaming platforms and local recording without adding a computer to the signal chain. It accepts SD, HD and 3G-SDI sources up to 2048x1080 at 60 fps, passes the signal further through the loop output, and encodes video up to 1080p60 in H.264 or H.265/HEVC with AAC audio. For OB teams, lecture capture rooms, houses of worship, corporate studios and streaming sets, this means a simpler installation at the venue, fewer points of failure and faster deployment when time on site is limited.

The unit can transmit a main stream and sub stream simultaneously, which is useful when one feed is sent to a CDN while the second goes to a backup destination, confidence feed or lower-bitrate distribution path. Native presets for YouTube, Facebook and Twitch sit alongside RTMP, RTMPS and RTSP, so the encoder also fits private streaming servers, internal networks and managed event platforms. A 3.5 mm microphone input allows voice commentary, interpreter audio or presenter narration to be added directly at the encoder, while the headphone output makes local audio monitoring possible at the rack, podium or control desk.

Ultra Stream SDI can also record at the same time as streaming. Content may be saved to the built-in 32 GB internal storage, a USB flash drive, or a paired mobile device, with options such as auto-recording, timed recording, loop recording and WebUI file download. That suits conference capture, training sessions, legal archiving, sermon recording, backup mastering and quick handoff of files after an event. In mobile production, the USB port can also be used with a compatible 3G/4G modem when wired infrastructure is unavailable.

Configuration is handled from the front-panel controls, a browser-based WebUI, or a mobile app connected over Bluetooth, while network access is available through Gigabit Ethernet or dual-band Wi-Fi. Volume, image parameters, stream profiles, network priority and recording behaviour can be adjusted remotely, which is valuable when the encoder is mounted near the stage, in a flypack or inside a compact studio rack. For professional users who need dependable SDI streaming encoder performance, local recording and low-complexity operation in one box, Magewell Ultra Stream SDI is a practical fit.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

The Magewell ultra stream SDI streams your SDI input to any streaming platform like YouTube, Twitch and Facebook. It is even possible to stream to two platforms simultaneously at bitrates up to 4Mbps.

This stand-alone device supports H.264 or HEVC video encoding at resolutions up to 1080p60 at 8Mbps. Record and save clips to internal storage, a USB flash drive, the associated smartphone or a specified FTP server.

- A dedicated SDI streaming encoder with loop-through
- Live streaming to popular services such as Facebook Live, YouTube or Twitch
- Streams to a custom-specified RTMP or RMTPS server and supports sending RTSP streams
- Records video to the internal storage, a connected USB drive or an associated smartphone
- On-device controls plus intuitive smartphone app and browser-based web UI

Input Features
Max input & loop-through signal: 2048x1080 60fps
Supported SDI inputs include:
2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1280x720p 25/29.97/30/50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)
8/10/12-bit color
Support 16-Channel SDI embedded audio
Input audio from 3.5mm microphone

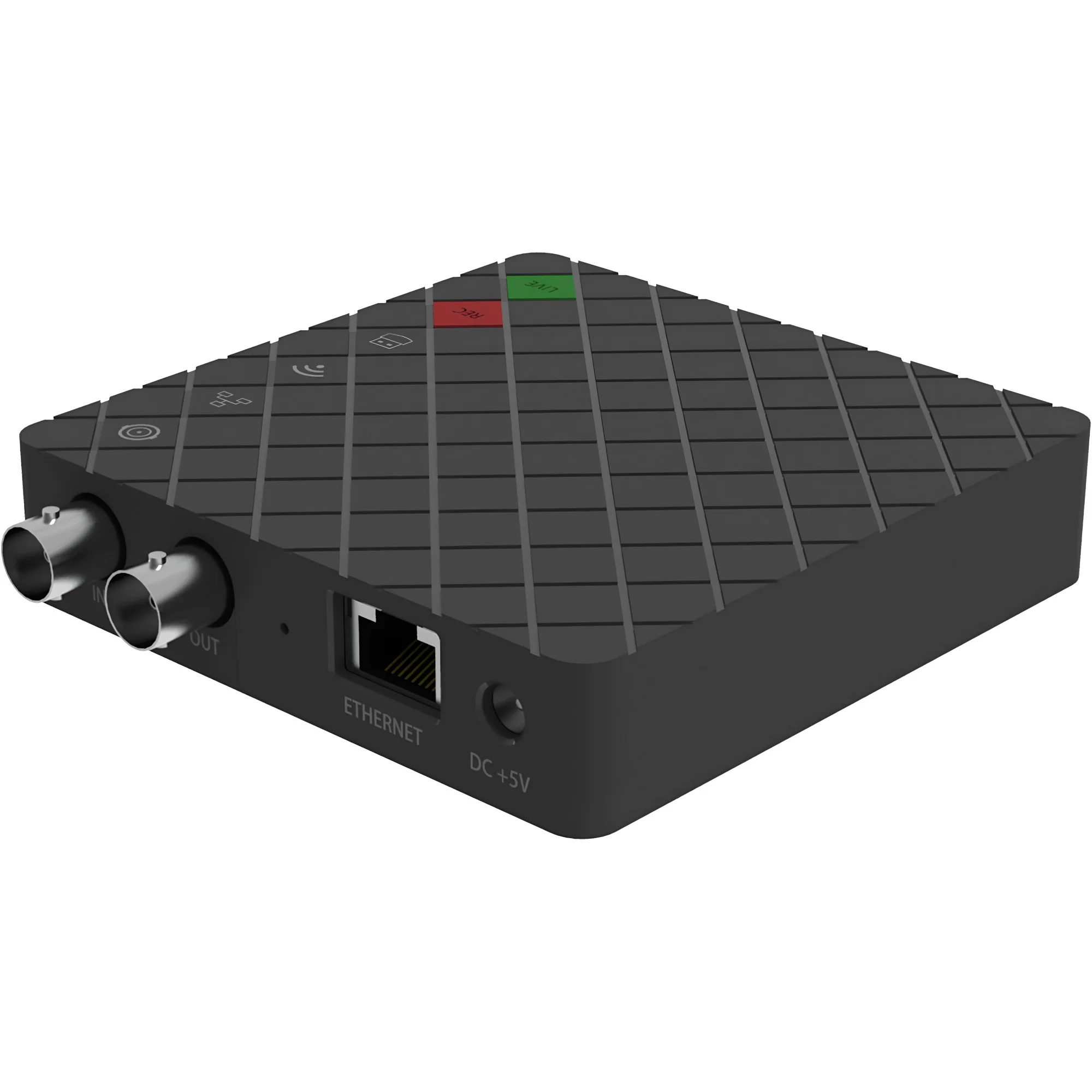

SD/HD/3G BNC input & loopthrough
SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) standards

Encoding Features
Dual-stream encoding: main stream and sub stream
Max bitrate:
Main Stream - 8Mbps
Sub Stream - 2Mbps
Supported resolutions:
HD: 1920x1080, 1600x1200, 1600x900, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768
SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps
H.264/H.265(HEVC) video encoders
Encoding 2-channel AAC at 48kHz, 16-bit
Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
Extracting audio from SDI signal and output through 3.5mm headphone
Encoding videos after de-interlacing

Streaming Features
Natively support streaming to Facebook, Twitch and YouTube
Supported streaming protocols including RTSP/RTMP/RTMPS
Up to 2 streaming sessions simultaneously

Recording Features
Recording to a USB flash drive, internal SD storage and paired mobile device simultaneously
When recording to a USB Flash Drive
support auto-recording, normal recording
recording as MP4 or MOV files
Recording duration can be 5/10/30/40/50/60/90/120 min
Downloading recorded videos via WebUI
When recording to internal SD storage (32GB)
support auto-recording, loop-styled or normal recording
recording as MP4 or MOV files
Recording duration can be 5/10/30/40/50/60/90/120 min
uploading recorded videos to a specified FTP server (FTP over TLS is supported), your Dropbox and Google Drive via WebUI
Downloading recorded videos via WebUI
When recording to paired mobile device
recording as MP4 files
taking still image snapshots during recording
timer recording at 15s, 30s, 1min, 2min, 5min

Configuration Management
Register with 2 Magewell Cloud platforms
Remote control via Application, WebUI and Magewell Cloud
Provide comprehensive information regarding the system information of device and working status in real-time
Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time
Update firmware
WebUI supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs

Network
Wired Ethernet network: 10/100/1000Mbps
Wi-Fi 802.11 a/b/g/n/ac
3G/4G USB mobile broadband Modem (not included)
Bluetooth 4.0 BLE

LED Indicators
Indicate the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
Indicate the working state of the device: startup, recording, streaming, updating

Power Supply and Consumption
DC 5V/2A
Max power consumption: ~7.2 W

Form Factor
94.20mm x 94.20mm x 22.30mm

Accessories
AC adapter

Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
