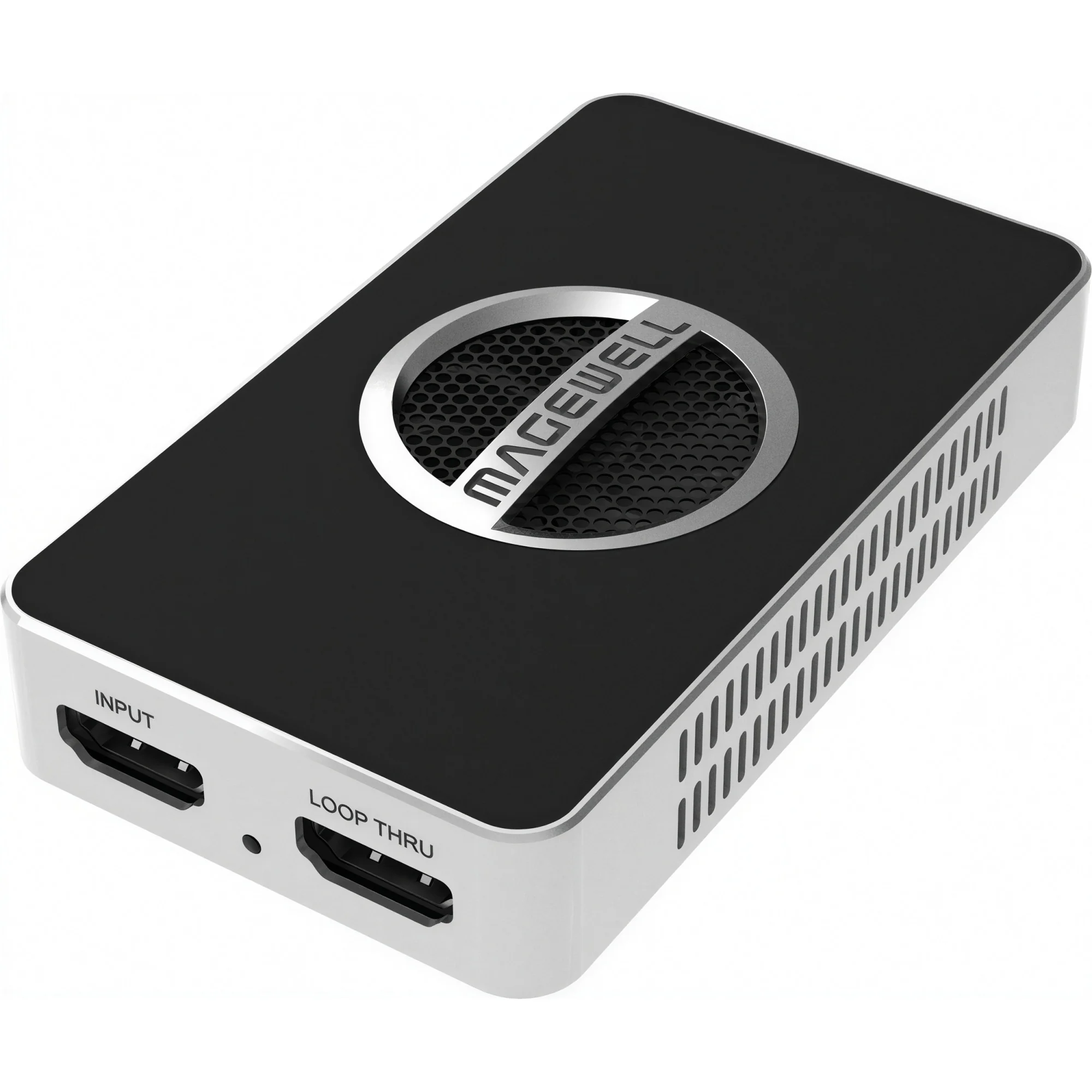

Magewell USB Capture HDMI 4K Pro (32150) Video Grabber

Magewell USB Capture HDMI 4K Pro (32150) Video Grabber

Name: Magewell USB Capture HDMI 4K Pro (32150) Video Grabber
Brand: Magewell
SKU: 321500000
Price: 529.00 EUR
Availability: InStock

MPN: 321500000

Price: €529.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

Magewell USB Capture HDMI 4K Pro is an external capture interface for teams that need to bring a clean HDMI source into software without adding a PCIe card or separate power supply. On a host with USB 3.2 Gen 2x2, it captures up to 4096x2160 at 60 fps with 4:4:4 chroma fidelity, which is relevant when the source carries graphics, presentation text, camera menus or fine coloured detail. The integrated HDMI loop-through keeps the same signal available for a confidence monitor, projector or local technical screen.

The unit accepts HDMI 2.0 with embedded audio, adds a 3.5 mm mic input and provides headphone output for audio extraction or monitoring. FPGA-based processing handles cropping, up/down scaling, de-interlacing, aspect-ratio conversion, frame-rate conversion, flip and mirror. It can also reach very high frame rates in supported lower-resolution modes, up to 240 fps depending on host bandwidth and operating system. Custom EDID and automatic input detection help stabilise setup in flypacks, lecture capture systems, control rooms and mobile streaming kits under time pressure.

Magewell USB Capture HDMI 4K Pro works driver-free with Windows, Linux, macOS and ChromeOS, and integrates with UVC software such as OBS Studio, VLC, Teams, Zoom Rooms, XSplit, QuickTime Player, GStreamer and other DirectShow, V4L2 or AVCaptureSession applications. The MWCapture SDK adds signal status access, capture control and real-time A/V handling, including selected 10-bit HDR implementations through software integration.

For broadcast, esports, webinar studios, medical review, stage screen ingest and camera-to-PC acquisition, this model gives a dependable 4K HDMI to USB capture path with low host CPU load. It also supports continuous 24/7 operation, which matters in permanent installations, long events and unattended recording points where the signal has to stay available for hours or days.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

The Magewell USB Capture HDMI 4K Pro is a one-channel 4Kp60 capture device designed to handle high-quality HDMI input with embedded audio. It is ideal for capturing high-resolution HDMI video signals from sources like gaming consoles, cameras, and production equipment. The device supports loop-through HDMI signals, making it easy to preview the captured video while processing it through your system.

With support for HDMI 2.0 and a resolution of up to 4096x2160 at 60fps (4:4:4), this device ensures that you can capture ultra-high-definition content in stunning detail. The audio input is handled through a 3.5mm microphone jack, with the option to extract the embedded HDMI audio and output it through a headphone jack.

The USB Capture HDMI 4K Pro connects via a USB 3.2 Gen 2x2 interface, providing up to 20Gbps throughput for high-bandwidth video and audio transmission. It is compatible with Windows, Linux, Mac, and Chrome operating systems, and it offers flexible capture options, including frame rates up to 240fps, depending on the host system's capabilities.

This device also integrates the functions of a USB audio card, allowing you to play back audio through the 3.5mm headphone output. It supports continuous 24/7 operation, making it a reliable solution for professional streaming, recording, and production environments.

Features:
Auto-detection of input signal format
Supported Resolution: Up to 4096x2160 at 60fps (4:4:4)
Integrated USB audio card functionality for audio playback via headphones
24/7 continuous operation
SDK support for Windows, Linux, and Mac
LED status indicator for easy monitoring
3-year warranty
Form Factor: 3.86 in (L) x 2.24 in (W) x 0.71 in (H) (98.1 mm x 56.8 mm x 18 mm)

What's in the Box:
USB Capture HDMI 4K Pro
USB 3.2 Type C to Type C cable (up to 20Gbps) x1 (Part number: ELE00053)
USB 3.2 Type C to Type A cable (up to 10Gbps) x1 (Part number: ELE00054)
HDMI Cable x1 (Part number: ACC00090)
Quick Start Guide
Warranty Card

Specifications

Product Identification
Product Family: USB Capture
Model Name: USB Capture HDMI 4K Pro
Host Interface: USB 3.2 Gen 2x2 up to 20 Gbps

Video Input Interfaces
Interface Type: HDMI
Number of Input Ports: 1
Input Standards: HDMI 2.0
Colnnector Type: HDMI Type A
Loopthrough: Yes
Signal Types: Progressive; Interlaced

Video Input Features
Max Resolution / Frame Rate: 4096×2160 at 60fps
Color Format: RGB; YCbCr 4:4:4; YCbCr 4:2:2; YCbCr 4:2:0
Driver Less Signal Detection: Yes

Audio Input
Embedded Audio Support: Yes
External Audio Input Interface: 3.5mm Mic In; 3.5mm Headphone Out
Maximum Audio Channels: 8

Video Processing Features
Scaling: Yes
De-interlacing: Yes
Color Space Conversion: Yes
Frame Rate Conversion: Yes
Aspect Ratio Conversion: Yes
Image Adjustment: Yes

Software
Supported OS: Windows; macOS; Linux
Compatible Software: Zoom Rooms; Microsoft Teams; Skype for Business; Google Hangouts; GoToMeeting; Gstreamer; VLC; OBS Studio; XSplit; QuickTime Player; Any DirectShow/V4L2/AVCaptureSession based software

Operational
Power Consumption: ~7.369W
Max current at 5V: ~1.474A
Operating Temperature Range: 0 to 60 deg C

Form Factor
Length: 98.1mm
Width: 56.8mm
Height: 18mm
