Marshall CV630-BI is a UHD PTZ camera built for broadcast control rooms, corporate AV systems and streaming studios where remote framing has to stay precise over long productions. It uses an 8MP 1/2.5" sensor and supports 4K Ultra HD 3840x2160 up to 50/60 fps, with additional 1080p, 720p and 1080i formats for mixed infrastructures. The integrated 25x optical zoom lens (4.8-120.5 mm) gives a wide view around 68° and then reaches tight speaker or stage close-ups without moving the mounting point, which is useful in auditoriums, council chambers, lecture halls and houses of worship.
In practical system integration, the camera can deliver video simultaneously over HDMI, 3G-SDI, IP and USB 3.0. That allows one unit to feed a switcher, local monitor, conferencing platform and streaming path at the same time. For network transport, H.265/HEVC, H.264 and MJPEG are supported, including triple-stream IP output and common protocols such as RTSP, RTMP/RTMPS, SRT, RTP and multicast. A 3.5 mm stereo audio input can be embedded into the available outputs, which helps in compact production setups where audio and video need to travel together.
PoE+ (IEEE 802.3at) support reduces cabling in ceiling and wall installations by carrying power, control and video through a single Ethernet line in many deployments. The PTZ block provides synchronous motion with 340° pan and 120° tilt, with quiet motor operation suitable for live speech environments. Camera parameters such as iris, shutter, white balance, focus and PTZ speed can be controlled via IR, browser/VMS, or serial control over RS-232 / RS-422, with protocol support for VISCA, VISCA over IP, Pelco-D and ONVIF. A front tally light and support for Free-D / CGI control also make the CV630-BI a strong fit for virtual production spaces, broadcast studios, education capture systems and multi-room streaming installations.

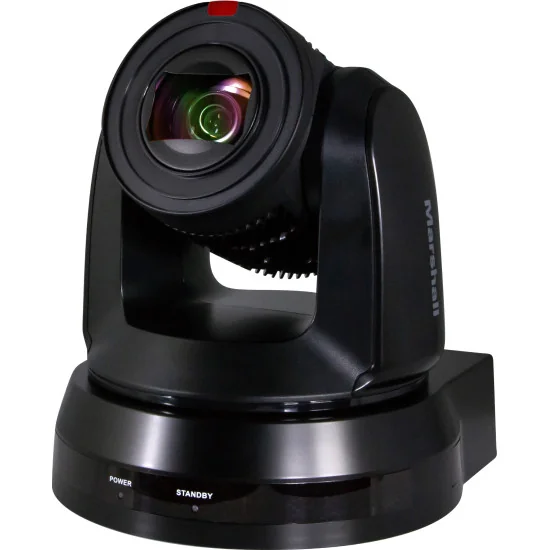

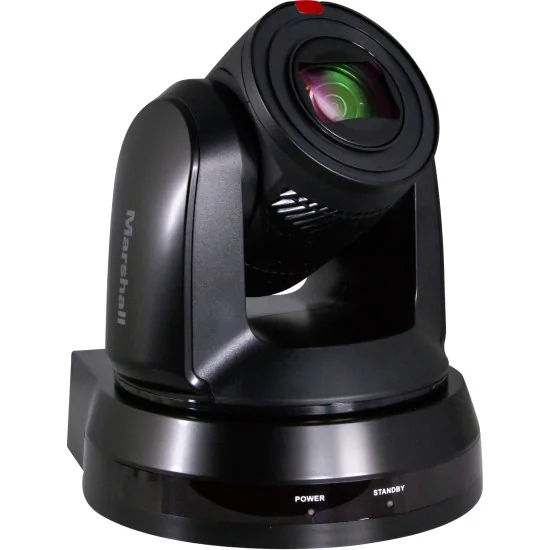

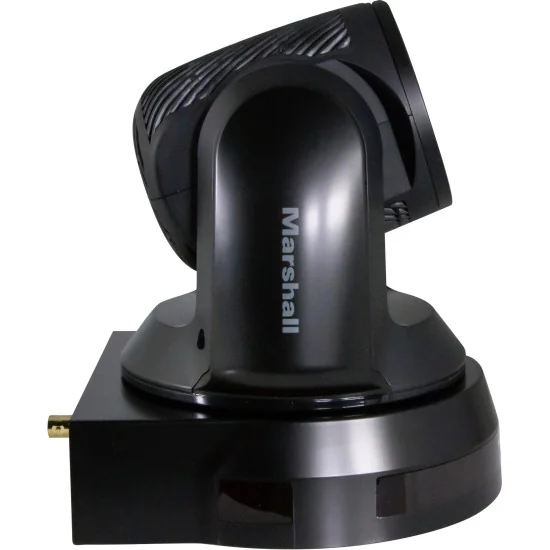

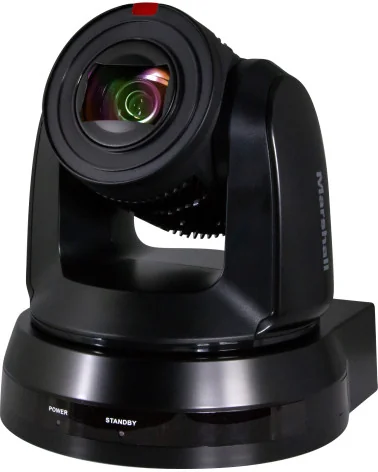

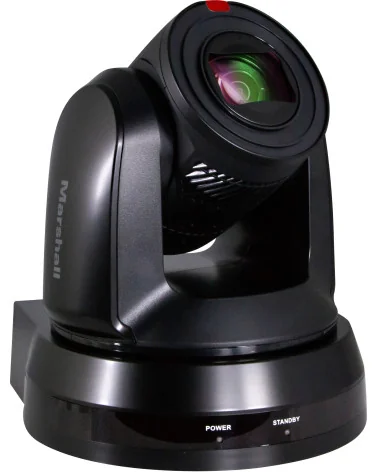

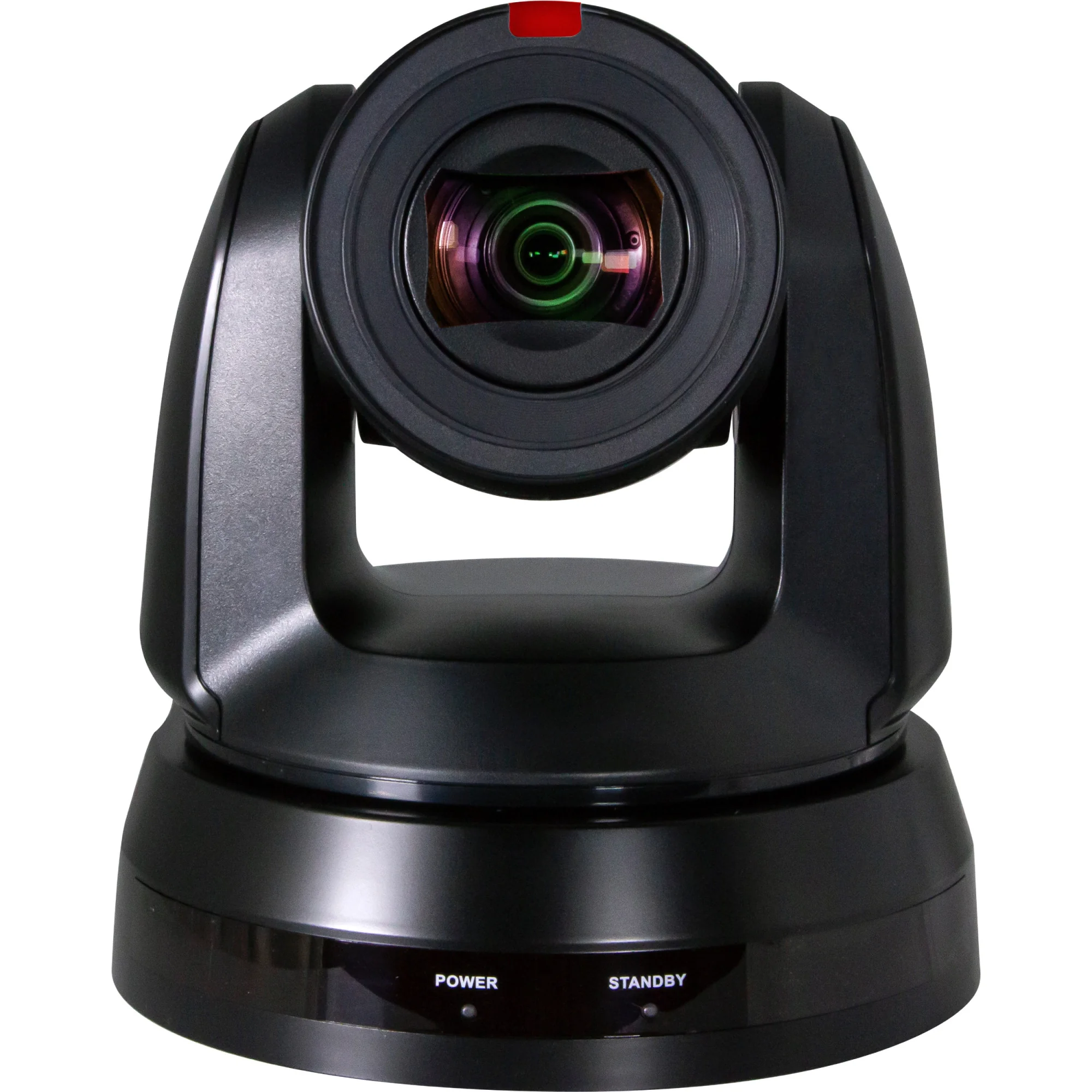

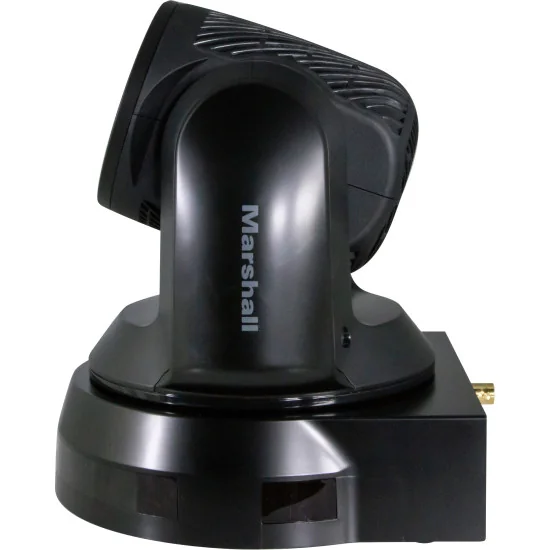

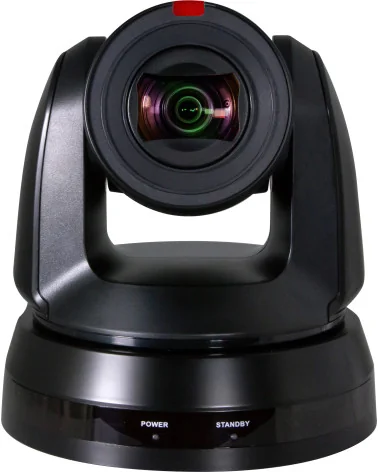

Marshall CV630-BI PTZ Camera
CV630-BI
Price: €2,499.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Marshall CV630-BI is a UHD PTZ camera built for broadcast control rooms, corporate AV systems and streaming studios where remote framing has to stay precise over long productions. It uses an 8MP 1/2.5" sensor and supports 4K Ultra HD 3840x2160 up to 50/60 fps, with additional 1080p, 720p and 1080i formats for mixed infrastructures. The integrated 25x optical zoom lens (4.8-120.5 mm) gives a wide view around 68° and then reaches tight speaker or stage close-ups without moving the mounting point, which is useful in auditoriums, council chambers, lecture halls and houses of worship.
In practical system integration, the camera can deliver video simultaneously over HDMI, 3G-SDI, IP and USB 3.0. That allows one unit to feed a switcher, local monitor, conferencing platform and streaming path at the same time. For network transport, H.265/HEVC, H.264 and MJPEG are supported, including triple-stream IP output and common protocols such as RTSP, RTMP/RTMPS, SRT, RTP and multicast. A 3.5 mm stereo audio input can be embedded into the available outputs, which helps in compact production setups where audio and video need to travel together.
PoE+ (IEEE 802.3at) support reduces cabling in ceiling and wall installations by carrying power, control and video through a single Ethernet line in many deployments. The PTZ block provides synchronous motion with 340° pan and 120° tilt, with quiet motor operation suitable for live speech environments. Camera parameters such as iris, shutter, white balance, focus and PTZ speed can be controlled via IR, browser/VMS, or serial control over RS-232 / RS-422, with protocol support for VISCA, VISCA over IP, Pelco-D and ONVIF. A front tally light and support for Free-D / CGI control also make the CV630-BI a strong fit for virtual production spaces, broadcast studios, education capture systems and multi-room streaming installations.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
The Marshall CV630-BI and CV630-WI Cameras capture a crisp UHD video combined with smooth PTZ camera positioning and 25X optical zoom for a versatile networked video solution.
Key features
- 8MP 1/2.5" sensor
- 25X Optical Zoom (4.6~120.5mm) near 68-degrees AOV at widest
- 3GSDI, HDMI, and IP simultaneous outputs
- Simultaneous pan, tilt, and zoom
- H.265 (HEVC) and H.264 (triple-stream) networked outputs
- IP formats: RTSP, RTMP, RTMPS, MPEG-TS, SRT, Multicast, UDP, DHCP, RTP, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
- 3840x2160p, 1920x1080p, 1280x720p, and 1920x1080i
- Stereo audio input (mic or line level) embedding
- PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
- 340° pan, 120° tilt, and 25X zoom range
- Front tally light
- Free-D protocol support and CGI protocol commands
High Performance Video Output
At its core, the CV630-BI and CV630-WI both pack a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, 1280x720p, 1920x1080i.
Versatile Camera Positioning
The CV630-BI and CV630-WI are equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 25X optical zoom block provides flexibility from 4.6mm to 120.5mm, with a nearly 68-degree angle-of-view at its widest.
Simultaneous Networked and Streaming Outputs
Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.
Flexible Control Options

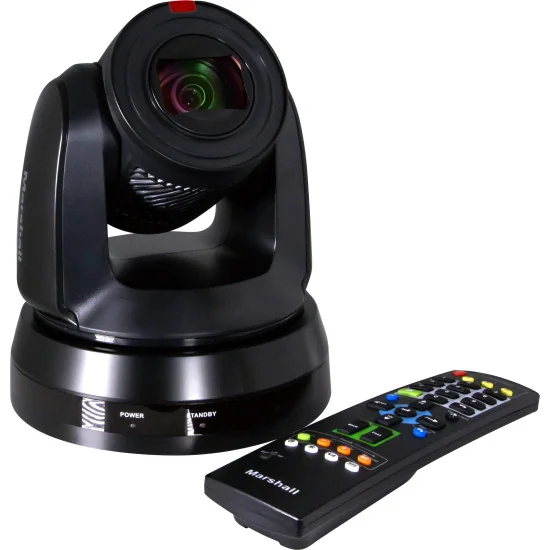

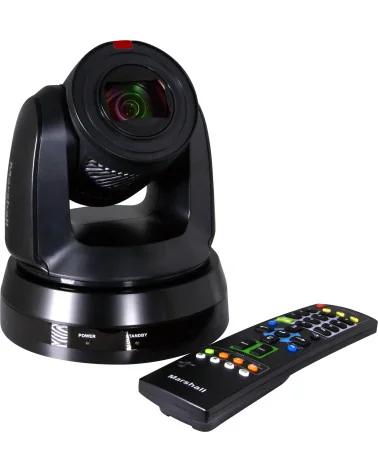

The CV630-BI and CV630-WI offer easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.
Additionally, the CV630-BI and CV630-WI are compatible with Marshall's VS-PTC-300 PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.
Applications:
The CV630 cameras are suitable for use in live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more broadcast and Professional AV applications
CV630-BI / CV630-WI Specifications
Model Name: CV630-BI/WI
Color: Black, White
Sensor: 1/2.5" COMS
Video Format: 2160p : 59.94 / 50 / 29.97 / 25
1080p : 59.94 / 50 / 29.97 / 25
720p : 59.94 / 50 / 29.97 / 25
1080i : 59.94 / 50

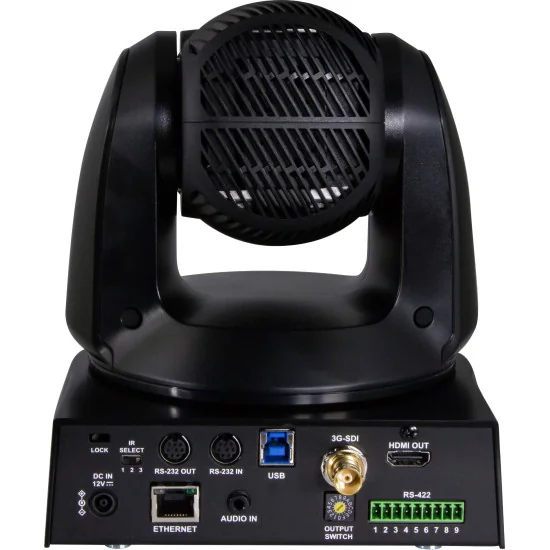

Video Output (HD) Interface: 3G-SDI, HDMI,Ethernet,USB3.0
Optical Zoom: >=25x
Horizontal Viewing Angle: 68
Aperture: 68
Focal Length: 4.8~120.5(mm)
Shutter Speed: 1/1 ~ 1/10,000 sec
Minimum Object Distance: <=1.5m
Focus System: Auto, Manual, Smart AF
Gain Control: Auto, manual
White Balance: Auto, manual
Exposure Control: Auto, manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
Preset Positions: 256

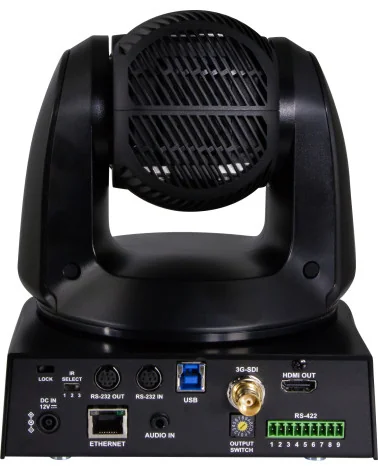

Control Interface: RS-232 / RS-422 / Ethernet / USB 3.0
Control Protocol: VISCA / VISCA IP / PELCO D / ONVIF / UVC/CGI
Tally Light: Yes
IP Protocol: RTSP, RTMP, RTMPS, MPEG-TS, SRT,Multicast, UDP, DHCP, RTP, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
IP Streaming Output
Main : HEVC up to 2160p 59.94/50fps
Second : H.264 up to 1080p 59.94/50fps
Third : H.264 640x360 29.97fps
Webpage Preview: 640x360 15fps
PoE: PoE+ (IEEE802.3at)
Video Compression: H.265/H.264/MJPEG
Audio Input: Line In/MIC In , Phone Jack 3.5mm x1
Audio Output: Ethernet / 3G-SDI / HDMI / USB 3.0
IR Receiver: Yes
IR Remote Control: Yes
Power Consumption: PoE : 18W DC In : 16W
Weight: 1.9kg
Dimensions: 174x186x190
Operating Temperature: 0 °C to 40 °C
Storage Temperature: -20 to 60 °C
CV630-BI
Data sheet
- Video Output
- HDMI
RJ-45 (IP)
SDI
USB - Audio Input
- Mini Jack 3.5mm
- Audio Output
- HDMI Embedded
RJ-45
SDI Embedded
USB - Max Output Resolution
- 4K UltraHD (3840 x 2160) 50/60 fps
- Control protocol for PTZ cameras
- ONVIF
PELCO-D
RS-232
RS-422
UVC
VISCA
VISCA IP - Network Connection
- Ethernet
- Sensor Size
- 1/2.5"
- Optical Zoom
- 25x
- PoE Technology
- Yes
- Auto-Tracking
- No
- Tally Light
- Yes
Specific References
- ean13
- 801813232080
- mpn
- CV630-BI
