Canon RC-IP300 PTZ Controller
€1,879.00
Production houses that have grown past the single-operator stage need a desk that scales with the camera count without complicating the gallery....
Marshall VS-PTC-300 is a professional PTZ control panel for multi-camera productions that combine legacy serial PTZ units and modern IP/NDI systems. It supports VISCA, VISCA over IP, ONVIF and NDI, with cross-protocol control over RS-232, RS-422/485 and IP. In practical studio use, this means one operator can switch between different camera families from a single controller without changing operating habits. Marshall specifies control of up to 7 cameras via RS-232, 14 via RS-422, and up to 255 via IP/NDI, which fits installations ranging from compact streaming rooms to larger education, worship and broadcast environments.
The hardware layout is built for fast manual camera operation during live production. A 4-axis joystick handles pan/tilt/zoom movement, while the separate zoom rocker helps with smoother framing during interviews, stage coverage or live music. Dedicated knobs and buttons provide direct access to focus, iris, shutter/gain, white balance, exposure modes, and pan/tilt or zoom speed settings, so operators can react quickly when lighting or subject movement changes. The backlit keypad supports quick camera calling and preset recall, and the built-in 3-inch LCD is used for menu navigation and local monitoring functions.
Marshall VS-PTC-300 PTZ camera controller also includes features that matter in day-to-day production setups: automatic IP/NDI camera discovery, manual device entry for fixed-address networks, tally modes (including on-air/contact options), assignable function keys, and preset memory for repeatable shots. Marshall lists support for up to 256 camera presets, which is especially useful for lecture capture, houses of worship, sports venues, podcast studios and corporate event stages where shot positions must be recalled instantly. The LCD preview path supports RTSP and NDI-compatible streams, helping operators verify framing directly from the controller.
Power can be supplied either from the included 12 V adapter or via PoE on the Ethernet port, which simplifies rack and desk integration in permanent installs. For technical teams standardizing control across mixed PTZ fleets, the VS-PTC-300 is a strong fit when reliable tactile control, protocol compatibility and rapid camera recall are more important than touch-based interfaces.

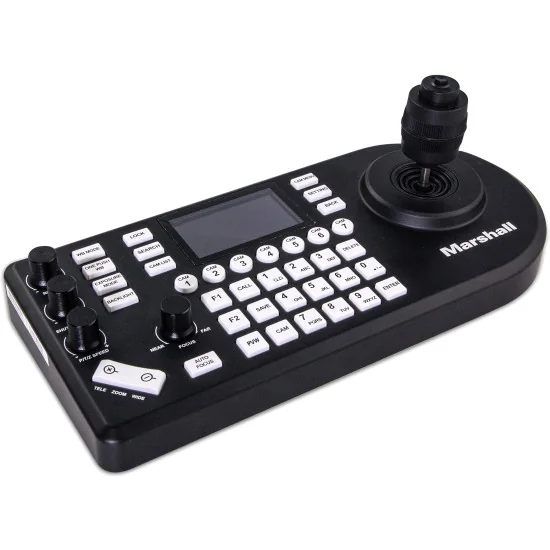

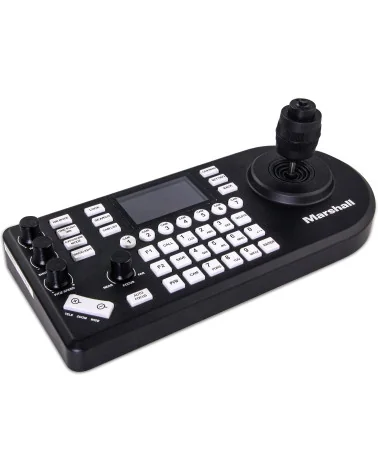

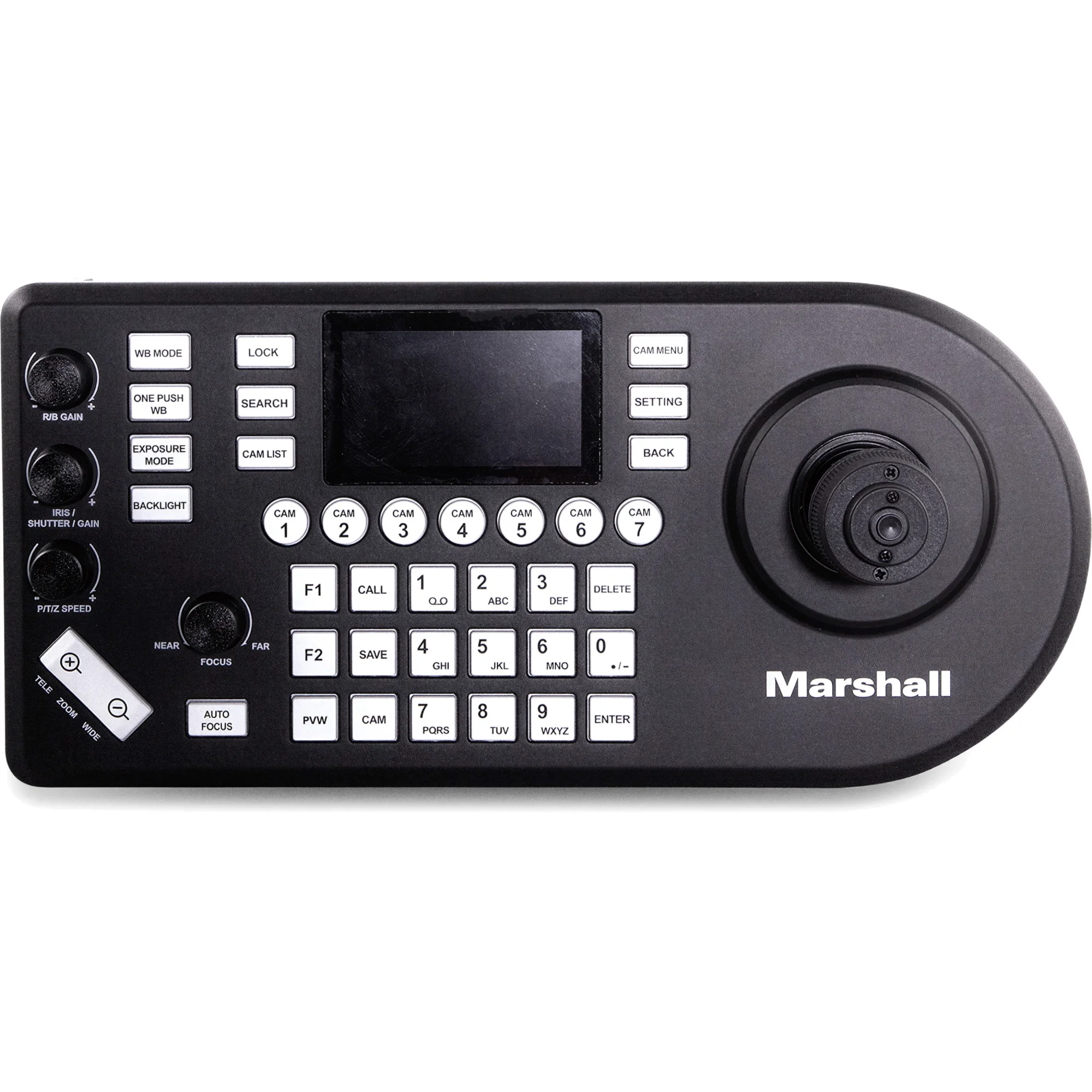

Marshall VS-PTC-300 PTZ Camera Controller
VS-PTC-300
Price: €1,149.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Marshall VS-PTC-300 is a professional PTZ control panel for multi-camera productions that combine legacy serial PTZ units and modern IP/NDI systems. It supports VISCA, VISCA over IP, ONVIF and NDI, with cross-protocol control over RS-232, RS-422/485 and IP. In practical studio use, this means one operator can switch between different camera families from a single controller without changing operating habits. Marshall specifies control of up to 7 cameras via RS-232, 14 via RS-422, and up to 255 via IP/NDI, which fits installations ranging from compact streaming rooms to larger education, worship and broadcast environments.
The hardware layout is built for fast manual camera operation during live production. A 4-axis joystick handles pan/tilt/zoom movement, while the separate zoom rocker helps with smoother framing during interviews, stage coverage or live music. Dedicated knobs and buttons provide direct access to focus, iris, shutter/gain, white balance, exposure modes, and pan/tilt or zoom speed settings, so operators can react quickly when lighting or subject movement changes. The backlit keypad supports quick camera calling and preset recall, and the built-in 3-inch LCD is used for menu navigation and local monitoring functions.
Marshall VS-PTC-300 PTZ camera controller also includes features that matter in day-to-day production setups: automatic IP/NDI camera discovery, manual device entry for fixed-address networks, tally modes (including on-air/contact options), assignable function keys, and preset memory for repeatable shots. Marshall lists support for up to 256 camera presets, which is especially useful for lecture capture, houses of worship, sports venues, podcast studios and corporate event stages where shot positions must be recalled instantly. The LCD preview path supports RTSP and NDI-compatible streams, helping operators verify framing directly from the controller.
Power can be supplied either from the included 12 V adapter or via PoE on the Ethernet port, which simplifies rack and desk integration in permanent installs. For technical teams standardizing control across mixed PTZ fleets, the VS-PTC-300 is a strong fit when reliable tactile control, protocol compatibility and rapid camera recall are more important than touch-based interfaces.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
PTZ Camera IP/ NDI® Controller
Key features:
- Simultaneously control via IP, NDI, RS232/RS422 or IP, USB, RS232/RS422
- Protocol support: VISCA, PELCO D/P, ONVIF, NDI, and VISCA over IP
- High-quality joystick allows for effortless, one-handed pan, tilt, and zoom adjustments
- Tactile feel with professional rocker/seesaw switch for zoom control
- Automatically search available IP/NDI cameras in a network and assign IP addresses easily
- Supports RTSP and NDI Preview on 3" LCD Screen
- Tally Indicator: Includes Normal Tally/On-Air Tally/Contact Modes
- Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
- Multi-color key/button illumination indicator directs operation to specific functions
- Control firmware upgrade available via USB or product webpage
The Marshall VS-PTC-300 PTZ NDI® Camera Controller is designed to operate seamlessly across multiple camera protocols on a single network. Used for live event production and content creation, the VS-PTC-300 offers detailed operation through a high-quality PTZ joystick, professional zoom rocker, and individual fine-tune adjustment knobs for iris, white balance, exposure, red/blue, shutter speed, focus, pan/tilt speed, and zoom speed. The VS-PTC-300 offers cross protocol mix-control on one controller operating RS232/RS422/RS485 and IP, as well as ONVIF, and VISCA over IP. The VS-PTC-300 can setup 7 cameras via RS232, 14 cameras via RS422, and 255 cameras via NDI/IP; all selectable through a single controller. Easy NDI®/IP camera discovery function automatically searches for all available NDI®/IP cameras on a network.
The VS-PTC-300 can store up to 6 selectable ASSIGN function keys and save up to 256 camera presets with memory of image setting parameters. Dedicated knobs and control buttons simplify direct access to frequently used functions without needing to use on-camera menus.
VS-PTC-300 applications:
Broadcast Television, House of Worship, Education, ProAV, Live Sports, Live Music, any PTZ installations, all NDI® Network Setups
VS-PTC-300 specifications
Model Name: VS-PTC-300
Color: Black
Display: 3" LCD 360x640
Keypad with backlight: Yes
Joystick: 4-axis (Left/Right, Up /Down, Zoom In/Zoom Out)
Zoom Control: x1 (Zoom Seesaw Lever)
Speed Control: x1 (1 Knob), Pan/Tilt, Zoom
Focus Control: x1 (1 Knob)
Auto Focus Button: x1 Switch Mode
R/B Gain Control: x1 (1 Knob)
WB Mode Button: x1
On Push WB Button: x1
IRIS/Shutter/G Control: x1 (1 Knob)
Exposure Mode Button: x1
Backlight Button: x1
Assign Button: x2: Function: Home Power Mute Picture Freeze P/T Reset Picture Flip Picture LR_Reverse Tracking Mode Framing Mode Auto Tracking On Auto Tracking Off Auto Framing On Auto Framing Off Custom Commands
Preview Button: x1
Camera Button: x7
Search: x1
Cam List: x1
Cam Menu: x1
Preset Call: x1
Preset Save: x1
Tally Light: No actual button. It's the function in the menu.
Lock: x1
Numbers: x10 0~9
Enter: x1 For Keyboard control
Delete: x1 For Keyboard control
Camera Control: VISCA Over IP/ONVIF / NDI VISCA Address : 1~7, NDI preset limit: 100 sets
IP Stream: RTSP/ ONVIF/ NDI|HX2/ NDI|HX3, For Preview
Protocol: VISCA/ VISCA Over IP/ ONVIF/ NDI
Baud Rate: 2400/4800/9600/38400/115200 bps, For RS232/RS422
DC12V In: x1 (EIAJ-04)
RS-232 Out: RJ45 x1
RS-422: RJ45 x1
Ethernet: RJ45 x1 (PoE)
Storage temperature: -20 to 60 °C
Operating temperature: 0 °C to 40 °C
VS-PTC-300
1 Item
Data sheet
- Interface
- Ethernet
- Control protocol for PTZ cameras
- NDI
ONVIF
PELCO-D
PELCO-P
RS-232
RS-422
VISCA
VISCA IP - Network Connection
- Ethernet
- Device type
- PTZ Camera Controller
- Tally Light
- Yes
Specific References
- ean13
- 801813232912
- mpn
- VS-PTC-300
