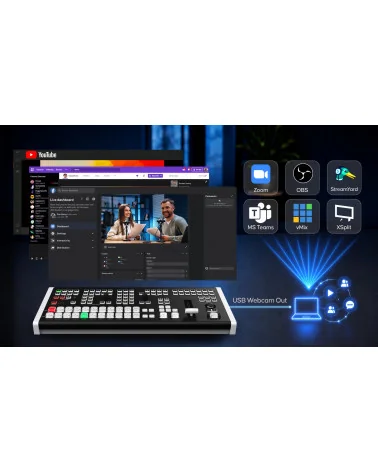

Distribution is handled internally too. A hardware encoder sends as many as three RTMP live streams at once, at 1080p and up to 20 Mbps over Ethernet – YouTube, a corporate CDN and the client's own platform in parallel, with no streaming PC. Over USB-C the programme appears as a UVC webcam at 1080p60 in vMix, OBS or Zoom. Two HDMI outputs and two SDI buses (four BNC connectors, each bus doubled) can carry any input, PGM, PVW, clean feed, MultiSource or Multiview. The Multiview itself shows PGM/PVW plus 7 or 15 assignable windows, with audio meters and red/green tally borders. Assignments change mid-show without disturbing the recorded or streamed programme, so one unit feeds an LED wall, a stage confidence monitor and an external recorder.

Sports and event producers get tools that normally need a second device. A DDR buffer continuously records a chosen input, and one key in the PLAYER section replays the last moments at 0.5×, 0.33× or 0.25× through Player 2. Player 1 meanwhile holds a stinger transition with alpha, so a branded replay wipe into slow motion runs from the same panel. For interviews and video podcasts, a 4K signal on HDMI input 1 can be cropped into three independent 1080p shots – 4K ROI virtual cameras – giving a wide and two close-ups from a single locked-off camera.

Four upstream keyers (luma, chroma, pattern, PiP), two downstream keyers, two alpha-capable still generators and a five-layer MultiSource compositor handle green screen, lower thirds, logos, scoreboards and talk-show split layouts. Transitions include cut, mix, wipe, dip and stinger. Graphics rendered in vMix, ProPresenter, UNO or H2R arrive with transparency over one HDMI cable through GoStream Overlay, which saves both a fill/key interface and an input.

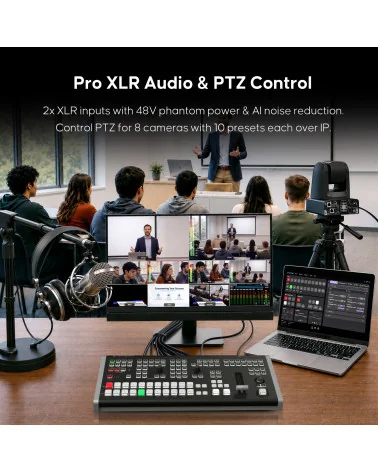

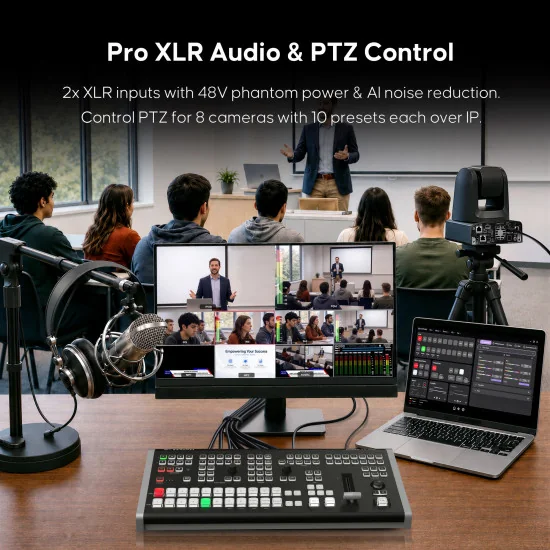

Audio gets the same attention. Two XLR inputs switch between mic and line level and supply 48 V phantom power for condenser microphones; the 3.5 mm TRS input can be split into two mono mic channels, giving four independent mics alongside embedded camera audio in a 16-channel mixer. Each mic channel gets a compressor, three-band EQ, a gate and AI-based suppression of air-conditioning and room noise, plus adjustable delay to line analogue sound up with picture; a limiter guards the programme bus. With audio-follow-video or AI voice-detected auto switching, a single operator can run a panel discussion in which the shot follows whoever is speaking.

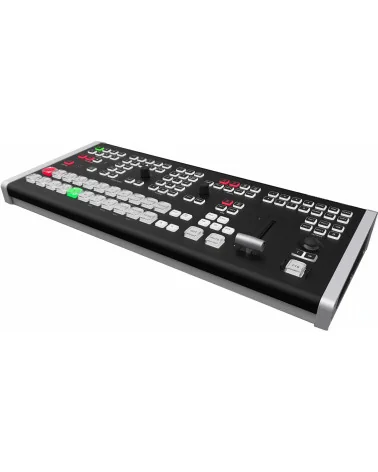

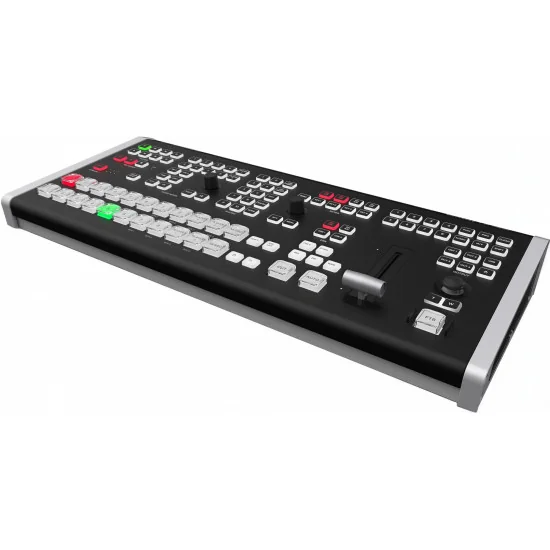

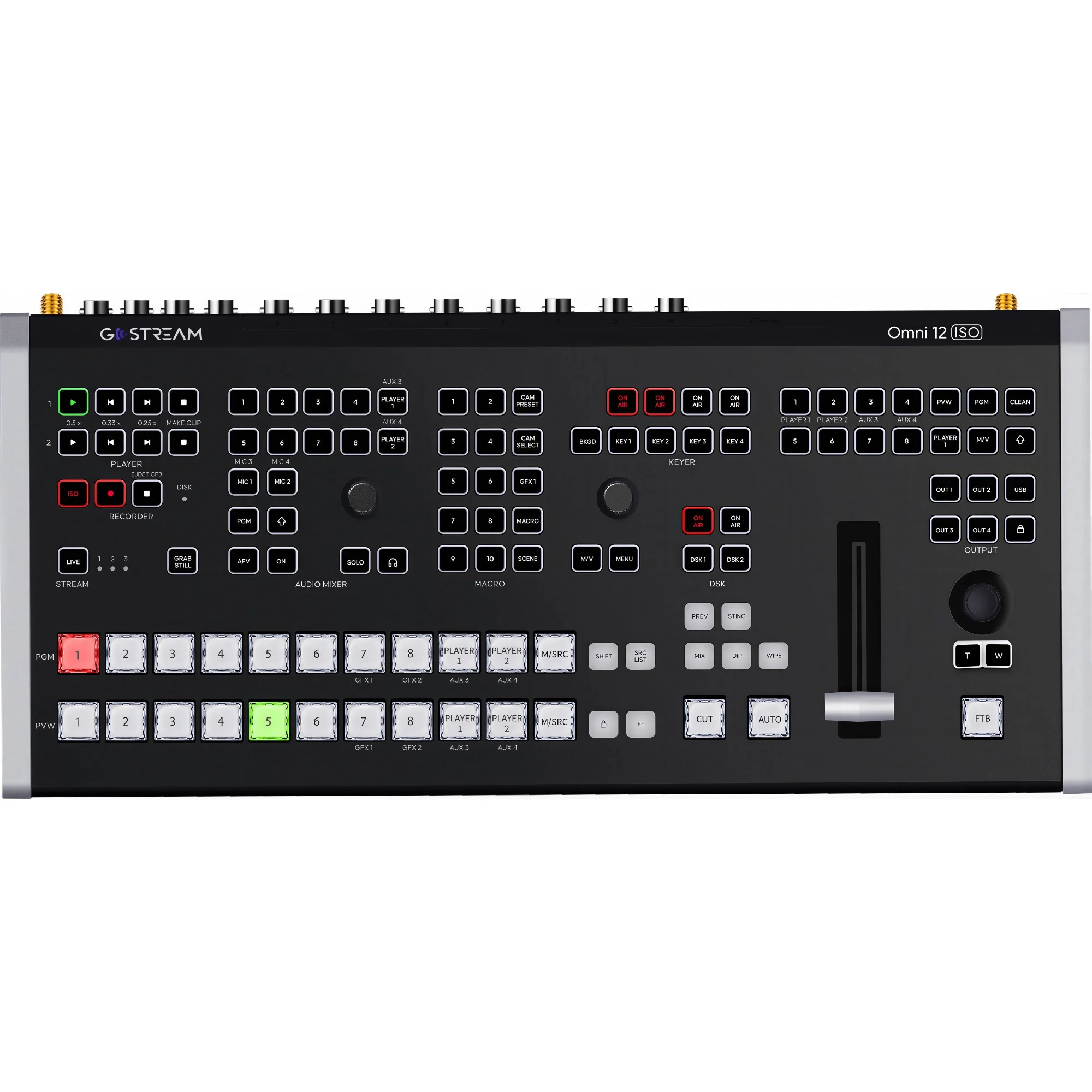

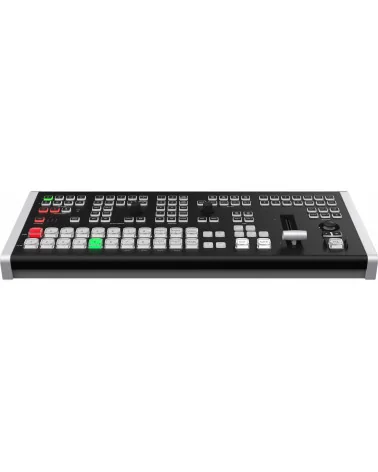

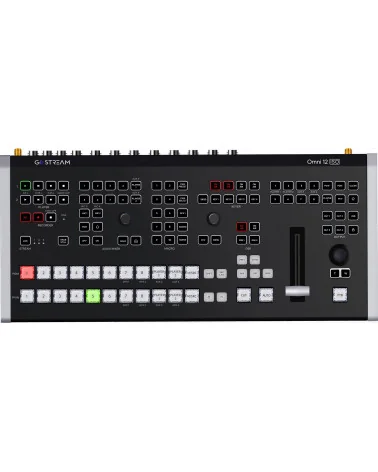

Control stays hands-on. The broadcast-style surface has PGM and PVW rows, a T-bar, dedicated key buttons and a joystick for PTZ camera control via VISCA over IP – seven cameras with ten stored positions each. Ten macros and ten scenes sit on the panel, up to 100 macros live in the free PC software (network or USB-C), and Bitfocus Companion with Stream Deck lets a second operator take over graphics or replays. A built-in hotspot opens the configuration page on a phone via QR code, and show profiles exported to the CFexpress card can be loaded onto another unit. The switcher runs from a 12 V / 72 W supply and is rated for 0–40 °C.

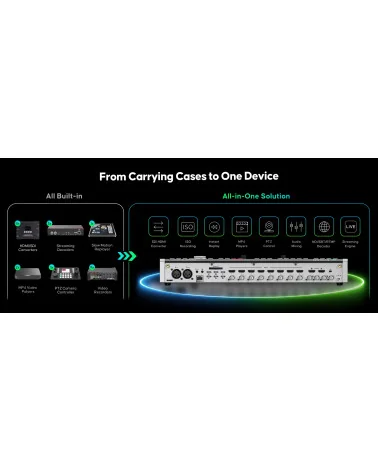

On a paid job, every extra box means another power supply, another cable run and another thing that can fail. Bringing switching, ISO recording, streaming, replay, PTZ control and audio into the Osee GoStream Omni 12 ISO shortens load-ins and keeps troubleshooting simple. Osee continues to develop the platform through regular firmware releases and publishes a network protocol for tally systems. If you are building a complete package, we can help match CFexpress media, SDI cabling and compatible PTZ cameras.

HARDWARE STABILITY
Zero lag under full load. No CPU monitoring required.

8 HDMI & SDI INPUTS
Connect pro cameras directly. Eliminate external converters.

4 AUX + XLR AUDIO
Connect IP/webcam feeds. Pro mixer with AI noise reduction.

Rock-Solid FPGA Stability
Run all features under full load with zero lag. Say goodbye to monitoring CPU usage.

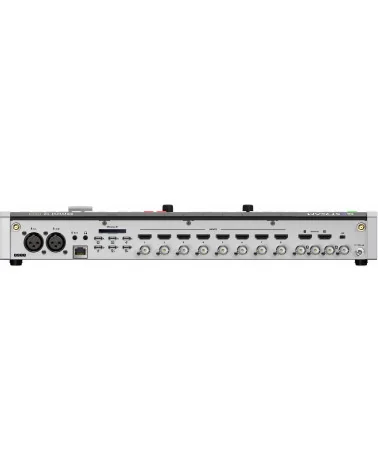

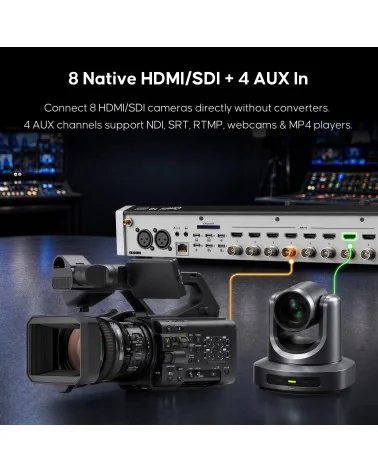

8 Direct HDMI & SDI Inputs
Connect 4K HDMI & 1080P SDI cameras directly. Eliminate external converters to ensure a reliable signal and fast setup.

4 AUX Inputs & Pro XLR Audio Mixer
Connect IP source/webcam to 4 AUX. Pro mixer supports 4 mics (2 XLR) with AI noise reduction plus 12 stereo channels.

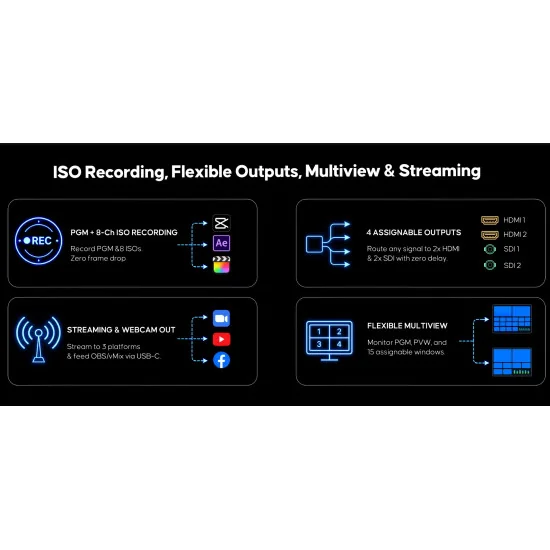

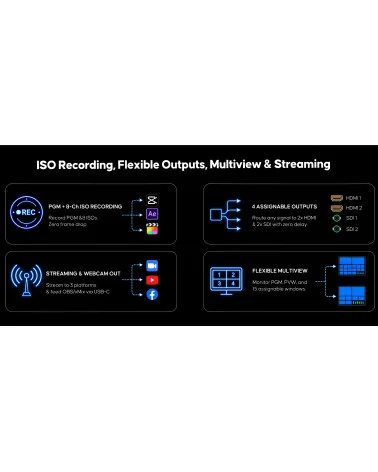

ISO Recording, Flexible Outputs, Multiview & Streaming

PGM + 8-Ch ISO RECORDING
Record PGM & 8 ISOs. Zero frame drop

4 ASSIGNABLE OUTPUTS
Route any signal to 2x HDMI & 2x SDI with zero delay.

STREAMING & WEBCAM OUT
Stream to 3 platforms & feed OBS/vMix via USB-C.

FLEXIBLE MULTIVIEW
Monitor PGM, PVW, and 15 assignable windows.

Zero-Drop PGM & 8-Ch ISO Recording
Record PGM & 8 ISOs at 50Mbps. 2 PGM encoders ensure low streaming bitrates never limit recording quality. Enable individual ISOs to save space.

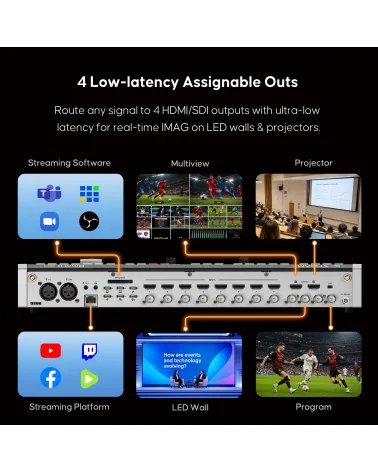

4 Assignable HD Outputs for IMAG & Multiview
Route any input, PVW, PGM, or Multiview to 4 assignable outputs (2 HDMI/2 SDI). Ultra-low latency is perfect for live LED walls.

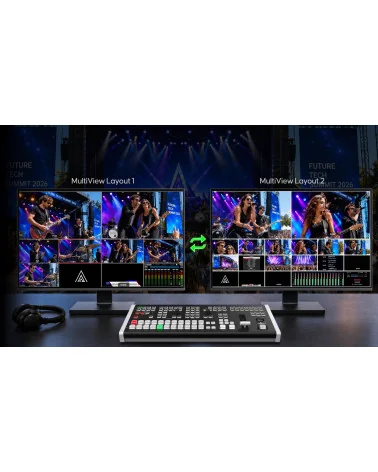

Flexible Dual-Layout Multiview
7 or 15 preview window layouts with PGM/PVW. Monitor up to 12 inputs, MultiSource, 2 graphics, audio meters, and status info.

Triple Streaming & Webcam Out
Stream to 3 platforms simultaneously via built-in encoders. Plug-and-play USB-C feeds PGM to vMix, Zoom, and OBS.

Direct Alpha, Endless Layouts, Powerful Keying & Stinger

0 I/O CARDS: Alpha Graphics - Direct from vMix & ProPresenter PC
4 WINDOWS: MultiSource - 5-Layers Compositing without Keyers
6 KEYERS: 4 USK + 2 DSK - Green Screen, PiP, Logos & Lower-3rds
1 STINGER: Built-in Player - Logo Wipes, Intros & Commercials

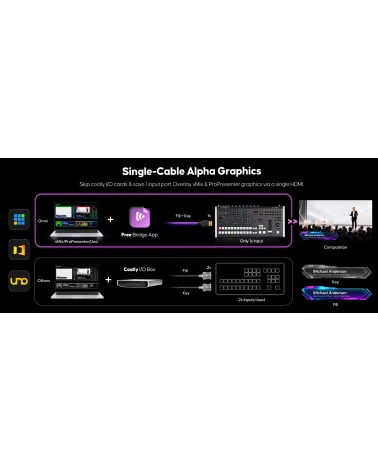

Single-Cable Alpha Graphics
Skip costly I/O cards & save 1 input port. Overlay vMix & ProPresenter graphics via a single HDMI.

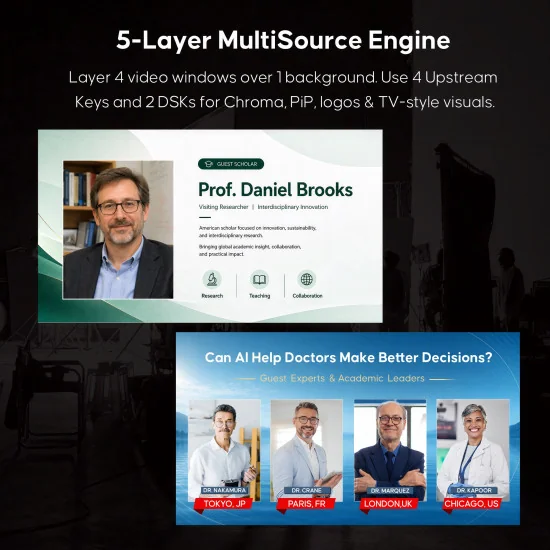

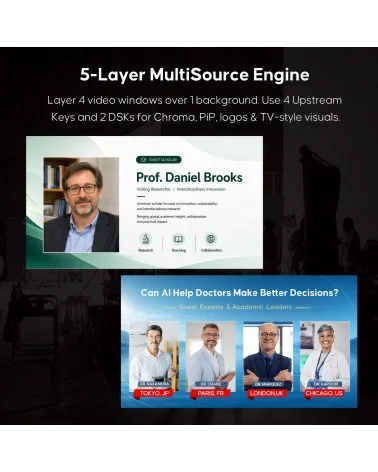

5-Layer MultiSource Engine
Build stunning layouts with 4 customizable video windows and 1 still/motion background for talk shows, sports & webinars.

Stinger & Built-in Media Player
Trigger custom stinger transitions and play ads directly from SSD/CFexpress. Skip dedicated hardware players and playback PCs.

4 Upstream & 2 Downstream Keys
Use 4 Upstream Keys for luma/chroma key (green screen) and PiP, plus 2 Downstream Keys (DSK) for logos and lower-thirds.

Engineered for Professional Live Production
Corporate · Sports · Worship · Education · Stage
- Complete Studio in One Chassis
- Mission-Critical FPGA Stability
- Zero-Converter Rapid Setup
- Broadcast-Grade Visuals

Sports Broadcasting
- Deploy long-range cameras via SDI & HDMI
- Trigger instant replay and slow motion
- Overlay pro scoreboards via vMix & UNO
- Record ISO feeds while streaming live

Executive Interviews
- Create 3 virtual angles from a single 4K feed
- Connect dynamic and condenser mics via dual XLR
- Auto-switch cameras using voice activation
- Eliminate HVAC and ambient noise with built-in AI

Church & Worship
- Manage 4 NDI inputs & 3 IMAG outputs
- Control PTZ cameras & recall presets
- Overlay ProPresenter lyrics & scripture
- Stream live to 3 destinations via RTMP

Corporate Events
- Integrate Zoom & remote guests
- Display multi-window layouts & graphics
- Route 3 independent stage IMAG feeds
- Ensure broadcast-grade live stability

Unified Control
- Control via physical panel & PC software
- Integrate Stream Deck & Companion
- Execute custom macros & scene presets
- Enable seamless multi-operator workflows
