Discreet Mounting Options
Mount your PTZ camera above, below or beside the action to capture the ideal view every time.
Wall Mounts
Ceiling Mounts
Pole Mounts
Outdoor Enclosures

Build your PTZ Camera System
All PTZOptics NDI® Cameras support Power, Video/Audio and Control, over a single Ethernet cable, simplifying the installation and setup of live streaming systems. These PTZ cameras feature broadcast frame rates and NDI® video output favored by video production professionals.

All our PTZ cameras feature SDI, HDMI, NDI®, multiple standard IP streaming formats. They’re also equipped with the latest professional camera control technologies, making remote operation easy.

Once connected to an IP network, broadcasters may choose from professional 3G SDI, Ethernet-connected NDI®, and traditional HDMI workflows simultaneously. Optical zoom lenses of up to 30X enable remote video productions that can capture a head and shoulders shot from up to 70 feet (21 meters) away.

KEY FEATURES
• 60.7 degree wide-angle lens.
• High performance in low light scenarios with Wide Dynamic Range.
• Full 1920x1080p HD Resolutions up to 60 frames per second.
• 2D and 3D noise reduction with our latest “low noise CMOS sensor”.
• RS232 & RS485 (Serial), IP (LAN/WAN) & NDI|HX Control
• H.264, H.265, & MJPEG streaming over RJ-45 LAN port
• HDMI, 3G-SDI, & NDI or IP streaming (3 simultaneously)
• PoE (Power over Ethernet) or 12VDC
• 5-year warranty
• Photobooth capable

WHAT’S IN THE BOX
30X Zoom NDI|HX Camera
Power Adapter + Cord
IR Remote Control
RS-232C Cable
Quick Start Guide
(2) AAA Batteries

Camera & Lens
Video Sensor 1/2.7” CMOS, 2.07 Mega Pixels
Frame Rates 1080p-60*/50/30/25, 1080i-60*/50, 720p-60/50/30/25
Frame Rates (CVBS) 576i-30, 480i-30
Focal Length F4.42mm-132.6mm, F1.8-F2.8
Lens Zoom 30x
Field of View 60.7°
Min Lux 0.05 Lux (@F1.8, AGC ON)
Shutter Speed 1/30s - 1/10000s
SNR ≥55dB
Vertical Flip & Mirror Supported
Horizontal Angle of View 2.28° (tele) to 60.7° (wide)
Vertical Angle of View 1.28° (tele) to 34.1°(wide)
Working Environment Indoor
Pan & Tilt Movement
Pan Movement ±170°
Tilt Rotation Up: 90°, Down: 30°
Presets 10 via IR (255 via Serial or IP)

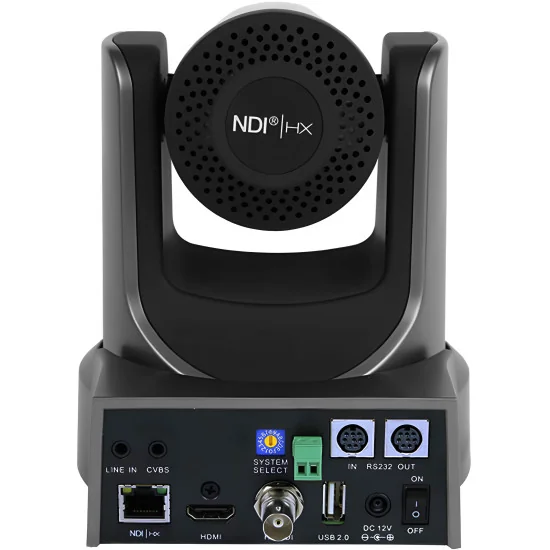

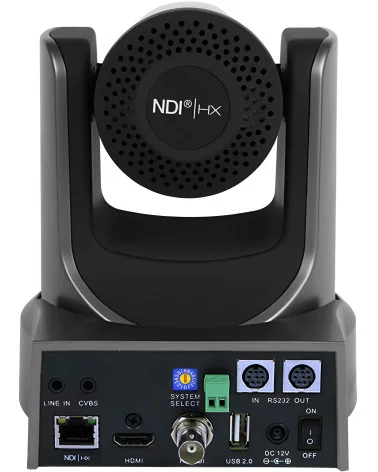

Rear Board Connectors
Video Output NDI|HX, HDMI, 3G-SDI, IP, CVBS
Network Interface RJ45
Audio Interface Line In, 3.5mm (NDI, HDMI & IP Stream)
Communication RS-232, RS485, PELCO-D/P, NDI
Baud Rate 2400/4800/9600 bits
Power Supply JEITA type Power Adapter (DC IN 12V)
3G-SDI Interface BNC – 75 Ohm, Female
USB 2.0 Interface Future Use
Electrical Index
Power Supply 12W (Max)
Input Voltage 12V DC (10.8 - 13.0V DC) or PoE 802.3af
Physical Specifications
Dimensions (mm) 142W x 164H x 169D (198H max w/ Tilt)
Box Dimensions 9” x 9” x 10” | 229mm x 254mm x 229mm
Camera Weight 3.05 lbs. (1.39 kg)
Boxed Weight 5.4 lbs. (2.45 kg)
