The PTZ Optics VL-ZCam is a 1080p box camera for capturing HD video with a variety of lenses. With support for 3G-SDI & IP Streaming this camera is ideal for broadcasting high definition video signals for broadcast, surveillance or video conferencing applications up to 1080p/60 resolution. The PTVL-ZCAM comes complete with your first lens with 4X Zoom and a 72° wide angle field of view.

What is a ZCam?
ZCams are “box” cameras meant for static, point-of-view shots and specialized applications, such as surveillance and monitoring. Designed to capture specific areas, these sturdy cameras, combined with our traditional PTZ cameras, provide more angle options for video production.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Designed for many uses, the PTZOptics ZCam is compact and easy to set up and integrate into a variety of production workflows. Mount and stream your ZCam in just 10 minutes! Capture unique viewing angles and deploy cameras up to 300 feet away with standard Ethernet cabling.

Each compact ZCam includes an option for NDI® integration for seamless integration into video production software on a network, such as vMix, Wirecast, xSplit, MimoLive, OBS, Livestream Studio, and more. When connected to high-quality 3GSDI video switchers, PTZOptics ZCams can be used with a wide variety of hard video switchers from brands such as Blackmagic Design, Roland, and NewTek. ZCams can be remotely controlled with fine-tuned settings for camera exposure, white balance, noise reduction, and more.

KEY FEATURES
• Panasonic 1/2.7” inch HD CMOS Sensor
• 3G-SDI High Definition Video Output
• H.264, H.265 & MJPEG IP Streaming Output (dual stream)
• High performance in low illumination situations
• Full 1920x1080p HD Resolutions up to 60 frames per second via SDI
• 2D and 3D noise reduction with our latest “low noise CMOS sensor”
• Wide Dynamic Range
• Menu controls on back of camera
• RS485 and IP remote camera control
• C/CS Type Lens Mount
• Standard 1/4-20 female thread for camera mounting (top + bottom)
• PoE (Power over Ethernet) or 12VDC
• Hold left on Menu Navigation button for 5+ seconds to toggle Dynamic or Static IP addressing
• 5-year warranty
• Photobooth Functionality

WHAT’S IN THE BOX
Box Camera
4X Wide Angle Zoom Lens
Power Adapter
PoE Splitter
Quick Start Guide

Camera & Lens
Video CMOS Sensor 1/2.7” CMOS, 2.07 Mega
Frame Rate 1080p 60/50/30/25, 1080i60/50 720p 60/50
Included Lens F3.8mm~13mm, F1.4+
Incl. Lens Zoom 4X Optical Zoom
Incl. Lens Field of View 72°
Min Lux 0.05 Lux (@F1.8, AGC ON)
Shutter Speed 1/30s - 1/10000s
SNR ≥55dB
Vertical Flip & Mirror Supported
Incl. lens Horiz. Angle of 21° (tele) - 72° (wide)
Incl. lens Vert. Angle of 12° (tele) - 45° (wide)
Working Environment Indoor

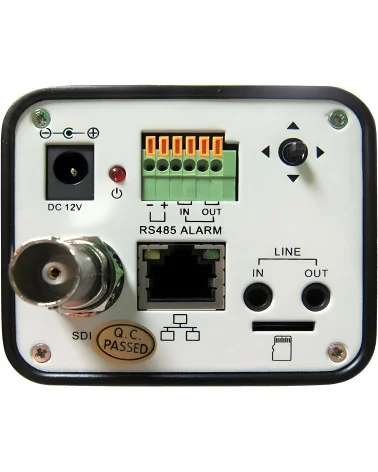

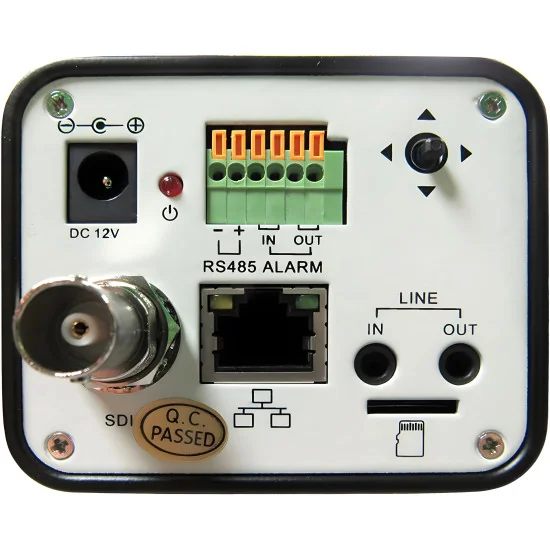

Rear Board
Video Output 3G-SDI, RJ45 IP Network
Network Interface RJ45 (PoE 802.3af)
Audio Interface AAC unbalanced stereo (IP Stream only)
Communication RS485 VISCA, Pelco-D, Pelco-P
Baud Rate 2400/4800/9600 bits
Power Supply JEITA type Power Adapter (DC IN 12V)
Electrical Index
Power Supply 12W (Max) or PoE 802.3af
Input Voltage 12V DC (10.8 - 13.0V DC) or PoE
Physical Specs.
Dimensions (mm.) 72W x 61H x 151D (210 w/ incl.
Camera Weight 0.85 (1.05 w/ incl. lens)
Camera Weight 0.39 (0.48 w/ incl. lens)
