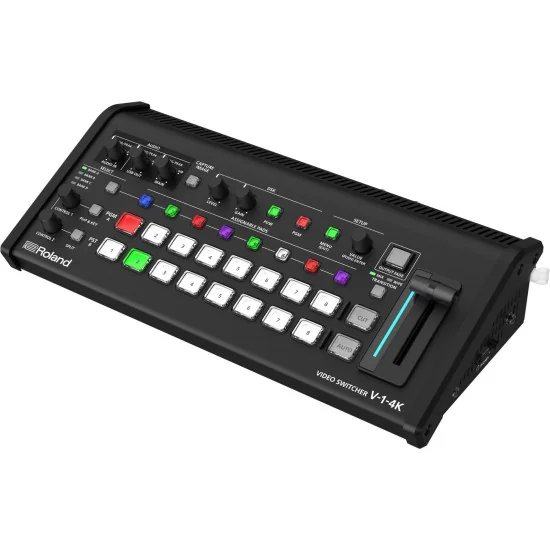

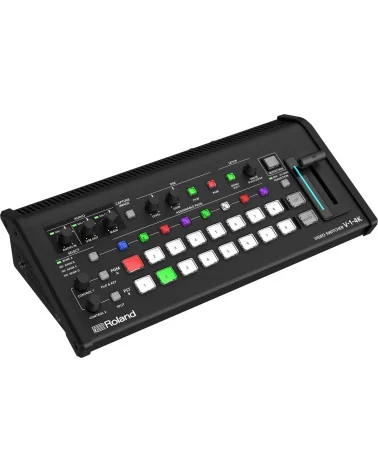

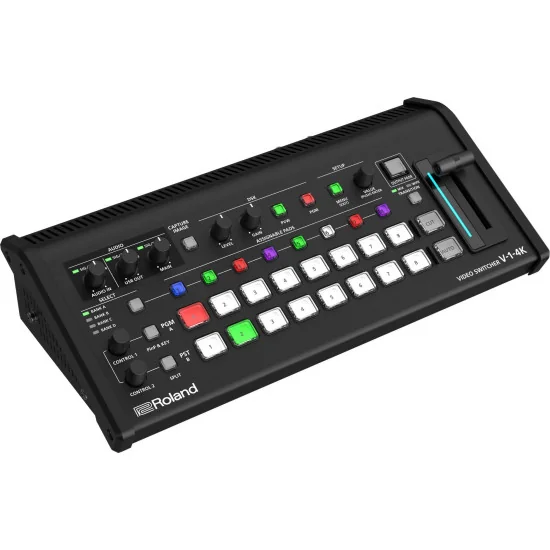

V-1-4K Video Switcher

The New Benchmark in Compact 4K Switching for Live Event Production
The V-1-4K Video Switcher delivers a complete 4K 60p switching solution in a streamlined and easy-to-operate design. HDMI, USB 3.0, and LAN connections provide flexible I/O, while multi-channel mixing and effects bring high-end audio polish to every production. You also get integrated control for PTZ cameras, plus remote operation via dedicated control apps. And with the powerful Graphics Presenter software, it’s simple to enhance productions with impressive titles, motion graphics, and more.

• Professional 4K 60p switcher with HDR support and flexible connectivity
• All-in-one design that’s easy to carry and set up

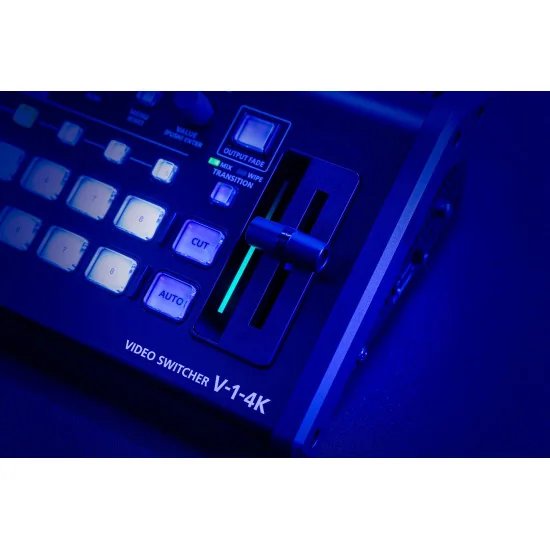

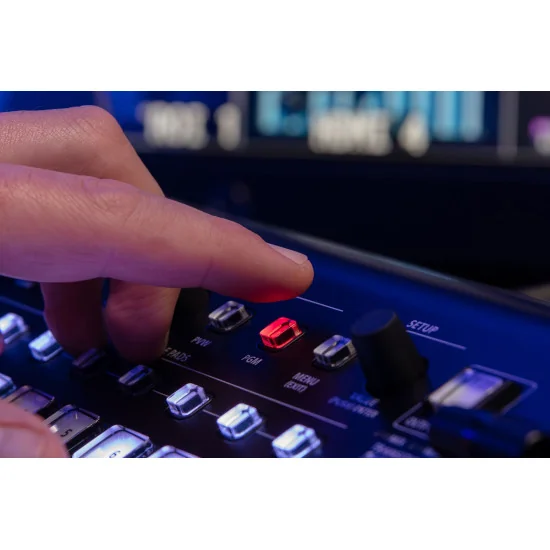

• Intuitive panel layout with customizable pads and T-bar
• Five HDMI 2.0 inputs, four HDMI 2.0 outputs, multi-view output, and USB 4K 60p streaming output
• Two XLR line inputs, stereo RCA output, and 3.5 mm stereo output for phones and external audio destinations
• ROI (Region of Interest) function enables cropping up to four areas from a single 4K video source
• Multi-channel audio mixing and effects
• PTZ control with support for multiple brands and mixed protocols running at once
• Extensive device control over USB and LAN
• Graphics Presenter software for Windows elevates live productions with stunning graphics
• V-1-4K remote control software available for iPad, macOS, and Windows
• VenuSet control panel app iPad, macOS, and Windows streamlines operation for users of any skill level

Powerful 4K Switching and Streaming in a Portable, All-in-One Design
Roland’s popular V-1 series has led the industry since 2004, redefining entry-level video switching with innovative, professional-grade products that are easy for anyone to operate with minimal training. The V-1-4K sets a new benchmark, offering comprehensive support for today’s 4K 60p workflows in a compact, accessible, and user-friendly hub for live events, houses of worship, conference rooms, livestreaming, and more.

HDMI Connectivity with Input Scaling

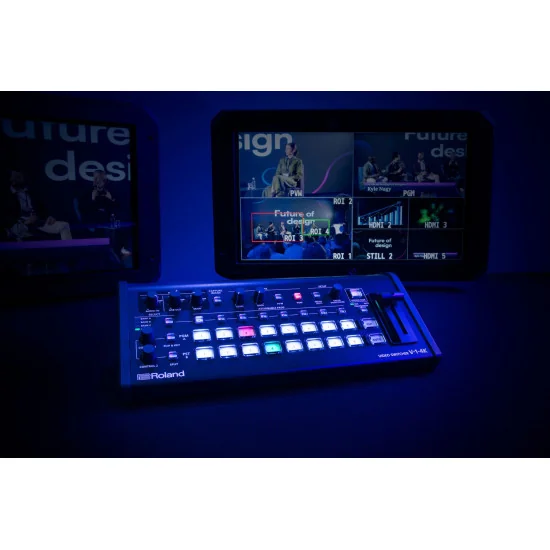

The V-1-4K features five HDMI inputs with scalers on every channel, enabling seamless switching between HD and 4K 60p HDR video sources. Five HDMI output channels include multi-viewer functionality, allowing independent video signals to be fed to a main monitor, a confidence monitor, and other destinations without a distribution amplifier.

Flexible Routing
The five video inputs and six total outputs (HDMI plus USB streaming) offer flexibility for a wide range of production needs. In addition to PGM, PST, and multi-view outputs, output channels 3 and 4 can be assigned to any output bus and any input signal via 4K-to-HD downscalers.

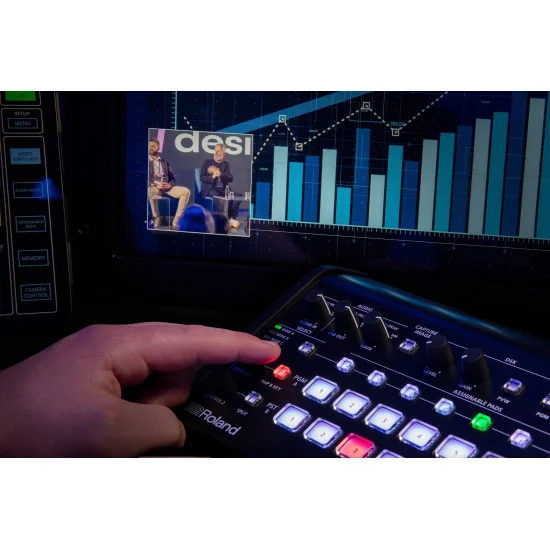

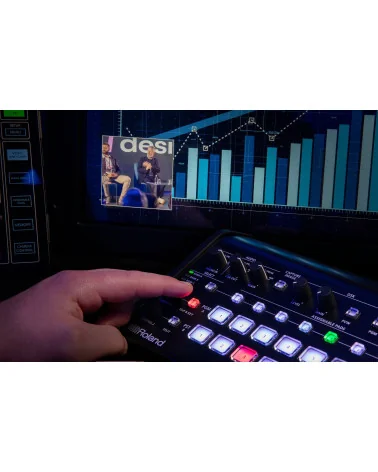

Video Composition Tools
The V-1-4K makes it simple to keep audiences engaged with layered graphics and visual effects. Three composition layers allow you to use scalable picture-in-picture images and add titles, logos, social media comments, and more.

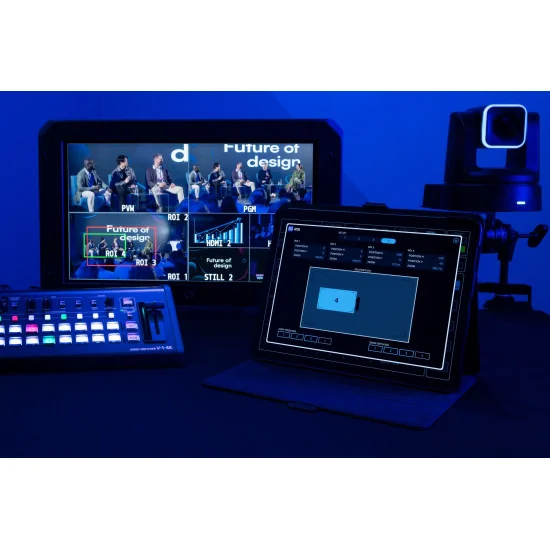

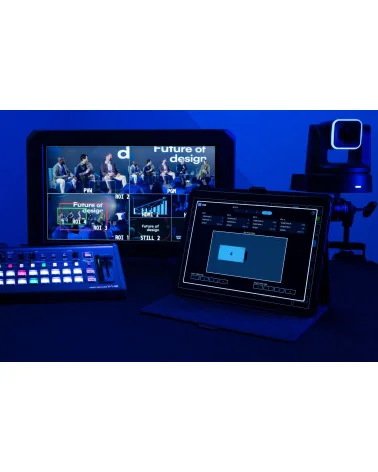

Efficient Multi-Angle Shots with ROI
The Region of Interest (ROI) processor lets you compose up to four shots from a single 4K camera image, such as a wide shot of the stage, a medium shot of a speaking panel, and close-ups of each speaker. This powerful feature elevates your production value without increasing camera count, complexity, or costs. Using the V-1-4K RCS or V-1-4K remote app, it’s easy to set and adjust cropped areas from a computer screen.

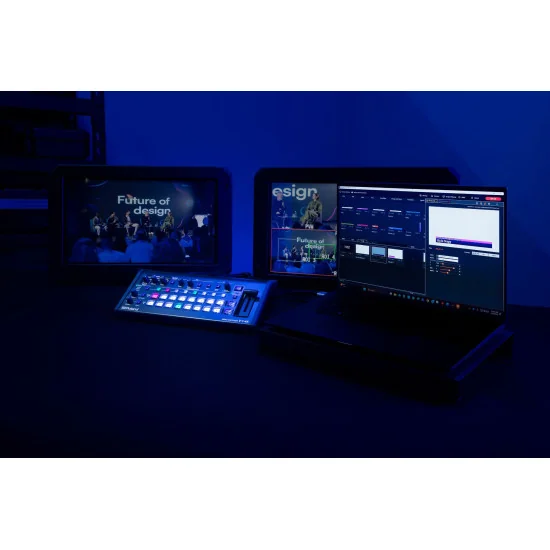

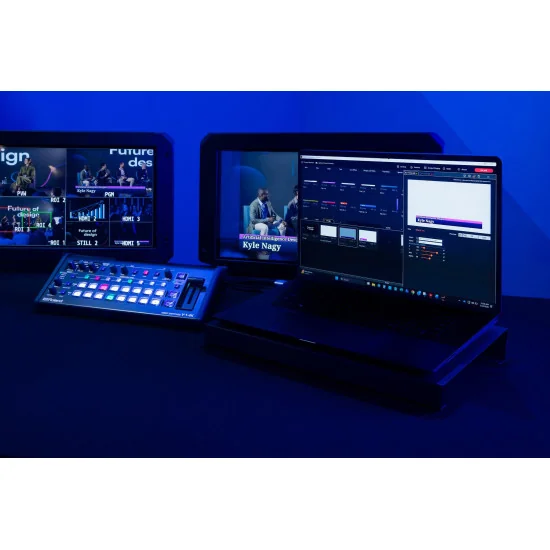

Professional Graphics in 4K
Graphics Presenter software for Windows allows you to create stunning titles and graphics without the need for expensive third-party graphic presentation solutions. V-1-4K setup is quick and straightforward, requiring only a single HDMI connection to send fill and key signals from the computer to the switcher.

Graphics Presenter Version 3.0 and later supports 4K and HD workflows with a wide selection of ready-to-edit templates, including animated title text, sports scores, motion graphics, and more. The software and templates are available free of charge, and additional content is periodically provided for download on Roland Cloud.

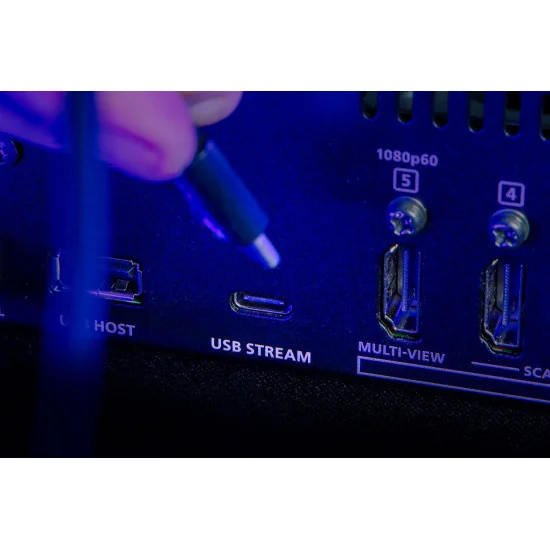

Plug-and-Play Streaming Up to 4K 60p
The V-1-4K uses the same connection technology as webcams for a simple plug-and-play streaming experience. Simply connect the USB-C output to a computer and start streaming with Zoom, Microsoft Teams, or any streaming platform that supports a standard webcam connection.

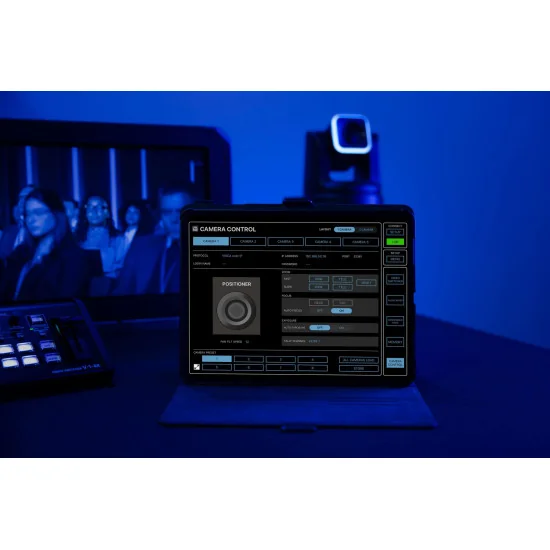

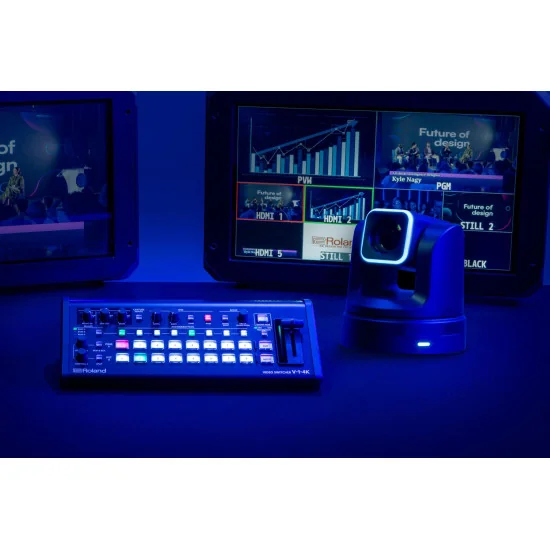

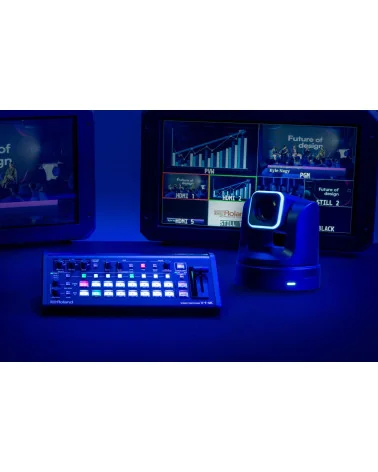

Deep PTZ Camera Integration
Robotic PTZ (pan-tilt-zoom) cameras greatly expand your production capabilities, thanks to their small size and remote-controlled positioning. The V-1-4K includes built-in control support for select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. Mix and match different brands and operate up to five PTZ cameras simultaneously. The V-1-4K remote app for iPad is an ideal companion for PTZ operation, providing remote camera controls from the tablet.

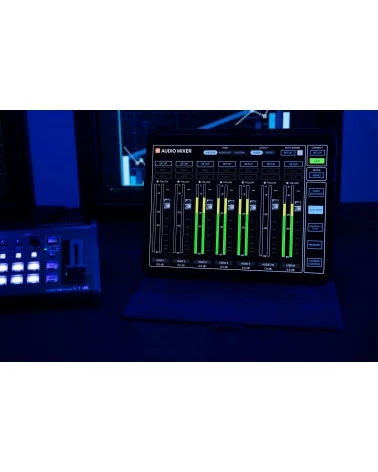

High-Quality Audio Mixing and Effects
The V-1-4K features 14 channels of audio mixing and a wide selection of processing tools, including equalizers and compressors. There are also sync delays on all input and output busses to align audio with video if needed. I/O routing options include main, monitor, and two aux buses supporting complex audio configurations for hybrid events.

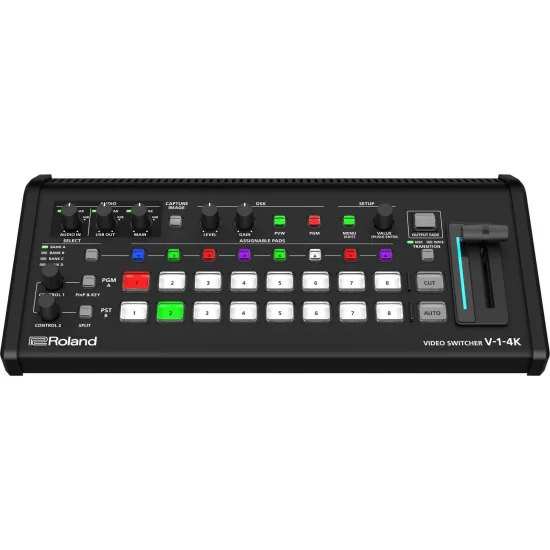

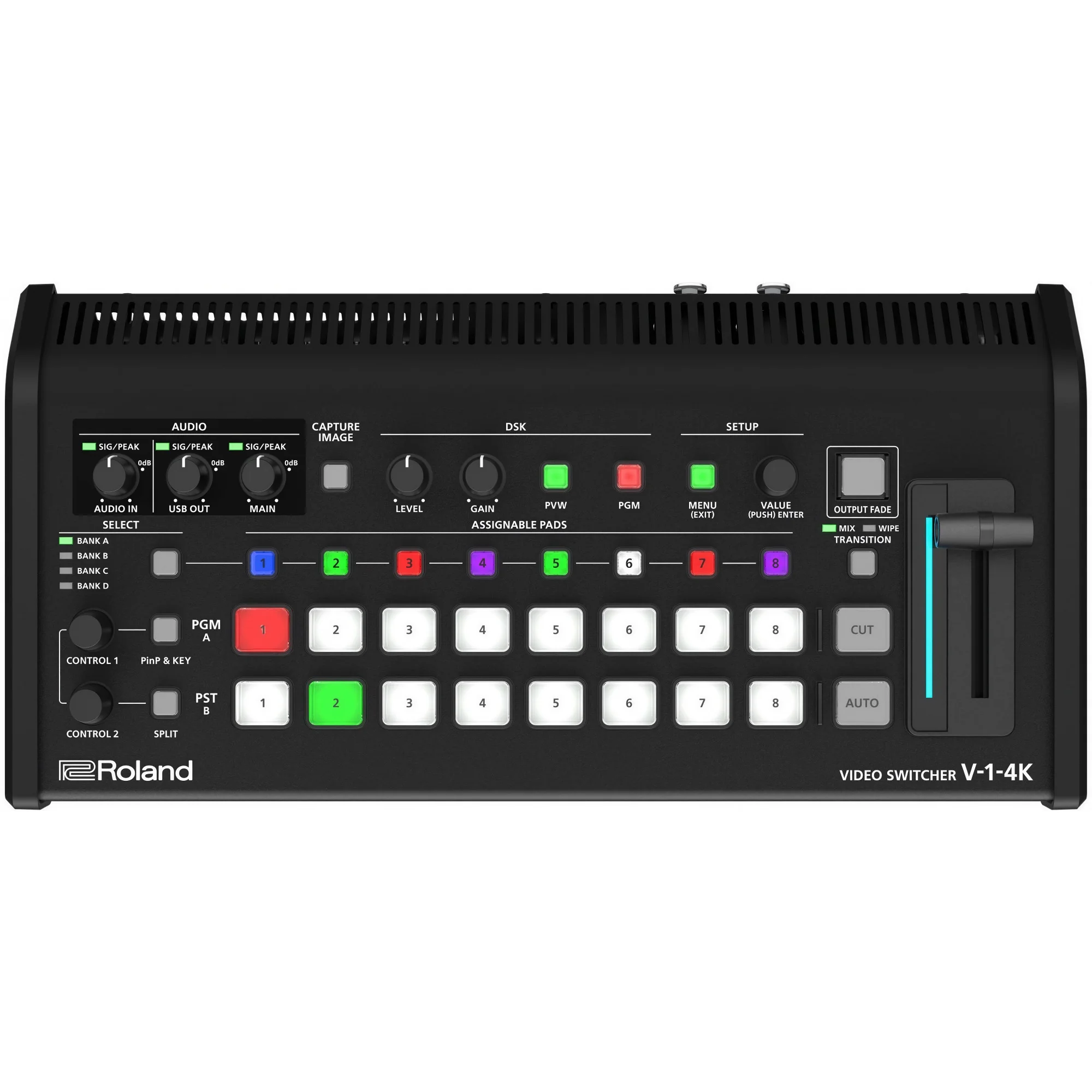

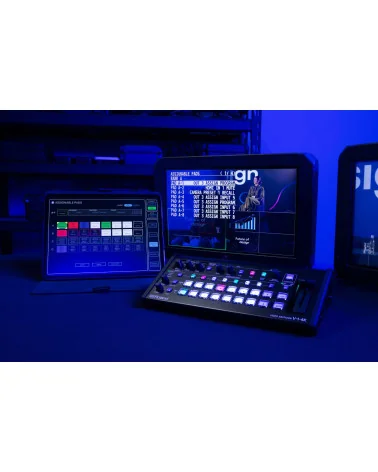

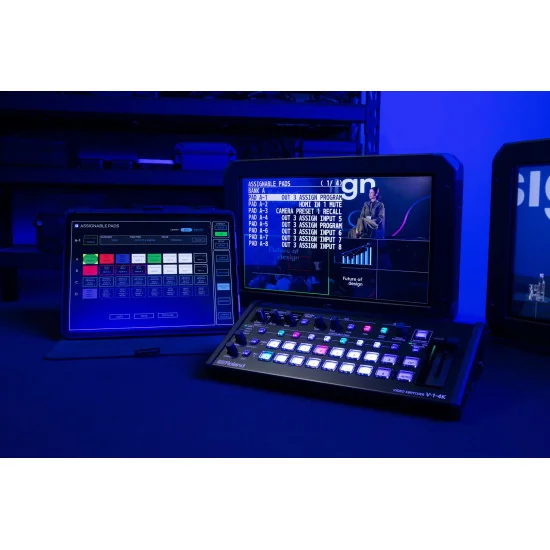

Customizable Control Pads
Eight user-assignable pads provide instant control of many functions during live events. The pads are organized into four banks, providing direct access to 32 operations, including video input routing, audio muting, system configuration access, and more. It’s also possible to control functions in the Graphics Presenter software when the host computer is connected via USB.

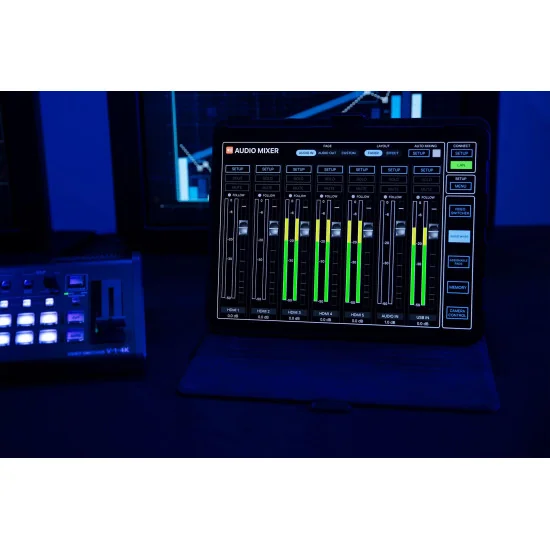

Versatile Tools for Remote Operation
The V-1-4K supports extended workflows with dedicated software apps and a variety of remote devices.

• The free V-1-4K Remote app for iPad supports wireless connectivity to operate functions via a portable touch interface.
• VenuSet is a customizable control panel app that allows you to configure essential controls, buttons, and faders to fit venue needs and operator skill levels.

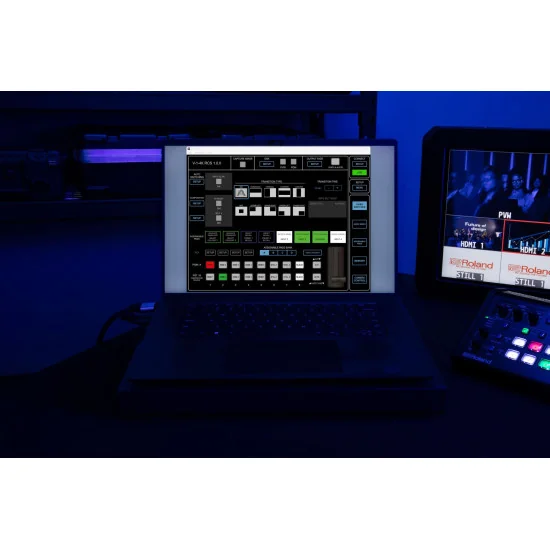

• Use the free V-1-4K Remote Control Software to operate the switcher from a large display on a Mac or Windows computer.
• Seamlessly integrate with system installations via the LAN connector.

V-1-4K Specifications:

[Video]

-Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
-Number of video channels: 5 channels
-Input formats

HDMI IN 1--5:
720/60p, 59.94p, 50p
1080/59.94i *1, 50i *1
1080/60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p
2160/60p *2, 59.94p *2, 50p *2, 30p, 29.97p, 25p, 24p, 23.98p
UXGA(1600x1200/60Hz), WUXGA(1920x1200/60Hz), WQHD(2560x1440/60Hz) *3
* Conforms to CEA-861-G, VESA CVT.
* HDMI IN 5 support Roland FILL+KEY signal
* Color Gamut and Dynamic Range are the same as the system format.
*1 The input interlaced video signal is converted to progressive video signal by internal processing.
*2 HDMI IN 1--3 supports YUV420.
*3 Reduced Blanking

-Output formats

HDMI OUT 1--2:
1080/60p *1, *3
1080/59.94p *1, *4
1080/50p *1, *5
1080/30p *1, *6
1080/29.97p *1, *7
1080/25p *1, *8
1080/24p *1, *9
1080/23.98p *1, *10
2160/60p *2, *3
2160/59.94p *2, *4
2160/50p *2, *5
2160/30p *2, *6
2160/29.97p *2, *7
2160/25p *2, *8
2160/24p *2, *9
2160/23.98p *2, *10

*1 System Format = 1080p
*2 System Format = 2160p
*3 Frame Rate = 60 Hz
*4 Frame Rate = 59.94 Hz
*5 Frame Rate = 50 Hz
*6 Frame Rate = 30 Hz
*7 Frame Rate = 29.97 Hz
*8 Frame Rate = 25 Hz
*9 Frame Rate = 24 Hz
*10 Frame Rate = 23.98 Hz

HDMI OUT 3--4:
1080/60p *1, *3, *4
1080/59.94p *1, *3, *5
1080/50p *1, *3, *6
1080/30p *1, *3, *7
1080/29.97p *1, *3, *8
1080/25p *1, *3, *9
1080/24p *1, *3, *10
1080/23.98p *1, *3, *11
2160/60p *2, *4
2160/59.94p *2, *5
2160/50p *2, *6
2160/30p *2, *7
2160/29.97p *2, *8
2160/25p *2, *9
2160/24p *2, *10
2160/23.98p *2, *11

*1 System Format = 1080p
*2 System Format = 2160p
*3 System Format = 2160p and Down-convert = ON
*4 Frame Rate = 60 Hz
*5 Frame Rate = 59.94 Hz
*6 Frame Rate = 50 Hz
*7 Frame Rate = 30 Hz
*8 Frame Rate = 29.97 Hz
*9 Frame Rate = 25 Hz
*10 Frame Rate = 24 Hz
*11 Frame Rate = 23.98 Hz

* Color Gamut: Rec.709, Rec.2020
* Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG
* HDMI OUT 3--4 can be Down-convert out (1080p) when system format is 2160p.
* Conforms to CEA-861-G.

HDMI OUT 5 (MULTI-VIEW):
1080/60p
* Color Gamut: Rec.709
* Dynamic Range: SDR
* Conforms to CEA-861-G.

USB STREAM:
1080/60p, 59.94p, 50p, 30p, 29.97p, 25p
2160/60p, 59.94p, 50p, 30p, 29.97p, 25p
*Supports Uncompressed Video (YUY2) and Compressed Video (Motion JPEG).

-Still Image:
Bitmap File (.bmp) Up to 3840 x 2160 pixels, 24-bit color, uncompressed.
* It can be stored up to 2 files in the internal memory.

-Video Effects
Transition: Cut, Mix (Dissolve), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 1 (Square), Keyer x 1 (Luminance Key, Chroma Key), DSK (Luminance Key), Roland FILL+KEY Mode
Other: Multi-View (1 types), Still Image capture, Still Image playback, Output fade (Audio, Video: Black), Test pattern output

[Audio]
-Audio Processing: Sample rate: 24 bits, 48 kHz
-Number of audio channels: 14 channels

-Audio Formats
USB STREAM (input/output): Linear PCM, 16 bits, 48 kHz, 2 ch
HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch
HDMI OUT: Linear PCM, 24 bits, 48 kHz, 2 ch

-Audio Effects
Channel Effects: High pass filter, Noise gate, Compressor, 4-Band equalizer, Delay, Auto mixing
Master Effects: 4-Band equalizer, Compressor/Limiter, 15-Band GEQ, Delay
Other: Output fade, Test tone output

[Common Section]
-Other Functions
Memory (8 types)
Panel lock function
EDID Emulator
Auto Switching
Smart Tally
Remote Camera Control (Up to 5 units)

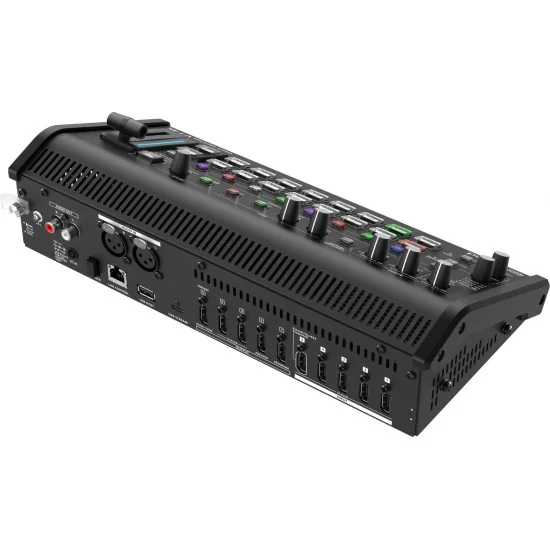

[Connectors]

-Video Input Connectors
HDMI IN 1--5: HDMI type A x 5 (HDMI2.0)
* HDCP 1.4 2.2 Supported
* Multi-format Supported

-Video Output Connectors
HDMI OUT 1--4: HDMI type A x 4 (HDMI2.0)
* HDCP 1.4 2.2 Supported
HDMI OUT 5: HDMI type A x 1 (HDMI1.4)
* HDCP 1.4 Supported

USB STREAM: USB Type-C (R) (USB2.0 / USB3.2 Gen1)

-Audio Input Connectors
Analog: AUDIO IN 1--2: XLR type
Digital: USB STREAM: USB Type-C (R), HDMI IN 1--5: HDMI type A x 5
-Audio Output Connectors
Analog: AUDIO OUT 1--2: RCA phono type, PHONES: Stereo miniature phone type
Digital: USB STREAM: USB Type-C (R), HDMI OUT 1--5: HDMI type A x 5

-Other Connectors
USB HOST: USB A type (for USB flash drive)
USB STREAM: USB Type-C (R) (for remote control from PC and iPad)
LAN CONTROL: RJ45, 100BASE-T (for Remote Control)

[Audio Input/Output Characteristics]
-Input Level: AUDIO IN 1, 2: +4 dBu (Maximum: +24 dBu)
-Input Impedance: AUDIO IN 1, 2: 16 k ohms
-Output Level: AUDIO OUT 1, 2: -10 dBu (Maximum: +10 dBu), PHONES: 92 mW + 92 mW (32 ohms)
-Output Impedance: AUDIO OUT 1, 2: 1 k ohms, PHONES: 10 ohms

[Other]
-Power Supply: AC Adaptor
-Current Draw: 4 A
-Power Consumption: 52 W
-Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit

-Dimensions: 330 (W) x 164 (D) x 79 (H) mm / 13 (W) x 6-1/2 (D) x 3-1/8 (H) inches
-Weight (excluding AC adaptor): 1.9 kg / 4 lbs 4 oz

-Accessories
Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord

* 0 dBu = 0.775 Vrms
* This product is a Class A digital device under FCC part 15.
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
