Roland VC-1-SH is a precise SDI to HDMI converter for professional monitoring and signal bridging across live production, broadcast control rooms and streaming rigs. It preserves native frame rate and range up to 1080p60 while maintaining chroma accuracy. A built-in re-clocker stabilises long SDI runs and supports 3G-SDI Level A and Level B for wide camera and router compatibility.
Connectivity is comprehensive: 3G/HD/SD-SDI input with SDI loop-thru, HDMI output for cost-efficient displays, and selectable audio paths. Embed balanced analog (L/R on 1/4-inch TRS) or AES3 digital audio into the outgoing video, or de-embed program audio to balanced TRS for console or monitor feeds. The unit handles up to Linear PCM 16-channel on SDI and up to 8-channel on HDMI. Format support covers SMPTE 424M/425M-AB, 292M, 259M-C and CEA-861 video timings from 1080p/60 to SD interlace.
Signal integrity features go beyond conversion. HDCP is passed on HDMI where permitted, with SDI outputs kept non-HDCP as required in professional chains. USB 2.0 provides access to the VC-1 RCS application on macOS/Windows for precise channel mapping and control. Typical field use includes re-clocking SDI lines in OB vans and flypacks; even 200 ft (≈61 m) SDI cable segments remain stable when upstream gear meets spec. Power draws only 8 W from a 9 V DC supply, and operational range is 0–40 °C for dependable rack or tabletop use.
In studio, the VC-1-SH feeds HDMI multiviewers and client monitors from SDI cameras or switchers without latency-adding scaling. On stages and corporate venues it partners mixers such as the V-40HD to accept SDI camera sources while maintaining embedded audio routing. For streaming workstations and capture interfaces, it provides a clean HDMI path plus independent analog/AES monitoring, simplifying troubleshooting and ensuring repeatable results across shows.
Roland VC-1-SH Video Converter
VC-1-SH
Price: €545.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Roland VC-1-SH is a precise SDI to HDMI converter for professional monitoring and signal bridging across live production, broadcast control rooms and streaming rigs. It preserves native frame rate and range up to 1080p60 while maintaining chroma accuracy. A built-in re-clocker stabilises long SDI runs and supports 3G-SDI Level A and Level B for wide camera and router compatibility.
Connectivity is comprehensive: 3G/HD/SD-SDI input with SDI loop-thru, HDMI output for cost-efficient displays, and selectable audio paths. Embed balanced analog (L/R on 1/4-inch TRS) or AES3 digital audio into the outgoing video, or de-embed program audio to balanced TRS for console or monitor feeds. The unit handles up to Linear PCM 16-channel on SDI and up to 8-channel on HDMI. Format support covers SMPTE 424M/425M-AB, 292M, 259M-C and CEA-861 video timings from 1080p/60 to SD interlace.

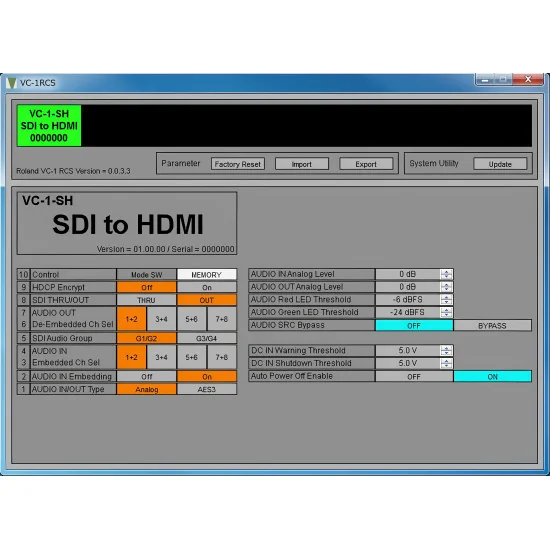

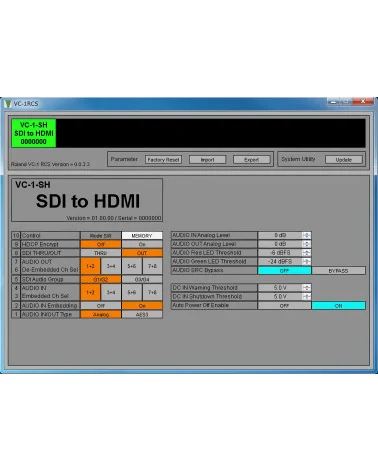

Signal integrity features go beyond conversion. HDCP is passed on HDMI where permitted, with SDI outputs kept non-HDCP as required in professional chains. USB 2.0 provides access to the VC-1 RCS application on macOS/Windows for precise channel mapping and control. Typical field use includes re-clocking SDI lines in OB vans and flypacks; even 200 ft (≈61 m) SDI cable segments remain stable when upstream gear meets spec. Power draws only 8 W from a 9 V DC supply, and operational range is 0–40 °C for dependable rack or tabletop use.
In studio, the VC-1-SH feeds HDMI multiviewers and client monitors from SDI cameras or switchers without latency-adding scaling. On stages and corporate venues it partners mixers such as the V-40HD to accept SDI camera sources while maintaining embedded audio routing. For streaming workstations and capture interfaces, it provides a clean HDMI path plus independent analog/AES monitoring, simplifying troubleshooting and ensuring repeatable results across shows.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Roland VC-1-SH
The cost of SDI monitoring sometimes can be prohibitive for certain applications. The VC-1-SH converter allows you to convert an SDI signal to HDMI, providing a more cost effective monitoring solution. This converter is also complimentary to the Roland V-40HD multi-format video mixer when you want to use an SDI camera as an input to the mixer.
- SDI to HDMI Conversion
- Lossless Image Conversion
- 3G (Level A&B) /HD/ SD SDI
- HDCP Support
- VC-1 RCS, PC/MAC Control Application
- Selectable Channel for Embedded/De-Embedded Audio
Specs
INPUT
SDI Connector: BNC type x 1
Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
Digital Audio Connector: 1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
PROCESSING
Audio embedding Audio de-embedding
OUTPUT
SDI Connector: BNC type x 1 ( Thru/Out )
HDMI Connector: Type A (19 pins ) x 1
Analog Audio Connector: 1/4" TRS phone type ( balanced) x 1 pair (L/R)
Digital Audio Connector: 1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
INPUT / OUTPUT FORMAT
SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch
SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Output Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch
AUDIO INPUT / OUTPUT
Analog Audio Input Level: +4dBu
Analog Audio Maximum Input Level: +24dBu
Analog Audio Input Impedance: 110 ohms
Analog Audio Output Level: +4dBu
Analog Audio Output Impedance: 600 ohms
Digital Audio Output Signal Format: AES3, 16/24 bits, 32/48 kHz, 2 ch
Digital Audio Output Impedance: 110 ohms
OTHERS
USB Connector: USB Type B (Hi-Speed USB) x 1
Power Supply: DC 9V
Power Consumption: 8W
Operation Temperature: +0 to + 40 degrees Celsius
Accessories: AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual
SIZE AND WEIGHT
Width: 150 mm
Depth: 130 mm
Height: 30 mm
Weight: 500 g
VC-1-SH
1 Item
Data sheet
- Video Input
- SDI
- Video Output
- HDMI
- Audio Input
- SDI Embedded
TRS Jack 6.3mm - Audio Output
- HDMI Embedded
TRS Jack 6.3mm - Max Output Resolution
- 1080p 50/60 fps
- Output colour sampling
- YUV/YCbCe/YPbPr 4:2:2 10-bit
- Built-in scaler
- No
Specific References
- ean13
- 4957054503598
- mpn
- VC-1-SH
