SmallHD Indie 5 RED RCP2 Kit Monitor

Name: SmallHD Indie 5 RED RCP2 Kit Monitor
Brand: SmallHD
SKU: SHD-16-0525-R2
Price: 1699.00 EUR
Availability: InStock

MPN: SHD-16-0525-R2

Price: €1,699.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

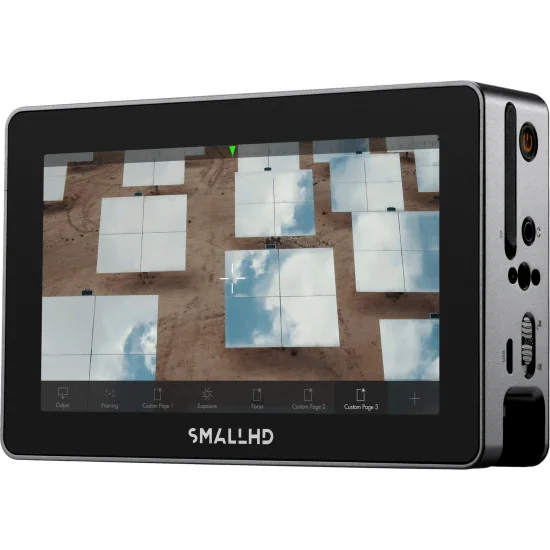

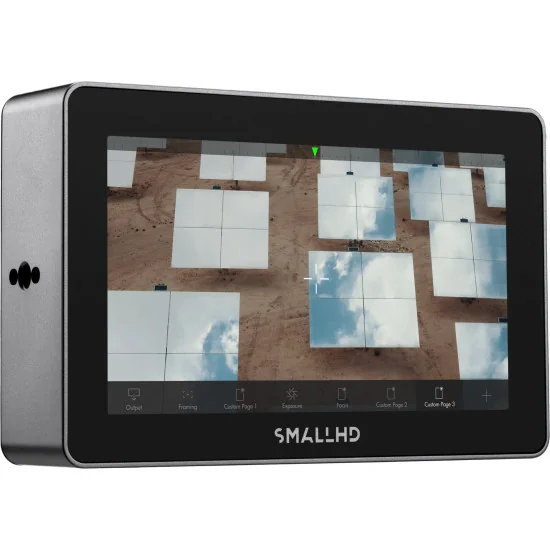

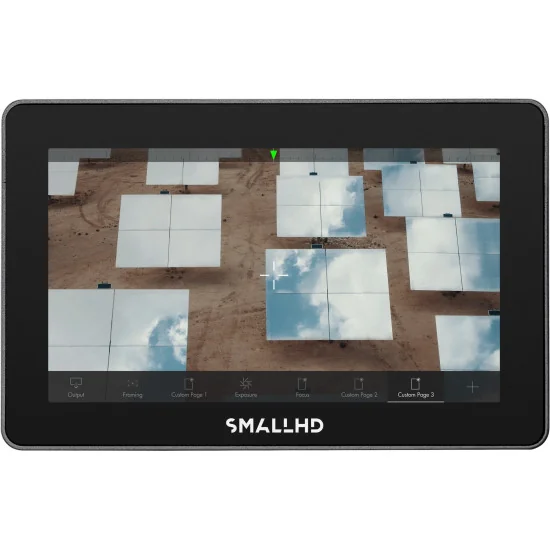

SmallHD Indie 5 RED RCP2 Kit transforms a 5-inch monitor into a command surface for RED KOMODO®, KOMODO-X™ and DSMC3™ cameras. The crisp 1920 × 1080, 440 ppi LCD delivers 10-bit Rec.709 colour at a daylight-proof 1000 nit output, giving focus-pullers reference even in full sun.

Powered by PageOS 5, Indie 5 offers instant touch access to waveforms, false colour, vectorscope, pixel zoom, EL Zone, frame guides and user LUT pipelines. A side-mounted lock switch prevents accidental menu calls during handheld takes.

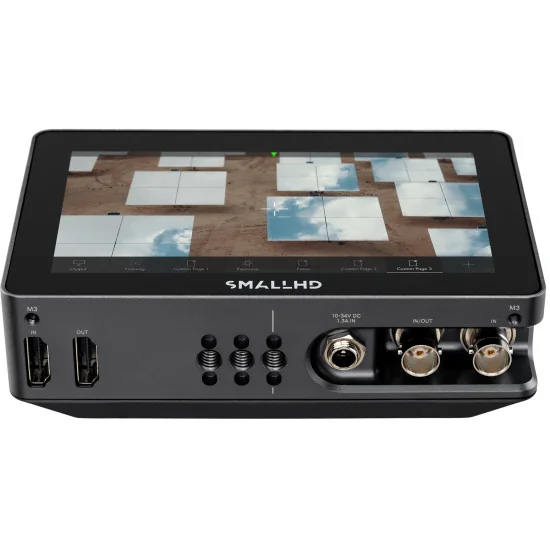

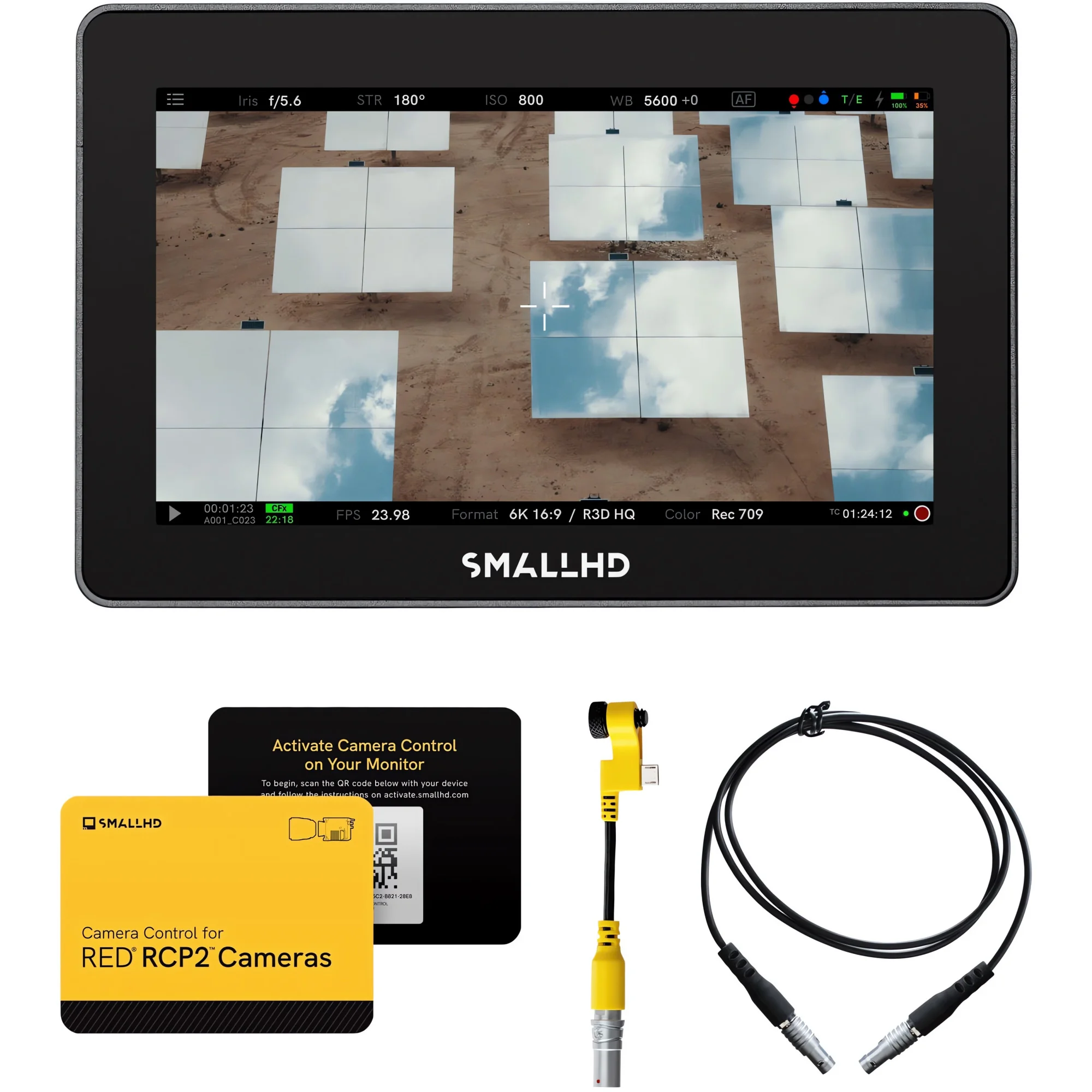

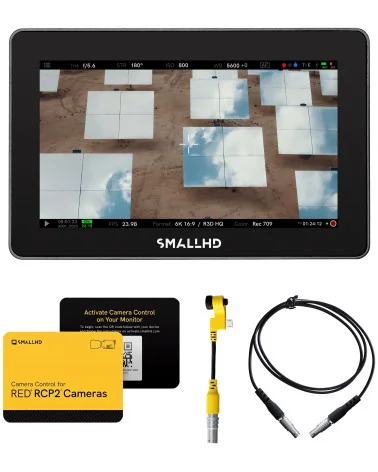

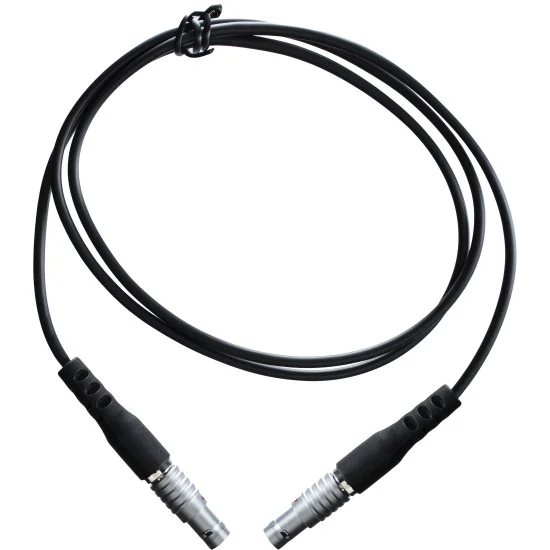

One HDMI 2.0 and one 3G-SDI input are paired with loop outputs, supporting cross-conversion and up to UHD 4K 30pover HDMI or 1080p 60 over SDI, with eight-channel embedded audio monitoring. Through the included Micro-USB-to-LEMO cable and RCP2 licence the monitor becomes a full camera controller: start/stop, shutter, FPS, ISO, white balance, playback and metadata all adjustable from the screen.

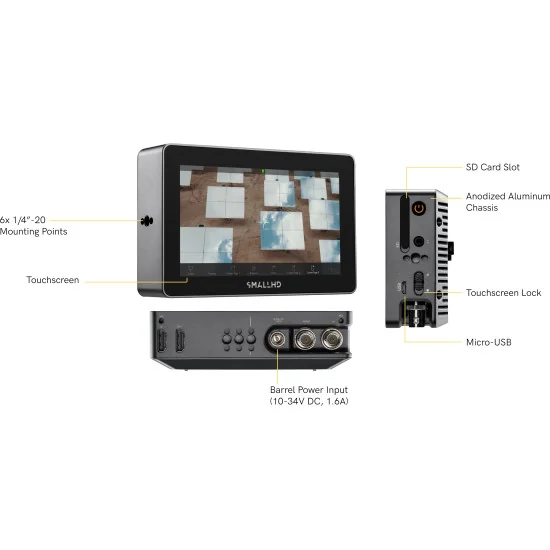

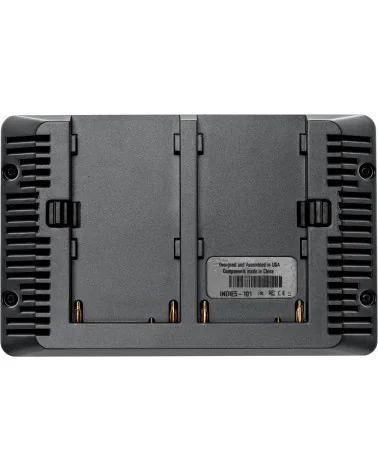

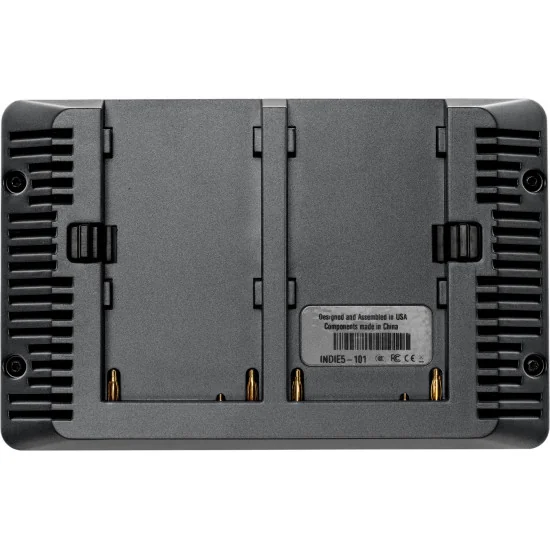

Dual Sony L-Series battery slots plus a 10–34 V locking barrel input keep power flexible on drones, gimbals and studio rigs. Machined aluminium housing, four ¼-20 threads and 408 g weight simplify mounting without sacrificing durability. An SD card slot enables fast LUT import and firmware updates.

For crews pushing speed on set, the SmallHD Indie 5 RED RCP2 Kit condenses monitoring, camera control and signal analysis into a single 13.4 × 8.6 cm footprint — a space-saving, standards-compliant tool engineered for today’s 4K HDR pipelines.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Indie 5
Lightweight. Compact. Accessible.
For the camera minimalist looking for a 5-inch monitor with touchscreen-only functionality without sacrificing performance, power, or quality.

Indie 5 is the smallest and lightest monitor in the Smart 5 Series, with 1000nits of brightness, optional camera-control functionality, and all your favorite PageOS tools, functions, and settings pages on a premium touchscreen 5-inch monitor.

PageOS
Next-Gen Tools, Customizable Workflow, Premium UX
Smarter, more intuitive software tools for at-a-glance adjustments, effortless navigation, and more accurate exposure and color control. Personalized Page Profile, Focus and Exposure Assist, Lookaround Camera Control, Tetrahedral LUT Interpolation, Advanced Teradek RT Overlays, and more.

LOOK-AROUND CAMERA CONTROL
A Camera Interface on Every Page
View and adjust crucial camera-control functions and PageOS tools at the same time on Smart 5 Series Monitors with a camera-control interface anchored to every page.

TERADEK RT OVERLAYS
Lens Control Overlays
View critical lens, focus, iris, and zoom data on your monitor. Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale for extremely precise focal-change sequences.

EL ZONE
Light Metering Evolved
Developed by legendary cinematographer, Ed Lachman, ASC, EL Zone is a stop-based exposure map tool that works like a virtual spot meter, replacing IRE exposure values with stops. Sensor data from the camera provides a reference point, and a false color represents each stop above and below 18% gray, allowing for easier, more intuitive on-set communication.

HORIZON INDICATOR
Keep Your Frame on the Level
A built-in digital bubble-level overlay you can apply to the image to precisely gauge camera rotation.

TOUCH FUNCTION BUTTONS
Customizable On-Screen Shortcuts
Smart 5 has easily accessible on-screen Touch Function Buttons. Assign workflow shortcuts for software tools, input switching, display brightness, and more.

SPECS

Environmental
Item Weight (oz): 14.4
Height (in): 3.39
Width (in): 5.28
Length/Depth (in): 1.52
Mount Points: 6x 1/4-20 Mounting Points

Display
Panel Type: Touch-Screen
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Max Brightness: 1000nits
Backlight Type: Edgelit

Input Signal
3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Input Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal
3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type
SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
Audio: 1x 3.5mm Stereo Headphone Jack

Data I/O
Storage Media: 1x SD Card Slot
USB: 1x Micro USB

Power
Input: Barrel Power Input
Overload Protection: DC input: Reverse polarity
Battery Chemistry: Li-ion

Software
Pixel Zoom: Yes
Focus Assist: Yes
Peaking: Yes
False Color: Customizable False Color Overlays
Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
