7-INCH 3000NIT SUPER BRIGHT
PQ/HLG/S-log3 HDR capable
The CM-S73H adopts a 7-inch super high bright LCD, the Max brightness is 3000nit, viewable under sunlight, and support PQ, HLG, S-log3 HDR display. The native resolution is Full HD 1920×1200, contrast 1200:1

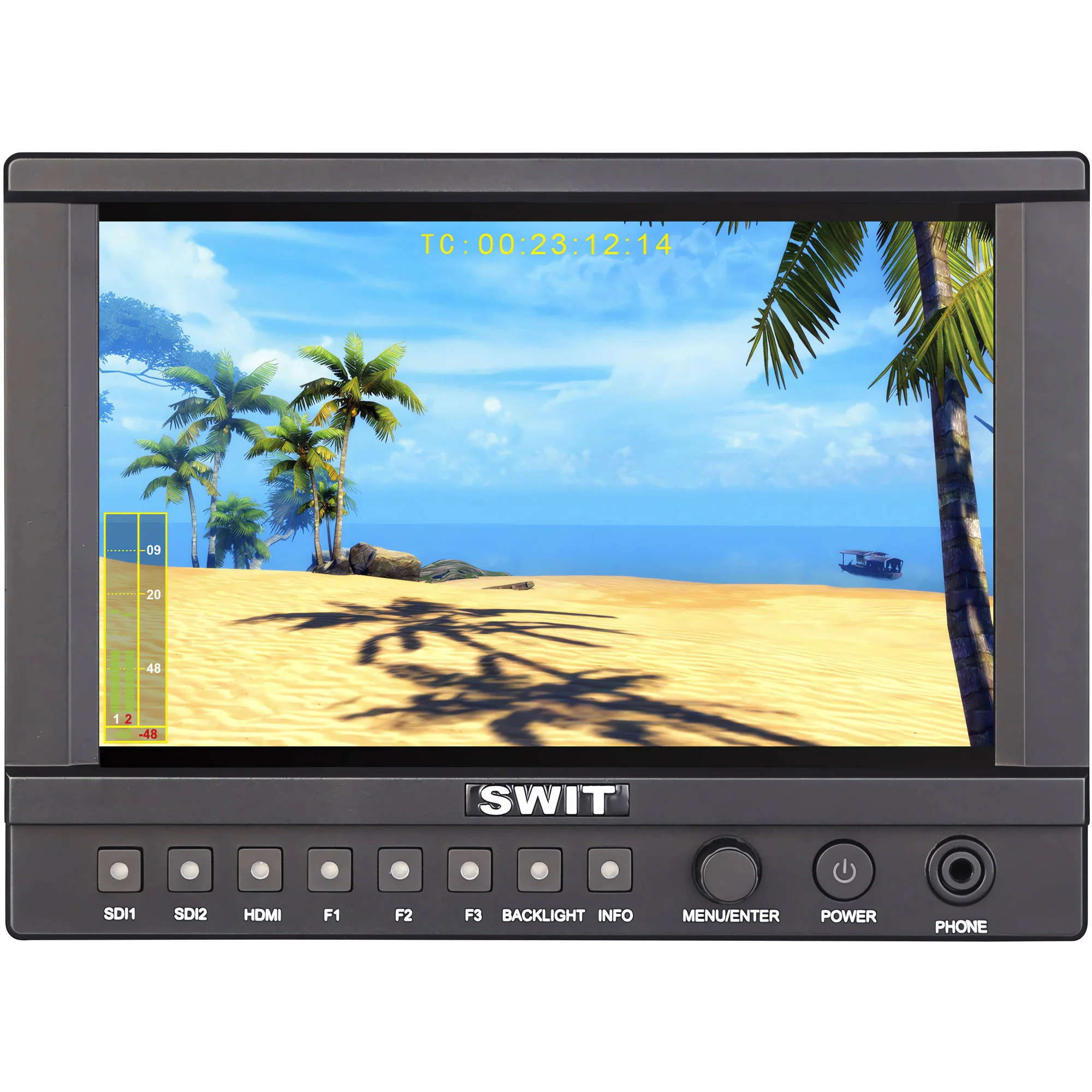

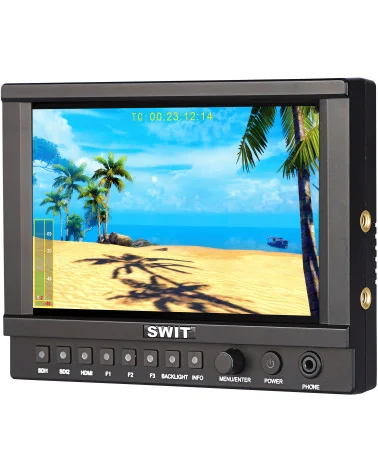

7-inch 3000nit Super Bright LCD Monitor
◆ 7” non-glaring LCD, 1920×1200 resolution
◆ 3000nit super high bright
◆ HDR capable: PQ / HLG / S-log3
◆ 2K/3G/HD/SD-SDI input & loop output
◆ HDMI 2.0 (4K60p) input & loop output
◆ 16-ch embedded audio meters with alert
◆ Select any 2 audio channels to output
◆ 9 steps quick zoom-in and mapping
◆ Focus assist with precision adjustment
◆ Build-in multi-camera logs to Rec.709
◆ User 3DLUT cube file import by USB
◆ On-screen TALLY display and GPI
◆ Zebra stripes, False color, R/G/B/Mono
◆ H/V delay, AFD, Timecode display
◆ Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
◆ V/Gold mount or various DV plates option
◆ USB firmware upgrade

INPUT/OUTPUT INTERFACES 3G-SDI、4K-HDMI®
CM-S73H monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 1 (loop SDI IN1 only)
HDMI® 2.0 (4K60p) input × 1
HDMI® 2.0 (4K60p) loop output × 1
3.5mm SDI/HDMI® embedded audio output

3DLUT LOG TO REC709
User LUT cube import
CM-S73H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2， S-log3, V-log, J-log1, RedLogFilm. You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

EMBEDDED AUDIO MONITORING
Up to 16-ch meters with alert and select output
CM-S73H supports SDI-16ch and HDMI®-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

PEAKING, R/G/B/MONO ONLY, ZEBRA, FALSE COLOR
Timecode, H/V delay, AFD, Scale Markers

ON-SCREEN TALLY
CM-S73H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor.

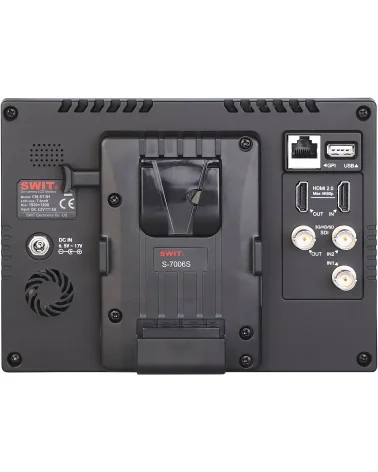

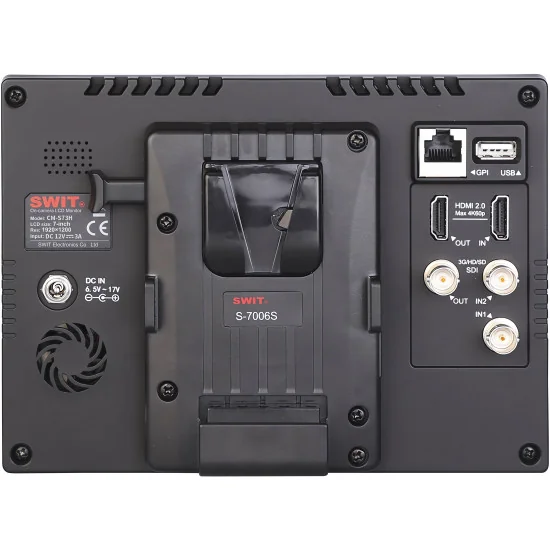

VARIOUS DV PLATE INSTALL
V-mount / Gold mount / DV mount
CM-S73H supports DC 6.5-17V input via a 5.5mm lockable DC socket, and can install SWIT S-7006 series V-mount / Gold mount / DV battery plates to power.
*Using S-7006F/D/B/I/C, the Max brightness will be reduced to 2000nit.

SPECIFICATIONS

LCD PERFORMANCE
Size: 7 inches
Display area: 151.2×94.5mm
Resolution: 1920×1200
Aspect ratio: 16:9 (4:3 adjustable)
Brightness: Max 3000cd/m2
Contrast: 1200:1
Color: 16.77 million colors
Viewing angle: Horizontal: 160°; Vertical: 160°
INPUT:
BNC ×2 2K/3G/HD/SD-SDI input
HDMI-A ×1 HDMI 2.0 input
USB ×1 Firmware upgrade
RS485 ×1 GPI (Tally) input
OUTPUT:
BNC ×1 2K/3G/HD/SD-SDI loop output
HDMI-A ×1 HDMI 2.0 loop output
3.5mm ×1 SDI, HDMI embedded audio output

VIDEO FORMAT
SDI:
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (60 / 59.94 / 50）
1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)
HDMI:
4096×2160p (60 / 50 / 30 / 25 / 24)
3840×2160p (60 / 50 / 30 / 25 / 24)
480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

GENERAL
Input voltage: DC / battery 6.5V-17V
Power consumption: ≤26W
Working temperature: -10°C～+50°C
Working humidity: 10%～90%
Storage temperature: -15°C～+60°C
Storage humidity: 10%～90%
Dimensions: 187×137×41mm
Net weight (main body): 500g
