SWIT PC-P461S | Super Fast Quad V-Mount Charger 4x 100W

SWIT PC-P461S | Super Fast Quad V-Mount Charger 4x 100W

Name: SWIT PC-P461S | Super Fast Quad V-Mount Charger 4x 100W
Brand: SWIT
SKU: PC-P461S
Price: 890.00 EUR
Availability: InStock

MPN: PC-P461S

Price: €890.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

Discover the SWIT PC-P461S Super Fast Quad V-Mount Charger, a high-performance solution for charging multiple batteries efficiently. This charger can simultaneously power up four V-mount batteries, each at an impressive 100W speed, accommodating both 14.4V and 28.8V models for versatile use across your gear. An intuitive LCD screen provides real-time data on charging status, voltage, and current for each battery, ensuring you're always informed. Advanced safety features—including overcharge, overheating, and surge protection—preserve battery health and extend lifespan. Built with a rugged yet compact design, the PC-P461S is easy to transport, making it ideal for on-site productions where reliable and rapid charging is crucial.

UE Shipping

We ship all over the European Union for €20, free shipping on orders over €1,000.

B2B Shop

Our offer is aimed only to B to B Customers, all prices are exclusive of tax.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

4x100W Fast Charger for both 14.4V and 28.8V batteries
PC-P461S can charge 4 V-mount batteries simultaneously, support both 14.4V and 28.8V nominal voltage batteries. Super fast charging 100W/6A for 14.4V batteries, and 100W/3A for 28.8V batteries, save up to 60% charging time comparing to normal chargers. SWIT ≥160Wh batteries support 100W fast charging, for less capacity or other brand batteries, the charging current will limit to 50W/3A.

Key features
› 4-ch simultaneous fast charging
› Charge both 14.4V and 28.8V V-mount batteries
› 100W/6A for SWIT 14.4V & ≥160Wh batteies
› 100W/3A for SWIT 28.8V & ≥160Wh batteies
› 50W/3A for other batteies
› 3.5-inch color LCD info display
› Battery cycle times display
› Top large charging indicators

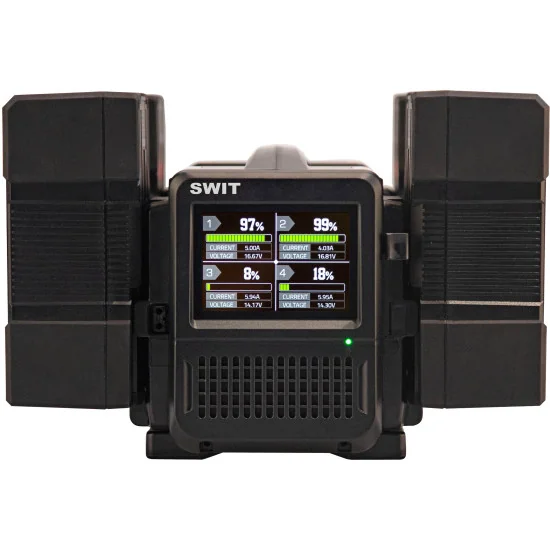

3.5-inch Color LCD Display
PC-P461S provides a 3.5-inch color LCD panel to display charging progress, charging current and voltage. For batteries with SMBUS info, it will display real time capacity and battery cycle times as well.

Top Charging Indicators
Besides LCD screen info, you can check the charging status at a glance by the 4 large size indicators on the top of the charger.
Red on: 0-80%
Green flashing: 81%-99%
Green on: 100% fully charged
Red flashing: Charging error, check LCD info

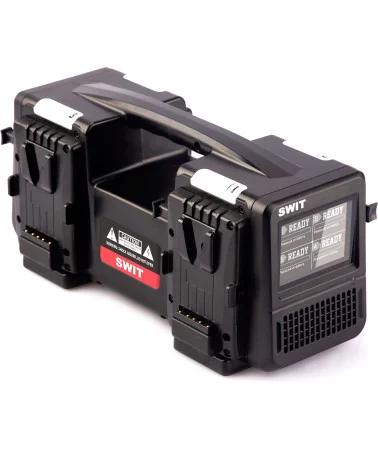

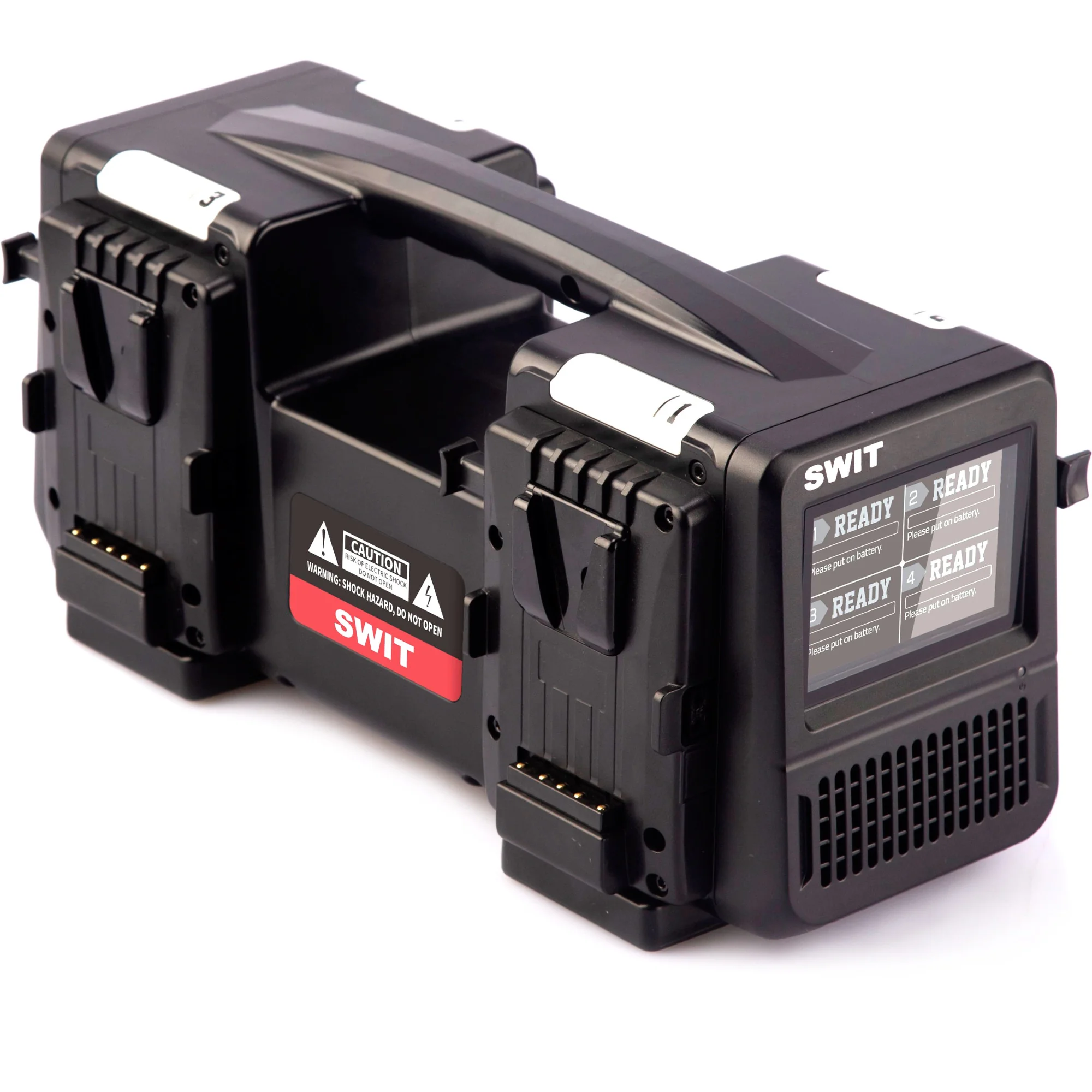

Light Weight and Portable
The 4 channel fast charger PC-P461S has minimized the size and weight, and the new handle design makes the charger solid and easy to carry.

Specs.
Power: Max 450W
Input: AC100V-240V 50/60Hz
Output
DC 16.8V, 6Ax4 (SWIT 14.4V & ≥160Wh batteries)
DC 33.6V, 3A×4 (SWIT 28.8V & ≥160Wh batteries)
DC 16.8V, 3A×4 (Other batteries)
Applicable battery: V-mount battery
Dimensions: 330×153×162mm
Net weight: Net 2.43kg; With package 3.3kg
