Teradek Serv Micro is a compact HDMI transmitter/encoder built for on-set monitoring and camera-to-cloud. It handles 1080p60 H.264/AVC, provides HDMI 2.0 input with loop-through, and records proxies to SD/SDXC. Local crews monitor on up to 10 devices via the free VUER app without internet; remote stakeholders can join through Teradek Core/Teradek TV, Frame.io or Sony Ci with secured distribution and instant playback.
Connectivity is production-grade: Wi-Fi 6 dual-band MIMO (2.4/5 GHz) with selectable RF channels, 10/100/1000 Ethernet, and a USB host for 3G/4G modems. For link resiliency it supports network bonding across up to seven paths (Ethernet, Wi-Fi, USB plus up to four smartphones). Video bit-rates span 0.3–15 Mb/s; a built-in scaler and de-interlacer manage 1080p 23.98–60, 1080i 50/59.94/60 and 720p 50/59.94/60. Streams are protected with AES-256 encryption end-to-end.
Audio is embedded over HDMI (2-ch) or fed via a 3.5 mm mic/line input, encoded as AAC-LC at 48–512 kb/s. Setup is fast through a feature-rich web UI and an OLED with 5-way joystick. The housing combines machined aluminum and ABS; dimensions are 105 × 75 × 28 mm, mass 190 g. Mount horizontally or vertically using ¼-20 (≈6.35 mm) or M3 points, route power from 6–28 VDC barrel or a Sony L-Series battery.
VUER supports a four-up mosaic with focus and false-color tools. Recording uses exFAT on full-size SD/SDXC or FAT32 via USB for fast handoff. Core routes streams to browsers, Teradek TV and third-party platforms with role-based access. Network stack: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP. Typical draw is 4.5 W on Ethernet or 6 W on Wi-Fi, leaving headroom for compact rigs. Use Serv Micro to deliver low-latency, color-faithful monitoring on set, while camera feeds and proxy files reach editorial and clients worldwide through Teradek Core—a practical bridge between set video village and cloud review.

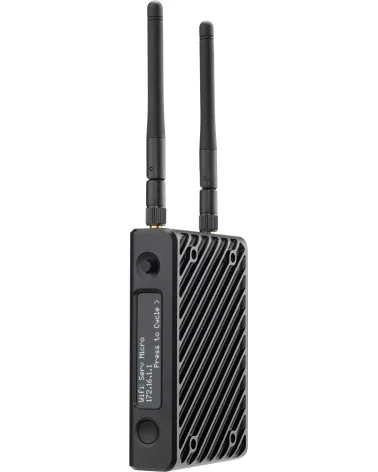

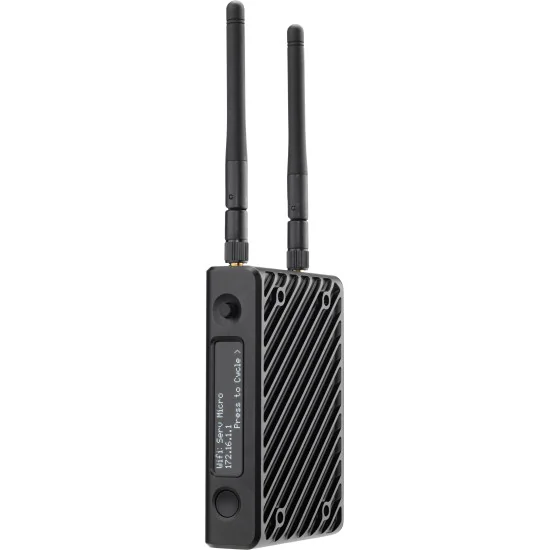

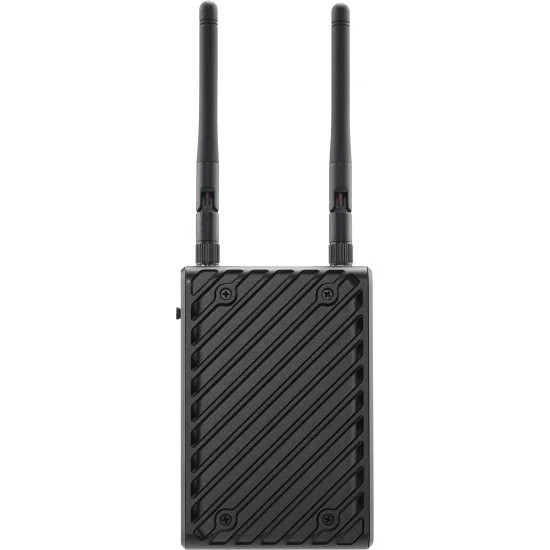

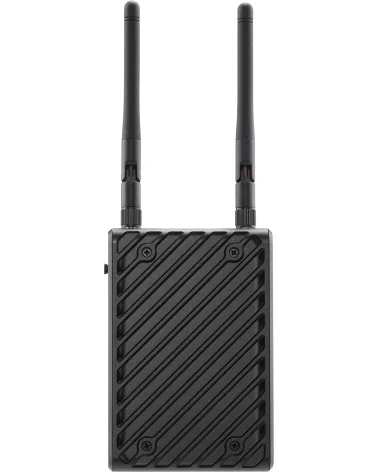

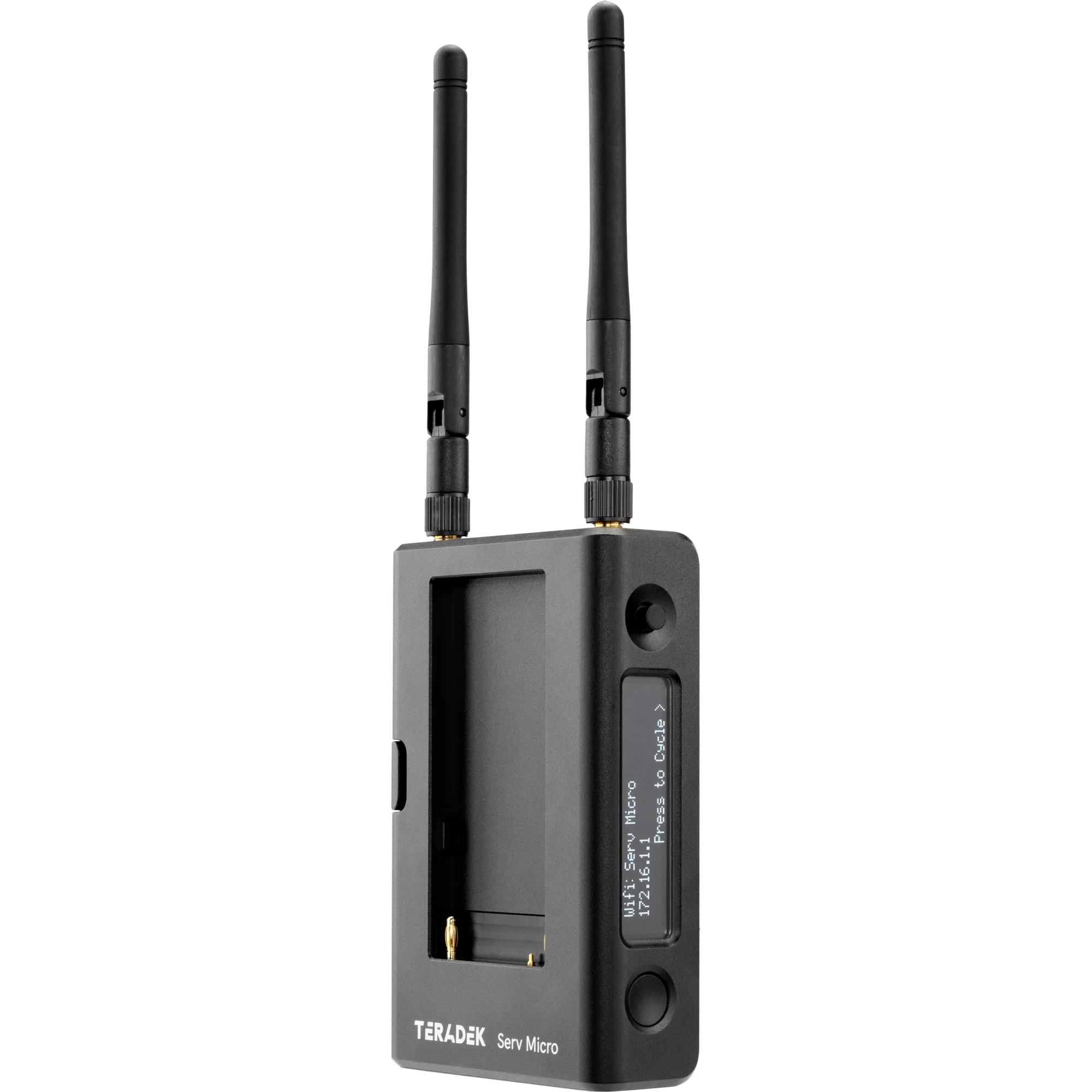

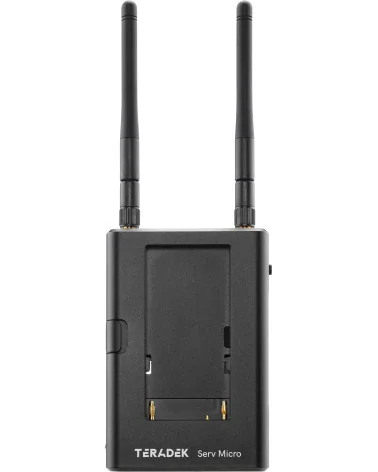

Teradek Serv Micro Streaming Encoder
TE-10-0744
Price: €849.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Teradek Serv Micro is a compact HDMI transmitter/encoder built for on-set monitoring and camera-to-cloud. It handles 1080p60 H.264/AVC, provides HDMI 2.0 input with loop-through, and records proxies to SD/SDXC. Local crews monitor on up to 10 devices via the free VUER app without internet; remote stakeholders can join through Teradek Core/Teradek TV, Frame.io or Sony Ci with secured distribution and instant playback.
Connectivity is production-grade: Wi-Fi 6 dual-band MIMO (2.4/5 GHz) with selectable RF channels, 10/100/1000 Ethernet, and a USB host for 3G/4G modems. For link resiliency it supports network bonding across up to seven paths (Ethernet, Wi-Fi, USB plus up to four smartphones). Video bit-rates span 0.3–15 Mb/s; a built-in scaler and de-interlacer manage 1080p 23.98–60, 1080i 50/59.94/60 and 720p 50/59.94/60. Streams are protected with AES-256 encryption end-to-end.
Audio is embedded over HDMI (2-ch) or fed via a 3.5 mm mic/line input, encoded as AAC-LC at 48–512 kb/s. Setup is fast through a feature-rich web UI and an OLED with 5-way joystick. The housing combines machined aluminum and ABS; dimensions are 105 × 75 × 28 mm, mass 190 g. Mount horizontally or vertically using ¼-20 (≈6.35 mm) or M3 points, route power from 6–28 VDC barrel or a Sony L-Series battery.
VUER supports a four-up mosaic with focus and false-color tools. Recording uses exFAT on full-size SD/SDXC or FAT32 via USB for fast handoff. Core routes streams to browsers, Teradek TV and third-party platforms with role-based access. Network stack: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP. Typical draw is 4.5 W on Ethernet or 6 W on Wi-Fi, leaving headroom for compact rigs. Use Serv Micro to deliver low-latency, color-faithful monitoring on set, while camera feeds and proxy files reach editorial and clients worldwide through Teradek Core—a practical bridge between set video village and cloud review.
UE Shipping
We ship all over the European Union for €20, free shipping on orders over €1,000.
B2B Shop
Our offer is aimed only to B to B Customers, all prices are exclusive of tax.
Secure checkout
Secure online payments via Stripe.
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Technical Specs

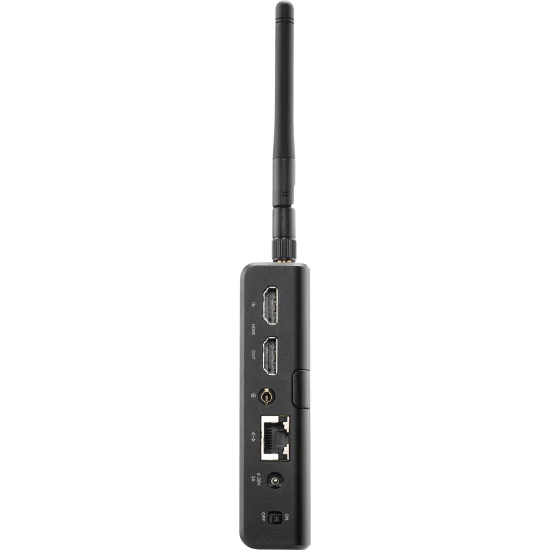

Video Inputs: 1 x HDMI 2.0 Type-A receptacle
Video Outputs: 1 x HDMI 2.0 Type-A receptacle
Bonding: Simultaneous bonding over up to 7 networks: Ethernet Wi-Fi USB cellular modem Up to 4 cellphones (iOS or Android)
Supported Resolutions: 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 720p 50/59.94/60
Video Compression: ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264 AVC: Main
Supported Video Bitrate: 300 Kbps to 15 Mbps
Video Format Conversion Support: Built in video scaler and deinterlacer
Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Supported Video Transport Protocols: AirMix, Teradek bonding
Audio Compression: AAC-LC
Supported Audio Bitrate Details: 48Kbps to 512Kbps
Audio Input: Embedded audio input (2 channel) Analog line or Microphone in (2 channel)
Dimensions: 4.1”W x 2.9”D x 1.1”H [105 x 75 x 28mm]
Weight: 190g (6.7 Oz)
Construction: Machined aluminum and ABS Plastic
Mountability: Can be mounted horizontally or vertically with 1/4” 20 or M3 mounting holes

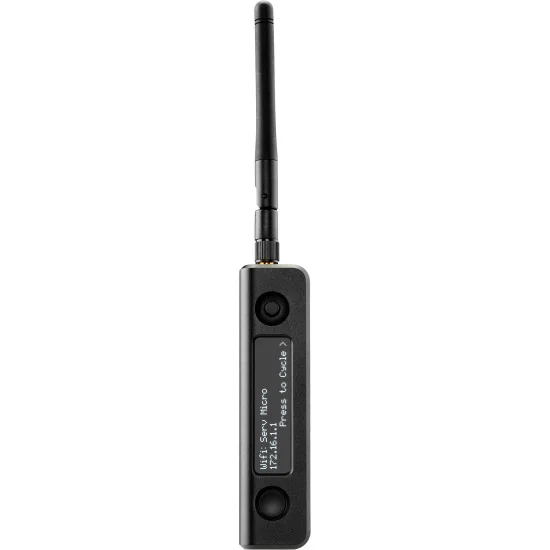

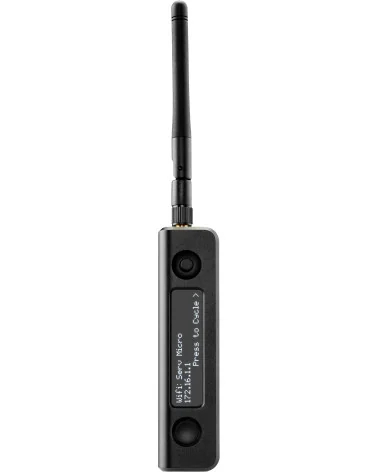

Configuration Interfaces: Feature-rich Web UI for configuration and control OLED Status Display w/5-way navigation joystick
Switches: On/Off switch

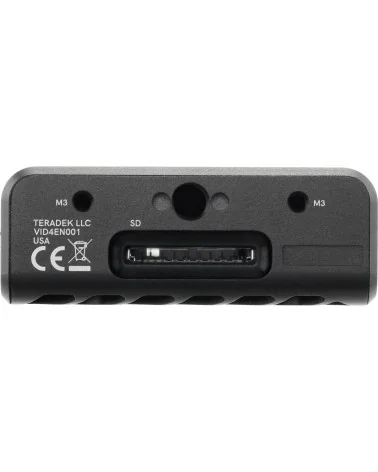

Recording Storage: Full size SD/SDXC (class 6 and above) formatted exFAT USB formatted FAT32
Mobile App: Serv Manager for iOS and Android devices
Cloud Services: Teradek Core, Frame.io, Sony Ci
Usb Interface Functionality: Powered USB host port
Ethernet: 10/100/1000 BASE-T
Wireless: WiFi 6: Dual Band MIMO 802.11 IEEE a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax

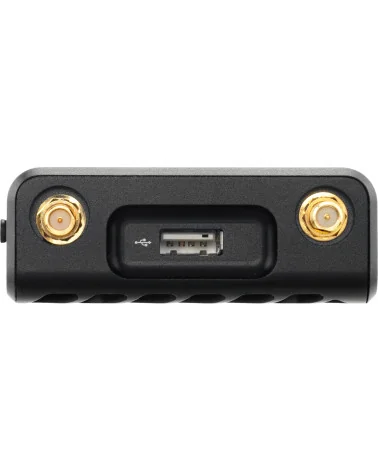

Usb: USB type A (host) for 3G/4G modem support
Rf Channel Selection: Auto with 3 modes: (2.4 or 5 GHz), Auto (2.4 GHz only), Auto (5 GHz only) Manual: Configurable to specific channels

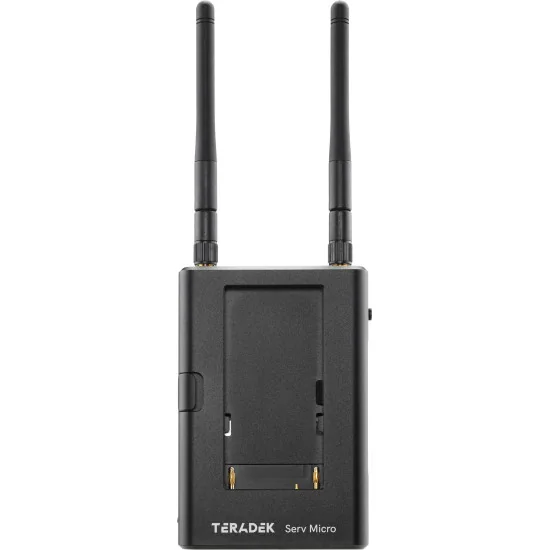

Power Input: 6-28V barrel connector Sony L Series battery
Nominal Power Consumption: 4.5W using Ethernet 6W using WiFi
In the Box
1 x Serv Micro
1 x HDMI Male Type C (Mini) - HDMI Male Type A (Full) 18in Cable
1 x Ethernet Cable
1 x PSU 18W AC Adapter 12VDC (Int) - 6ft Cable
2 x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
1 x Hot Shoe Adaptor
TE-10-0744
2 Items
Data sheet
- Video Input
- HDMI
- Video Output
- HDMI
RJ-45 (IP) - Audio Input
- HDMI Embedded
Mini Jack 3.5mm - Max Output Resolution
- 1080p 50/60 fps
- Built-in scaler
- Yes
- Max bitrate
- 15Mbps
- Streaming protocols
- DHCP
HTTP
IGMP
NTP
SSL
TCP/IP
UDP - Network Connection
- Ethernet
Mobile modem
Wi-Fi
Specific References
- ean13
- 818264028148
- mpn
- 10-0744
