Our Ultra Encode family of universal live media encoders offers systems integrators, streaming professionals, and OEM partners a flexible and affordable encoding solution for applications including live streaming, AV over IP, remote contribution, IP production workflows and much more.

Available in HDMI and SDI models, it builds on the functionality of the Ultra Encode family with expanded features including 4K encoding and streaming from the HDMI input; simultaneous multi-protocol streaming; higher streaming bitrates; file recording; and much more.

This device is ideal for high-quality live streaming of content including sports, education, and live events as well as IP-based production and AV-over-IP.

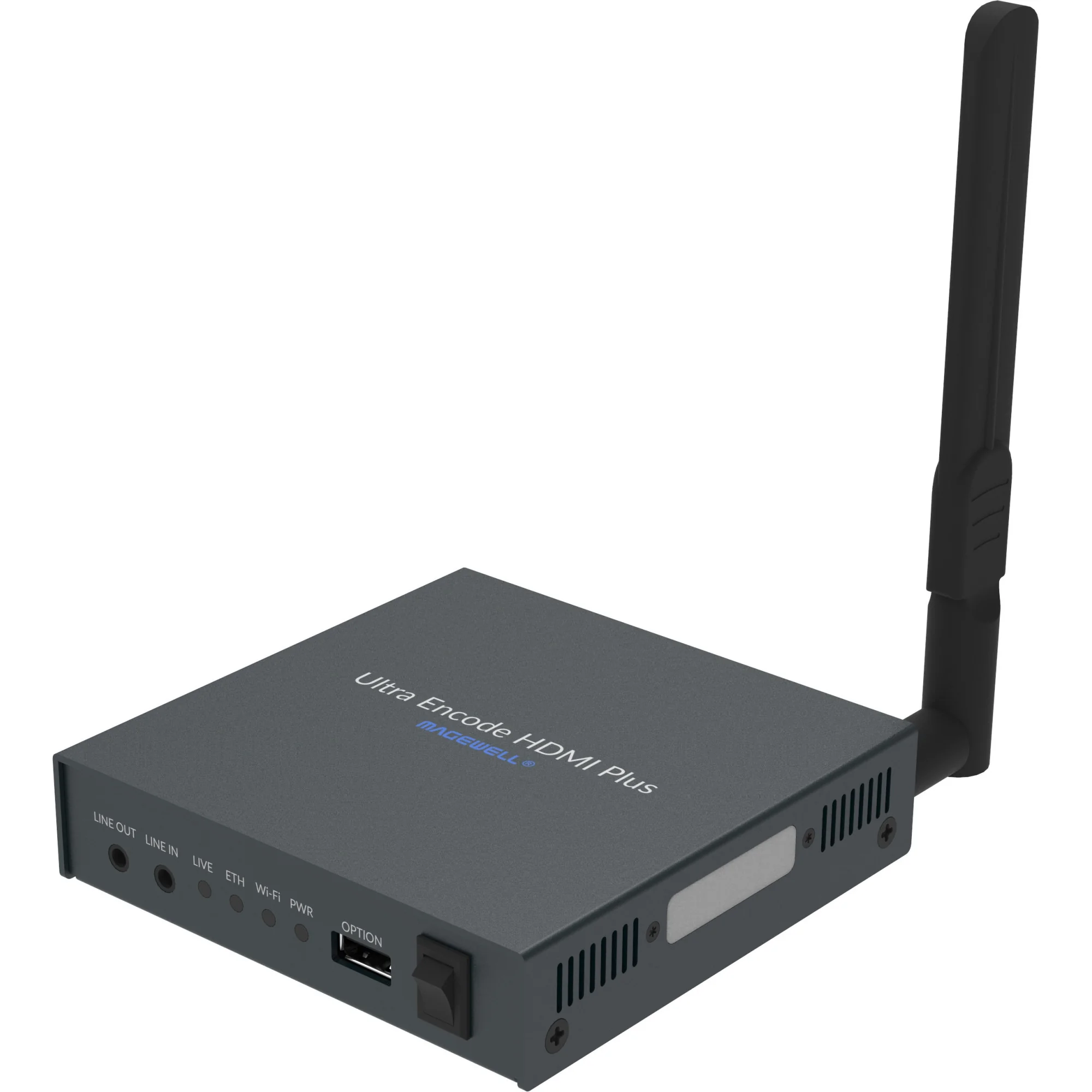

The Magewell Ultra Encode HDMI Plus Encoder supports multiple video encoding formats – including H.264, H.265 (HEVC), NDI |HX2, and NDI |HX3 – and a wide array of delivery protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS, TS over UDP, TS over RTP, and TVU’s ISSP technology. Up to eight channels of audio can be encoded in AAC format.

Encoder is ideal for broadcast video and audio, natively support live broadcast for Facebook, YouTube, and Twitch, as well as WOWZA, your own site, with multi-platform distribution. To customize encoder perfectly for your session, we have Web UI, where device work status, a thumbnail preview window and tabs for streaming settings, analytics, and stream health monitoring are provided.

Input Features
Video
Supports HDMI 1.4a, DVI-D
Typical resolution/frame rate:
4096x2160 30fps 4:4:4/4:2:2
4096x2160 60fps 4:2:0
2560x1440p/2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1280x720p 25/29.97/30/50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)
Color depth: 8/10/12-bit
Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
Custom EDID

Audio
HDMI embedded audio: 8-Channel, 24-bit, 192kHz sample rate
Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate

Encode
Video
Bitrate:
NDI® HX3: up to 62.0Mbps, down to 1.5Mbps
Others: up to 32.0Mbps, down to 256kpbs
Dual-stream encoding: main stream and sub stream
Main stream Resolution/frame rate:
4096x2160p/3840x2160p 30/29.97/25/24/23.976/15/10/5
2560x1440p/2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5

Sub stream
Supports enabling/disabling sub stream
Resolution/frame rate:
1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5

H.264/H.265 (HEVC) Codec:
System timecode or RP–188 standard timecode for SEI Message setting
H.265 (HEVC) SEI message supports carrying interlacing signal mark
Video aspect ratio conversion
Image rotation: 0°, 90°, 180°, 270°
Cropping
Output 3D video

Audio
Encode up to 4 audio streams
Supports up to 8 source channels
Supports mapping between source channels and encoded audio channels
Contains 1 x 8-channel stream and 3 x 2-channel streams
Bitrate: 256/192/128/96/64/48/32/16 kbps
Output source embedded audio and line in through LINE OUT

Live stream
Natively supports streaming to:
Twitch
YouTube (HLS/RTMP), publishing to timeline or a new event and setting “made for kids”.
Facebook, enabling backup stream and publishing to timeline or a new event.
WOWZA over RTMP, adding token and publishing to timeline or a new event.
WOWZA over SRT, setting AES encryption (AES–128/192/256) and publishing to a channel or a new event.

Supports streaming protocols:
RTSP
RTMP/RTMPS
SRT Caller/SRT Listener
NDI®|HX2/NDI® HX3
HLS
TS over UDP/TS over RTP
TVU ISSP

Supports streaming to 6 destinations simultaneously, containing 1 session of RTSP/SRT Listener/HLS/ISSP (if included), or 2 NDI®|HX2 sessions (if included)
Supports 1 NDI® HX3 sessions exclusively
Supports specifying a video stream and an audio stream for each streaming session
Supports live stream scheduler

Record
Supports setting and managing recording function and tasks
Supports recording to local storage
Supports format and performance test
Automatically upload files to remote file storage platforms including FTP server, Google Drive, and Dropbox

Supports recording to external USB storage
Supported system format: FAT32, exFAT and NTFS

Supports recording to network attached storage (NFS/CIFS)
Supported system format: NFS, CIFS

Supports loop recording and normal recording
Supports saving recording files in MP4, MOV or TS format
Supports specifying a video stream and an audio stream for each recording task
Supports customizing recording file name and prefix
Supports splitting recording files by time
MP4, MOV: up to 4 hours
TS: no limit

Supports exporting or downloading files through Web UI
Supports recording scheduler

Web UI
Access Web UI via PC and smartphone
View real-time device status
Preview encoded video
Set input sources
Customize encoding parameters
Manage streaming destinations, start/stop streaming, view streaming status
Manage recording tasks and recorded files
Set up to 8 overlays for each stream, including text, picture, and clock
Update firmware
Supports registering Magewell Control Hub for centralized management
Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers

Network Connections
Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
IEEE 802.3af PoE
Wi-Fi: 802.11 a/b/g/n/ac, Station and AP modes supported
4G/5G USB modem (not supplied)
USB Net

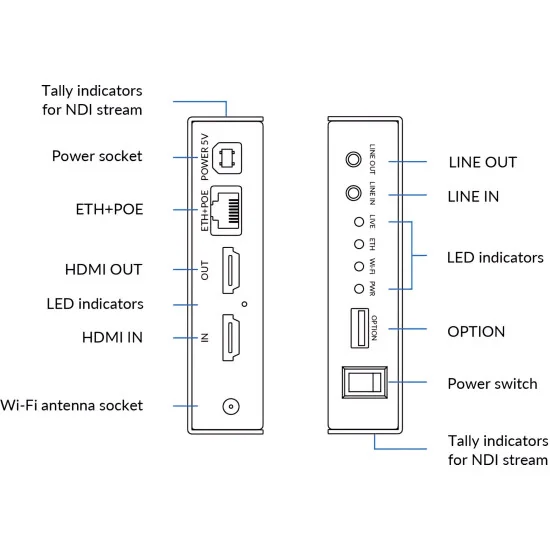

Input/Output Ports
2 x HDMI ports (1 x Input, 1 x Loop-through)
1 x 3.5mm LINE IN
1 x 3.5mm LINE OUT
2 x USB Type-A

Storage
USB flash drive (not supplied): FAT32, NTFS, exFAT
NAS (not supplied): NFS/CIFS

Indicators
LEDs indicating the status of power, input signal, streaming, Ethernet, Wi-Fi connection
NDI tally lights (preview-green, program-red)

Power Supply and Consumption
DC 5V/3A
Max power consumption: 8.68W

Form Factor
106.6mm x 106.2mm x 25mm

Accessories
1 x 5V Power Adapter
1 x HDMI Cable
1 x USB Type A to Type B cable
1 x Wi-Fi Antenna
1 x T-bracke

Screw Mounting Hole
2 x M3 threaded hole
A standard 1/4"-20 socket provided by T-bracket

Working Environment
Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 60 deg C
Relative humidity: 5% to 90% non-condensing
