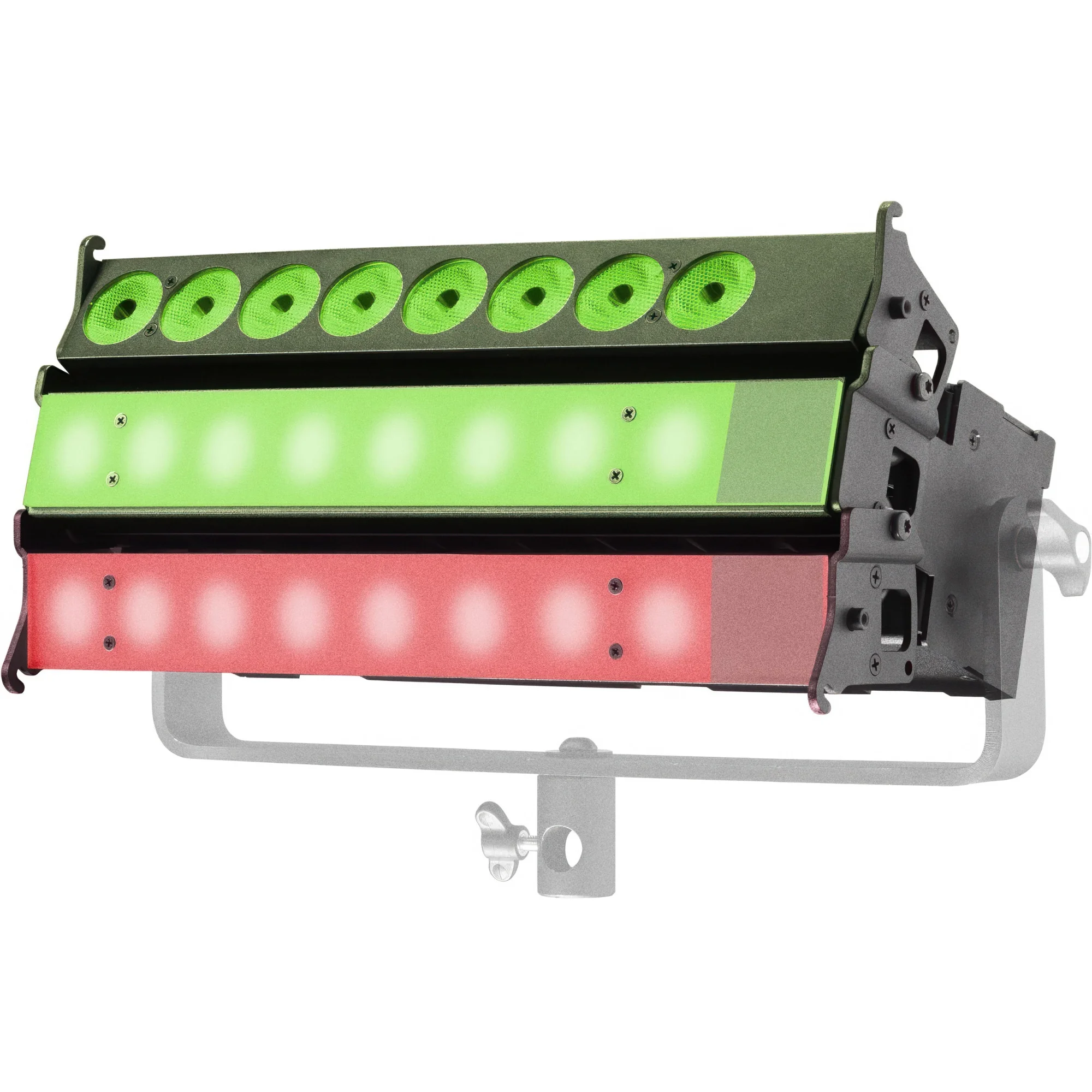

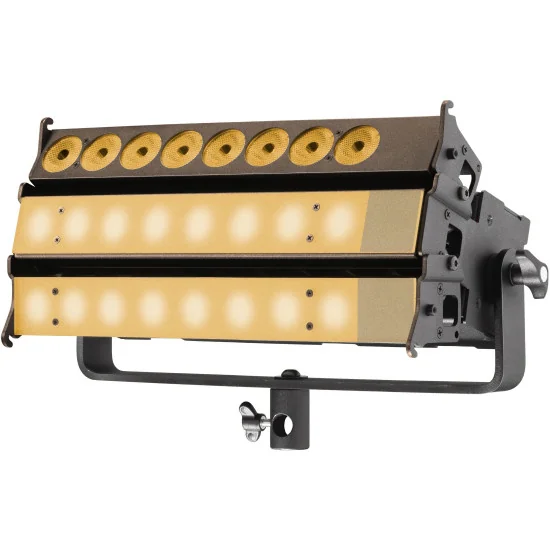

VELVET CYC 3 is a compact RGBW cyclorama light that replaces multi-row background rigs with a single asymmetrical beam. Three articulated battens form a continuous line source that bends to steer the vertical spread, washing cyc walls, backdrops and greenscreens with consistent exposure. A horizontal 45° beam with vertically adjustable 45–80° field allows precise placement on grids, walkways or floor stands while limiting spill on presenters and audience areas in broadcast and theatre environments.
The RGBW engine of VELVET CYC 3 spans 2500–10000 K with continuous green–magenta correction from full Plusgreen to full Minusgreen. A typical CRI 95 and TLCI 94 / 93 at 3200 K and 5600 K maintain accurate skin tones on multi-camera productions. CCT, HSI, RGB, gel and effects modes provide access to calibrated whites, saturated colours and pastels, while a 16 kHz output frequency keeps the fixture flicker free up to 2000 fps for high-speed and slow-motion work.

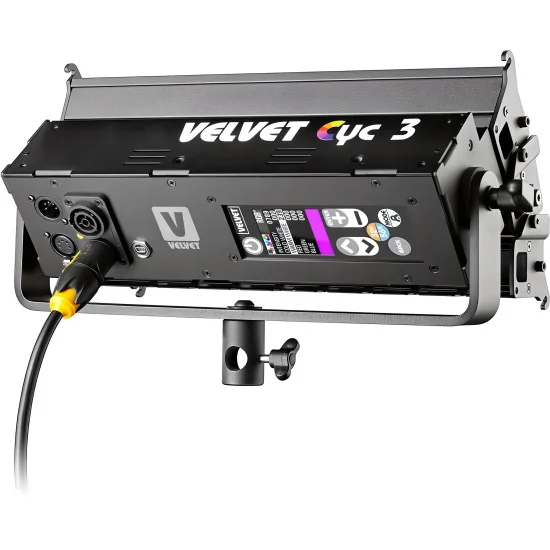

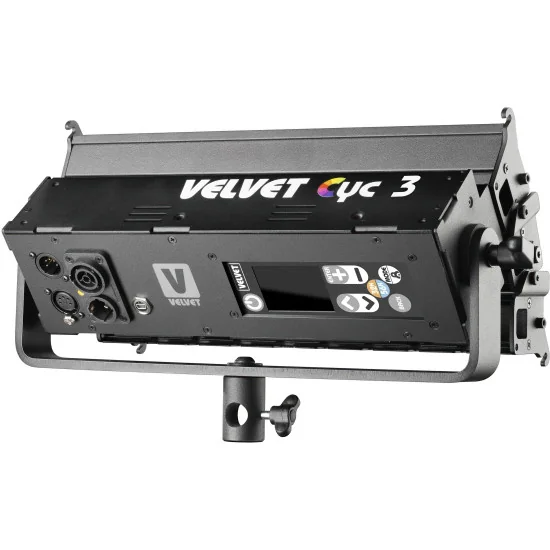

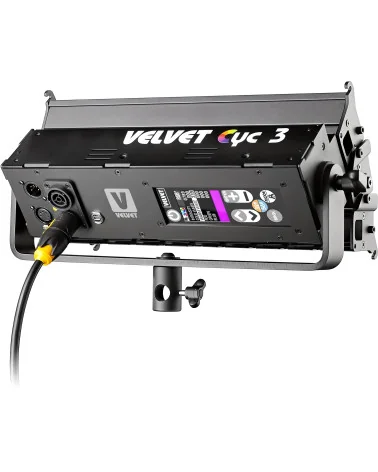

On the control side, VELVET CYC 3 offers on-board operation with shock-resistant buttons, colour display, a 3200/5600 K shortcut and 0–100% dimming with smooth response at the bottom end. For system integration the unit supports DMX-RDM via 5-pin XLR in and out, Wi-Fi ArtNet and a USB port. Each of the three light engines can be addressed individually, enabling horizontal colour gradients, segment chases and zone control for extended back walls when several fixtures are rigged in a row.
Drawing 76 W, this RGBW beam delivers around 1000 lux on backgrounds up to 3 m away while remaining passively cooled and completely silent. An IP21 rating and black anodized aluminium housing support daily use in TV studios, corporate webcast spaces and theatre venues. With optional yokes, ball heads, pole-operated mounts and barndoors, VELVET CYC 3 serves as a flexible tool for cyclorama washes, colour layers behind LED volumes and immersive broadcast sets where homogeneous background light is critical.
VELVET CYC 3 is a compact RGBW cyclorama light that replaces multi-row background rigs with a single asymmetrical beam. Three articulated battens form a continuous line source that bends to steer the vertical spread, washing cyc walls, backdrops and greenscreens with consistent exposure. A horizontal 45° beam with vertically adjustable 45–80° field allows precise placement on grids, walkways or floor stands while limiting spill on presenters and audience areas in broadcast and theatre environments.
The RGBW engine of VELVET CYC 3 spans 2500–10000 K with continuous green–magenta correction from full Plusgreen to full Minusgreen. A typical CRI 95 and TLCI 94 / 93 at 3200 K and 5600 K maintain accurate skin tones on multi-camera productions. CCT, HSI, RGB, gel and effects modes provide access to calibrated whites, saturated colours and pastels, while a 16 kHz output frequency keeps the fixture flicker free up to 2000 fps for high-speed and slow-motion work.
On the control side, VELVET CYC 3 offers on-board operation with shock-resistant buttons, colour display, a 3200/5600 K shortcut and 0–100% dimming with smooth response at the bottom end. For system integration the unit supports DMX-RDM via 5-pin XLR in and out, Wi-Fi ArtNet and a USB port. Each of the three light engines can be addressed individually, enabling horizontal colour gradients, segment chases and zone control for extended back walls when several fixtures are rigged in a row.
Drawing 76 W, this RGBW beam delivers around 1000 lux on backgrounds up to 3 m away while remaining passively cooled and completely silent. An IP21 rating and black anodized aluminium housing support daily use in TV studios, corporate webcast spaces and theatre venues. With optional yokes, ball heads, pole-operated mounts and barndoors, VELVET CYC 3 serves as a flexible tool for cyclorama washes, colour layers behind LED volumes and immersive broadcast sets where homogeneous background light is critical.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
Color asymmetrical beam fixtures with multiple light engines
RGBW asymmetrical cyclorama fixture. Multiple light engines with individual control by battens to create gradient color effects. Mechanically tunable vertical beam. High color reproduction (96 CRI index). Lightweight, low-carbon aluminum body. Totally silent fanless operation. DMX-RDM, Wi-fi Artnet, Bluetooth. High efficiency with built-in PSU.
Included
1x Velvet CYC 3
1x PowerCon TRUE1 3.5m power cable
SPECIFICATIONS
NUMBER OF LIGHT ENGINES: 3
COLOUR TEMPERATURE: Continuously adjustable from 2500K to 10000K
LIGHT INTENSITY: Dimmable 0 to 100, smooth and flicker-free
GREEN/MAGENTA CORRECTION: Continuously adjustable (full Plusgreen to full Minusgreen)
COLOR CONTROL MODES: CCT, HSI, RGB, Gels and Effects
LOCAL CONTROL: Shock proof buttons and color display
WIRE CONTROL: DMX-RDM with XLR-5 In & Out connectors
WIRELESS CONTROL: Wi-Fi ArtNet
COLOR RENDERING INDEX: 95 CRI typical
TLCI: INDEX 94 at 3200K and 93 at 5600K
PHOTOMETRICS: 1012 Lux / 94 fc over a background of up to 3m / 10 feet
BEAM ANGLE: Asymmetrical adjustable: Horizontal beam angle 45º / Vertical beam angle adjustable 45º to 80º
DIMENSIONS: 340x160x148mm / 13.4”x6.3”x5.8”
WEIGHT: 3.7kg / 8.15 lbs. (fixture + yoke)
POWER DRAW: 76W (0.34A at 220VAC — 0.69A at110VAC)
POWER SUPPLY: 90-264VAC 50/60Hz
LED RATED LIFE: More than 50.000 hours L70 / More than 35.000 hours L80
POWER CONNECTION: Neutrik PowerCon TRUE1 in and out connectors
OUTPUT FREQUENCY: 16KHz flicker-free up to 2000fps
OPERATION TEMPERATURE: From -20ºC to +40ºC
COOLING: No-noise, fan-free passive cooling
PROTECTION: IP21 dustproof, indoor or outdoor protected use
VELVET LED TECHNOLOGY: RGBW high-power selected BIN LED core unit + multi Fresnel system
RIGGING OPTIONS (optional): Aluminum yoke with 16 female combined with 28 pin, swivel ball head, pole operated yoke
QUICK MOUNTING ACCESSORIES (optional): Removable barn doors, flight case
CONSTRUCTION & FINISH: Black anodized extruded aluminum and black powder coated sheet aluminum
