VELVET EVO 1 IP54 V2 RGBWW LED Panel

    VE1CIP54-PACK
    Price: €2,490.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
    Available from supplier (Delivery time to be confirmed.)

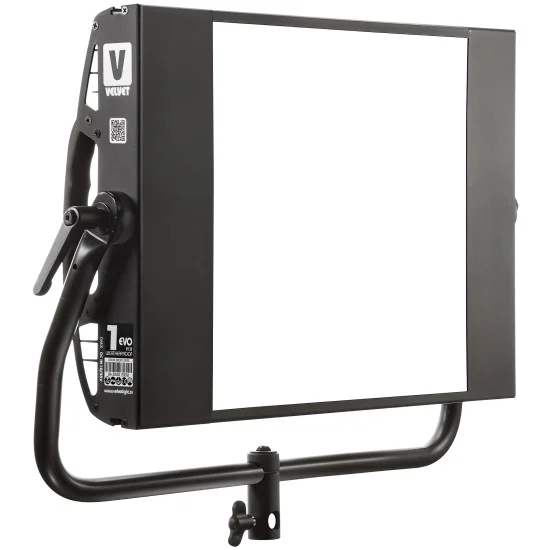

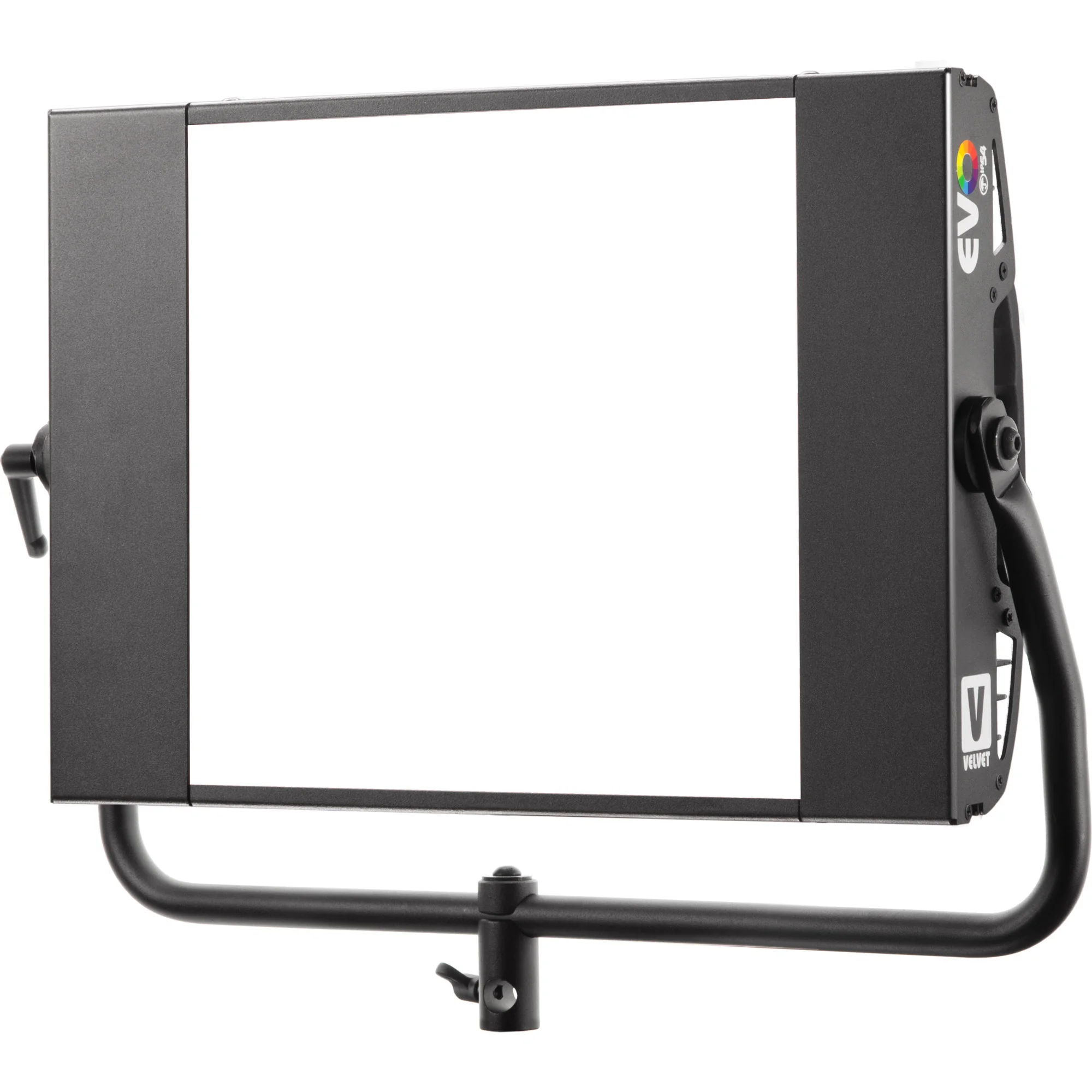

    VELVET EVO 1 IP54 V2 RGBWW LED Panel is a 1x1 location fixture for crews that need a compact, colour-tunable soft source that keeps working in rain and dust. Its IP54 weatherproof housing with passive-cooled aluminium body makes it suitable for exterior drama, live entertainment, OB vans and mobile streaming rigs where silence and reliability are critical.

    The heart of the fixture is a 5-LED RGB+W+CW engine paired with a calibrated diffuser, delivering uniform output with TLCI 97 and stable chromaticity across the full 2500-10000K CCT range. Green–magenta shift is continuously adjustable from full minus to full plus, allowing precise camera matching in studio grids and location packages. At 5600K the panel outputs around 4591 lux at 1 m and 656 lux at 3 m, providing a punchy yet soft beam with a wide 115° field that wraps faces without additional diffusion.

    The 112W power section accepts 90-264 V AC through a PowerCon TRUE1 connector and also supports 12-35 V DC via XLR-3, including standard 14.4 V 90 Wh batteries for location work. The electronics are flicker-free up to 2000 fps, making the EVO 1 IP54 V2 suitable for high-speed beauty work and product lighting. Local control is handled by eight shock-resistant keys and a colour display with quick access to CCT, HSI, RGB, gel and effects modes, while built-in LumenRadio CRMX, Wi-Fi Art-Net, Bluetooth and wired DMX-RDM with XLR-5 and RJ-45 provide direct integration into studio lighting networks.

    This VE1CIP54-PACK configuration ships as a ready-to-rig kit including the EVO 1 IP54 colour panel, aluminium yoke with 16 mm receiver and 28 mm pin, 150 W PSU with Schuko cable and accessories plate. Combined with optional SnapBag, SnapGrid and barn doors, the VELVET EVO 1 IP54 V2 becomes a flexible key, fill or coloured effects light for broadcast studios, music videos, live streaming stages, rental inventories and field production where robust build, consistent colour and fast remote control are required.

    Quantity
    Add to Wishlist
    Add to Compare

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    1x1 foot weatherproof soft light LED panel full R+G+B+W+CW with wireless control
    Natural soft light color 5LED panel. Weatherproof IP54 rated. High color reproduction. High SSI, TLCI & CRI (96). Perfect skin tones and real colors. Robust, lightweight, low-carbon aluminum body. Totally silent fanless operation. High efficiency: 100% output even with batteries. Available V-lock / Gold mount. DMX-RDM, LumenRadio CRMX, Wi-fi Artnet and Bluetooth.

    Included
    1x VE1CNY VELVET Evo 1 Colour IP54
    1x VE1-YT Mounting bracket
    1x EV-2816TK 28/16mm combination pin
    1x ACC3.5M-TRUE1 Schuko cable 3.5 metres

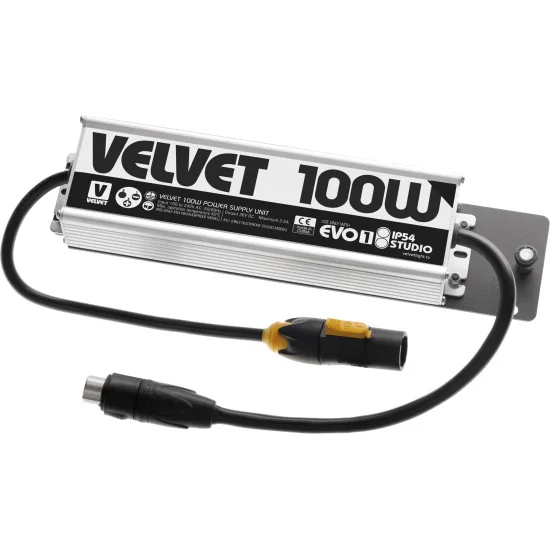

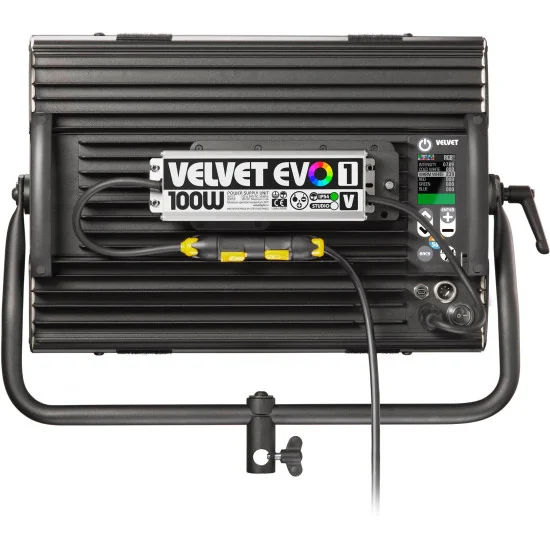

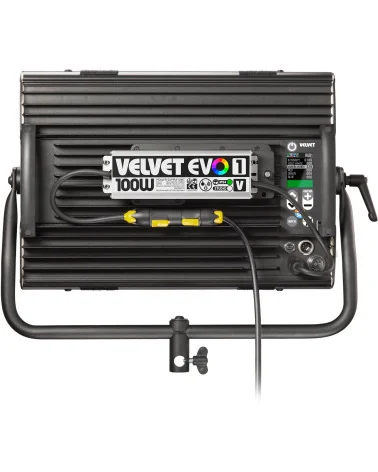

    1x VEIP-PSU150WNC Power supply

    SPECIFICATIONS
    COLOUR TEMPERATURE: Continuously adjustable from 2500K to 10000K
    GREEN-MAGENTA: Continuously adjustable from full minusgreen to full plusgreen
    COLOR SPECTRUM: Full color spectrum R+G+B+W+CW with hue, saturation, and base colortemperature control
    CONTROL COLOR MODES: CCT, HSI, RGB, Gels and Effects base Kelvin white light can be set combined with any color
    LIGHT INTENSITY: Dimmable 0 to 100, smooth and flicker-free

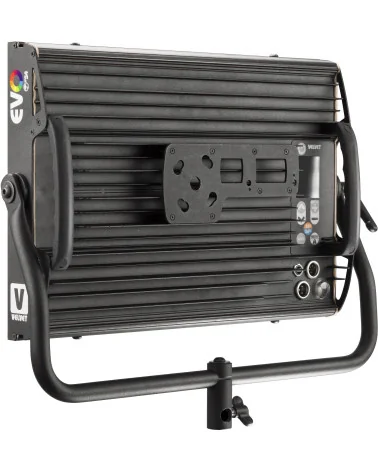

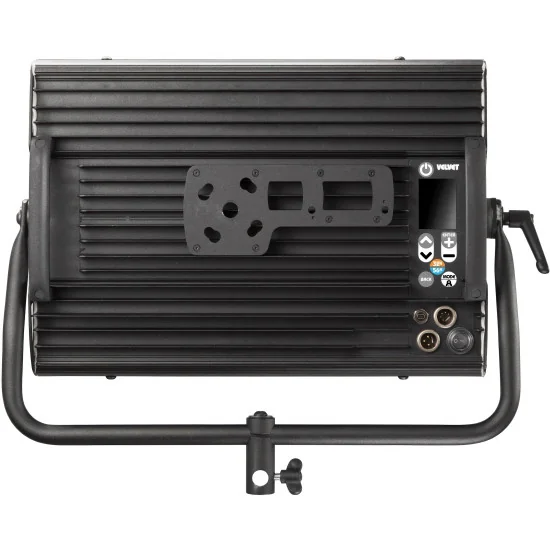

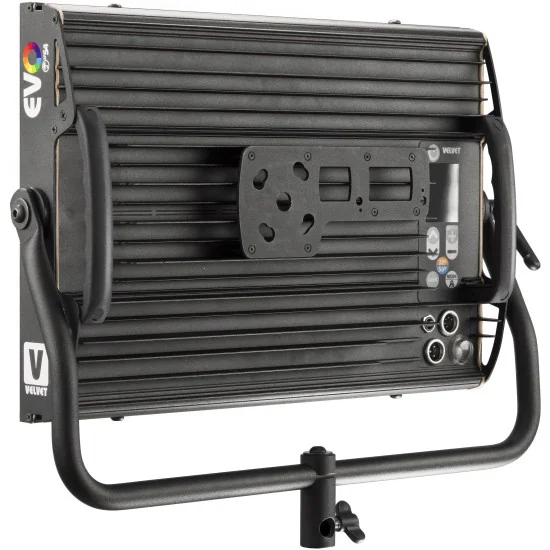

    LOCAL CONTROL: With 8x shock resistant buttons and color display
    WIRE CONTROL: DMX-RDM with XLR-5 in connector
    WIRELESS CONTROL: DMX-RDM with LumenRadio, CRMX Wi-Fi Art-Net +VELVET Goya App, Bluetooth
    TLCI INDEX: 96 at 3200K and 97 at 5600K
    PHOTOMETRICS: 4591 lux / 423 fc at 1m / 3 feet, 656 lux / 61 fc at 3m / 10 feet
    BEAM ANGLE: 115º
    DIMENSIONS: 453x318x92mm / 17.8x12.5x3.6 inches
    WEIGHT: 4.4 kg / 9.7 lbs (panel), 4.9 kg / 10.8 lbs (panel + yoke)
    POWER DRAW: 112W (0.47A at 220VAC — 1.0A at 110VAC)
    POWER SUPPLY: 12-35V DC (XLR3). VLock Gold mount battery 90-264V AC 50/60Hz
    LED RATED LIFE: More than 50.000 hours
    POWER CONNECTION: Neutrik PowerCon TRUE1 TOP In connector
    OUTPUT FREQUENCY: 2000 fps
    OPERATION TEMPERATURE: From -20ºC to +40ºC
    COOLING: Silent and fan-free pasive cooling
    PROTECTION: IP54 weatherproof, indoor or outdoor use
    VELVET LED TECHNOLOGY: Selected BIN LED core unit + optic diffuser + CPU software control
    RIGGING OPTIONS (optional): Aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, multiple 1/4”- 20 rigging points, pole operated yoke.
    QUICK MOUNTING ACCESSORIES (optional) : Foldable SnapBag, foldable Snapgrid, removable barn doors, cordura case, hard case
    CONSTRUCTION & FINISH: Fixture and yoke made of black powdercoated extruded and sheet aluminum

    VE1CIP54-PACK

    Data sheet

    Light type
    LED Panel
    Rated Power (W)
    112W
    Color Temperature
    RGBWW
    CRI Rating
    96
    TLCI Rating
    97
    CCT
    2500K-10000K
    Battery Power Source
    Optional
    Control Type
    2.4 GHz
    Bluetooth
    DMX/RDM
    On-board
    Illumination lux (from 1m 5600K without reflector)
    4591 lux
    Pack
    Single light

    Specific References

    mpn
    VE1CIP54-PACK

    Contact us

    optional

    Reviews

    Write your review

    Write your review

    VELVET EVO 1 IP54 V2 RGBWW LED Panel

    VELVET EVO 1 IP54 V2 RGBWW LED Panel is a 1x1 location fixture for crews that need a compact, colour-tunable soft source that keeps working in rain and dust. Its IP54 weatherproof housing with passive-cooled aluminium body makes it suitable for exterior drama, live entertainment, OB vans and mobile streaming rigs where silence and reliability are critical.

    The heart of the fixture is a 5-LED RGB+W+CW engine paired with a calibrated diffuser, delivering uniform output with TLCI 97 and stable chromaticity across the full 2500-10000K CCT range. Green–magenta shift is continuously adjustable from full minus to full plus, allowing precise camera matching in studio grids and location packages. At 5600K the panel outputs around 4591 lux at 1 m and 656 lux at 3 m, providing a punchy yet soft beam with a wide 115° field that wraps faces without additional diffusion.

    The 112W power section accepts 90-264 V AC through a PowerCon TRUE1 connector and also supports 12-35 V DC via XLR-3, including standard 14.4 V 90 Wh batteries for location work. The electronics are flicker-free up to 2000 fps, making the EVO 1 IP54 V2 suitable for high-speed beauty work and product lighting. Local control is handled by eight shock-resistant keys and a colour display with quick access to CCT, HSI, RGB, gel and effects modes, while built-in LumenRadio CRMX, Wi-Fi Art-Net, Bluetooth and wired DMX-RDM with XLR-5 and RJ-45 provide direct integration into studio lighting networks.

    This VE1CIP54-PACK configuration ships as a ready-to-rig kit including the EVO 1 IP54 colour panel, aluminium yoke with 16 mm receiver and 28 mm pin, 150 W PSU with Schuko cable and accessories plate. Combined with optional SnapBag, SnapGrid and barn doors, the VELVET EVO 1 IP54 V2 becomes a flexible key, fill or coloured effects light for broadcast studios, music videos, live streaming stages, rental inventories and field production where robust build, consistent colour and fast remote control are required.
