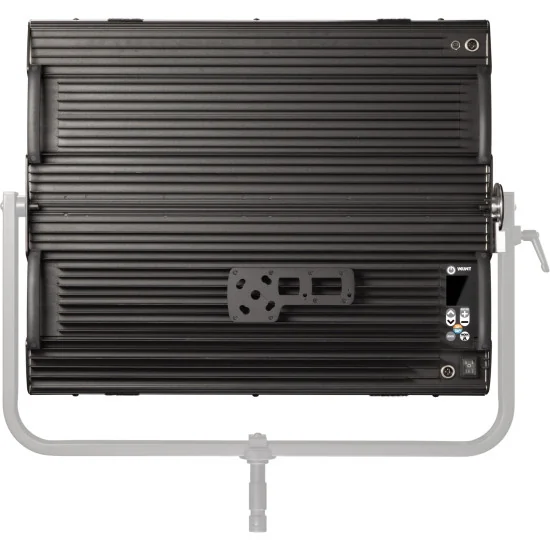

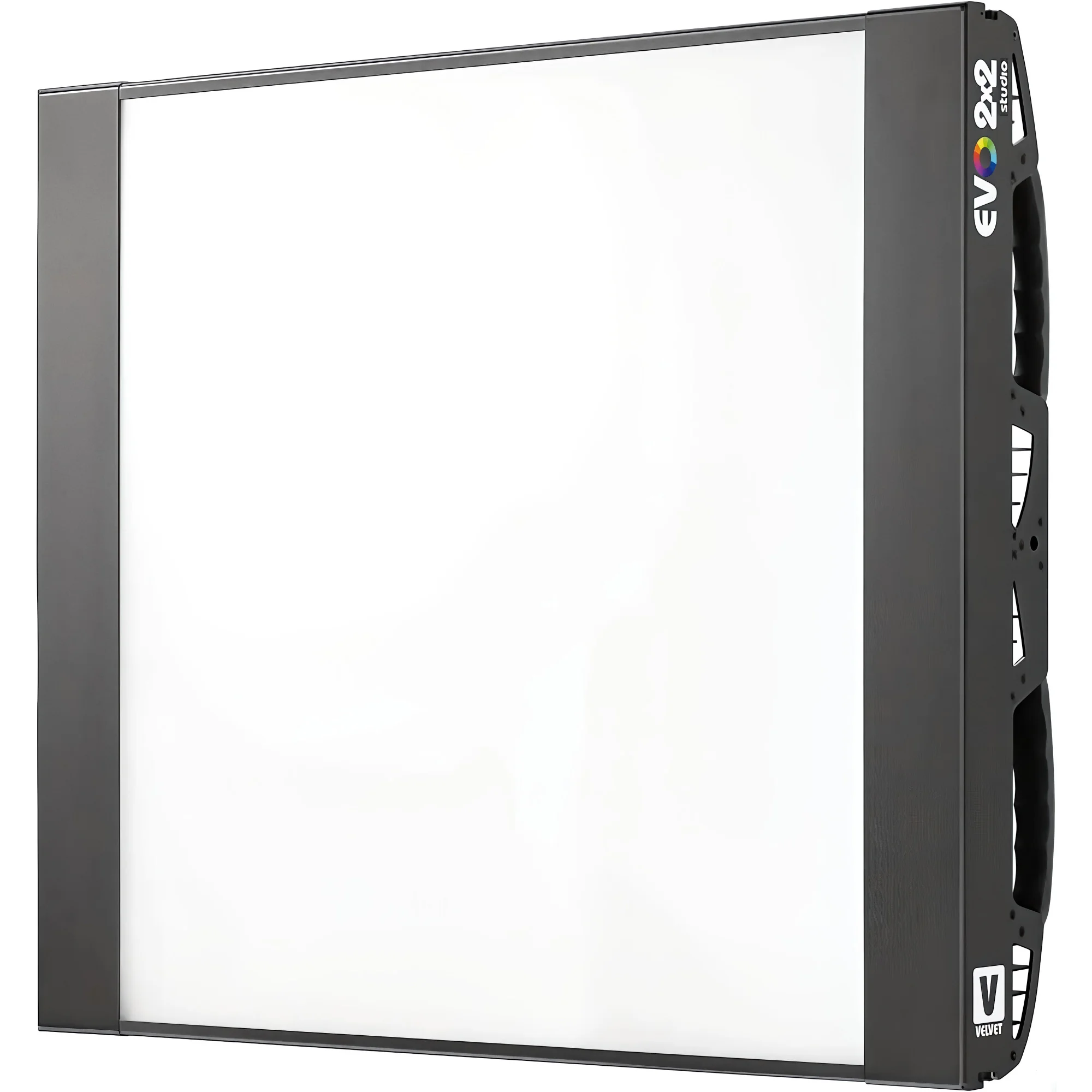

VELVET EVO 2x2 Studio RGBWW LED Panel (No Yoke)
VE2X2CSTNY
Price: €5,090.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
VELVET EVO 2x2 Studio is a colour LED panel built around a large 2×2 soft aperture for studio grids, rental inventory and mobile interview kits. The optical diffuser and wide 115° beam deliver an even field for close key, broad fill or overhead top-light, while the chassis runs totally silent thanks to fan-free passive cooling.
The light engine combines R+G+B+W+CW emitters for full-spectrum mixing and repeatable whites. Correlated colour temperature is continuously variable from 2500 K to 10000 K, with continuous green–magenta trim for matching mixed sources and camera matrices. Colour fidelity is specified at CRI 96 with TLCI 96 (3200 K) / 97 (5600 K). Modes include CCT, HSI, RGB, Gels and Effects, and the base Kelvin white can be combined with any hue. Output is dimmable 0–100% with smooth, flicker-free response, and the specified output frequency of 2000 fps keeps high-speed capture clean.
Workflow integration targets professional control ecosystems: on-board operation uses a colour display with eight shock-resistant keys plus quick access for 3200 K and 5600 K. Console and network control are available via DMX-RDM on XLR-5 in/thru for daisy-chaining, plus Ethernet Art-Net through RJ-45. Wireless options include Wi-Fi Art-Net, Bluetooth and the VELVET GOYA app for fixture grouping and scene recall; a mini-USB port supports service functions.
Power is handled by an integrated supply accepting 90–264 V AC (50/60 Hz) via Neutrik PowerCon TRUE1 TOP, with a specified draw of 403 W and an XLR-3 DC input connector for compatible external feeds. The sealed construction is rated IP51 dustproof for indoor use and protected outdoor environments, and operates from −20 °C to +40 °C. Photometrics reach 2405 lux at 3 m and 700 lux at 6 m, making the EVO 2x2 Studio a practical soft key for talk shows, chroma key stages, virtual production talent, tabletop product work and wide-area fill.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
2x2 feet dustproof AC powered soft light LED panel R+G+B+W+CW with wireless control
Natural soft light color 5LED panel. Dustproof IP51 rated. High color reproduction. High SSI, TLCI & CRI (96). Perfect skin tones and real colors. Robust and lightweight lowcarbon aluminum body. Totally silent fanless operation. High efficiency: best lux/watt ratio on the market. RJ-45 ethernet, Wi-fi Artnet, Bluetooth. AC and DMX-RDM In & Out built-in connectors.
Included
1x VE2X2CSTNY VELVET EVO 2x2 Studio
Bracket, power supply, and other accessories are available separately.
SPECIFICATIONS
COLOUR TEMPERATURE: Continuously adjustable from 2500K to 10000K
GREEN-MAGENTA: Continuously adjustable from full minusgreen to full plusgreen
COLOR SPECTRUM: Full color spectrum R+G+B+W+CW with hue, saturation, and base colortemperature control
CONTROL COLOR MODES: CCT, HSI, RGB, Gels and Effects base Kelvin white light can be set combined with any color
LIGHT INTENSITY: Dimmable 0 to 100, smooth and flicker-free
LOCAL CONTROL: With 8x shock resistant buttons and color display
WIRE CONTROL: DMX-RDM with XLR-5 In & through connectors. Ethernet Art-Net with RJ-45 connector
WIRELESS CONTROL: Wi-Fi Art-Net +VELVET Goya App
TLCI INDEX: 96 at 3200K and 97 at 5600K
PHOTOMETRICS: 2405 Lux / 223 fc at 3m / 10 feet, 700 Lux / 65 fc at 6m / 19.6 feet
BEAM ANGLE: 115º
DIMENSIONS: 763x620x113mm / 30x24.4x4.4 inches
WEIGHT: 16 kg / 35.2 lbs (panel), 18.3 kg / 40.3 lbs (panel + yoke)
POWER DRAW: 403W (1.75A at 220VAC — 3.6A at 110VAC)
POWER SUPPLY: 90-264V AC 50/60Hz
LED RATED LIFE: More than 50.000 hours
POWER CONNECTION: Neutrik PowerCon TRUE1 TOP In connector
OUTPUT FREQUENCY: 2000 fps
OPERATION TEMPERATURE: From -20ºC to +40ºC
COOLING: Silent and fan-free pasive cooling
PROTECTION: IP51 dustproof, indoor or outdoor protected use
VELVET LED TECHNOLOGY: Selected BIN LED core unit + optic diffuser + CPU software control
RIGGING OPTIONS (optional): Aluminum yoke with 28mm junior pin, multiple ¼”-20 rigging points, pole-operated yoke.
QUICK MOUNTING ACCESSORIES (optional) : Foldable SnapBag, foldable Snapgrid, removable barn doors, cordura case, hard case
CONSTRUCTION & FINISH: Fixture and yoke made of black powdercoated extruded and sheet aluminum
VE2X2CSTNY
Data sheet
- Light type
- LED Panel
- Rated Power (W)
- 403W
- Color Temperature
- RGBWW
- CRI Rating
- 96
- TLCI Rating
- 97
- CCT
- 2500K-10000K
- Control Type
- 2.4 GHz
Bluetooth
DMX/RDM
On-board - Illumination lux (from 1m 5600K without reflector)
- 13000 lux
- Pack
- Single light
Specific References
- mpn
- VE2X2CSTNY
