The VELVET Mini 1 IP54 DMX PACK is a compact professional bi-color LED panel that supplies uniform, wraparound soft light while remaining fully operational in demanding studio and location environments. With a 50 W LED engine, high-output optics and a wide 100° beam, it provides 1200 lux at 1 m for key or fill on interview sets, small studios, OB vans or streaming spaces where low ceilings and tight rigging points are a daily reality.
The panel’s white light engine delivers a continuously variable 2700–6500 K range in 100 K steps with CRI 96+ and TLCI up to 98, ensuring precise colour reproduction on broadcast cameras and cinema workflows. Flicker-free regulation up to 2000 fps combined with a 0–100% smooth dimmer allows clean high-speed capture without exposure jumps. Local control is handled via shock-resistant keys and a clear display, with instant recall of 3200 K and 5600 K presets for fast balancing to tungsten or daylight sources.
Integrated DMX/RDM makes the VELVET Mini 1 IP54 DMX PACK immediately usable in fixed installations and mobile control systems. A 5-pin XLR input supports bidirectional RDM feedback, addressing and the Master/Slave mode for grouping several fixtures without a lighting console. The IP54 aluminium housing, passive cooling and V-Mount power interface enable silent operation on drama sets, TV studios or exterior ENG work, powered either from 90–264 V AC through the Smart AC adapter or directly from broadcast batteries.

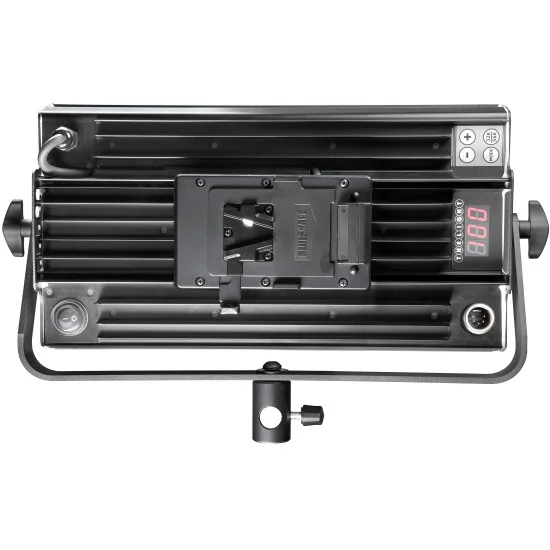

This PACK version includes the VELVET Mini 1 DMX IP54 panel with integrated V-Mount plate, oval yoke with 16 mm/28 mm combo pin, 65 W PSU and Schuko cable, giving gaffers and lighting technicians a ready-to-rig single-light kit. Combined with optional Snapbag, Snapgrid and barndoors, the fixture becomes a versatile key, back or background source for news sets, corporate studios and live-streaming rigs that require stable, consistent and weather-protected soft illumination.

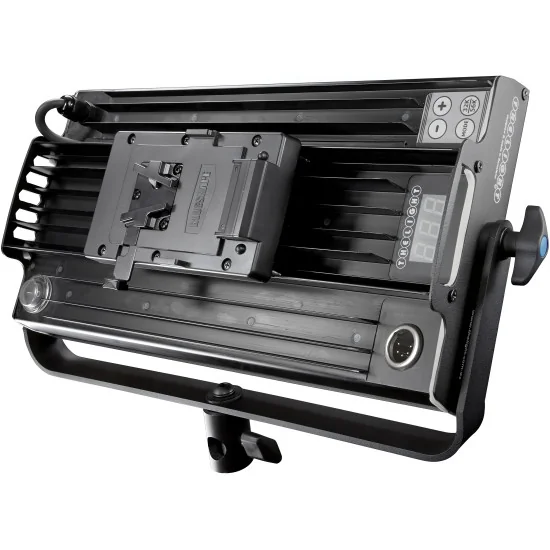

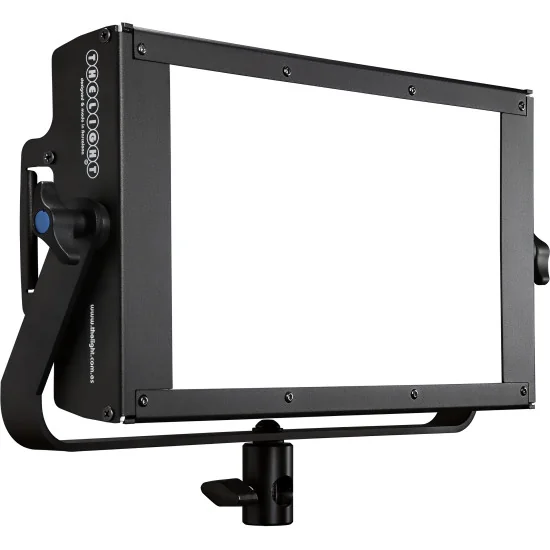

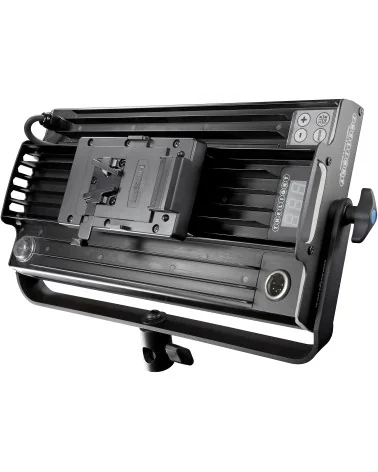

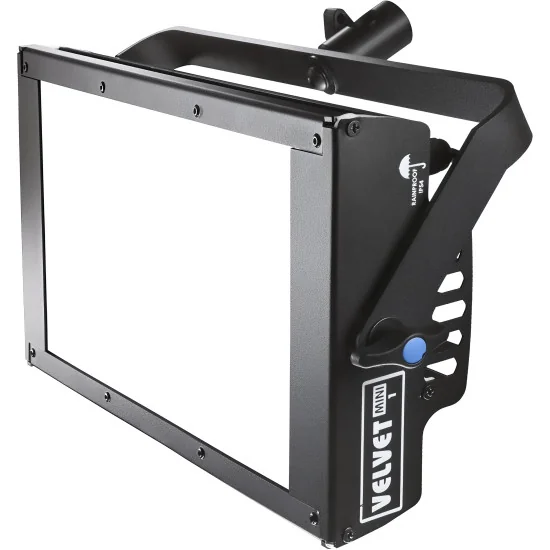

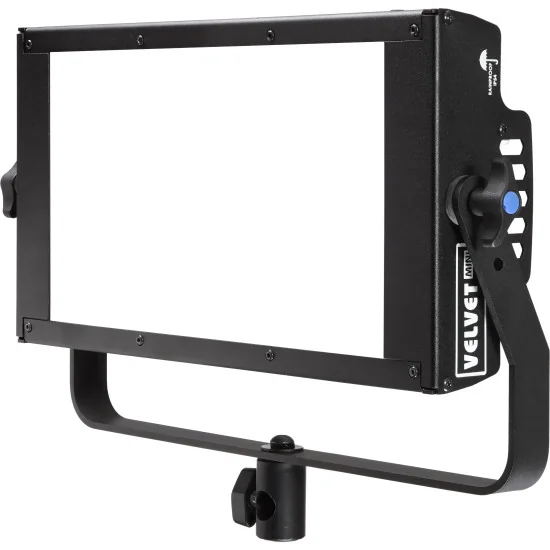

VELVET Mini 1 IP54 DMX PACK Bi-Color LED Panel V-Mount
VM1IP54DMX-PACK
Price: €1,239.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
The VELVET Mini 1 IP54 DMX PACK is a compact professional bi-color LED panel that supplies uniform, wraparound soft light while remaining fully operational in demanding studio and location environments. With a 50 W LED engine, high-output optics and a wide 100° beam, it provides 1200 lux at 1 m for key or fill on interview sets, small studios, OB vans or streaming spaces where low ceilings and tight rigging points are a daily reality.
The panel’s white light engine delivers a continuously variable 2700–6500 K range in 100 K steps with CRI 96+ and TLCI up to 98, ensuring precise colour reproduction on broadcast cameras and cinema workflows. Flicker-free regulation up to 2000 fps combined with a 0–100% smooth dimmer allows clean high-speed capture without exposure jumps. Local control is handled via shock-resistant keys and a clear display, with instant recall of 3200 K and 5600 K presets for fast balancing to tungsten or daylight sources.
Integrated DMX/RDM makes the VELVET Mini 1 IP54 DMX PACK immediately usable in fixed installations and mobile control systems. A 5-pin XLR input supports bidirectional RDM feedback, addressing and the Master/Slave mode for grouping several fixtures without a lighting console. The IP54 aluminium housing, passive cooling and V-Mount power interface enable silent operation on drama sets, TV studios or exterior ENG work, powered either from 90–264 V AC through the Smart AC adapter or directly from broadcast batteries.
This PACK version includes the VELVET Mini 1 DMX IP54 panel with integrated V-Mount plate, oval yoke with 16 mm/28 mm combo pin, 65 W PSU and Schuko cable, giving gaffers and lighting technicians a ready-to-rig single-light kit. Combined with optional Snapbag, Snapgrid and barndoors, the fixture becomes a versatile key, back or background source for news sets, corporate studios and live-streaming rigs that require stable, consistent and weather-protected soft illumination.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
1x1/2 foot bicolor weatherproof compact panoramic soft light LED panel
Natural soft light panel for low ceilings. Weatherproof IP54. High TLCI & CRI (96). Precise color temperature adjustment from 2700K to 6500K. Perfect skin tones and real colors. Lightweight, low-carbon aluminum body. Totally silent fanless operation. High efficiency means 100% output even with batteries. DMX-RDM control. Optional DMX In/Out splitter.
INCLUDED
1x VM1IP54VLDMXNY VELVET MINI 1 DMX
1x VM1OVAL-YT mounting bracket
1x THE-2816CTUBEK 28 mm/16 mm combi pin
1x VM1-PSU65WVLNC power supply unit
1x ACC3.5M-TRUE1 Schuko connection cable, 3.5 metres
SPECIFICATIONS
COLOUR TEMPERATURE: Adjustable from 2700K a 6500K (100K increments)
LIGHT INTENSITY: Dimmable 0 to 100 (smooth and flicker-free)
LOCAL CONTROL: Shock proof buttons and display
WIRE CONTROL: DMX-RDM with XLR-5 In connector (In & Out with DMX splitter)
TLCI INDEX: 97 at 3200K and 98 at 5600K
PHOTOMETRICS: 1200 lux / 111 fc at 1m / 3 feet , 170 lux / 16 fc at 3m / 10 feet
BEAM ANGLE: 100º
DIMENSIONS: 345 x 190 x 90 mm / 13,6”x7,5”x3,5” (panel)
WEIGHT: 1,9 kgs / 4,2 lbs (panel)
POWER DRAW: 50W (0.45A at 110 VAC — 0.22A at 220 VAC)

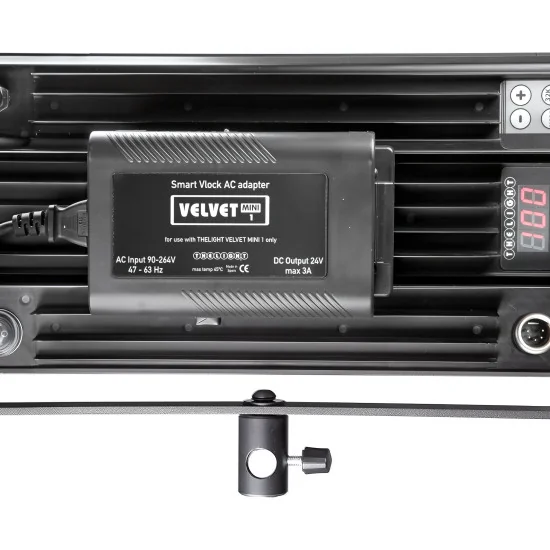

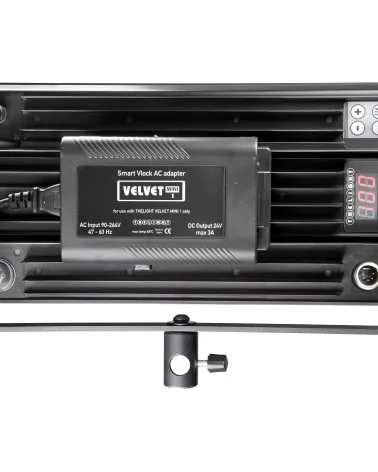

POWER SUPPLY: Vlock or Gold battery mount, 90-264 VAC 50/60Hz through Smart AC adapter
LED RATED LIFE: More than 50.000 hours L70 , More than 35.000 hours L80
OUTPUT FREQUENCY: 2000 fps
OPERATION TEMPERATURE: From -20ºC to +40ºC
COOLING: No-noise, fan-free passive cooling
PROTECTION: IP54 rainproof, indoor or outdoor use
VELVET LED TECHNOLOGY: Selected BIN LED + optic diffuser + CPU software control
RIGGING OPTIONS: Aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, four sliding threads ¼” for riggings located on panel sides, double baby pin for diagonal or vertical position using the standard yoke
QUICK MOUNTING ACCESSORIES: Smart AC power supply, VELVET DMX remote control, foldable Snapgrid, foldable SnapBag softbox, removable barn doors, cordura case, hard case
CONSTRUCTION & FINISH: Black anodized extruded aluminum and black powder coated sheet aluminum
VM1IP54DMX-PACK
Data sheet
- Light type
- LED Panel
- Rated Power (W)
- 50W
- Color Temperature
- Bi-Color
- CRI Rating
- 98
- TLCI Rating
- 98
- CCT
- 2700K-6500K
- Battery Power Source
- Included
- Battery Type
- V-Mount
- Control Type
- DMX/RDM
On-board - Illumination lux (from 1m 5600K without reflector)
- 1200 lux
- Pack
- Single light
Specific References
- mpn
- VM1IP54DMX-PACK
