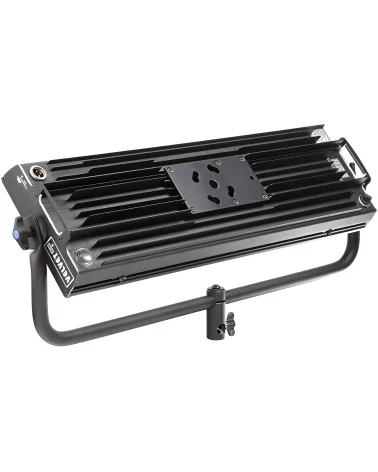

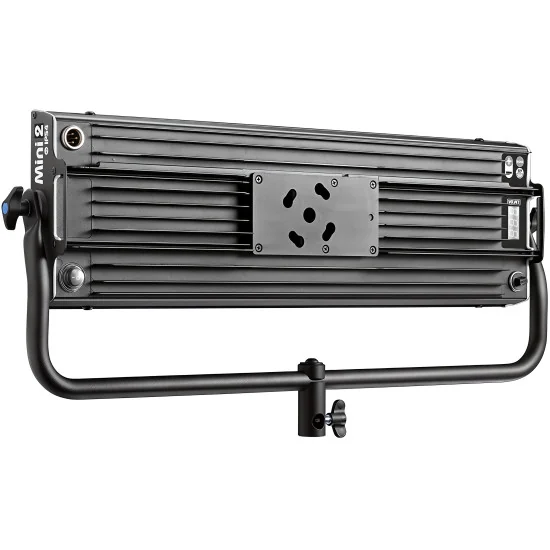

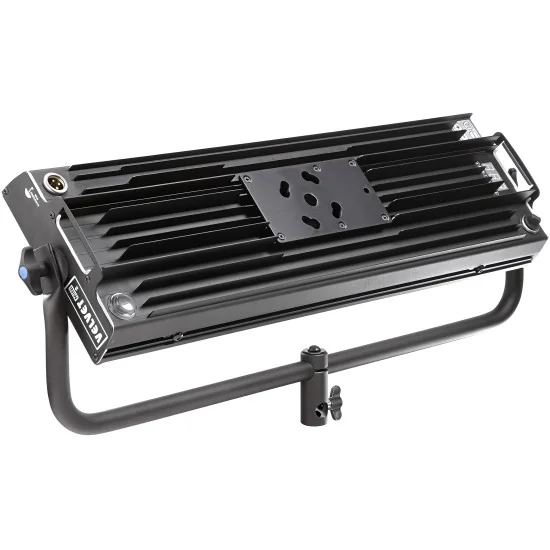

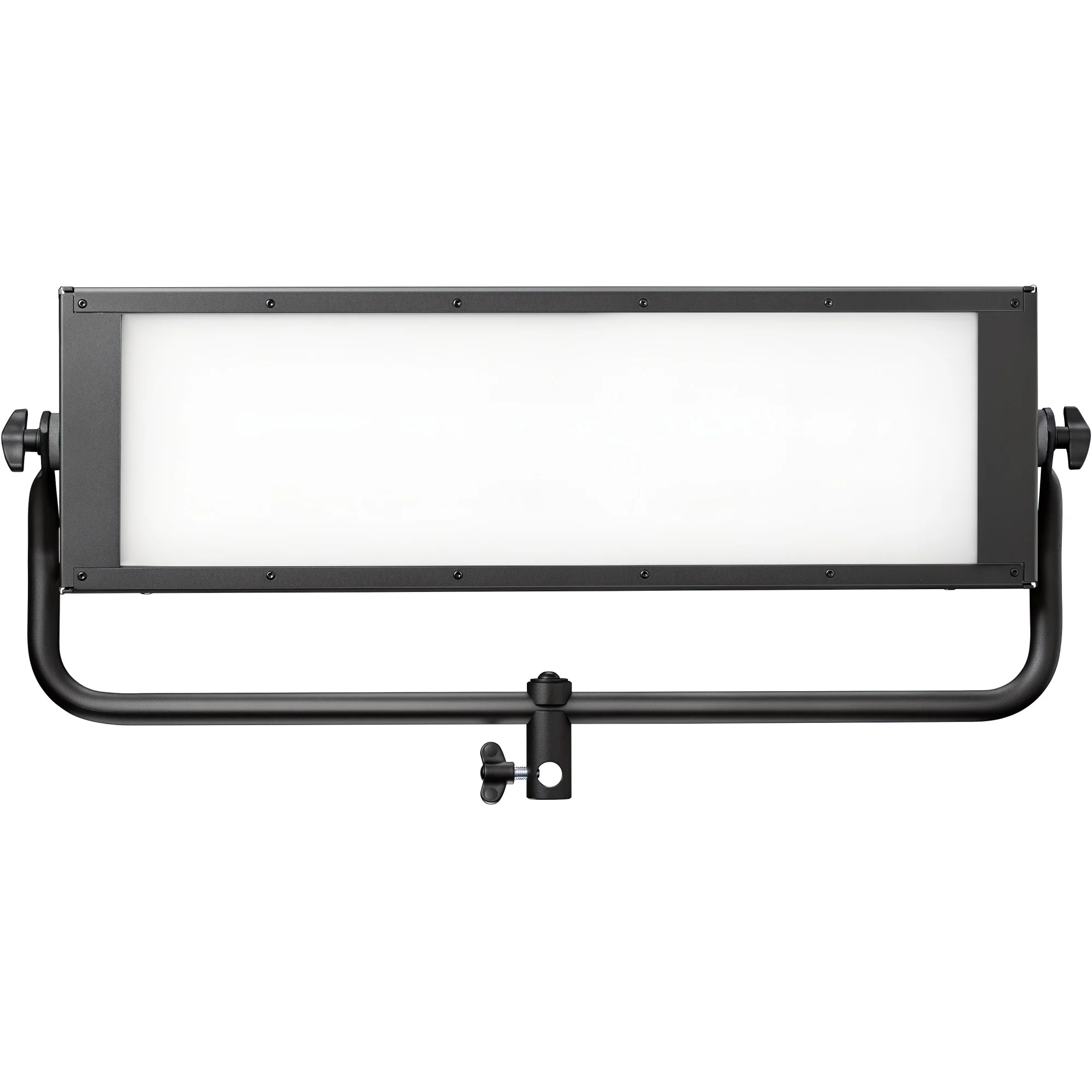

The VELVET Mini 2 IP54 is a professional bi-color LED soft panel for studio, broadcast and location work where compact fixtures and low ceilings are critical. This 100W panoramic light with IP54 rain and dust protection delivers natural wraparound illumination with a 100° beam, making it an efficient key or fill on multi-camera sets, news studios, streaming rooms and mobile rigs.
Colour temperature ranges from 2700K to 6500K in accurate 100K steps, with CRI and TLCI values up to 98 for faithful skin tones and neutral whites. Light intensity is adjustable from 0 to 100% with a flicker-free driver rated for high-speed capture up to 2000 fps. At 5600K the panel outputs about 2400 lux at 1 metre and 330 lux at 3 metres, supplying clean soft punch for interviews, table shows and virtual events without extra diffusion or bulky modifiers.
Control is available on board and via DMX/RDM. Shock-resistant buttons and a clear display give fast access to output, CCT and DMX address on set, while the 5-pin XLR interface integrates the VELVET Mini 2 IP54 directly into studio lighting networks and remote consoles. VELVET’s LED engine combines carefully binned emitters, an optical diffuser and firmware management to maintain uniform colour across fixtures and over time, with rated LED lifetime exceeding 50,000 hours.
The robust fanless aluminium housing keeps operation completely silent and supports a working range from −20°C to +40°C for indoor or outdoor use. Power draw is just 100W, with 12–35 V DC input on a locking XLR-3 connector and compatibility with 90–264 V AC via an optional smart power supply, plus quick-link V-mount or Gold mount battery plates for mobile setups. The VM2IP54-PACK configuration supplies the rainproof head with yoke and multiple rigging points, ready to pair with SnapBag or SnapGrid modifiers, barn doors and protective cases in broadcast studios, rental fleets, OB trucks or corporate streaming spaces.
The VELVET Mini 2 IP54 is a professional bi-color LED soft panel for studio, broadcast and location work where compact fixtures and low ceilings are critical. This 100W panoramic light with IP54 rain and dust protection delivers natural wraparound illumination with a 100° beam, making it an efficient key or fill on multi-camera sets, news studios, streaming rooms and mobile rigs.
Colour temperature ranges from 2700K to 6500K in accurate 100K steps, with CRI and TLCI values up to 98 for faithful skin tones and neutral whites. Light intensity is adjustable from 0 to 100% with a flicker-free driver rated for high-speed capture up to 2000 fps. At 5600K the panel outputs about 2400 lux at 1 metre and 330 lux at 3 metres, supplying clean soft punch for interviews, table shows and virtual events without extra diffusion or bulky modifiers.
Control is available on board and via DMX/RDM. Shock-resistant buttons and a clear display give fast access to output, CCT and DMX address on set, while the 5-pin XLR interface integrates the VELVET Mini 2 IP54 directly into studio lighting networks and remote consoles. VELVET’s LED engine combines carefully binned emitters, an optical diffuser and firmware management to maintain uniform colour across fixtures and over time, with rated LED lifetime exceeding 50,000 hours.
The robust fanless aluminium housing keeps operation completely silent and supports a working range from −20°C to +40°C for indoor or outdoor use. Power draw is just 100W, with 12–35 V DC input on a locking XLR-3 connector and compatibility with 90–264 V AC via an optional smart power supply, plus quick-link V-mount or Gold mount battery plates for mobile setups. The VM2IP54-PACK configuration supplies the rainproof head with yoke and multiple rigging points, ready to pair with SnapBag or SnapGrid modifiers, barn doors and protective cases in broadcast studios, rental fleets, OB trucks or corporate streaming spaces.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
2x1/2 feet bicolor weatherproof compact panoramicsoft light LED panel
Natural soft light panel for low ceilings. Rainproof IP54. High TLCI & CRI (96). Precise color temperature adjustment from 2700K to 6500K. Perfect skin tones and real colors. Lightweight, low-carbon aluminum body. Totally silent fanless operation DMX-RDM control. High efficiency means 100% light output even with batteries.
The set includes only the lamp; the battery plate and power supply are available separately.
SPECIFICATIONS
COLOUR TEMPERATURE: Adjustable from 2700K a 6500K (100K increments)
LIGHT INTENSITY: Dimmable 0 to 100 (smooth and flicker-free)
LOCAL CONTROL: Shock proof buttons and display
WIRE CONTROL: DMX-RDM with XLR-5 In connector (In & Out with optional DMX splitter)
TLCI INDEX: 97 at 3200K and 98 at 5600K
PHOTOMETRICS: 2400 lux / 223 fc at 1m / 3 feet, 330 lux / 31 fc at 3m / 10 feet
BEAM ANGLE: 100º
DIMENSIONS: 607 x 190 x 65 mm / 24” x 7,5”x 2,5” (panel)
WEIGHT: 3 kgs / 6,5 lbs (panel)
POWER DRAW: 100W (0.90A at 110 VAC — 0.44A at 220 VAC)
POWER SUPPLY: Optional Vock or Gold battery quick link mount 90-264 VAC 50/60Hz through Smart AC adapter
LED RATED LIFE: More than 50.000 hours L70 , More than 35.000 hours L80
POWER CONNECTION: Neutrik XLR-3 DC In connector
OUTPUT FREQUENCY: 2000 fps
OPERATION TEMPERATURE: From -20ºC to +40ºC
COOLING: No-noise, fan-free passive cooling
PROTECTION: IP54 rainproof, indoor or outdoor use
VELVET LED TECHNOLOGY: Selected BIN LED + optic diffuser + CPU software control
RIGGING OPTIONS: Aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, four sliding threads ¼” for riggings located on panel sides, double baby pin for diagonal or vertical position using the standard yoke
QUICK MOUNTING ACCESSORIES: Smart AC power supply (Vlock or Gold available), VELVET DMX remote control, foldable Snapgrid, foldable SnapBag softbox, removable barn doors, cordura case, hard case
CONSTRUCTION & FINISH: Black anodized extruded aluminum and black powder coated sheet aluminum
