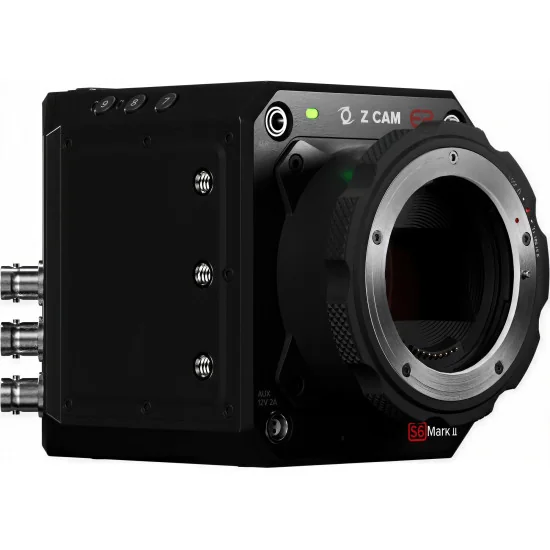

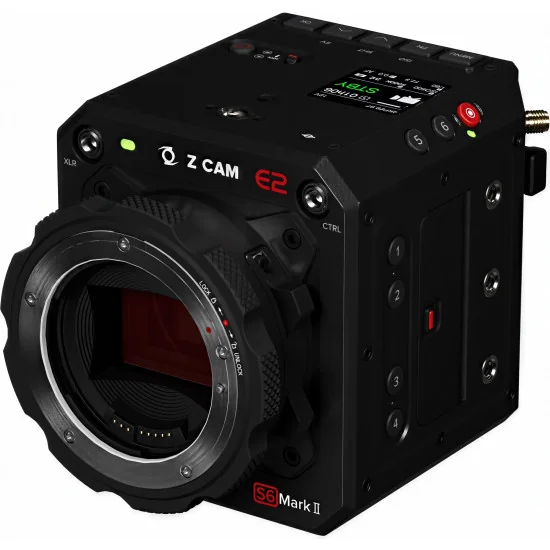

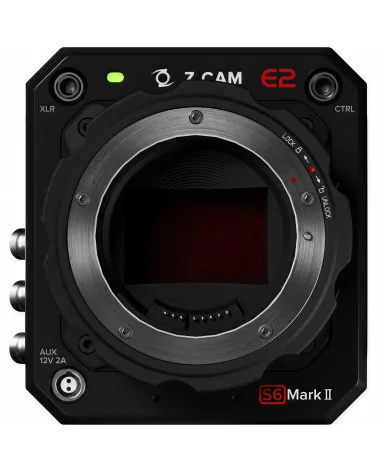

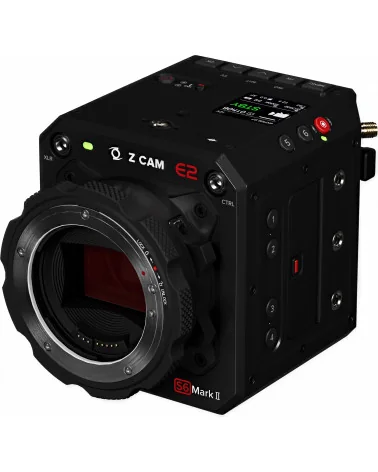

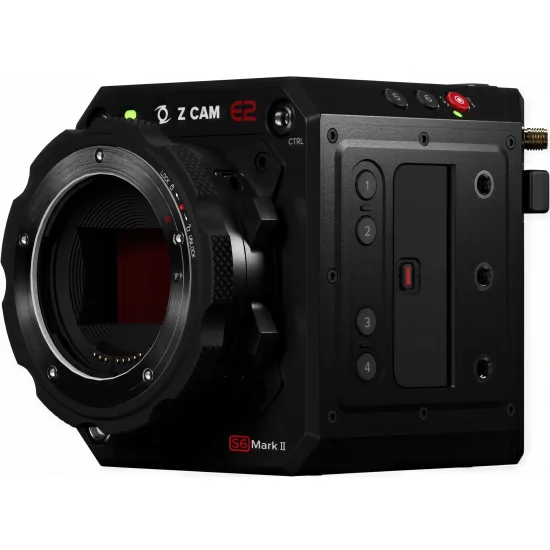

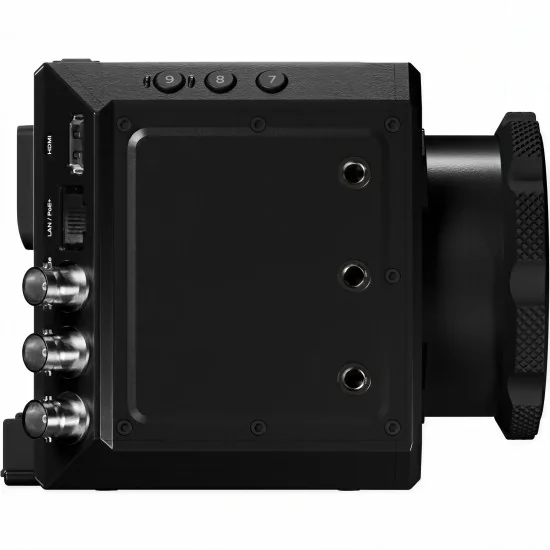

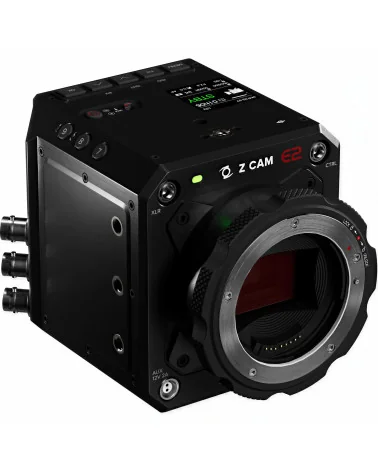

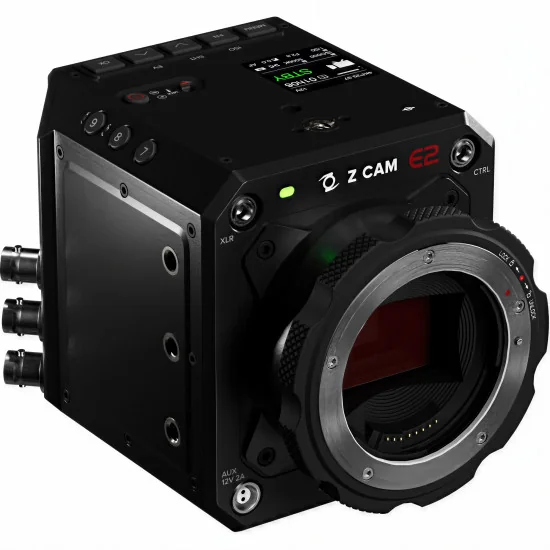

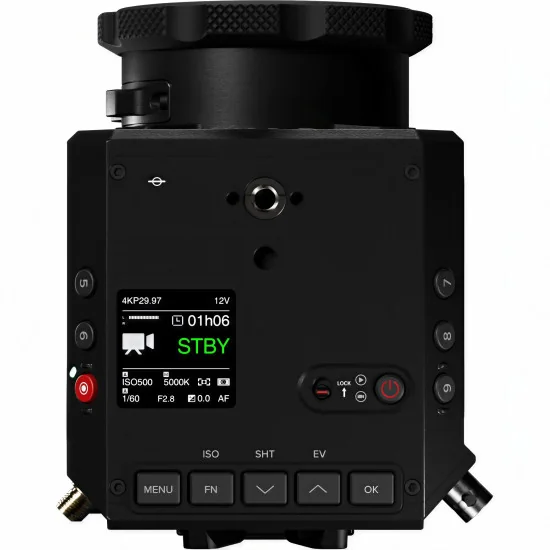

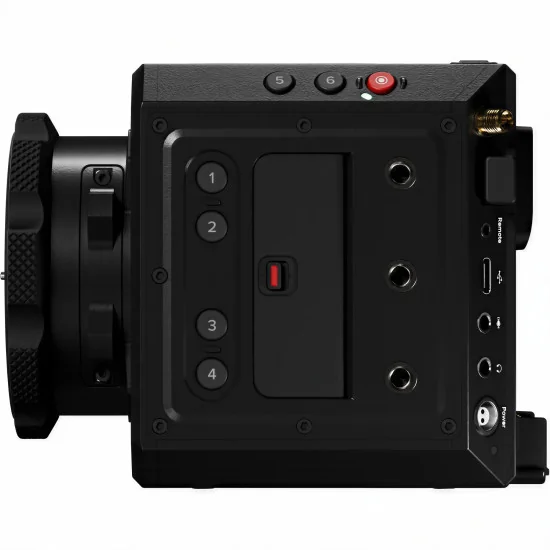

Z-CAM E2-S6 Mark II NDI 6K Camera

    ZCE2S6M2N
    Price: €2,059.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
    Available from supplier (Delivery time to be confirmed.)

    A Super 35 CMOS sensor with 26.11 effective megapixels and 14 stops of dynamic range, housed in a fanless body the size of a stills camera — the Z-CAM E2-S6 Mark II NDI treats cinema image quality and broadcast integration as one job rather than two. Dual native ISO at 400 and 1250 holds noise down from lit studio floors to dim concert stages, and the manual range stretches to 128,000 for documentary work after sunset. Open-gate 6K recording at 6244×4168 uses the entire sensor surface, welcome news for anamorphic projects and vertical deliverables, while 6K 2.4:1 runs at 60 fps, C4K at up to 75 fps and 2.8K at 120 fps for slow motion.

    Internal recording goes to a CFexpress Type B card as ProRes 422 HQ, 10-bit H.265 or ZRAW, so edit-ready masters and grading headroom come from the same slot. Over HDMI 2.0, Atomos recorders capture ProRes RAW and a Blackmagic Video Assist takes BRAW. Z-Log2 preserves the full dynamic range for the colourist, HLG goes straight to air, and 12-axis colour correction matches an entire camera chain to one reference, while the built-in gyroscope logs motion data for stabilisation in post.

    The live toolset is where this model earns its NDI suffix. 10-bit NDI|HX 3 streams from the Gigabit port with minimal delay, alongside SRT, RTMP, RTMPS, RTSP and UVC. A single PoE+ connection powers the camera, carries remote control through the web interface and delivers the programme feed — a four-camera panel show cables up in an afternoon. Genlock and LTC timecode enter on BNC, video exits over 3G-SDI or DCI 4K 60p HDMI in 10-bit 4:2:2, and EzLink holds networked bodies within 0.5 ms of each other.

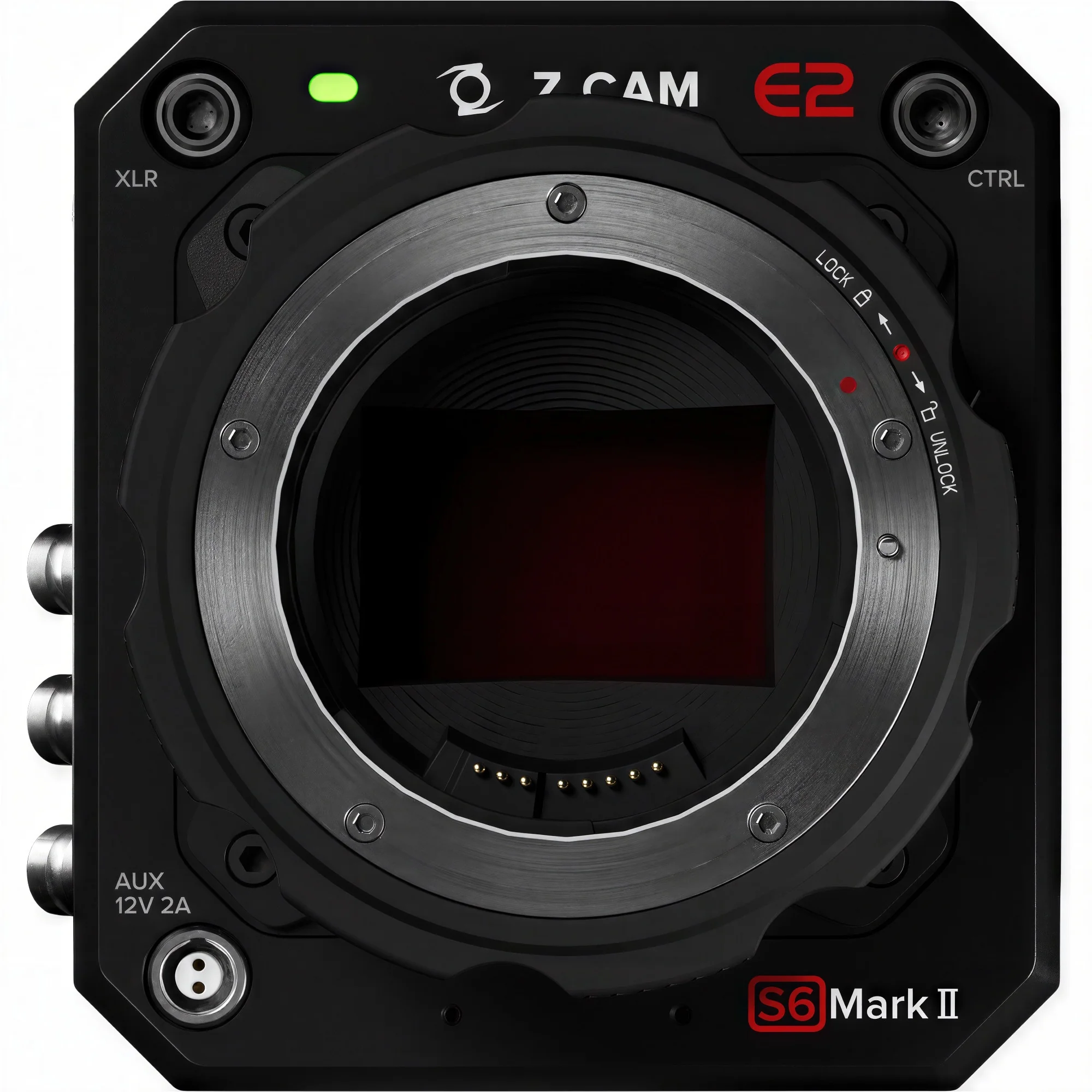

    An active-locking EF mount swaps to PL, LPL or M when the glass changes, the mini V-Lock plate covers long event days, and a 12 V output runs a monitor or focus motor. With an open API plus LANC and serial control for robotic heads, the E2-S6 Mark II NDI slots into esports arenas, OB vehicles, corporate town halls and rental fleets without adapters or excuses.

    Quantity
    Add to Wishlist
    Add to Compare

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    10-bit NDI
    Stunning color. Ultra-low latency. Redefining professional networked workflows.

    IP Streaming is the Future
    Z CAM supports a number of streaming protocols. Easily accessible through the built-in web client.

    Technical Specifications

    Camera
    Camera Model: Z CAM E2-S6 Mark II (w/ NDI): E1704N
    Sensor Type: Super 35mm CMOS Sensor
    Sensor Size: Diagonal 28.3mm
    Effective Pixels: 26.11 MP
    Dynamic Range: 14 stops
    Lens Mount: EF Mount w/ active lock (interchangeable to optional PL, LPL and M)
    Microphone: Built-in Stereo Microphone

    Recording
    Resolution & Max Frame Rate
    Open Gate (6244x4168) @ 30fps max
    C6K (6144x3240) @ 48fps max
    6K 2.4:1 (6144x2592) 60fps max
    6K (5760x3240) @ 48fps max
    5K 4:3 (5552x4164) @ 30fps max
    5528x3112 @ 50fps max
    C5K (5120x2700) @ 60fps max
    5K 6:5 (4992x4160) @ 30fps max
    5K (4800x2700) @ 60fps max
    C4K 3:2 (4096x2732) @ 30fps max
    C4K Low Noise (4096x2160) @ 30fps max
    C4K (4096x2160) @ 75fps max
    C4K 2.4:1 (4096x1728) @ 100fps max
    4000x4000 @ 30fps max
    3840x3840 @ 30fps max
    4K Low Noise (3840x2160) @ 30fps max
    4K (3840X2160) @ 75fps max
    3456x3456 @ 50fps max
    S16 16:9 (3392x1908) @ 90fps max
    2.8K (2868x1512) @ 120fps max
    1920x1080 @ 120fps max
    * supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as C6K resolution mode.

    Video Encoder: H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*
    RAW over HDMI: ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)
    Color Bit-depth: 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
    Audio Format: 16-bit 48 kHz
    Audio Encoder: AAC / PCM (for MOV only)
    File Format: MOV / MP4
    Record Mode: Video / Time Lapse Video / Still Image Capture

    Settings
    ISO: Auto, Manual (400 ~ 128000), Dual Native ISO: 400 / 1250
    Shutter: Shutter Speed: Auto, Manual (1s ~ 1/10000s) , Shutter Angle: Auto, Manual (1° ~ 360°)
    White Balance: Auto, Preset, Manual (2300K ~ 30000K)
    Focus Mode: MF / AF / CAF
    Image: Sharpness / Noise Reduction / Dynamic Range Optimizer / Brightness / Contrast / Saturation / Hue / Gamma / Matrix / 12-Axis Color
    Image Config: Rec.709 / Z-Log2 / Flat / Concert / Vivid 0 / Vivid 1 / Vivid 2 / HLG / Gamma
    Time Code: Current Time / Manual Input / External Input

    Storage
    Storage Media: CF Express Type B
    File System: exFAT

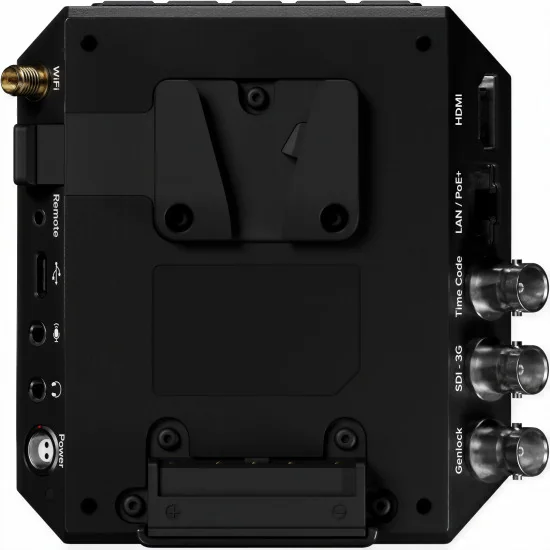

    Connectivity
    HDMI: HDMI 2.0 Type A (up to 4K DCI 60p, 10-bit 4:2:2)
    SDI: 3G-SDI
    Time Code: LTC Time Code Input via BNC
    Genlock: BB/Tri-Level Genlock Input via BNC (E1705N w/o Genlock Input)
    USB: USB 3.0 Type C for camera control & data transfer only
    Remote Port: 2.5 mm jack socket (Sony LANC compatible)
    Audio In: 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
    Audio Out: 3.5 mm stereo jack socket
    Wi-Fi: 5G, up to 802.11n, external antenna port
    CTRL: Serial port
    Ethernet: Gigabit Ethernet port

    Power
    Battery: Mini V-Lock 14.8V (Battery not included)
    Power Input: DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
    Power Output (AUX): DC 12V 2A (2-pin LEMO socket)
    Power Consumption: 18W maximum, not inclusive of AUX power consumption

    Physical
    Camera Body: Aluminum Alloy
    Weight - Camera: 1.21kg (w/ EF mount)
    Weight - Package: 1.55kg
    Dimensions (HxWxL) - Camera: 105 x 98 x 136.5 mm / 4.13 x 3.86 x 5.37 inch (w/ EF mount)
    Dimensions (HxWxL) - Package: 145 x 195 x 162 mm / 5.71 x 7.68 x 6.38 inch

    Environment
    Storage Temperature: -20 °C ~ 60 °C
    Operation Temperature: 0 °C ~ 40 °C

    ZCE2S6M2N

    Data sheet

    Video Output
    HDMI
    NDI
    RJ-45 (IP)
    SDI
    Audio Input
    LEMO 5-pin
    Mini Jack 3.5mm
    Audio Output
    HDMI Embedded
    Mini Jack 3.5mm
    NDI Embedded
    RJ-45
    SDI Embedded
    Max Output Resolution
    6K (6144 x 2592) 50/60 fps
    6K Open Gate (6244 x 4168) 25/30 fps
    Output colour sampling
    RGB 4:2:2 10-bit
    Streaming protocols
    NDI®|HX 3
    RTMP
    RTMPS
    RTSP
    SRT
    SSP
    Network Connection
    Ethernet
    Wi-Fi
    Sensor Size
    Super 35mm (23.5x15.7mm)
    Lens mount
    Canon EF
    Interchangeable mount
    Internal ND filtres
    No
    Media type
    CFexpress Type B
    Battery Type
    Mini V-Mount
    Screen Type
    External
    Sensor Resolution
    26.11MP
    Sensor Type
    CMOS
    Image Stabilization
    Gyro
    ISO Sensitivity Range
    400-128000
    Dynamic Range
    14 stops
    Shutter Type
    Electronic Shutter
    Shutter Speed
    1/10000s-1min
    Bit Depth
    10-bit
    Viewfinder Type
    External
    Focus Mode
    AF
    CAF
    Manual
    Internal Recording Modes
    H.264
    H.265
    ProRes 422
    ProRes 422 HQ
    ProRes 422 LT
    ProRes 422 Proxy
    ZRAW
    External Recording Modes
    Blackmagic RAW
    ProRes RAW
    Timecode
    Yes
    Genlock
    Yes

    Specific References

    ean13
    6970130770453
    mpn
    E1704N
