Z-CAM E2N 4K NDI Cinema

Name: Z-CAM E2N 4K NDI Cinema
Brand: Z-CAM
SKU: ZCE2N
Price: 979.00 EUR
Availability: InStock

MPN: ZCE2N

Price: €979.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

One Cat 6 run can carry everything a live camera needs: the programme feed, power, control data and tally. That is the operating logic of the Z-CAM E2N, a boxed 4K NDI|HX3 camera that brings interchangeable-lens imaging into IP production. Fed by PoE+ (IEEE 802.3at) straight from the switch, it appears in vMix, TriCaster or any NDI-aware mixer moments after the plug clicks in, tally return included.

Behind the Micro Four Thirds mount with Active Lock sits a 4/3" CMOS sensor: 10.71 effective megapixels, dual native ISO at 500 and 2500, and 11.5 stops of dynamic range. UHD leaves the sensor at up to 60 fps; Full HD reaches 240 fps for replay work. Against a typical PTZ head, the freedom of glass pays off quickly — shallow depth of field for interview frames, fast primes once conference-room light gets thin. Sensitivity spans ISO 500 to 102400, and Rec.709 sits next to Concert and Vivi picture profiles — a practical match for saturated stage lighting.

Distribution runs on H.265 or H.264, and the camera streams over NDI and SSP at the same time, so the clean feed reaches the switcher while a second encode lands on a recorder or a monitoring desk. An SDXC slot (U3 media recommended for 4K) keeps ISO material in MOV or MP4; HDMI 2.0 carries up to 4K60 to an external recorder or a control-room monitor. Timecode follows the internal clock or a manual entry, which keeps multi-source edits tidy. Operators pick their control layer: web interface, open API for integrators, iOS and Android apps, Gigabit Ethernet or 802.11ac Wi-Fi with an external antenna port. LP-E6-series batteries keep it rolling between mains points.

For production companies standardising a multi-camera fleet — lecture capture, e-sports stages, town-hall streams, OB racks — one technician can shade several Z-CAM E2N units from a browser. Before a rollout, our team helps size the switch, calculate PoE+ budgets and match lens packages to each room.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Z CAM® E2N Key features:
NDI® HX3 enabled
4/3" CMOS sensor
4K 60fps, 1080p 240fps Max
PoE+ support
Simultaneous streaming NDI and SSP (H.265/264)
Lens Mount: Micro Four Thirds with Active Lock
iOS & Android app

NDI | HX3 is a new version of the NDI protocol that further optimizes the balance between video transmission quality and bandwidth, and achieves visually lossless video transmission with less latency and better quality by using a fraction of the bandwidth of Full NDI.

With NDI | HX3, Z CAM E2N* gives users full control over streaming production, with the perfect balance of quality and efciency, no compromise.
* Z CAM E2N also supports NDI HX

Note: AC/DC Adapters, LP-E6 batteries & Ethernet cables are not included in the standard package

Technical Specifications
Disclaimer: All product features and technical specifications stated are subjected to Z CAM's sole interpretation and explanation. Specifications are subject to change without notice.

Camera
Camera model: Z CAM E2N
Sensor Type: 4/3" CMOS sensor
Effective Pixels: 10.71 mega pixels
Dynamic Range: 11.5 Stops

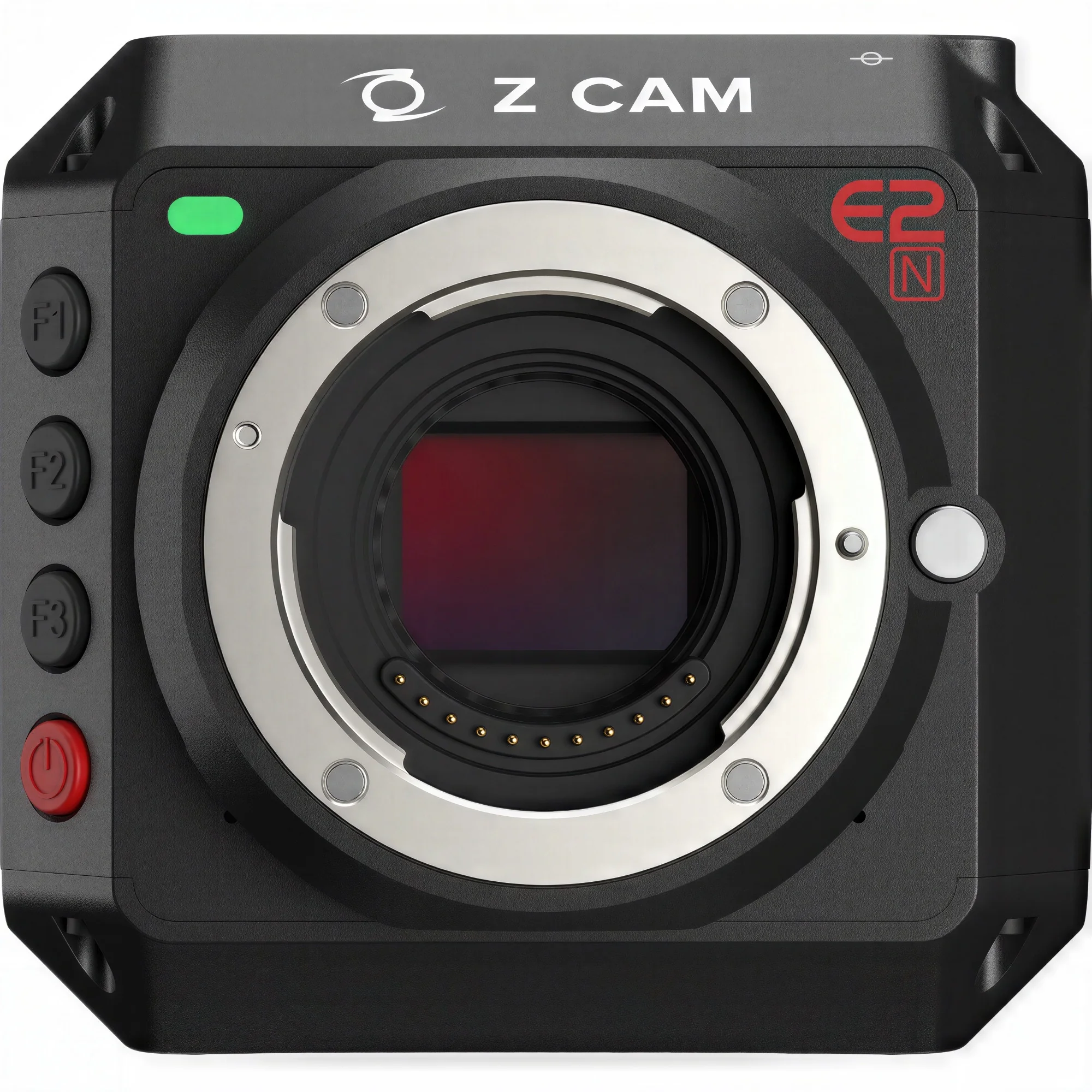

Lens Mount: Micro Four Thirds (with Active Lock)
Microphone: Built-in Stereo Microphone

Recording
Recording Resolution: 4K, 3696x2772, 1080p
Recording Frame Rate: 4K: 23.98 / 24 / 25 / 29.97 / 50 / 59.94 , Full HD: 23.98 / 24 / 25 / 29.97 / 50 / 59.94 / 120 / 240
Streaming Resolution: 4K, 3696x2772, 1080p
Streaming Frame Rate: 4K: 23.98 / 24 / 25 / 29.97 / 50 / 59.94, 1080p: 23.98 / 24 / 25 / 29.97 / 50 / 59.94 / 120
Color Bit-depth: 8-bit
Video Encoder: H.265 / H.264
Streaming Protocol: NDI_HX3, SSP
Audio Format: 16-bit 48 kHz
Audio Encoder: AAC / PCM (for MOV only)
File Format: MOV / MP4
Record Mode: Video / Time Lapse Video / Still Image Capture

Settings
ISO: Auto, Manual (500 ~ 102400), Native ISO: 500 / 2500
Shutter: Shutter Speed: Auto, Manual (1”~ 1/8000”) or Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance: Auto, Preset, Manual (2300K ~ 7500K)
Focus Mode: MF / AF / CAF
Image Profile: Rec.709 / Concert / Vivi 0 / Vivi 1 / Vivi 2
Audio: Audio In / Out Level
Time Code: Current Time / Manual Input

Storage
Recording Media: SDXC Class 10 SD card, recommend to use UHS-I Speed Class 3 (U3) type for 4K recording
File System: exFAT

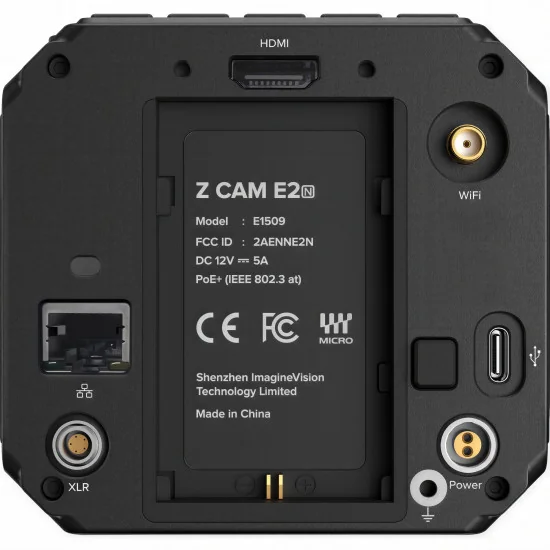

Connectivity
HDMI: HDMI 2.0 Type A, up to 4K 60fps
USB: USB 3.0 Type C
Audio-in: 3.5 mm stereo jack socket
Audio-out: 3.5 mm stereo jack socket
Wi-Fi: 5G band, 802.11ac, external antenna port
Ethernet: Gigabit Ethernet port

Power
Power Input: DC 12V 5A (2-pin LEMO socket), PoE+ (IEEE 802.3 at)
Battery: LP-E6 series compatible (Battery not included)

Physical
Weight: 660g (without lens)
Dimensions (HxWxL): 85.3 x 91 x 86mm (without lens)

Environment
Storage Temperature: -20 °C ~ 60 °C
Operation Temperature: 0 °C ~ 40 °C

Note: All weight and dimensions are rounded values.
