Z CAM P2-R1 18x Zoom is a professional PTZ camera for fixed rigs that need cinematic subject separation and consistent colour without a dedicated operator. The large 1/1.3" CMOS sensor, Z CAM colour science and selectable looks including Rec.709 and HLG support reliable camera matching in multi-camera control rooms. Exposure control spans 1/10000–1 s shutter with gain up to 24 dB (ISO 800–25600) when venues move from stage spots to LED walls.
The integrated optics deliver an 18x optical zoom covering a 35 mm-equivalent 36–648 mm range, with a fast f/1.6–f/3.5 aperture and a horizontal 51°–3.6° field of view for back-of-room close-ups. PDAF autofocus plus manual focus handle fast presenter movement, while E.I.S. and precision PTZ mechanics (pan 350°, tilt 240°, up to 180°/s, 0.01° accuracy) keep reframes repeatable. The camera also supports intelligent AI auto framing when you need consistent framing during panel discussions.
Connectivity is production-centric: HDMI 2.0 outputs up to UHD 4K 59.94p, 3G-SDI covers HD program feeds, and RJ45 IP plus USB-C 3.0 fit modern routing and USB workflows. Internal recording to SD (H.265, 8-bit, up to 4K60) provides a safety master, and 1080p120 supports high-motion analysis and replay. IP streaming supports RTMP/RTMPS, RTSP, SRT and SSP.
Operational tools target broadcast installs: a front tally light, web client control, VISCA over IP or RS-422, and up to 256 presets via CGI (100 via VISCA) for instant shot recall. Power can run over a single cable via PoE+ (802.3at) or 12 V DC (18 W max); Genlock input supports multi-camera sync. Feed audio through the 3.5 mm mic/line input and deploy P2-R1 in TV studios, corporate stages, houses of worship, esports and lecture capture where deterministic presets and low-latency streaming matter.
Z CAM P2-R1 18x Zoom is a professional PTZ camera for fixed rigs that need cinematic subject separation and consistent colour without a dedicated operator. The large 1/1.3" CMOS sensor, Z CAM colour science and selectable looks including Rec.709 and HLG support reliable camera matching in multi-camera control rooms. Exposure control spans 1/10000–1 s shutter with gain up to 24 dB (ISO 800–25600) when venues move from stage spots to LED walls.
The integrated optics deliver an 18x optical zoom covering a 35 mm-equivalent 36–648 mm range, with a fast f/1.6–f/3.5 aperture and a horizontal 51°–3.6° field of view for back-of-room close-ups. PDAF autofocus plus manual focus handle fast presenter movement, while E.I.S. and precision PTZ mechanics (pan 350°, tilt 240°, up to 180°/s, 0.01° accuracy) keep reframes repeatable. The camera also supports intelligent AI auto framing when you need consistent framing during panel discussions.
Connectivity is production-centric: HDMI 2.0 outputs up to UHD 4K 59.94p, 3G-SDI covers HD program feeds, and RJ45 IP plus USB-C 3.0 fit modern routing and USB workflows. Internal recording to SD (H.265, 8-bit, up to 4K60) provides a safety master, and 1080p120 supports high-motion analysis and replay. IP streaming supports RTMP/RTMPS, RTSP, SRT and SSP.
Operational tools target broadcast installs: a front tally light, web client control, VISCA over IP or RS-422, and up to 256 presets via CGI (100 via VISCA) for instant shot recall. Power can run over a single cable via PoE+ (802.3at) or 12 V DC (18 W max); Genlock input supports multi-camera sync. Feed audio through the 3.5 mm mic/line input and deploy P2-R1 in TV studios, corporate stages, houses of worship, esports and lecture capture where deterministic presets and low-latency streaming matter.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
Key features
What's in the Box
Z CAM P2-R1 PTZ Camera Body
12V AC-DC Power Adapter & AC Cable
Ceiling Mount Bracket
IR Remote Controller
Technical Specifications
Imaging
Image Sensor: 1/1.3" CMOS sensor
Image Stabilization: E.I.S.
Horizontal Resolution (TV Lines): 2160 TV Lines
Focus Control: PDAF (Phase Detection Auto Focus), Manual Focus
Built in ND Filter: No
Image Profile: Rec 709, Cine, High Contrast, Vivid, Concert, Gamma
Exposure Control
Shutter Speed: 1/8000 to 1 second
Gain: 0 to 24 dB (ISO 800 to 25600)
White Balance: Auto, Incandescent, Cloudy, D10000, Fluorescent, Indoor, Daylight, Shade, Manual
Lens
Focal Length: 35mm to 573mm (36mm equivalent)
Maximum Aperture: f/1.6 (W) / f/3.5 (T) to f/11
Optical Zoom Ratio: 18x
Minimum Focus Distance: Wide: 3.94" /10 cm, Tele: 78.7" / 220 cm
Max Digital Zoom: 36x (in 1080p)
ND:No
Field of View: Horizontal: 53º to 3.6º
OLPF: No
Video Capture
External Recording Modes:
HDMI:
UHD 4K (3840 x 2160) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080i) at 50/59.94 fps
SDI / BNC:
HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080i) at 50/59.94 fps
RJ45 / USB:
UHD 4K (3840 x 2160) at 24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 24/25/29.97/50/59.94
Audio Recording: 3.5 mm TRS (Mic in / Line in)
Internal Recording Modes:
UHD 4K (3840 x 2160) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94
Broadcast Output: NTSC / PAL
IP Streaming: H.264, H.265, RTMP, RTMPS, RTSP, SRT, SSP, UVC
UHD 4K (3840 x 2160) at 24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 24/25/29.97/50/59.94
Control
Presets: 256 via CGI, 100 via VISCA, 9 via IR
Tally Light: Yes
Move Speed: Pan: 0.1 to 180º/sec, Tilt: 0.1 to 180º/sec
Supported Control Protocols: IR, VISCA over RS-422, VISCA over IP, Web Client, UVC
Movement Range: Pan: 350º (-175º to +175º), Tilt: 240º (-30º to +210º)
FreeD: Yes
Movement Accuracy: 0.01º
Interface
Media / Memory Card Slot: SD (4K 60fps max, H.265, 8-bit color)
Audio I/O: 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Video I/O:
1x BNC (3G-SDI) Output
1x RJ45 (IP) Output
1x HDMI Output
1x USB-C 3.0 Gen 1 Output
Other I/O:
1x BNC (Genlock) Input
1x RJ45 (VISCA / RS-422) Input
1x RJ45 (VISCA / RS-422) Output
Power
PoE Support: PoE+ 802.3at
Power Consumption: 18W maximum
Power I/O: 1x Barrel (12V DC) Input
General

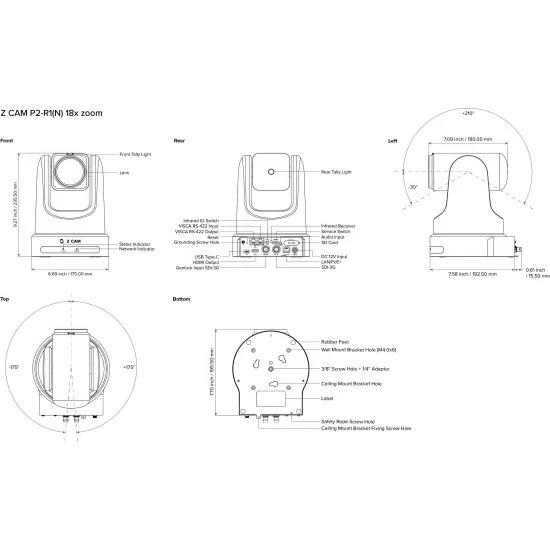

Mounting: 3/8" Screw Hole + 1/4" Adapter, Desktop / Ceiling
Environmental Resistance: No
Certifications: CE, FCC, RoHS
Color: Black
Weight: 7.4 lb / 3.35 kg (body only)
Fanless Design: Yes
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
