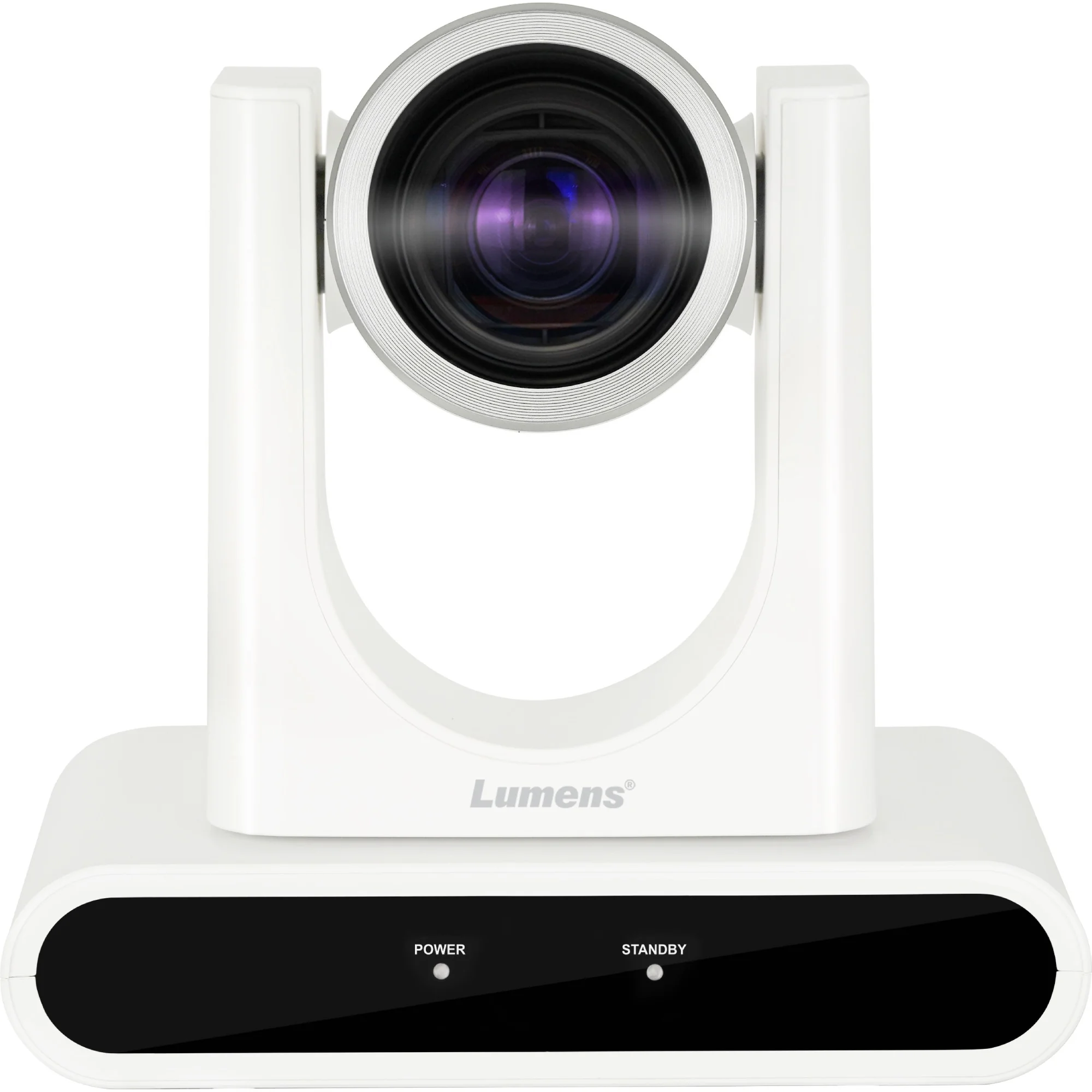

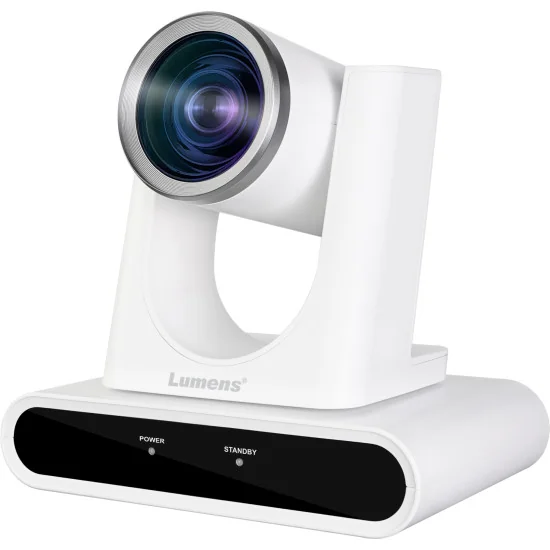

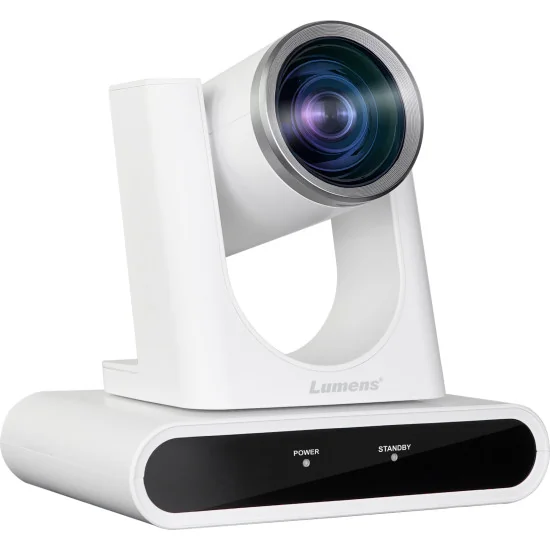

Lumens VC-R31 White PTZ Camera

Name: Lumens VC-R31 White PTZ Camera
Brand: Lumens
SKU: VC-R31-W
Price: 1239.00 EUR
Availability: InStock

MPN: VC-R31-W

Price: €1,239.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

Mounted at the rear of a lecture hall or tucked discreetly into a corporate boardroom, the Lumens VC-R31 White earns its keep by holding a clean, steady frame whether the room is bright, dim or lit by a mix of windows and spotlights. A 1/2.8-inch sensor of 2.16 megapixels feeds a sharp lens that reads skin tones honestly and copes with high-contrast scenes, so a presenter standing against a backlit screen still reads naturally rather than dissolving into silhouette. Recording at 1080p at 60 frames per second, the camera keeps fast gestures and quick stage moves crisp.

The 12x optical zoom pairs with 12x digital reach and a 72.5-degree horizontal field of view, a span wide enough to seat a full meeting table in one shot yet long enough to pull a tight close-up of a speaker from across a 20-metre auditorium. Lumens' autofocus tracks the subject through pans and zoom changes without hunting, while smooth, near-silent pan-and-tilt motors sweep across +/-170 degrees horizontally and from +90 to -30 degrees vertically. With 256 preset positions stored, an operator can jump between podium, panel and wide cover in a single button press during a live event.

Three video paths run at once: HDMI, USB 3.0 and IP over Ethernet, so the same unit can drive a hall display, plug straight into a laptop for Teams, Zoom or Webex, and push an H.264 stream to the production gallery in parallel. A triple-streaming structure serves 1080p60 alongside two 720p30 feeds, and RTSP, RTMP, RTMPS and SRT protocols cover most encoders and platforms, from OBS and Wirecast to YouTube and Wowza. Single-cable installation comes courtesy of PoE, which trims wiring runs in ceiling or wall mounts.

For an integrator weighing reliability against cost, the Lumens VC-R31 White answers with VISCA and ONVIF control over RS-232, Ethernet or USB, plug-and-play UVC and UAC compliance, plus WDR, 3D noise reduction and auto framing to ease setup across studios, courtrooms and training spaces. The white chassis blends into pale ceilings and modern interiors, and either upright or inverted mounting keeps sightlines tidy in rooms hosting local and remote audiences at the same time.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

VC-R31 - HD PTZ camera with a 12x zoom, HDMI , USB and IP streaming.

1080p 60 fps
Superb value for money
12x zoom / 72.5° horizontal field of view
Simultaneous HDMI, USB and IP streaming output
Outstanding color reproduction

Studio Quality
Equipped with a professional 1/2.8 inch image sensor, the VC-R31 provides great output in all lighting conditions. The sharp lens, intelligent white balance, and auto-exposure mode combine to deliver clear pictures. The camera handles skin tones, high contrast, low and mixed lighting conditions extremely well.

Ideal for Video Conferencing
Covering a wide 72.5° horizontal frame of view and with plug and play USB, the camera is a great option for video conferencing. The versatile zoom lens can capture everyone in a medium-sized conference room. VC-R31 connects to the host computer via USB running popular video conferencing applications such as Teams, WebEx, Skype, and Zoom.

Smooth Motion PTZ
The 12x optical zoom offers fantastic flexibility making the camera suitable for positioning anywhere from the back of an auditorium to an interactive training room. Whenever the operator needs a panning movement across a stage, a close-up focus on the presenter, or a wide-angle shot, it maintains a steady image while the camera moves. Lumens’ autofocus system enables the VC-R31 to deliver sharp pictures even while the camera is in motion or when the zoom angle changes.

Live Streaming and Virtual
Video output is via USB 3.0 , HDMI and Ethernet simultaneously, giving users great workflow options.The camera can be controlled and monitored locally or remotely over an IP network. It’s suitable for hosting a live and virtual conference at the same time, tackling the issue of space and engaging with audiences both local and remote. Compliant with most video production, video conference, and streaming applications, including Zoom, Skype, WebEx, Teams, Google Meet, Wowza, YouTube, OBS, and Wirecast.

Specs.
Sensor: 1/2.8" 2.16M
Video Format: 1080p: 60 / 50 / 30 / 25 , 720p : 60 / 50
Video Output (HD) Interface: HDMI / Ethernet / USB 3.0
Optical Zoom: 12x
Digital Zoom: 12x
Viewing Angle: 72.5° (H) 40.8° (V) 83.2° (D)
Aperture: F1.6~F2.8
Focal Length: 3.9mm~46.8mm
Shutter Speed: 1/25 ~ 1/10,000 sec
Minimum Object Distance: 1/1.5m (Wide/Tele)
Video S/N Ratio: > 50dB
Minimum Illumination: 1.0 lux (F1.6, 50IRE, 30fps)
Focus System: Auto / Manual
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
Auto Framing: Yes
Panning Angle: +170° ~ -170°
Panning Speed: 0.2° ~ 120°/sec
Tilting Angle: +90° ~ -30°
Tilting Speed: 0.2° ~ 80°/sec
Preset Positions: 256
HDMI: 1080p 60
IP Stream:
Triple Streaming Structure:
First : H.264 1080p60
Second : H.264 720p30
Webpage : H.264 720p30
IP Compression: H.264
USB Output: 1080p60
USB Compression: MJPEG
IP Protocol: RTSP / RTMP / RTMPS / SRT
PoE: PoE (IEEE802.3af)
Input: Line In / MIC In
Output: Ethernet / USB 3.0 / HDMI
Compression Format: IP : AAC , USB : PCM
Interface: RS-232 / Ethernet / USB 3.0
Protocol: VISCA / ONVIF
UVC: Yes
UAC: Yes
DC In: 12V +/- 20%
Power Consumption: PoE: 9W , DC In: 8W
Weight: 1.4 kg
Dimension: 190 ×185 ×138 mm
