Z-CAM P2-R1N 18x Zoom PTZ Camera

Name: Z-CAM P2-R1N 18x Zoom PTZ Camera
Brand: Z-CAM
SKU: ZCP2R1N18
Price: 2490.00 EUR
Availability: InStock

MPN: ZCP2R1N18

Price: €2,490.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

Z CAM P2-R1N 18x Zoom is a broadcast-grade PTZ camera built around a large 1/1.3" CMOS sensor, delivering controlled depth cues and stable colour for studio sets, worship venues and corporate stages. Video output reaches UHD 4K 59.94p, with selectable looks including Rec.709 and HLG for HDR-aware pipelines and predictable matching in multi-camera rooms. Exposure tuning is granular—shutter 1/10000–1 s and gain up to 24 dB (ISO 800–25600) when the scene shifts between spotlights and LED walls.

The optics pair a fast f/1.6–f/3.5 aperture with an 18x optical zoom spanning 36–648 mm (35 mm equivalent). A horizontal field of view from 51° down to 3.6° supports wide masters and tight facial close-ups from the back of the room. PDAF autofocus plus manual focus options stay responsive on moving speakers, while AI auto framing and E.I.S. keep composition stable during panels, lecture capture and follow-style shots. PTZ motion is precise (pan 350°, tilt 240°, up to 180°/s, 0.01° accuracy) for repeatable reframes.

Connectivity is production-centric: HDMI 2.0, 3G-SDI, RJ45 IP and USB-C 3.0, with embedded audio on SDI/HDMI and over the network. IP delivery supports RTMP/RTMPS, RTSP, SRT and Z CAM’s SSP stack; the “N” model adds native NDI|HX3 for low-latency switching, tally and control on a standard LAN. Internal SD recording (H.265, 8-bit, up to 4K60) creates a safety master, and 1080p120 is available for high-motion analysis and replay.

For integration, P2-R1N supports VISCA over IP or RS-422, plus HTTP/CGI control, front and rear tally light logic, and up to 256 presets via CGI (100 via VISCA) for instant shot recall in ATEM/Tricaster/vMix rooms. Power runs via PoE+ (802.3at) for single-cable deployment or 12 V DC (18 W max), while Genlock input supports multi-camera synchronisation. Use it for NDI workflows in TV studios, esports, boardrooms and remote production where network video and deterministic presets matter.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Key features

1/1.3” Large Size Sensor
f/1.6 Large Aperture - Shallow depth of field
PDAF Phase Detection Auto Focus - Quick & Accurate State of the art Auto Focus
Auto Framing - AI Technology
Pan: 350° (±175°) , Tilt: 240° (-30° to +210°)
Z CAM Color Science - Cinema Camera
Internal Recording - SD Memory card
Move Speed - Pan/Tilt up to 180º/sec
NDI Bridge - Remote Connection

What's in the Box
Z CAM P2-R1 PTZ Camera Body
12V AC-DC Power Adapter & AC Cable
Ceiling Mount Bracket
IR Remote Controller

Technical Specifications

Imaging
Image Sensor: 1/1.3" CMOS sensor
Image Stabilization: E.I.S.
Horizontal Resolution (TV Lines): 2160 TV Lines
Focus Control: PDAF (Phase Detection Auto Focus), Manual Focus
Built in ND Filter: No
Image Profile: Rec 709, Cine, High Contrast, Vivid, Concert, Gamma

Exposure Control
Shutter Speed: 1/8000 to 1 second
Gain: 0 to 24 dB (ISO 800 to 25600)
White Balance: Auto, Incandescent, Cloudy, D10000, Fluorescent, Indoor, Daylight, Shade, Manual

Lens
Focal Length: 35mm to 573mm (36mm equivalent)
Maximum Aperture: f/1.6 (W) / f/3.5 (T) to f/11
Optical Zoom Ratio: 18x
Minimum Focus Distance: Wide: 3.94" /10 cm, Tele: 78.7" / 220 cm
Max Digital Zoom: 36x (in 1080p)
ND:No
Field of View: Horizontal: 53º to 3.6º
OLPF: No

Video Capture
External Recording Modes:
HDMI:
UHD 4K (3840 x 2160) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080i) at 50/59.94 fps
SDI / BNC:
HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080i) at 50/59.94 fps
RJ45 / USB:
UHD 4K (3840 x 2160) at 24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 24/25/29.97/50/59.94
Audio Recording: 3.5 mm TRS (Mic in / Line in)
Internal Recording Modes:
UHD 4K (3840 x 2160) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94
Broadcast Output: NTSC / PAL
IP Streaming: H.264, H.265, RTMP, RTMPS, RTSP, SRT, SSP, UVC, NDI_HX3
UHD 4K (3840 x 2160) at 24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 24/25/29.97/50/59.94

Control
Presets: 256 via CGI, 100 via VISCA, 9 via IR
Tally Light: Yes
Move Speed: Pan: 0.1 to 180º/sec, Tilt: 0.1 to 180º/sec
Supported Control Protocols: IR, NDI_HX3, VISCA over RS-422, VISCA over IP, Web Client, UVC
Movement Range: Pan: 350º (-175º to +175º), Tilt: 240º (-30º to +210º)
FreeD: Yes
Movement Accuracy: 0.01º

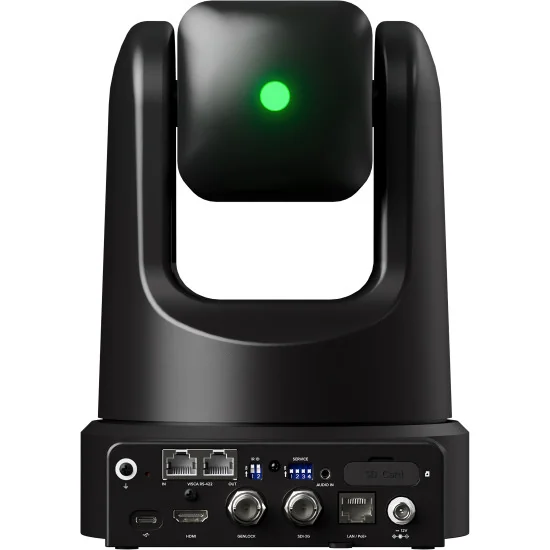

Interface
Media / Memory Card Slot: SD (4K 60fps max, H.265, 8-bit color)
Audio I/O: 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Video I/O:
1x BNC (3G-SDI) Output
1x RJ45 (IP) Output
1x HDMI Output
1x USB-C 3.0 Gen 1 Output
Other I/O:
1x BNC (Genlock) Input
1x RJ45 (VISCA / RS-422) Input
1x RJ45 (VISCA / RS-422) Output

Power
PoE Support: PoE+ 802.3at
Power Consumption: 18W maximum
Power I/O: 1x Barrel (12V DC) Input

General
Mounting: 3/8" Screw Hole + 1/4" Adapter, Desktop / Ceiling
Environmental Resistance: No
Certifications: CE, FCC, RoHS
Color: Black
Weight: 7.4 lb / 3.35 kg (body only)
Fanless Design: Yes
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
