Multi-Target Select puts an ID above everyone detected, so the operator can move the framing to another presenter without touching the joystick. Auto-Framing picks the zoom according to whether one, two or more people are in view. Framing offsets (left, centre or right; top, centre or bottom), the start delay, a target timeout of 6 to 60 seconds and the preset to fall back on are all stored in the head. With Tilt-Lock engaged, only horizontal movement is followed, handy for a lecturer pacing a level stage. Serial keyboards toggle tracking by recalling presets 150 and 151.

Panels and debates call for audio cues instead. The licensed Voice Tracking module listens to zone data from networked microphones (Shure MXA920, Sennheiser TeamConnect Ceiling 2, Nureva HDL410, Yamaha RM-CG, Audio-Technica ATND1061) or a Televic Confero system, sends the head to the seat that is talking and can cut Epiphan, INOGENI, vMix or OBS to the matching source.

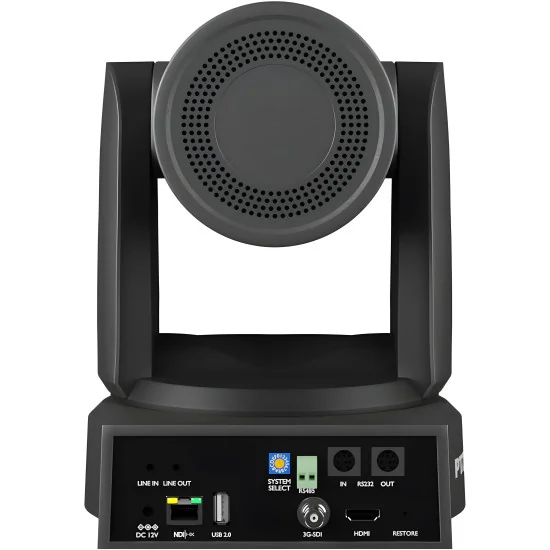

Baseband and IP are handled separately. HDMI 2.0 outputs as much as 2160p60, while 3G-SDI tops out at 1080p60 over locking BNC (about 100 m on quality coax). Only one of the two is active at a time; it is chosen in the OSD or web interface, and the 16-position rear dial sets the format after a restart. Network video runs regardless. Firmware v2.1.17 for the 30x, released in late September 2026, moved the NDI stack to version 6.3 and introduced two NDI|HX3 settings: High, up to 1080p50/60, and Ultra, reaching 4K50/60, each in H.265 or H.264 and sent over Reliable UDP, TCP, UDP or multicast. Alongside NDI, the encoder can push SRT with AES encryption, RTMPS or RTMP and serve RTSP concurrently, so one camera can feed a switcher, a remote gallery and a streaming platform at once. Over USB 2.0 it appears as a UVC device up to 4K30. A 3.5 mm line-level jack embeds desk audio in HDMI, SDI, NDI and USB, encoded in AAC or G.711, and a second jack provides a line output.

Integration goes well beyond a joystick: VISCA over IP (TCP 5678, UDP 1259), certified ONVIF Profile S, an HTTP API with reboot, standby and privacy commands, NDI absolute positioning for media servers such as Resolume, and remote iris and shutter control through the NDI SDK. RS-232 (30 m, daisy-chainable) and RS-485 (1,200 m, multi-drop) speak VISCA, Pelco-D and Pelco-P. Pan covers ±170° at 0.7–100°/s and tilt runs from −30° to +90° with a top speed of 69.9°/s, and the 255 presets are repeatable to 0.1°. Image Presets decides whether a recall also restores exposure and colour, and Preset Freeze holds the last frame while the head travels, so the programme shows a cut rather than a whip pan.

Horizon, the browser-based control suite with WebRTC preview, comes with every unit. HIVE Linked adds cloud supervision across venues, the front tally lamp follows an NDI switcher (green for preview, red on air), and firmware uploads now require the camera's own login, a point IT departments tend to ask about.

A single Cat5e or Cat6 cable (100 m maximum) from a PoE+ (802.3at) switch powers, controls and streams the camera. A basic 802.3af port is not enough, and PTZOptics recommends disabling Energy-Efficient Ethernet on it; without PoE+, the camera runs from its 12 V DC input, drawing 18 W at most. Its larger housing takes the large-size PTZOptics brackets. At 210 mm, building vibration shows on screen, so a rigid wall mount usually gives a steadier long shot than a ceiling plate. Mounted upside down, the head flips its own image thanks to a gravity sensor; operation is rated indoors from −10 to 40 °C, and NDAA compliance covers a clause many public tenders include. The grey finish blends into dark truss, black balcony fronts and the steelwork of sports halls.

We carry the large black PTZOptics wall and ceiling mounts and the SuperJoy controller alongside this camera, and we are glad to check a venue's throw distance against the lens before an order is placed.
