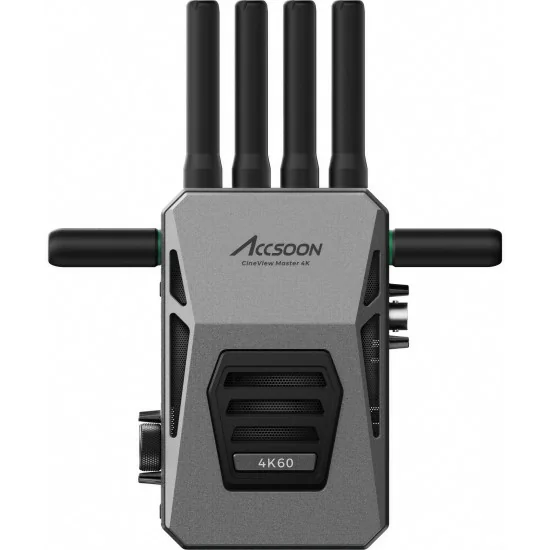

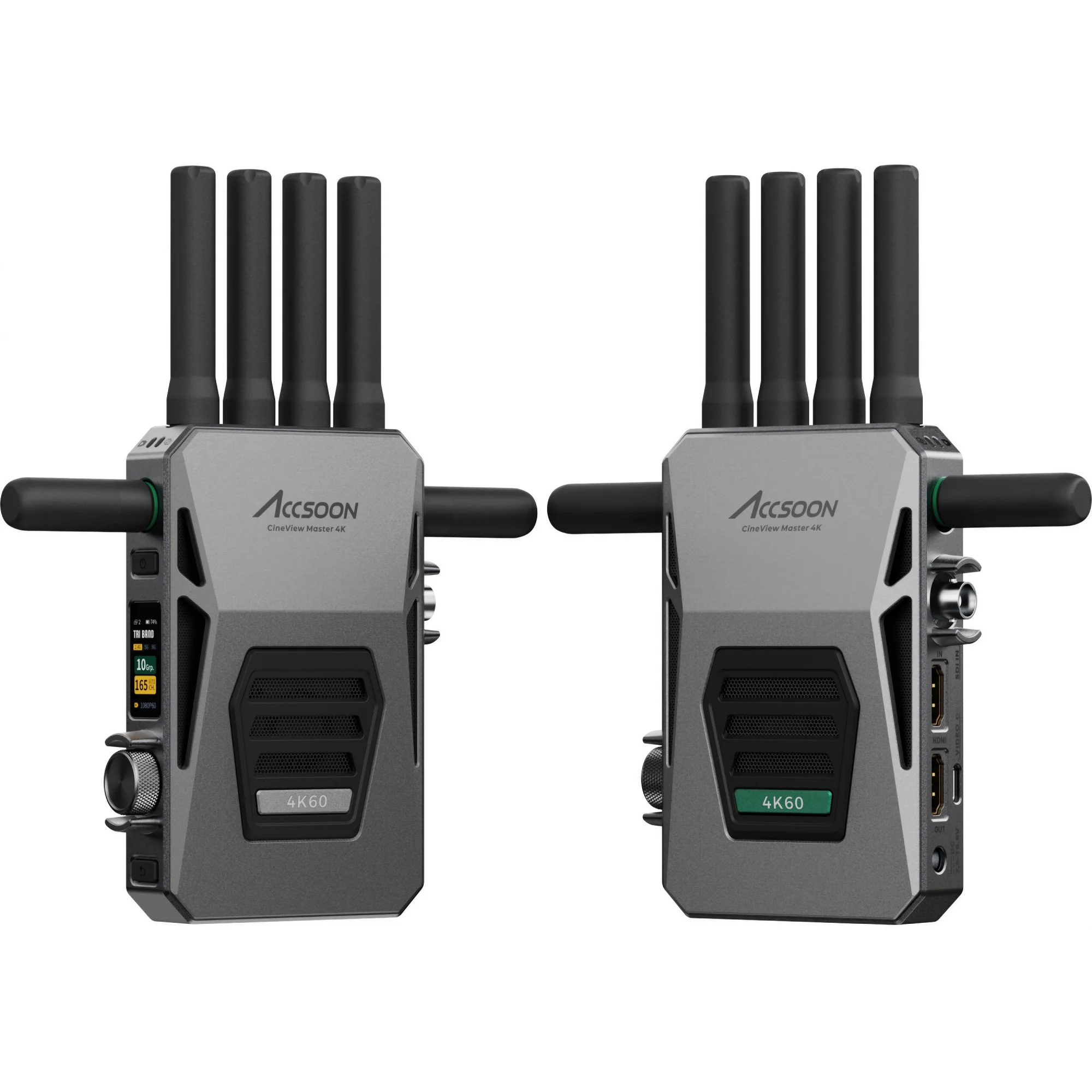

Accsoon CineView Master 4K SET Wireless Video Transmission System

Accsoon CineView Master 4K SET Wireless Video Transmission System

Name: Accsoon CineView Master 4K SET Wireless Video Transmission System
Brand: Accsoon
SKU: ACC-WIT07
Price: 869.00 EUR
Availability: InStock

MPN: ACC-WIT07

Price: €869.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

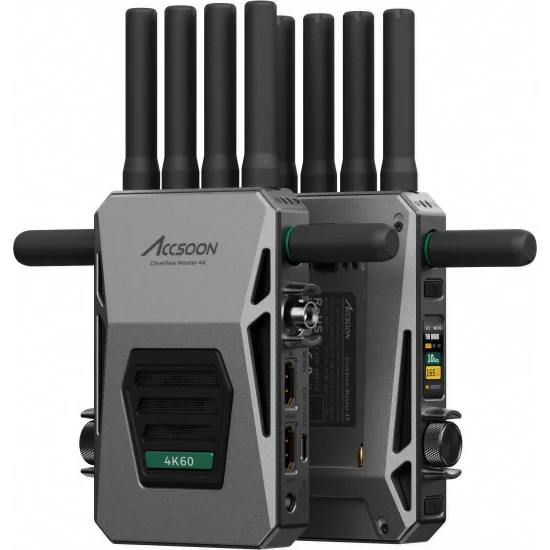

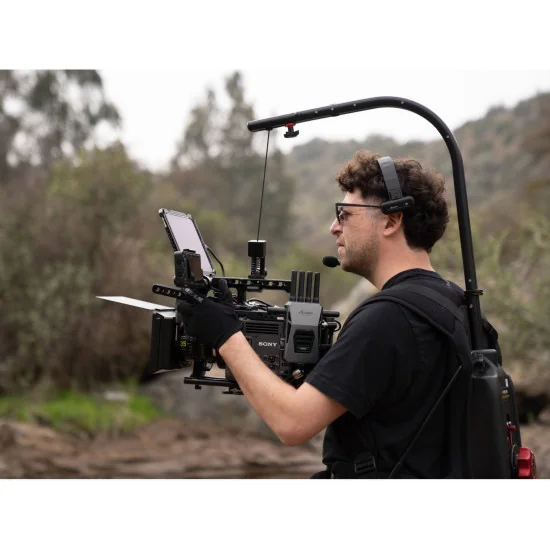

On a multi‑camera shoot, the last thing you want is a monitor feed lagging behind action or dropping when the camera swings onto a gimbal. Accsoon CineView Master 4K SET is a wireless video TX/RX kit that transports the camera signal across set on Tri‑Band 2.4/5/6 GHz with DFS, using Accsoon’s RTMS 4.0 protocol to lean on the band with the least congestion at that moment. The system carries UHD 4K60 over HDMI end to end; the specification quotes <25 ms at 1080p60 and <35 ms at 4K60 (camera delay excluded; measured under low‑bitrate conditions). When you need distance—crane work, car‑rigs, stadium sidelines—the radio link is specified for >= 2,500 m line of sight in an interference‑free environment.

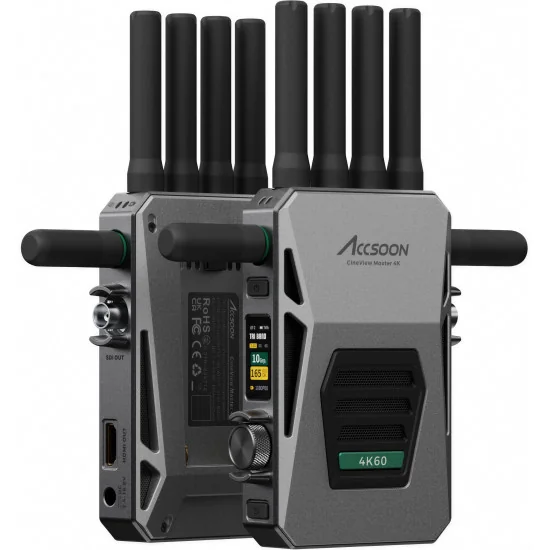

I/O is set up for mixed rigs: the transmitter accepts HDMI up to 4K60 plus 3G‑SDI for HD cameras, then provides an HDMI loop‑out that mirrors the input for an on‑camera monitor or recorder. The receiver outputs HDMI up to 4K60 and SDI up to 1080p60, with practical cross‑conversion (SDI in → HDMI out, HDMI in → SDI out—within SDI’s 1080p limit). Embedded audio travels with the picture; the published spec lists 48 kHz audio with 16/20/24‑bit support. Power stays simple in the field: DC 7.4–16.8 V or NP‑F batteries on both units.

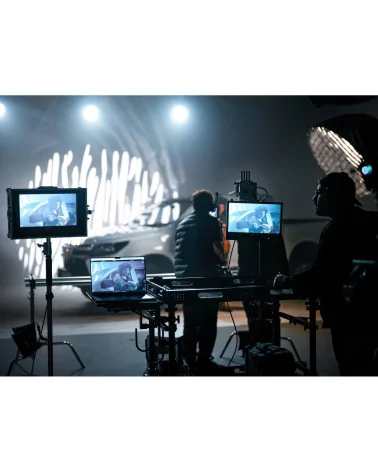

Where this kit earns its place is monitoring density. One transmitter can serve up to five endpoints at once (a cabled iPhone/iPad plus four wireless receivers or smart devices), and an 8K‑class A/V processor handles multi‑stream encoding so a receiver can stay in 4K while mobile viewers pull a lighter 1080p feed. The Accsoon SEE app adds operator control: stream priority (4K vs 1080p), bitrate tuning with CBR/VBR choices, and 3D Cube LUTs—including the option to burn a LUT into app recording/streaming. The cabled iOS output can also power the connected device (up to 5V/3A), and 16 groups help when multiple systems share one studio. For productions that hand off material fast, Frame.io camera‑to‑cloud support can push proxies while the fan menu offers Standard/Quiet/Off modes for dialogue, music sessions, corporate stages, and OB vans.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Accsoon Tri-Band transmission technology is a quantum leap forward from the previous Dual-Band transmission technology. Based on the proprietary RTMS 4.0 protocol developed by Accsoon, it integrates 2.4GHz, 5GHz, and all-new 6GHz frequencies, enabling intelligent dynamic adjustment of audio and video data across three bands, promising greater robustness, faster connection times, lower latency, and the ability to gracefully manage multiple connections.

25 ms Best in Class Latency Follow the Moment, Focus the Frame
Accsoon CineView Master 4K significantly reduces latency from input to output to only 25ms. This near real-time performance is notably faster and directly addresses the demands of cinematographers, camera operators and assistants, ensuring precision and efficiency in fast-paced filming environments, enhancing overall productivity in professional filmmaking.

Maximized Creative Range Within Reach
Accsoon CineView Master 4K with its original revolutionary Tri-band transmission technology and innovative hardware design, achieves an impressive 2.5 km ultra-long transmission distance. Distance is no barrier to the CineView Masrer 4K. Not only does it work over vast distances, it does so with incredible stability, pushing the limits to make it the highest performing Accsoon system to date.

Specifications

Transmitter
A/V Processor: 8K High Performance Processor
Protocol: Proprietary RTMS 4.0 protocol developed by Accsoon
Video Input: HDMI®, 3G SDI
Video Output: HDMI® Loop-Out, USB Video Out (to iOS)
SDI Input Format: 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B, 1080i: 50/59.94/60i
HDMI® Input Format: 4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60p, 1080p: 23.98/24/25/29.97/30/50/59.94/60p, 1080i: 50/59.94/60i, 720p: 50/59.94/60p
HDMI® Loop-out Format: Identical to the HDMI® video input
DC Port: 5.5mmx2.1mm, center positive
DC Voltage: 7.4~16.8V

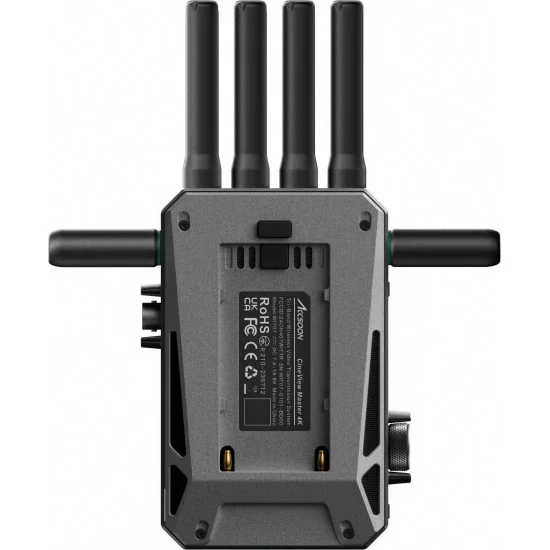

Battery: Compatible with NP-F550, NP-F750, NP-F970 battery
Power Consumption: 6.5W average
*Without powering other devices
Audio: HDMI® embedded, SDI embedded
Latency: 1080p 60 < 25ms [1] , 4K 60 < 35ms (Camera latency not included)
Transmission Range: ≥ 2.5 km [2] (No obstacles, no interference)
Operating Environment Temperature: -10~40℃
Dimensions (Antennas Not Included): 130mm x 95mm x 32 mm
Weight (Antennas Not Included): 322g

Receiver
A/V Processor: 8K High Performance Processor
Protocol: Proprietary RTMS 4.0 protocol developed by Accsoon
Video Output: HDMI®, 3G SDI
SDI Output Format: 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A, 720p: 50/60p
HDMI® Output Format: 4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60fps, 1080p: 23.98/24/25/29.97/30/50/59.94/60fps, 720p: 50/60p
DC Port: 5.5mmx2.1mm, center positive
DC Voltage: 7.4~16.8V
Battery: Compatible with NP-F550, NP-F750, NP-F970 battery
Power Consumption: 5.0W average
Audio: HDMI® embedded, SDI embedded
Latency: 1080p 60 < 25ms [1], 4K 60 < 35ms (Camera latency not included)
Transmission Range: ≥ 2.5 km [2] (No obstacles, no interference)
Operating Environment Temperature: -10~40℃
Dimensions (Antennas Not Included): 130mm x 95mm x 32 mm
Weight (Antennas Not Included): 320g
