ARRI M90 EB MAX Set HMI PAR with Ballast

ARRI M90 EB MAX Set HMI PAR with Ballast

Name: ARRI M90 EB MAX Set HMI PAR with Ballast
Brand: ARRI
SKU: L0.0019658
Price: 25700.00 EUR
Availability: InStock

MPN: L0.0019658

Price: €25,700.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

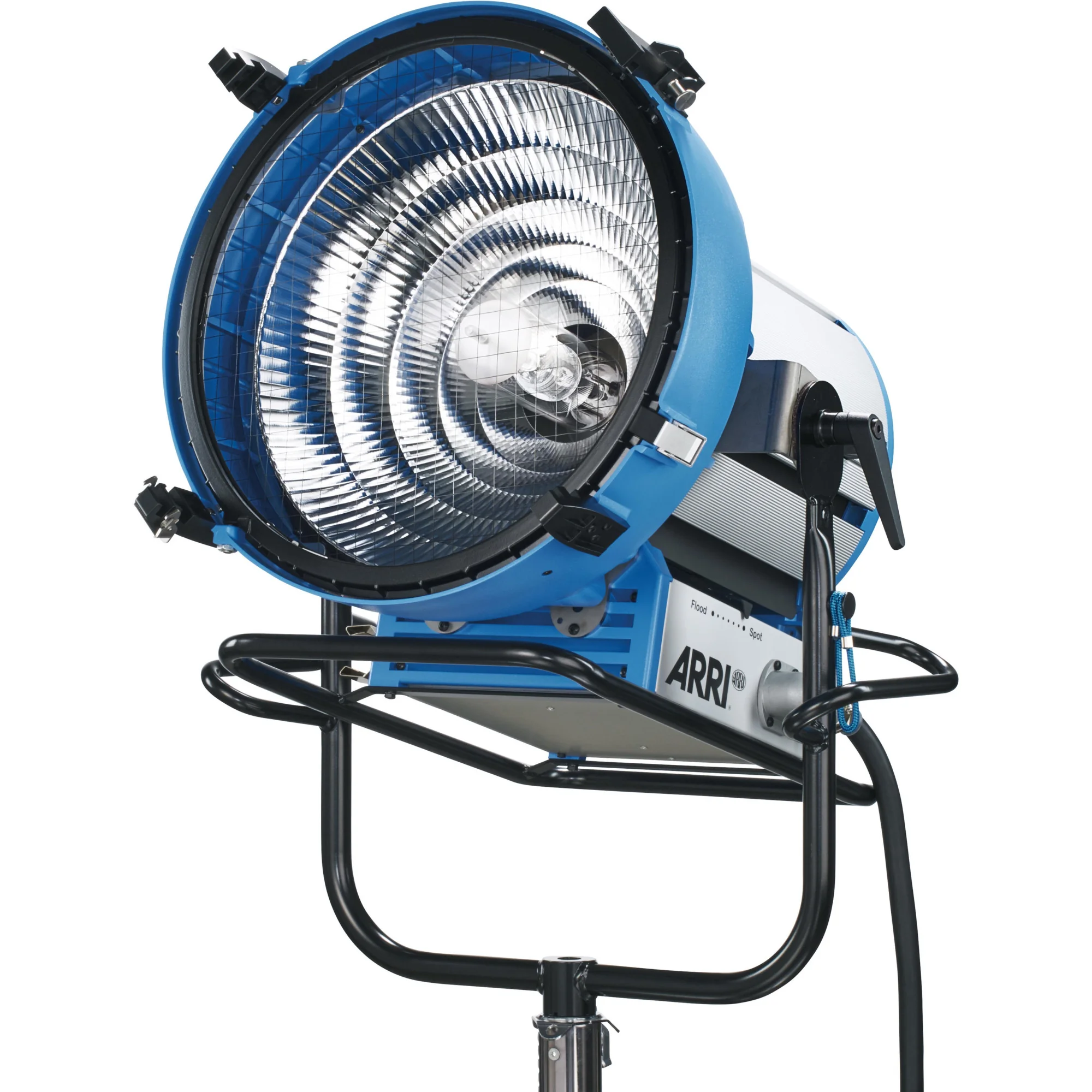

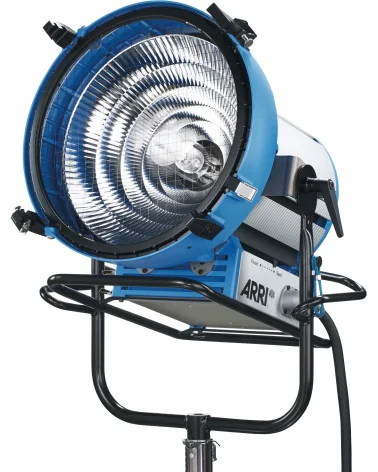

ARRI M90 EB MAX Set pairs the M-Series M90 open-face HMI PAR head with an EB MAX 6/9 electronic ballast for high-output daylight on film sets, broadcast studios and large live-event rigs. The lens-less MAX Technology facetted reflector delivers PAR-style punch without a spread-lens kit; beam size is tuned by focus only, travelling continuously from 15° to 49°. That range covers long-throw key light, hard backlight, or a broad wash for large cycs, greenscreens and architectural textures, while keeping the shadow edge clean and easy to cut.

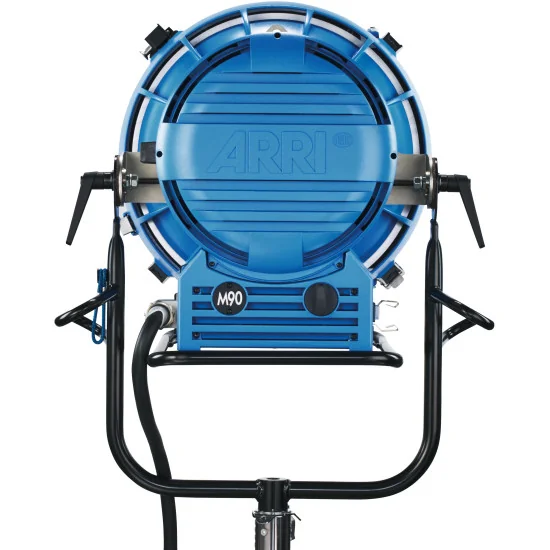

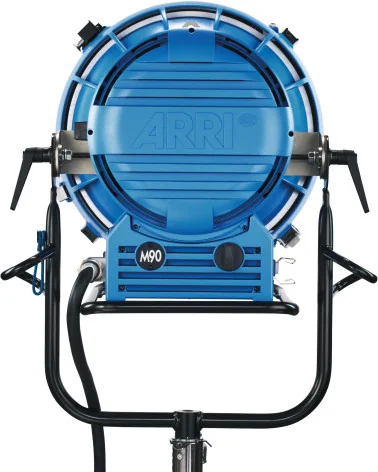

The lamphead accepts single-ended metal-halide lamps at 9,000 W or 6,000 W on a GX38 base behind UV protection glass. ARRI specifies operation up to 40°C ambient with a max surface temperature of 200°C, and tolerable inclination up to 90° up or down. Cross-cooling and dual-side tilt locks keep heavy front accessories stable during steep angles on condors, truss, studio grids or follow rigs, and the head can run with 6,000 W lamps/ballasts while using existing 6 kW cabling ecosystems.

Photometrics with a 9,000 W lamp indicate the working envelope: at 10 m the fixture reaches 51,000 lux at 15°, 14,450 lux at 30°, and 7,590 lux at 49°, with beam diameters scaling from 2.7 m to 8.3 m. At 20 m it still delivers 12,750 lux at 15° for exterior “sun” backlight, long corridors, and wide establishing plates where consistent daylight color is mandatory across multiple cameras.

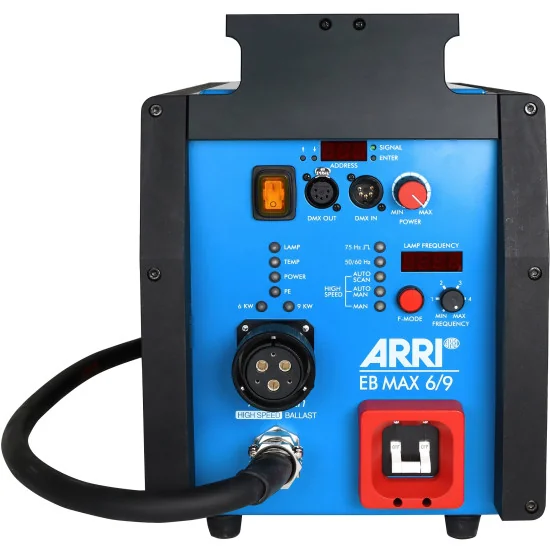

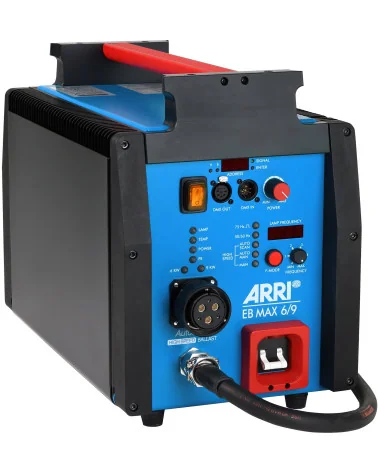

The included 15 m head-to-ballast cable is supported by ballast-side CCL (Compensation of Cable Losses) so lamp power stays consistent across long runs. Control and integration such as DMX plus AutoScan square-wave drive (up to 1000 Hz) target flicker-managed high-speed capture, motion-control passes and multi-camera TV setups. With IP23 weather resistance, the set fits exterior key/fill in light rain, sea spray and set atmospherics; follow ARRI’s stated safe distances of 10 m to the illuminated surface and 2 m around the luminaire.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

M-Series M90 with MAX Technology “Punches above its weight!”

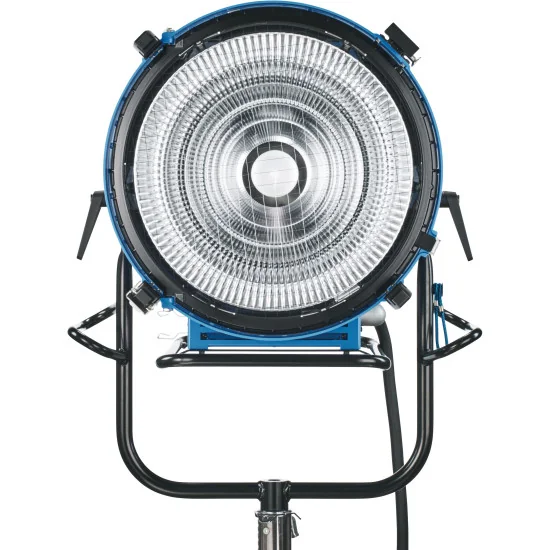

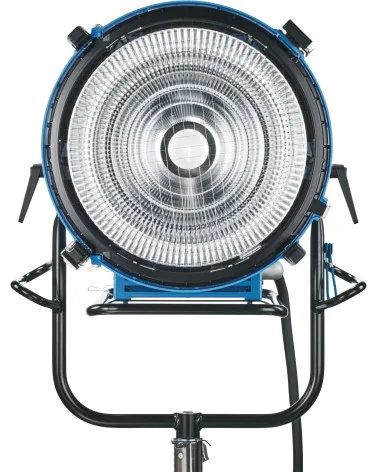

Like all M-Series lampheads, the M90 is equipped with MAX Technology, a unique, patented reflector technology that unifies the advantages of Fresnel and PAR fixtures. The unit is open-face and thus very bright; in fact the light output produced with a 9,000 W lamp comes close to the output of a 12 kW PAR fixture with lens. The unit is focusable from 15° up to 49° just by turning the focus knob, producing a remarkably even light field and a crisp, clear shadow. The elimination of spread lenses speeds up the workflow on set.

The M90 closes the gap between M40 and ARRIMAX 18/12. Furthermore, the MAX Technology reflector functions perfectly with 6,000 W and 9,000 W lamps assignable to their similar size.

Due to the superior housing and the state-of-the-art Cross-Cooling concept the M90 has a very compact design close to the dimensions of the ARRISUN 60. Together with the innovative electronic high speed ballast, EB MAX 6/9, this combination represents the state-of-the-art daylight system for high quality images at high frame rates. Both, ballast and M90 are equipped with a CCL module (Compensation of Cable Losses) enabling full power, which is maintained all the way to the lamp, even using very long cables. This ensures uniformly high light output independent from cable length.

The system of M90 lamphead and EB MAX 6/9 is highly efficient. When it comes to the dimensions it is comparable to a 6 kW PAR system, whereas the light output comes close to a traditional 12 kW PAR (with lens) - it punches above its weight! For outdoor use, the M90’s IP23 protection rating allows the lamphead to withstand rough wheater conditions, even driving rain.

Main Features
- Light output matches a 12 kW PAR (with lens)
- As small and lightweight as a 6 kW PAR
- Can also be used with 6,000 W (120 V nominal) lamps and ballasts
- Tilt locks on both sides for the use with heavy accessories
- Easy maintenance
- Weather resistant IP23
- Suitable for high frame rate images

PACKAGES: L0.0019658 M-Series M90 EB MAX Set - Int. (VEAM)

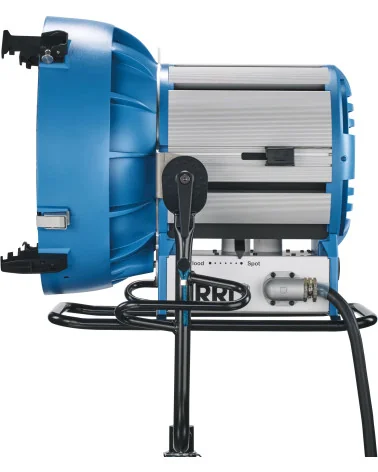

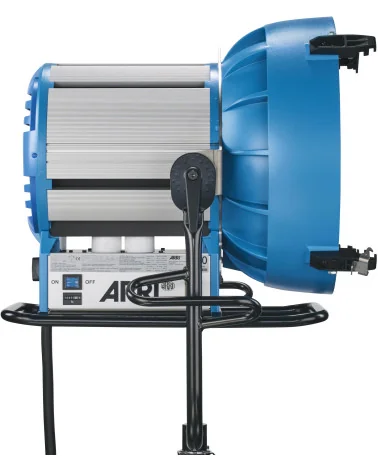

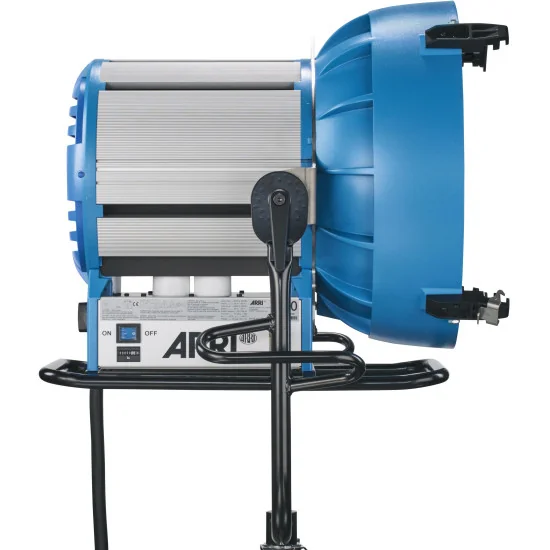

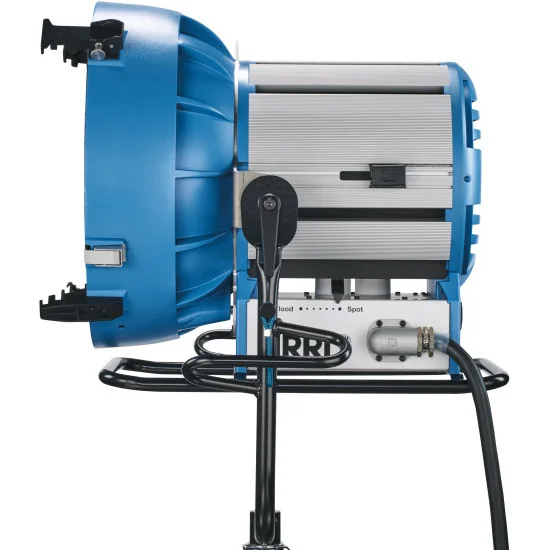

1x L1.37489.B M90, blue/silver

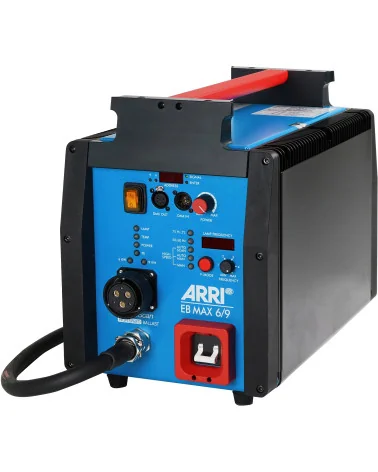

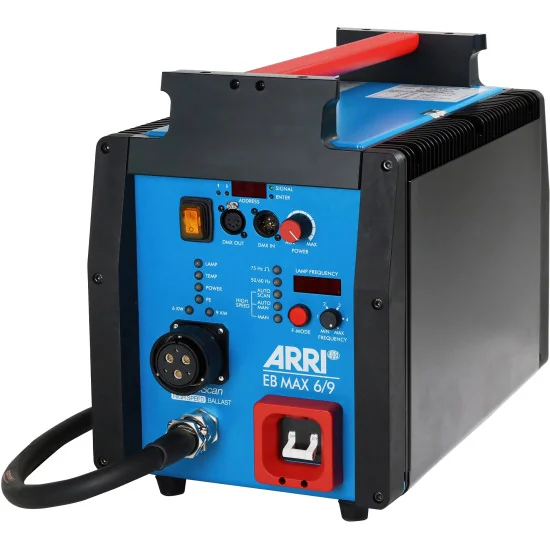

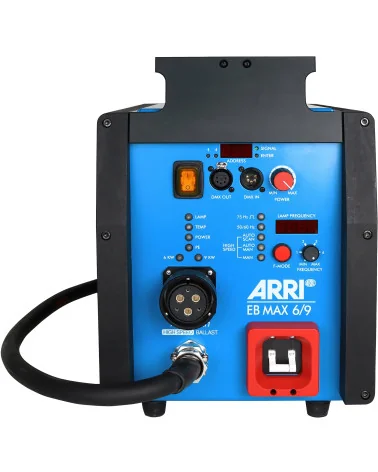

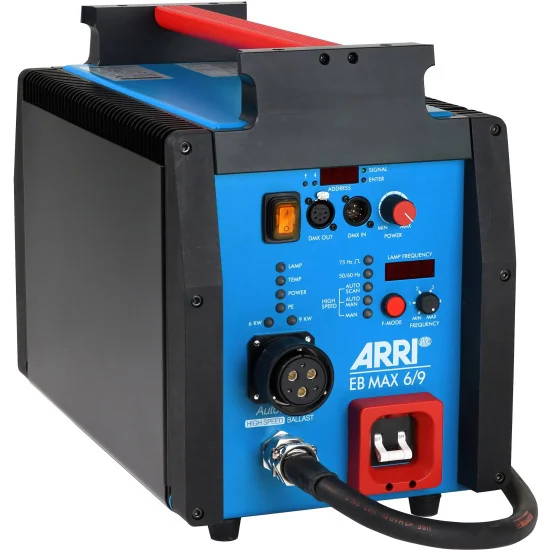

1x L2.0016747 EB MAX 6/9 with ALF, CCL, DMX, AutoScan
1x L2.37560.0 4-leaf barndoor (584 mm / 23.0")
1x L2.37561.0 Spill Ring (571 mm / 22.5")
1x L2.77940.A Head-to-Ballast cable 6000/9000 W, 15 m

Technical Specifications

M-Series ARRIMAX
Ident-No.: L1.37489.B
EB MAX Set*: L0.0019658
Basic Set*: L0.0019659
*Set including lamphead, ballast, cable, barndoor

Main Features
Type of Lamphead: Open Face
Reflector: MAX Technology Facetted Reflector
Wattage: 6,000 / 9,000 W
Lamp Base: GX38
Lamp Type: Metal Halide 9,000 W, Metal Halide 6,000 W
UV Protection Glass Diameter: 500 mm / 19.7"

Technical Data of the Luminaire
Max. Operating Temperature: ta= 40°C / 104°F
Max. Surface Temperature: tc= max. 200°C / 392°F
Tolerable Inclination: max. 90° upwards / max. 90° downwards
Safe Distances: 10 m / 32.8 ft. to illuminated surface, 2 m / 6.6 ft. around the luminaire
Protective Class: I - Protective Earth
Protective Rate: IP23

Specifications
Dimensions (incl. flange) (H x W x L): 832 x 713 x 720 mm / 32.8 x 28.1 x 28.3"
Packed Size (H x W x L): 930 x 790 x 910 mm / 36.6 x 31.1 x 35.8"
Weight: approx. approx. 40 kg (87.09 lbs)
Packed Weight: approx. approx. 47 kg (101.64 lbs)
Accessories Diameter: 584 mm (23.0") / 571 mm (22.5")
Mounting: Spigot 28 mm / 1 1/8" (1.1")
Certification: CE, UKCA, CB, ENEC, cNRTLus

Photometric Data with 9,000 W Lamp
Distance: 10 m (33 ft.) [Output / Diameter]
Spot 15°: 51,000 lux (4,738 fc) / Ø 2.7 m ( 8.7 ft.)
Medium 30°: 14,450 lux (1,342 fc) / Ø 5.2 m (17.1 ft.)
Flood 49°: 7,590 lux ( 705 fc) / Ø 8.3 m (27.2 ft.)
Distance: 20 m (66 ft.) [Output / Diameter]
Spot 15°: 12,750 lux (1,185 fc) / Ø 5.2 m (17.1 ft.)
Medium 30°: 3,610 lux ( 335 fc) / Ø 10.4 m (34.0 ft.)
Flood 49°: 1,900 lux ( 705 fc) / Ø 8.3 m (27.2 ft.)
Distance: 30 m (99 ft.) [Output / Diameter]
Spot 15°: 5,670 lux ( 527 fc) / Ø 7.9 m (25.9 ft.)
Medium 30°: 1,600 lux ( 149 fc) / Ø 15.5 m (50.9 ft.)
Flood 49°: 840 lux ( 78 fc) / 24.9 m (81.7 ft.)
