ARRI SkyPanel X21 Black inkl. Dome LED Panel

ARRI SkyPanel X21 Black inkl. Dome LED Panel

Name: ARRI SkyPanel X21 Black inkl. Dome LED Panel
Brand: ARRI
SKU: L1.0048488
Price: 5290.00 EUR
Availability: InStock

MPN: L1.0048488

Price: €5,290.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

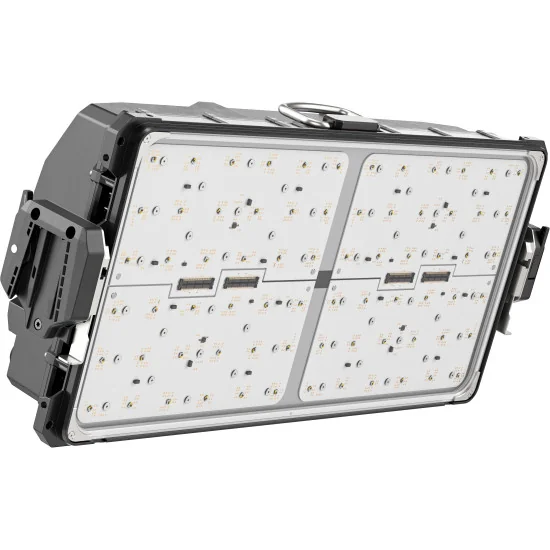

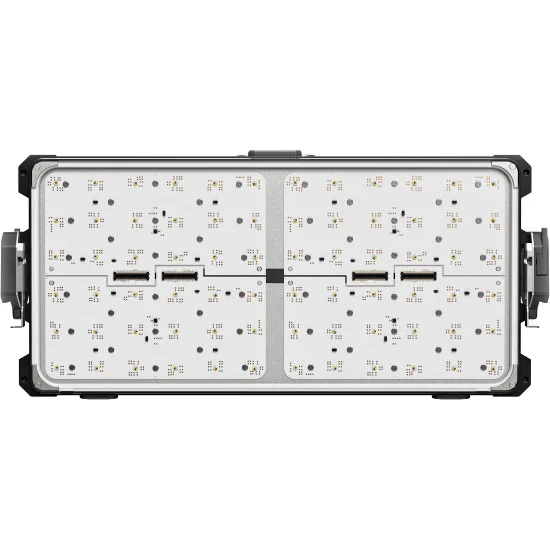

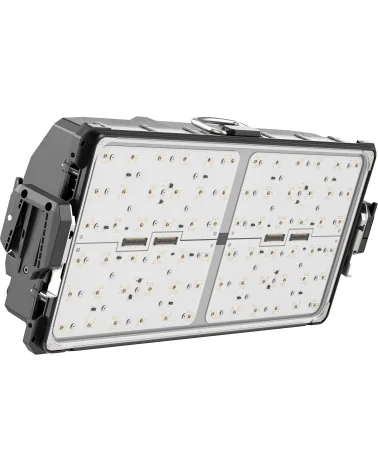

The ARRI SkyPanel X21 Black with X21 Dome is a high-output 2x1 RGBACL LED panel for film, television, live streaming and virtual production stages. An 800 W, six-primary color engine combines native soft, native hard and open-face operation in one fixture, so the same unit can act as a punchy long-throw source, a large studio softlight or a powerful bounce light on narrative sets, broadcast stages and event rigs exposed to the elements.

With up to 4,800 lux at 10 m in native hard mode and a maximum of 51,809 lumens open-face, the SkyPanel X21 delivers HMI-class intensity with LED efficiency for medium and long throws. A dynamic 1,500–20,000 K CCT range plus full-spectrum RGBACL mixing supports precise spectral shaping, while high-quality rendering (up to CRI 99, TLCI 93) keeps skin tones and product colors stable across cameras. Multiple color modes – CCT, HSI, RGBACL, XY, gel and source matching – cover broadcast key light, drama work, greenscreen, corporate studios and LED volume environments where tight color control is mandatory.

The X21 runs ARRI LiOS3 firmware with dedicated ARRI ALEXA modes for matching ALEV sensor responses, and offers eight addressable pixel zones for mapped effects and subtle gradients across the panel. Integrated wired and wireless control includes DMX-512A/RDM, Art-Net 4, sACN, dual Ethernet ports, USB-C, plus on-board CRMX / W-DMX, Bluetooth 5.0 and BLE for app control via ARRI LiCo. Preconfigured pixel macros and effects simplify lightning, fire, TV, police and concert looks for live shows and fast-turnaround studio workflows, while the integrated PSU supports AC daisy-chaining of multi-fixture grids.

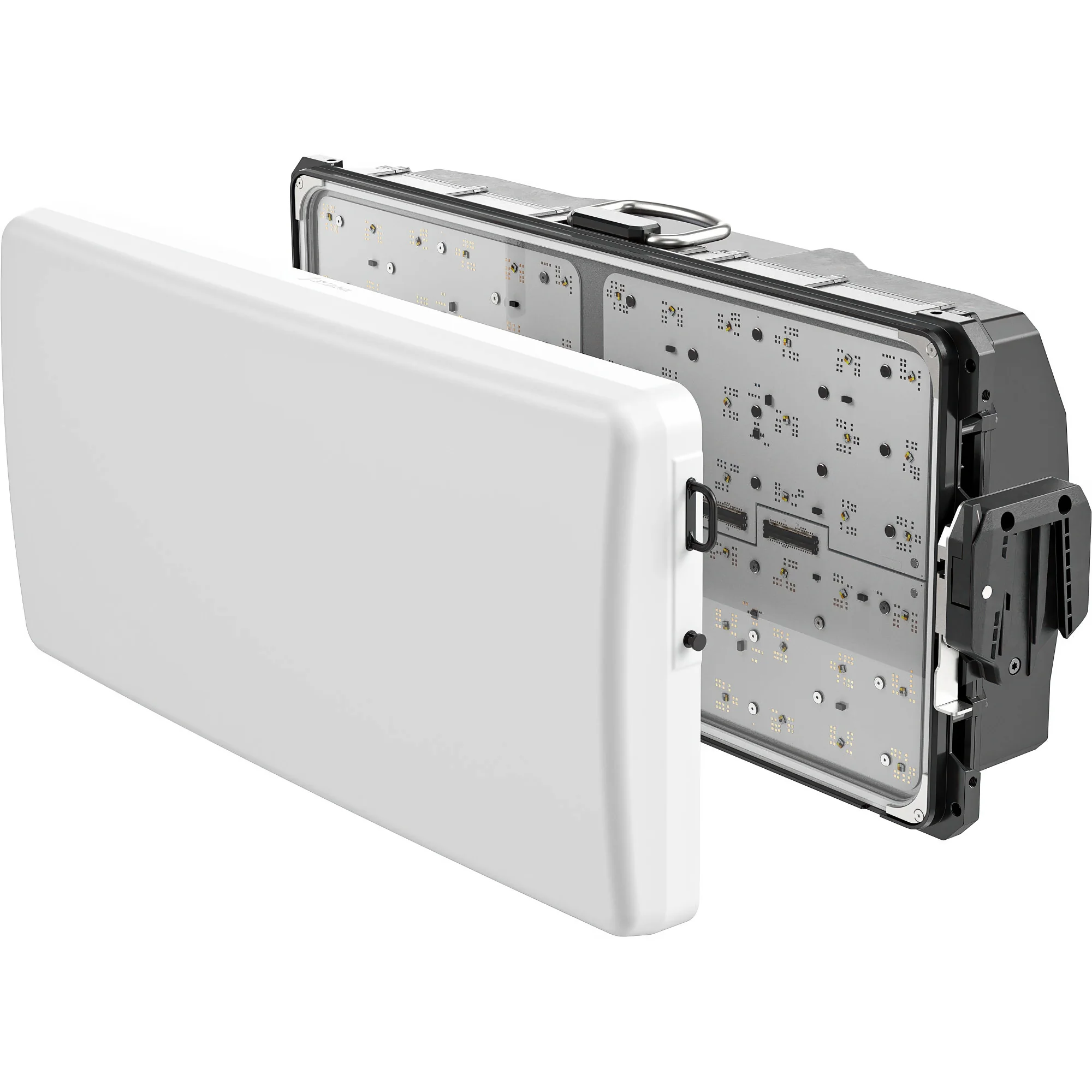

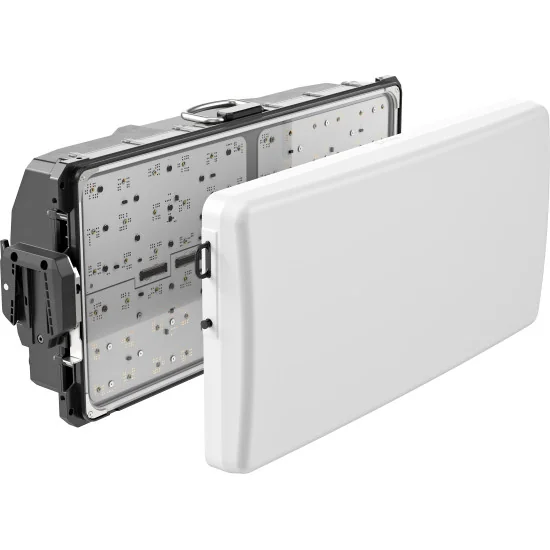

A robust IP66 housing enables operation in heavy rain, dust, high humidity and high-pressure jet cleaning, which makes the SkyPanel X21 Black suitable for outdoor OB vans, sports coverage, concert touring and permanent installations. The fixture accepts ARRI manual or pole-operated yokes and twin quick-lock brackets for building X22 and X23 arrays, and it remains compatible with many SkyPanel S60 front accessories via adapter, so existing softboxes and grids can stay in service. The included X21 Dome transforms the unit into a large, even soft source for key, fill or overhead studio lighting, backed by a 3-year ARRI warranty for continuous professional use.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Available in three size configurations (X21, X22, and X23), the modular SkyPanel X offers native soft and native hard light technology, setting a new bar not only in terms of dimming and color science, but also in output and beam quality for medium to long throws. With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per unit; dynamic CCT range of 1,500 K – 20,000 K; six-color full-spectrum color engine; wireless control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X is an all-weather lighting solution tailored to established workflows.

Main Features
- LED panel with native soft and native hard light, open-face lighting for bouncing purposes, and several modular configurations
- IP66 all-weather professional lighting solution
- Excelling in color rendition, dimming, and beam quality
- Dynamic CCT range of 1,500 K - 20,000 K
- RGBACL full-spectrum color engine
- Up to 24 pixels (8 for X21, 16 for X22, 24 for X23)
- Integrated PSU and built-in wireless control

PACKAGES: L1.0048488 ARRI X21
1x L1.0048488 SkyPanel X 21 Black, incl. X21 Dome

Technical data
Power: 800 W
Format size: 2:1 (horizontal)
Light engines: 4
Pixel zones: 8 max.

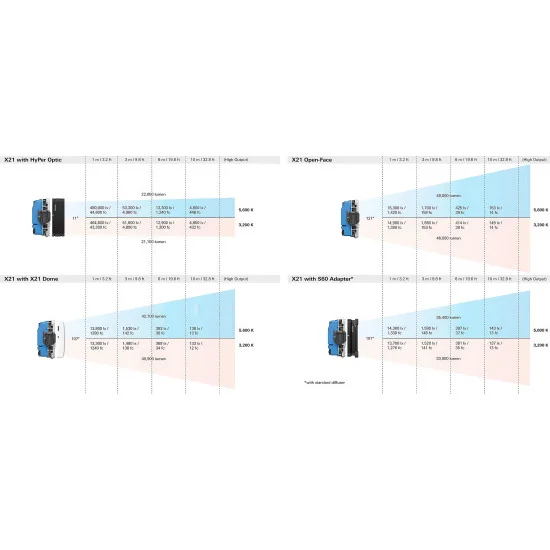

Max. output (lux): 4,800 Lux @ 10 m, 5,600 K (native hard)
Max. output (lumen): 51,809 Lumen (native open-face)
Included items: 1x X21 Dome

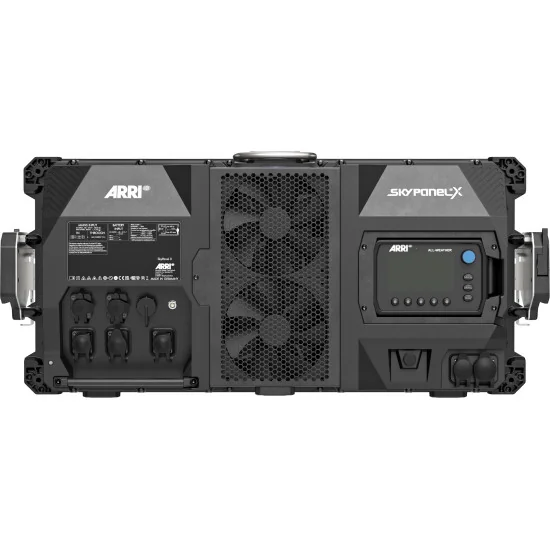

Connectors:
- 2x AC (In and Through), max. 20 A, TRUE1 TOP
- 1x DC (In) 48 V for battery use
- 2x DMX (In and Out), XLR-5pin
- 2x LAN / Ethernet, RJ45, EtherCON compatible
- 1x USB type C
- 1x LEMO for ALL-WEATHER Control Panel
Rigging System:
- Manual Yoke, bent, Quick-Release, 28 mm spigot
- P.O. Yoke, Quick-Release, 28 mm spigot
- Twin Quick-Lock bracket for multi-unit setups
Dimensions:
Fixture only: 738 x 339 x 154 mm / 29.1 x 13.3 x 6.1 in
with MAN yoke: 875 x 588 x 170 mm / 34.4 x 23.2 x 6.7 in
with P.O. yoke: 842 x 622 x 155 mm / 33.2 x 24.5 x 6.1 in
Weight:
Fixture only: approx. 15 kg / 33 lbs
with MAN yoke: approx. 18 kg / 39.7 lbs
with P.O. yoke: approx. 18,5 kg / 40.8 lbs
AC voltage: 100 - 240 V~, 50/60Hz
PSU: Integrated
LED engine: Full Spectrum, 6-color RGBACL LED
Native quality: Hard (HyPer Optic), soft (X21 Dome or S60 Adapter), open-face
CCT range: 1,500 K - 20,000 K
CRI: 90 min. / 99 max. (High CRI VariFan mode)
TLCI: 93 typical (High CRI VariFan mode)
Camera sensor matching: Yes, via ARRI ALEXA Mode
Dimming performance: Flicker free, High-res low end dimming
Native beam angle: 11º (hard), 107° (soft), 121º (open-face)
Diffuser options: X21 Dome, Beam Enhancer filter, S60-C diffusers
Accessory compatibility: All SkyPanel S60-C front accessories via S60 Adapter
Type of display: Removable ALL-WEATHER Control Panel with LiOS3
Operational modes: Standard (low noise), High Output, High CRI VariFan, ARRI ALEXA
Color modes: CCT, HSI, RGBW, RGBACL, Effects, XY, Gel, Source Matching
DMX presets: Yes, via ALL-WEATHER Control Panel, RDM and DMX-512A
Legacy DMX modes: Compatible with S60-C mode 1 and 6
Multi-array setup: Yes (up to 3 units in just one single DMX profile)
IP-rating: IP66 (High-pressure jet cleaning, rain, heavy storms, high humidity)
Cooling system: Passive + Active cooling system with double heat sink
Integrated wired control: DMX-512A, RDM, Art-Net 4, sACN LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP)
Integrated wireless control: CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, Native Bluetooth 5.0
Daisy-chain modularity: Yes, via TRUE1 TOP (power) and EtherCON / RJ45 (data)
Pre-programmed effects: 15 Pixel Macros, 15 effects
Warranty: 3 years
Ambient temperature: -20°C to +40ºC / -4°F to +104°F (during operation)
Certifications: CE, UKCA, CB, ENEC, cNRTLus, FCC, ICES, KC, TRA, ETA, ENACOM, RCM, R-NZ, NBRC, NTC, IFT, PSE
