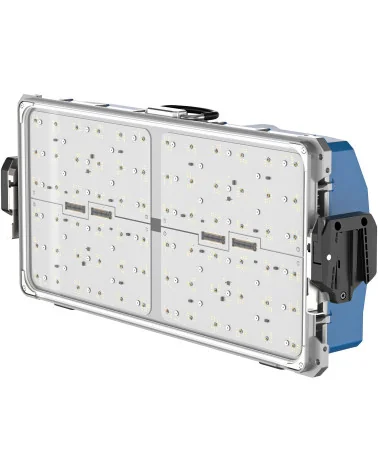

ARRI SkyPanel X21 Soft & Hard Light Package (Schuko) LED Panel

ARRI SkyPanel X21 Soft & Hard Light Package (Schuko) LED Panel

Name: ARRI SkyPanel X21 Soft & Hard Light Package (Schuko) LED Panel
Brand: ARRI
SKU: L0.0049589
Price: 6400.00 EUR
Availability: InStock

MPN: L0.0049589

Price: €6,400.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

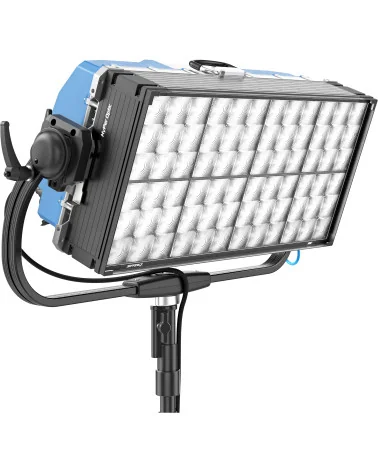

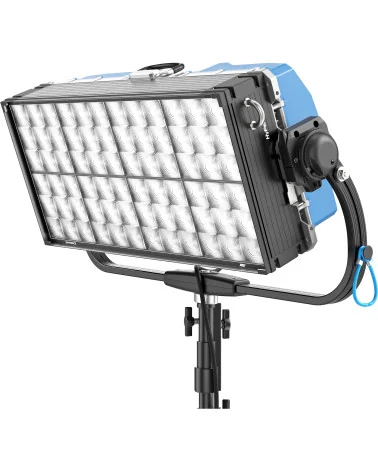

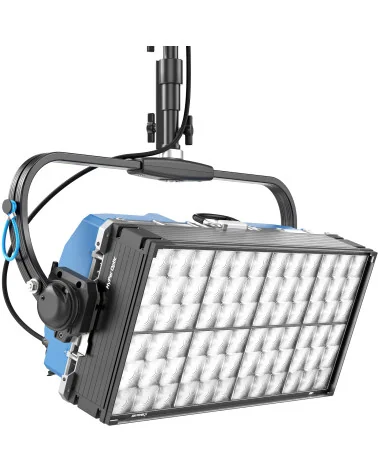

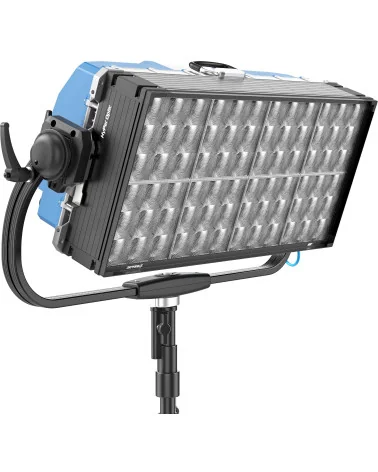

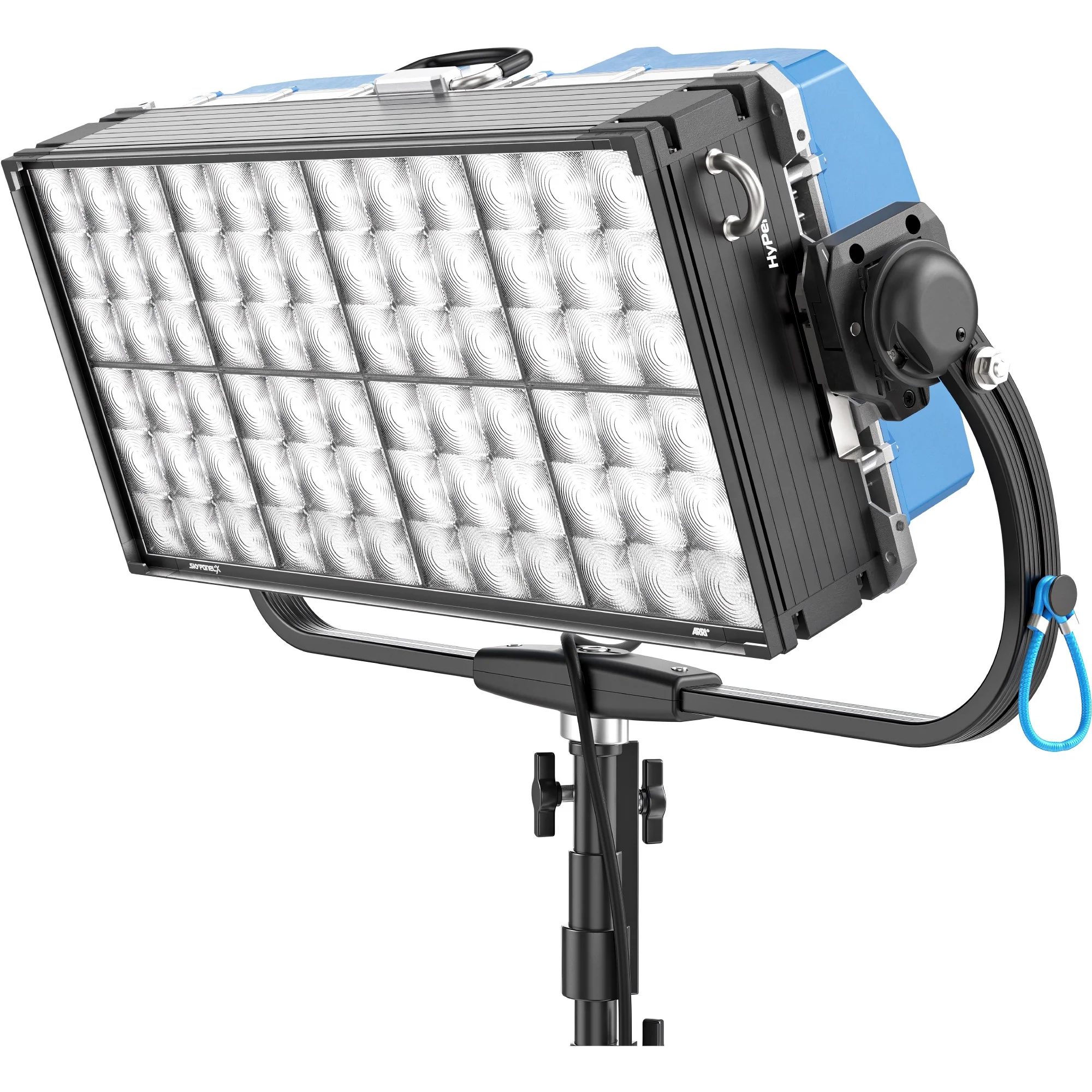

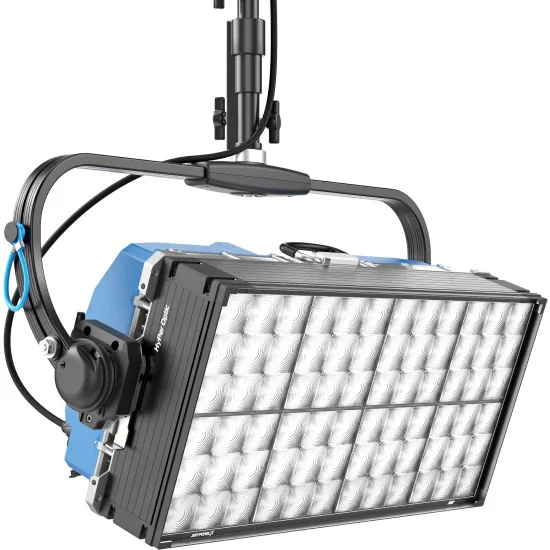

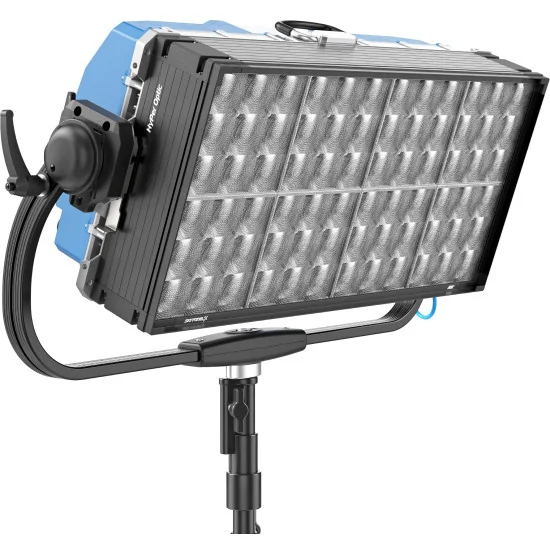

ARRI SkyPanel X21 Soft & Hard Light Package (Schuko) is a single-lamphead set that moves between native soft light with the Dome, native hard light with HyPer Optics, and lumen-optimized open-face bounce without changing fixtures. The full-spectrum RGBACL engine spans 1,500–20,000 K, supports ARRI ALEXA Mode sensor matching, and can reach up to CRI 99 with typical TLCI 93 in High CRI VariFan mode. With IP66 sealing across the fixture and control interface, it remains viable for exterior rigs, rain cover work and high-humidity stages.

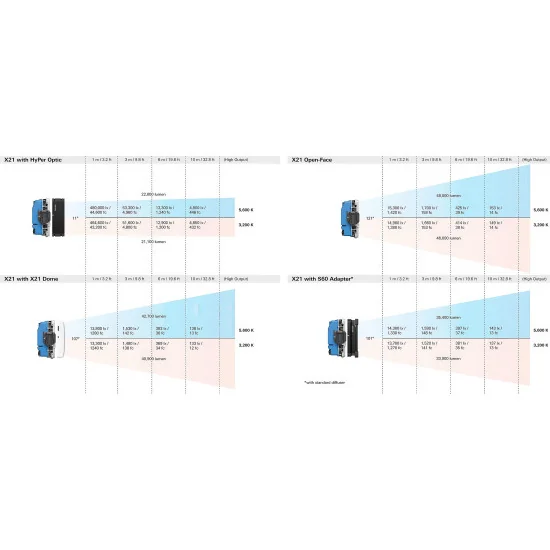

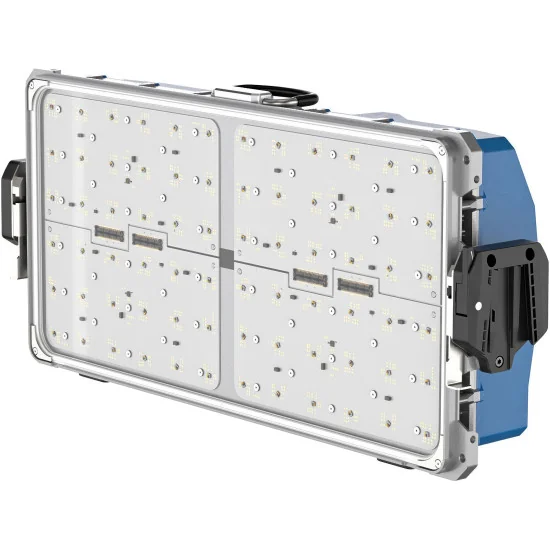

Electrical and optical performance targets medium-to-long throws: maximum draw is 800 W with 4 light engines and up to 8 sealed pixel zones for zoned cues and mapped patterns. In native hard configuration the output reaches 4,800 lx at 10 m (5,600 K); in native open-face mode it delivers up to 51,809 lm for bounce into ultrabounce, muslin or ceilings. Beam geometry stays consistent across the three native states: approx. 11° (hard), 107° (soft) and 121° (open-face).

For control and networking, the X21 supports DMX-512A with RDM, plus Ethernet Art-Net 4 and sACN, including web control, ALSM and discovery via mDNS/Bonjour, with timing via PTP/NTP. Wireless options include CRMX (Classic/CRMX2), W-DMX, BLE and Bluetooth 5.0. Dimming is flicker-free with high-resolution low-end control, and the pixel toolset provides 15 Pixel Macros plus 15 effects for repeatable broadcast cues.

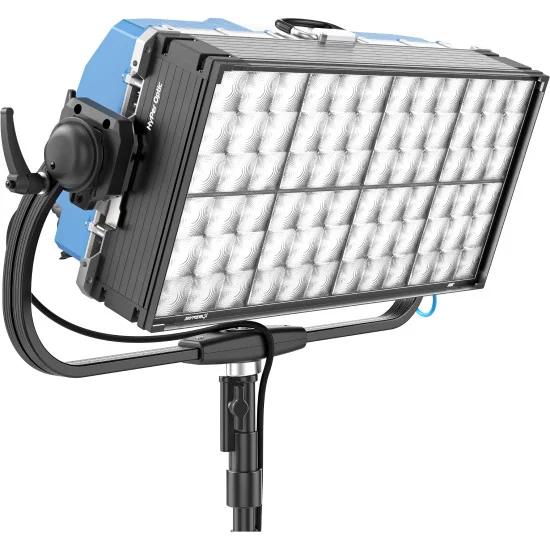

The package ships as a ready-to-rig kit: SkyPanel X with X21 Dome, HyPer Optic, the removable ALL-WEATHER Control Panel (LiOS3), an X21 Manual Yoke with 28 mm spigot, and a 3 m Schuko mains lead using powerCON TRUE1 TOP. TRUE1 TOP in/through and EtherCON-compatible RJ45 simplify daisy-chaining, while a 48 V DC input supports battery workflows. An optional S60 adapter also enables SkyPanel S60-C front accessories for tighter shaping, grids and diffusion, making the X21 a practical key, window-throw backlight or fast bounce source on TV and film sets.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Available in three size configurations (X21, X22, and X23), the modular SkyPanel X offers native soft and native hard light technology, setting a new bar not only in terms of dimming and color science, but also in output and beam quality for medium to long throws. With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per unit; dynamic CCT range of 1,500 K – 20,000 K; six-color full-spectrum color engine; wireless control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X is an all-weather lighting solution tailored to established workflows.

Main Features
- LED panel with native soft and native hard light, open-face lighting for bouncing purposes, and several modular configurations
- IP66 all-weather professional lighting solution
- Excelling in color rendition, dimming, and beam quality
- Dynamic CCT range of 1,500 K - 20,000 K
- RGBACL full-spectrum color engine
- Up to 24 pixels (8 for X21, 16 for X22, 24 for X23)
- Integrated PSU and built-in wireless control

PACKAGES: L0.0049589 X21 Soft & Hard Light Package (Schuko)

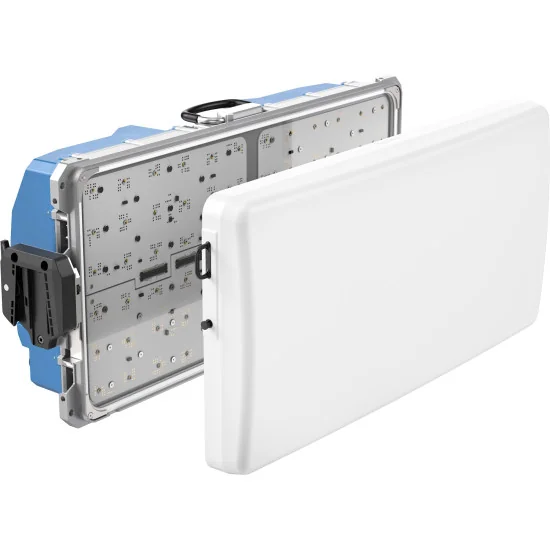

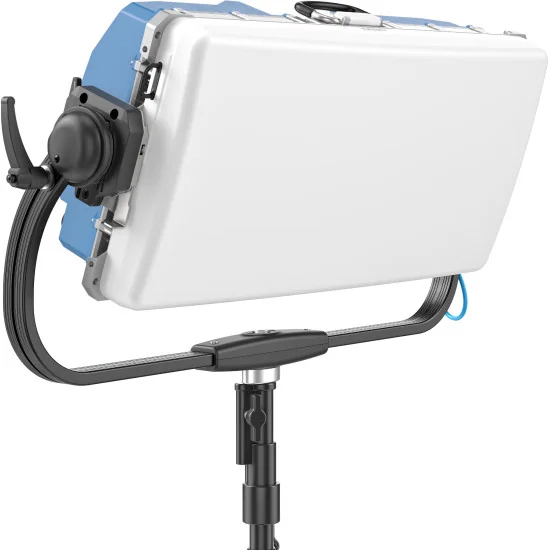

1x L1.0048487 SkyPanel X, incl. X21 Dome
1x L2.0048580 X21 HyPer Optic
1x L2.0048844 ALL-WEATHER Control Panel
1x L2.0048577 X21 Manual Yoke incl. Spigot
1x L2.0007516 Mains cable, 3 m, powerCON TRUE1 TOP Schuko (16 A)

Technical data
Power: 800 W
Format size: 2:1 (horizontal)
Light engines: 4
Pixel zones: 8 max.
Max. output (lux): 4,800 Lux @ 10 m, 5,600 K (native hard)
Max. output (lumen): 51,809 Lumen (native open-face)
Included items: 1x X21 Dome

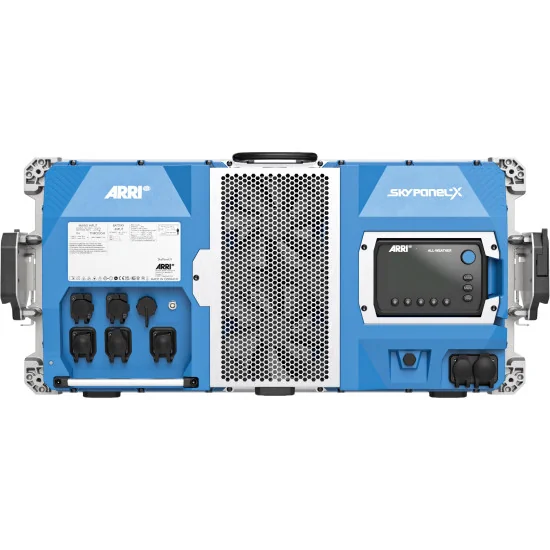

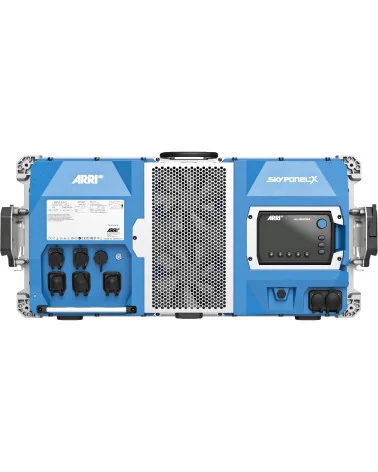

Connectors:
- 2x AC (In and Through), max. 20 A, TRUE1 TOP
- 1x DC (In) 48 V for battery use
- 2x DMX (In and Out), XLR-5pin
- 2x LAN / Ethernet, RJ45, EtherCON compatible
- 1x USB type C
- 1x LEMO for ALL-WEATHER Control Panel
Rigging System:
- Manual Yoke, bent, Quick-Release, 28 mm spigot
- P.O. Yoke, Quick-Release, 28 mm spigot
- Twin Quick-Lock bracket for multi-unit setups
Dimensions:
Fixture only: 738 x 339 x 154 mm / 29.1 x 13.3 x 6.1 in
with MAN yoke: 875 x 588 x 170 mm / 34.4 x 23.2 x 6.7 in
with P.O. yoke: 842 x 622 x 155 mm / 33.2 x 24.5 x 6.1 in
Weight:
Fixture only: approx. 15 kg / 33 lbs
with MAN yoke: approx. 18 kg / 39.7 lbs
with P.O. yoke: approx. 18,5 kg / 40.8 lbs
AC voltage: 100 - 240 V~, 50/60Hz
PSU: Integrated
LED engine: Full Spectrum, 6-color RGBACL LED
Native quality: Hard (HyPer Optic), soft (X21 Dome or S60 Adapter), open-face
CCT range: 1,500 K - 20,000 K
CRI: 90 min. / 99 max. (High CRI VariFan mode)
TLCI: 93 typical (High CRI VariFan mode)
Camera sensor matching: Yes, via ARRI ALEXA Mode
Dimming performance: Flicker free, High-res low end dimming
Native beam angle: 11º (hard), 107° (soft), 121º (open-face)
Diffuser options: X21 Dome, Beam Enhancer filter, S60-C diffusers
Accessory compatibility: All SkyPanel S60-C front accessories via S60 Adapter
Type of display: Removable ALL-WEATHER Control Panel with LiOS3
Operational modes: Standard (low noise), High Output, High CRI VariFan, ARRI ALEXA
Color modes: CCT, HSI, RGBW, RGBACL, Effects, XY, Gel, Source Matching
DMX presets: Yes, via ALL-WEATHER Control Panel, RDM and DMX-512A
Legacy DMX modes: Compatible with S60-C mode 1 and 6
Multi-array setup: Yes (up to 3 units in just one single DMX profile)
IP-rating: IP66 (High-pressure jet cleaning, rain, heavy storms, high humidity)
Cooling system: Passive + Active cooling system with double heat sink
Integrated wired control: DMX-512A, RDM, Art-Net 4, sACN LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP)
Integrated wireless control: CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, Native Bluetooth 5.0
Daisy-chain modularity: Yes, via TRUE1 TOP (power) and EtherCON / RJ45 (data)
Pre-programmed effects: 15 Pixel Macros, 15 effects
Warranty: 3 years
Ambient temperature: -20°C to +40ºC / -4°F to +104°F (during operation)
Certifications: CE, UKCA, CB, ENEC, cNRTLus, FCC, ICES, KC, TRA, ETA, ENACOM, RCM, R-NZ, NBRC, NTC, IFT, PSE
