ARRI SkyPanel X21 Soft Light Package (Schuko) LED Panel

ARRI SkyPanel X21 Soft Light Package (Schuko) LED Panel

Name: ARRI SkyPanel X21 Soft Light Package (Schuko) LED Panel
Brand: ARRI
SKU: L0.0049592
Price: 5790.00 EUR
Availability: InStock

MPN: L0.0049592

Price: €5,790.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

ARRI SkyPanel X21 Soft Light Package (Schuko) is a single-unit kit for crews needing an all-weather 2:1 LED panel that delivers broad, controllable soft output for studio and location work. The full-spectrum RGBACL engine spans 1,500–20,000 K and adds camera-sensor matching via ARRI ALEXA Mode, keeping skin tones stable when mixing daylight, tungsten practicals and LED volumes. An IP66 rating supports work in rain and high humidity.

Maximum draw is 800 W from the integrated PSU, driving 4 light engines and up to 8 pixel zones for mapped looks and zoned cues. The included X21 Dome provides native soft coverage of approx. 107° for wraparound keys and large diffusion frames. Remove front optics for native open-face (approx. 121°) and up to 51,809 lm for bounce into ultrabounce, muslin or ceilings. Dimming is flicker-free with high-resolution low-end control; High CRI VariFan reaches up to CRI 99 with TLCI 93 typical.

Control and networking align with professional infrastructures: DMX-512A/RDM, Ethernet Art-Net 4 and sACN, with PTP/NTP timing support for repeatable cueing. Wireless is built in via CRMX (Classic/CRMX2), W-DMX, BLE and Bluetooth 5.0. The removable ALL-WEATHER Control Panel running LiOS3 provides fast access to CCT, HSI, gels, source matching and pixel tools, including 15 Pixel Macros and 15 effects.

The package ships ready for rigging with the lamphead including X21 Dome, a Manual Yoke with 28 mm spigot, the detachable control panel and a 3 m powerCON TRUE1 TOP Schuko mains lead. Dual TRUE1 TOP in/through, dual EtherCON-compatible RJ45 ports, USB-C and a 48 V DC input simplify power/data daisy-chains, network layouts and battery carts. Add an optional HyPer Optic for a tighter native hard beam; that configuration can reach up to 4,800 lx at 10 m at 5,600 K. Use the soft kit for interview key, talk-show toplight, green-screen fill and weather-ready exterior setups.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Available in three size configurations (X21, X22, and X23), the modular SkyPanel X offers native soft and native hard light technology, setting a new bar not only in terms of dimming and color science, but also in output and beam quality for medium to long throws. With up to 4,800 lux at 10 m / 32.8 ft and eight pixels per unit; dynamic CCT range of 1,500 K – 20,000 K; six-color full-spectrum color engine; wireless control; integrated power supply; advanced networking possibilities; and an IP66 rating, the SkyPanel X is an all-weather lighting solution tailored to established workflows.

Main Features
- LED panel with native soft and native hard light, open-face lighting for bouncing purposes, and several modular configurations
- IP66 all-weather professional lighting solution
- Excelling in color rendition, dimming, and beam quality
- Dynamic CCT range of 1,500 K - 20,000 K
- RGBACL full-spectrum color engine
- Up to 24 pixels (8 for X21, 16 for X22, 24 for X23)
- Integrated PSU and built-in wireless control

PACKAGES: L0.0049592 X21 Soft Light Package (Schuko)
1x L1.0048487 SkyPanel X, incl. X21 Dome
1x L2.0048844 ALL-WEATHER Control Panel
1x L2.0048577 X21 Manual Yoke incl. Spigot
1x L2.0007516 Mains cable, 3 m, powerCON TRUE1 TOP Schuko (16 A)

Technical data
Power: 800 W
Format size: 2:1 (horizontal)

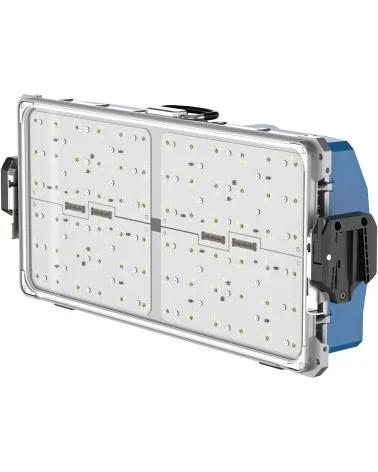

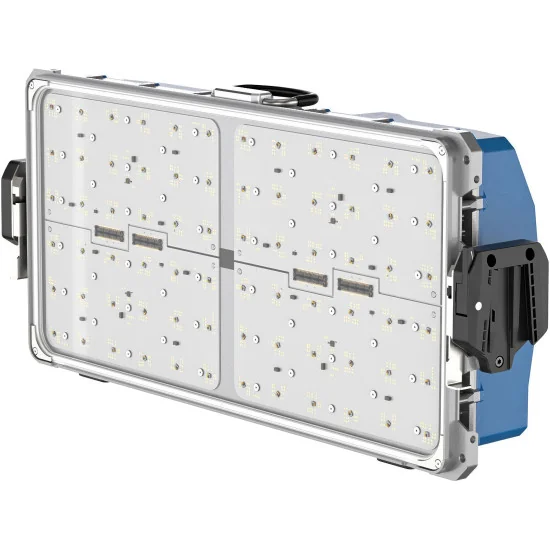

Light engines: 4
Pixel zones: 8 max.
Max. output (lux): 4,800 Lux @ 10 m, 5,600 K (native hard)
Max. output (lumen): 51,809 Lumen (native open-face)

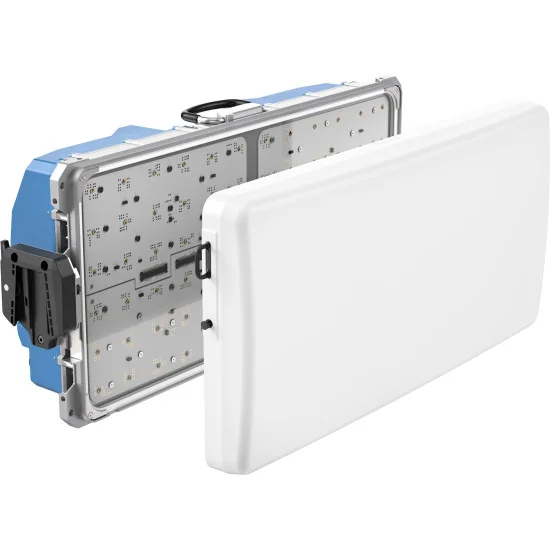

Included items: 1x X21 Dome

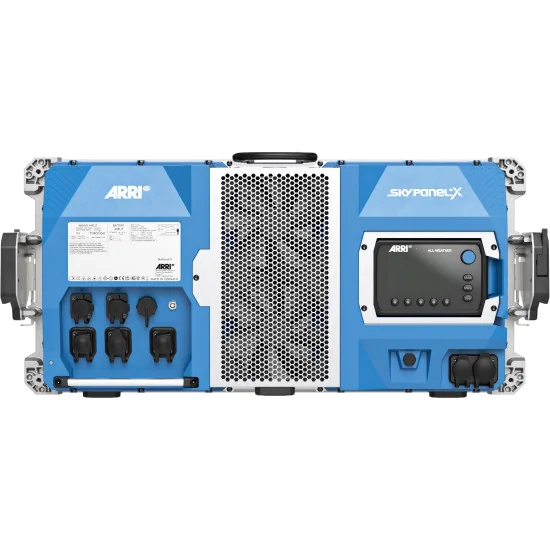

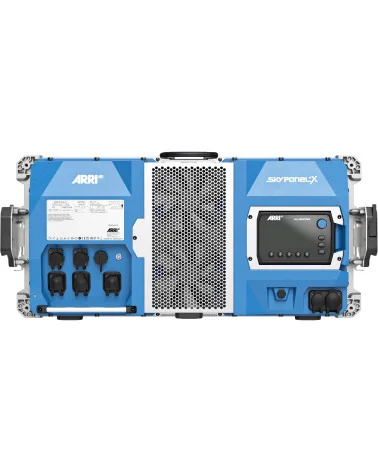

Connectors:
- 2x AC (In and Through), max. 20 A, TRUE1 TOP
- 1x DC (In) 48 V for battery use
- 2x DMX (In and Out), XLR-5pin
- 2x LAN / Ethernet, RJ45, EtherCON compatible
- 1x USB type C
- 1x LEMO for ALL-WEATHER Control Panel
Rigging System:

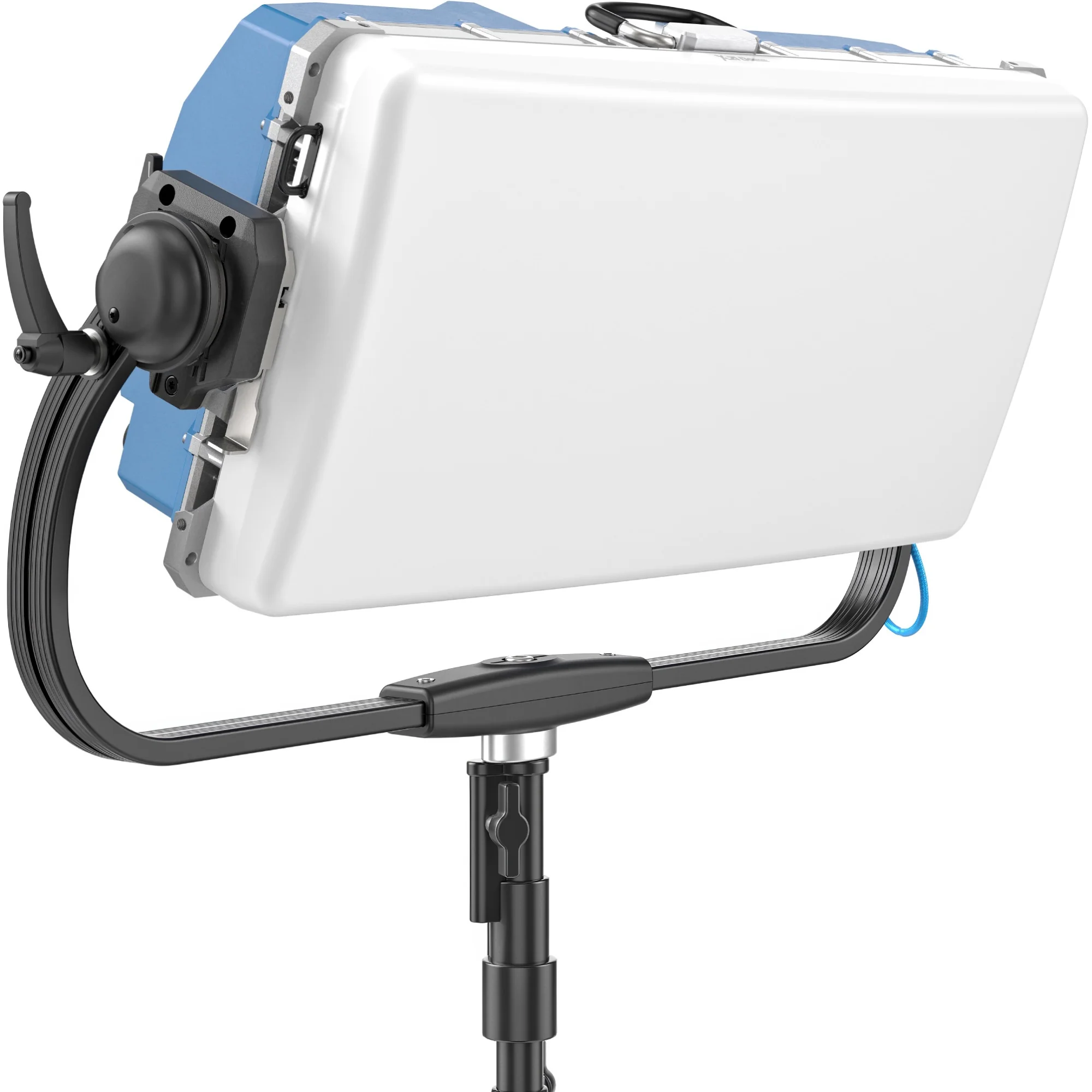

- Manual Yoke, bent, Quick-Release, 28 mm spigot
- P.O. Yoke, Quick-Release, 28 mm spigot
- Twin Quick-Lock bracket for multi-unit setups
Dimensions:
Fixture only: 738 x 339 x 154 mm / 29.1 x 13.3 x 6.1 in
with MAN yoke: 875 x 588 x 170 mm / 34.4 x 23.2 x 6.7 in
with P.O. yoke: 842 x 622 x 155 mm / 33.2 x 24.5 x 6.1 in
Weight:
Fixture only: approx. 15 kg / 33 lbs
with MAN yoke: approx. 18 kg / 39.7 lbs
with P.O. yoke: approx. 18,5 kg / 40.8 lbs
AC voltage: 100 - 240 V~, 50/60Hz
PSU: Integrated
LED engine: Full Spectrum, 6-color RGBACL LED
Native quality: Hard (HyPer Optic), soft (X21 Dome or S60 Adapter), open-face
CCT range: 1,500 K - 20,000 K
CRI: 90 min. / 99 max. (High CRI VariFan mode)
TLCI: 93 typical (High CRI VariFan mode)
Camera sensor matching: Yes, via ARRI ALEXA Mode
Dimming performance: Flicker free, High-res low end dimming

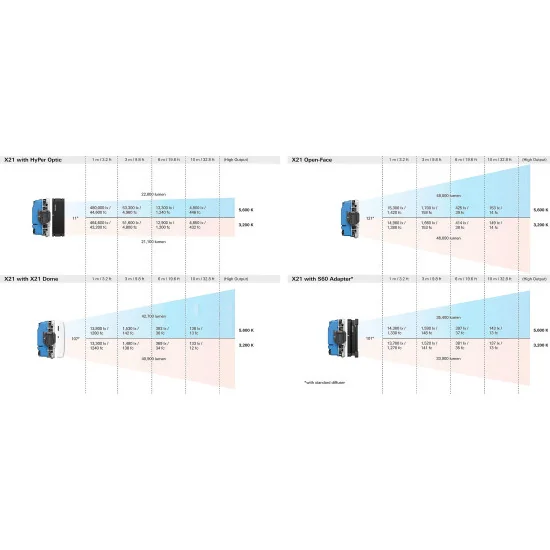

Native beam angle: 11º (hard), 107° (soft), 121º (open-face)
Diffuser options: X21 Dome, Beam Enhancer filter, S60-C diffusers
Accessory compatibility: All SkyPanel S60-C front accessories via S60 Adapter

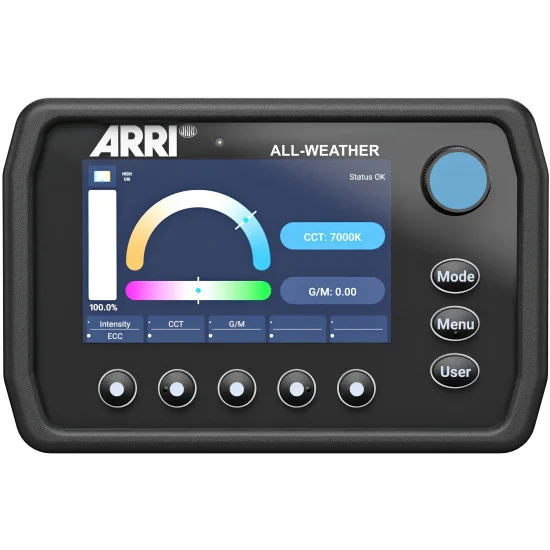

Type of display: Removable ALL-WEATHER Control Panel with LiOS3
Operational modes: Standard (low noise), High Output, High CRI VariFan, ARRI ALEXA
Color modes: CCT, HSI, RGBW, RGBACL, Effects, XY, Gel, Source Matching
DMX presets: Yes, via ALL-WEATHER Control Panel, RDM and DMX-512A
Legacy DMX modes: Compatible with S60-C mode 1 and 6
Multi-array setup: Yes (up to 3 units in just one single DMX profile)
IP-rating: IP66 (High-pressure jet cleaning, rain, heavy storms, high humidity)

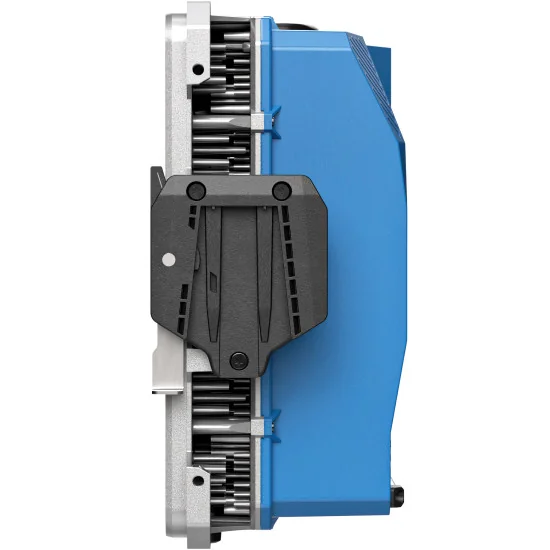

Cooling system: Passive + Active cooling system with double heat sink
Integrated wired control: DMX-512A, RDM, Art-Net 4, sACN LAN (Web-control, ALSM, mDNS Bonjour, PTP, NTP)
Integrated wireless control: CRMX Classic, CRMX2, W-DMX G3 / G4 / G4S / G5, BLE, Native Bluetooth 5.0
Daisy-chain modularity: Yes, via TRUE1 TOP (power) and EtherCON / RJ45 (data)
Pre-programmed effects: 15 Pixel Macros, 15 effects
Warranty: 3 years
Ambient temperature: -20°C to +40ºC / -4°F to +104°F (during operation)
Certifications: CE, UKCA, CB, ENEC, cNRTLus, FCC, ICES, KC, TRA, ETA, ENACOM, RCM, R-NZ, NBRC, NTC, IFT, PSE
