AVMATRIX DE21-4K PRO is a compact HDMI↔NDI codec for UHD routing at the edge of an IP studio. Select HDMI→NDI to place a camera, graphics PC or playback server onto the network, or switch to NDI→HDMI to feed a monitor, recorder or switcher input from any NDI source. Video passes up to 4096×2160 at 59.94/60p (UHD and DCI frame rates from 23.98 to 60). The single HDMI output acts as loop-through while encoding, or as the decoded output while decoding; operation is one direction at a time for deterministic routing.

When full-resolution contribution is required, the unit supports full-bandwidth NDI with YCbCr 4:2:2 8-bit sampling. Typical throughput reaches 250 Mb/s at 4K60 (around 125 Mb/s at 1080p60), which keeps fine detail and motion artifacts under control in IMAG and studio switching. Networking and power share the same RJ45 connection via PoE (802.3af/at) for one-cable deployment, and a USB-C 5–18 V input covers DC powering from adapters, battery plates or cart power distribution.

Audio routing solves common “last metre” issues in broadcast and streaming: pass HDMI embedded audio, or use the 3.5 mm line I/O for audio embedding/de-embedding when you need to inject an analog mixer feed, playback channel or intercom return, or extract audio from an NDI program for IFB or local monitoring. An on-device LCD status screen with Tally indicators provides fast confidence checks (source name, resolution, IP state, bitrate). Touch buttons plus a browser-based control page enable quick mode changes and remote configuration from a laptop on the same network.

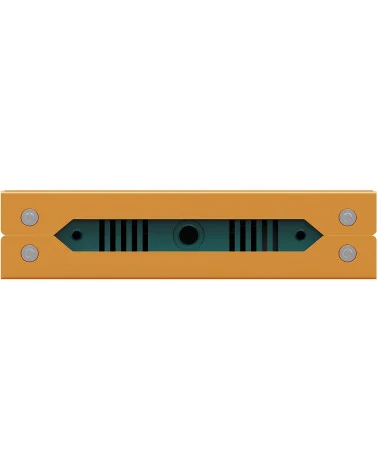

In practice, DE21-4K PRO fits camera rigs feeding TriCaster or vMix without capture cards, converts a 4K signage player into NDI for corporate events, or decodes an NDI multiview/scoreboard to HDMI for talent and engineering monitoring. PoE powering also suits ceiling or truss installs where a single cable matters, while the detachable bracket and standard 1/4"-20 thread keep mounting options flexible.

UE Shipping

We ship all over the European Union for €20, free shipping on orders over €1,000.

B2B Shop

Our offer is aimed only to B to B Customers, all prices are exclusive of tax.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

High Bidirectional Transfer - HDMI/ FULL NDI Bidirectional Conversion
Enables high-bandwidth two-way conversion between 4K HDMI and full NDI. It encodes 4Kp60 HDMI to full NDI or decodes 4K full NDI to HDMI. With HDMI in/out, it loops the encoded feed for monitoring or outputs the decoded video via HDMI.

Next-Level NDI Conversion - 4Kp60 with pro-grade 4:2:2 video
Featuring professional-grade Full NDI encoding technology, it supports encoding and decoding of video up to 4Kp60 resolution. Full YCCr 4:2:2 chroma-subsampled video streaming is supported, meeting the demands of high-end production.

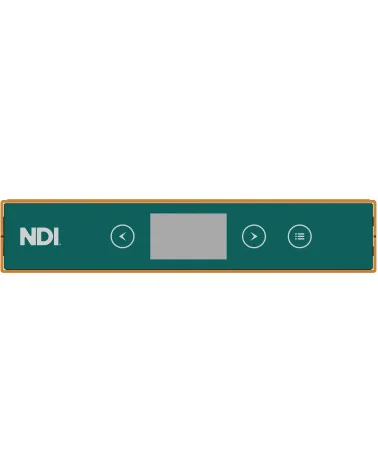

Intuitive Status Display - LCD Screen with Tally Indicator
Features a LCD display showing real-time tally lights, network status, bitrate and key parameters. The intuitive interface with buttons enables quick adjustments even in fast-paced production environments.

Dual Power Options - PoE & USB-C Power Supply
Support both Power over Ethemet (PoE) and traditional USB-C power supply. This dual capabilitly empowers users with fexibility andconvenience, allowing users to choose the most suitable power source based on their specific requirements.

Flexible Audio Mixing - Audio Embedding & De-embedding
Supports HDMI embedded audio and 3.5mm analog line input and output. Whether it's HDMI-embedded audio or external sources like professional mixers, or media players, our flexible configuration.

Touch-panel Control
Supports intuitive touch panel control, enabling users to easily navigate the settings menu, adjust parameters, and perform operations with just a simple tap.

Web Control
Featuring a clear and intuitive interface, the control software allows users to easily operate the device from a computer, configure encoding and decoding parameters, and fine-tune settings for a more efficient workflow.

Specifications

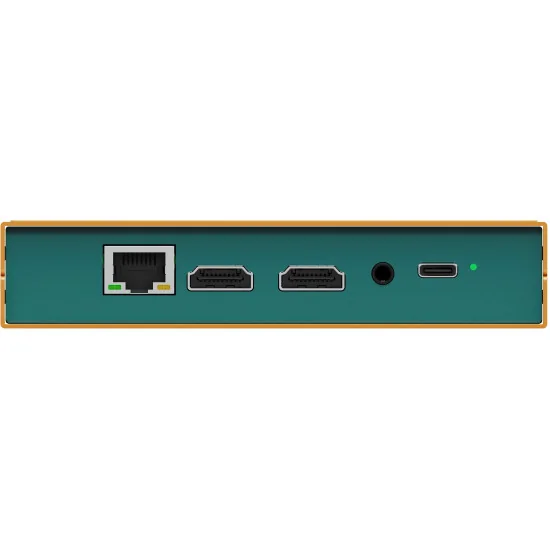

CONNECT
Video Interfaces: HDMI input ×1, HDMI output ×1
Audio Interfaces: 3.5mm Line in & Out x1
RJ45 Port: NDI/POE x1
Power Supply: DC 5-18V USB-C Power x1

FORMATS
HDMI Input Formats
(4K) 4096×2160p 60/59.94/50/30/29.97/25/24/23.98
(4K) 3840x2160p 60/59.94/50/30/29.97/25/24/23.98
(2K) 2560x1080 60/59.94/50/30/29.97/25/24/23.98
(3G) 1920x1080p 60/59.94/50
(HD)1920*1080p 30/29.97/25/24/23.98
(HD) 1920x1080i 60/59.94/50
(HD) 1280x720p 60/59.94/50/30/29.97/25/24/23.98
HDMI Output Formats
(4K)4960x2160p60/59.94/50/30/29.97/25/24/23.98
(4K)3840x2160p60/59.94/50/30/29.97/25/24/23.98
(2K)2560x1080 60/59.94/50/30/29.97/25/24/23.98
(3G)1920x1080p60/59.94/50
(HD) 1920*1080p 30/29.97/25/24/23.98
(HD)1920x1080i60/50
(HD)1280x720p60/50
NDI Codec: 1x NDI® encoding or 1x NDI® decoding
YCbCr 4:2:2 8bit NDI High Bandwidth HD encoding
Typical bitrate: 250Mbps@4K60, 125Mbps@1080p60

OTHER
Power: Power Wide Voltage: 5-18V; Power: 5W (12V 0.4A)
Consumption: 5W +10%
Dimension (LWD): 104x125.5×24.5mm
Weight: Net Weight: 501g, Gross Weight: 750g
Temperature: Operating: -20-60°C, Storage: -30°C~70°C
Warranty: 3 years
