Roland VC-1-HS is a professional HDMI to SDI converter built for workflows that demand exact signal integrity. It accepts an HDMI source and generates two identical 3G-SDI outputs, maintaining colour fidelity and dynamic range. An on-board re-clocker stabilizes long SDI runs, while internal processing preserves 10-bit 4:2:2 characteristics without interlace artifacts. It handles frame rates up to 1080p60 in line with SMPTE 424M/425M, 292M, 274M and 296M, ensuring native timing across cameras, switchers and recorders.
Audio is managed. The VC-1-HS provides audio embedding and de-embedding with hybrid I/O: balanced analog on 6.3 mm TRS (L/R) and switchable AES/EBU digital on the right TRS. HDMI audio (up to eight channels at 24-bit/48 kHz) can be inserted into the SDI program (up to sixteen channels at 24-bit/48 kHz) or extracted to the analog/AES outputs for monitoring and external processing. A dedicated HDMI loop-through supports local monitoring or routing to multiviewers without affecting the SDI feed.

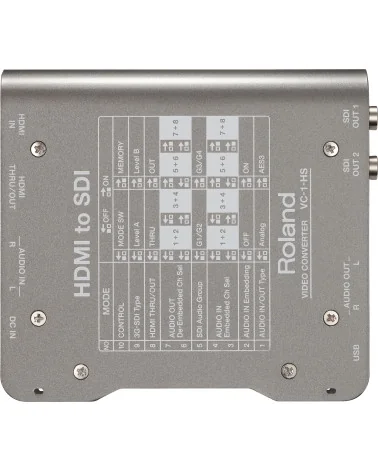

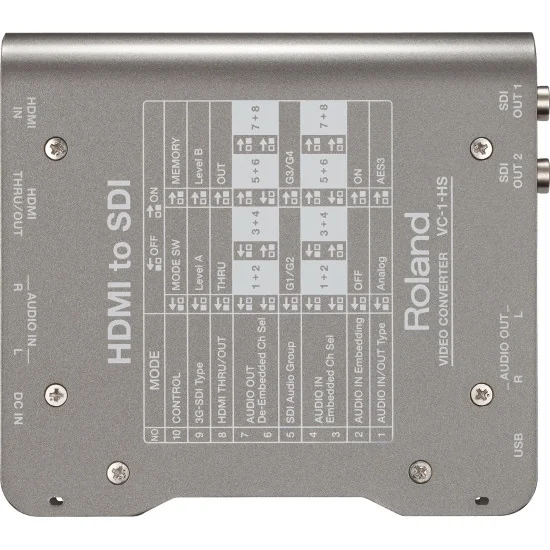

Integration is straightforward in trucks, flypacks and installs. Support for 3G-SDI Level A and Level B ensures interoperability across diverse infrastructure. HDCP policy is observed: protected HDMI content is passed only to the HDMI output and is muted on SDI. Operation can be set from DIP switches or refined over USB using VC-1 RCS software, enabling channel mapping and status. Clear labeling and indicators shorten setup time in fast-turn productions.
Typical use cases include feeding SDI switcher inputs from mirrorless or PTZ cameras, routing playback laptops to SDI recorders, and transporting program plus intercom via embedded audio on a single cable. Where dependable HDMI-to-SDI conversion, stable clocking with low latency and standards-based operation are required, the Roland VC-1-HS delivers results for live streaming, broadcast and corporate AV.

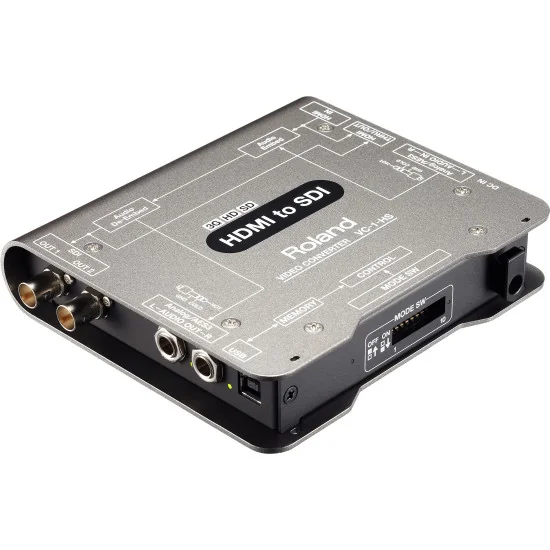

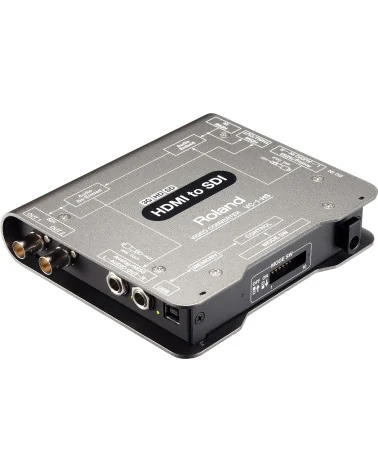

Roland VC-1-HS Video Converter
VC-1-HS
Price: €545.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Roland VC-1-HS is a professional HDMI to SDI converter built for workflows that demand exact signal integrity. It accepts an HDMI source and generates two identical 3G-SDI outputs, maintaining colour fidelity and dynamic range. An on-board re-clocker stabilizes long SDI runs, while internal processing preserves 10-bit 4:2:2 characteristics without interlace artifacts. It handles frame rates up to 1080p60 in line with SMPTE 424M/425M, 292M, 274M and 296M, ensuring native timing across cameras, switchers and recorders.
Audio is managed. The VC-1-HS provides audio embedding and de-embedding with hybrid I/O: balanced analog on 6.3 mm TRS (L/R) and switchable AES/EBU digital on the right TRS. HDMI audio (up to eight channels at 24-bit/48 kHz) can be inserted into the SDI program (up to sixteen channels at 24-bit/48 kHz) or extracted to the analog/AES outputs for monitoring and external processing. A dedicated HDMI loop-through supports local monitoring or routing to multiviewers without affecting the SDI feed.
Integration is straightforward in trucks, flypacks and installs. Support for 3G-SDI Level A and Level B ensures interoperability across diverse infrastructure. HDCP policy is observed: protected HDMI content is passed only to the HDMI output and is muted on SDI. Operation can be set from DIP switches or refined over USB using VC-1 RCS software, enabling channel mapping and status. Clear labeling and indicators shorten setup time in fast-turn productions.
Typical use cases include feeding SDI switcher inputs from mirrorless or PTZ cameras, routing playback laptops to SDI recorders, and transporting program plus intercom via embedded audio on a single cable. Where dependable HDMI-to-SDI conversion, stable clocking with low latency and standards-based operation are required, the Roland VC-1-HS delivers results for live streaming, broadcast and corporate AV.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Roland VC-1-HS

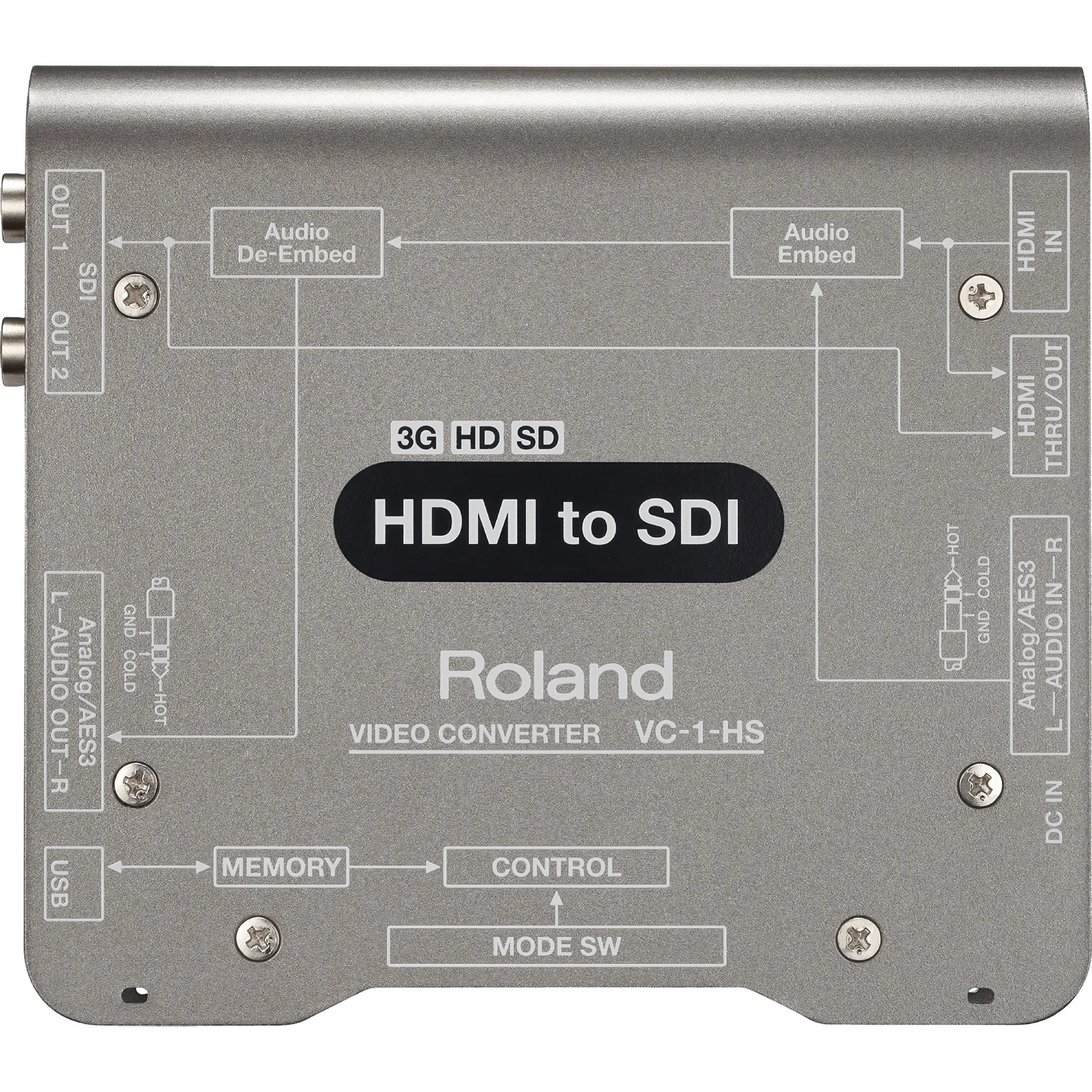

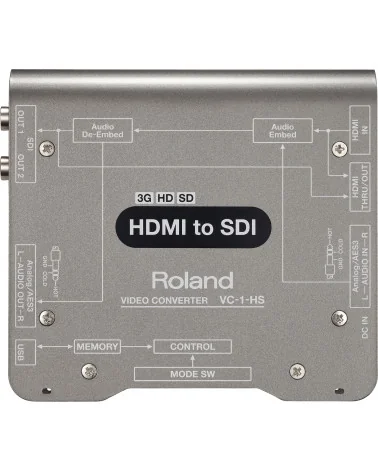

Increasingly HDMI video cameras are being used for live production. The VC-1-HS converts, extends and embeds audio from HDMI to SDI. This converter is especially complimentary to the Roland V-1600HD and V-800HD multi-format video mixers when you want to use SDI signals for camera inputs on the mixer.
- HDMI to SDI Conversion
- Lossless Image Conversion
- 3G (Level A&B) /HD/ SD SDI
- HDCP Support
- VC-1 RCS, PC/MAC Control Application
- Selectable Channel for Embedded/De-Embedded Audio
Specs
INPUT
HDMI: Type A (19 pins ) x 1
Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
Digital Audio Connector: 1/4" TRS phone type ( balanced ) x 1 ( Combined use with Analog Audio R ch Connector )
PROCESSING
Audio embedding Audio de-embedding
OUTPUT
SDI Connector: BNC type x 2
HDMI Connector: Type A (19 pins ) x 1 (Thru/Out )
Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
Digital Audio Connector: 1/4" TRS phone type ( balanced) x 1 ( Combined use with Analog Audio R ch Connector )
INPUT / OUTPUT FORMAT
SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch
SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Output Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch
AUDIO INPUT / OUTPUT
Analog Audio Input Level: +4dBu
Analog Audio Maximum Input Level: +24dBu
Analog Audio Input Impedance: 110 ohms
Analog Audio Output Level: +4dBu
Analog Audio Output Impedance: 600 ohms
Digital Audio Output Signal Format: AES3, 16/24 bits, 32/48 kHz, 2 ch
Digital Audio Output Impedance: 110 ohms
OTHERS
USB Connector: USB Type B (Hi-Speed USB) x 1
Power Supply: DC 9V
Power Consumption: 8W
Operation Temperature: +0 to + 40 degrees Celsius
Accessories: AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual
SIZE AND WEIGHT
Width: 150 mm
Depth: 130 mm
Height: 30 mm
Weight: 500 g
VC-1-HS
1 Item
Data sheet
- Video Input
- HDMI
- Video Output
- SDI
- Audio Input
- HDMI Embedded
TRS Jack 6.3mm - Audio Output
- SDI Embedded
TRS Jack 6.3mm - Max Output Resolution
- 1080p 50/60 fps
- Output colour sampling
- YUV/YCbCe/YPbPr 4:2:2 10-bit
- Built-in scaler
- No
Specific References
- ean13
- 4957054503604
- mpn
- VC-1-HS
