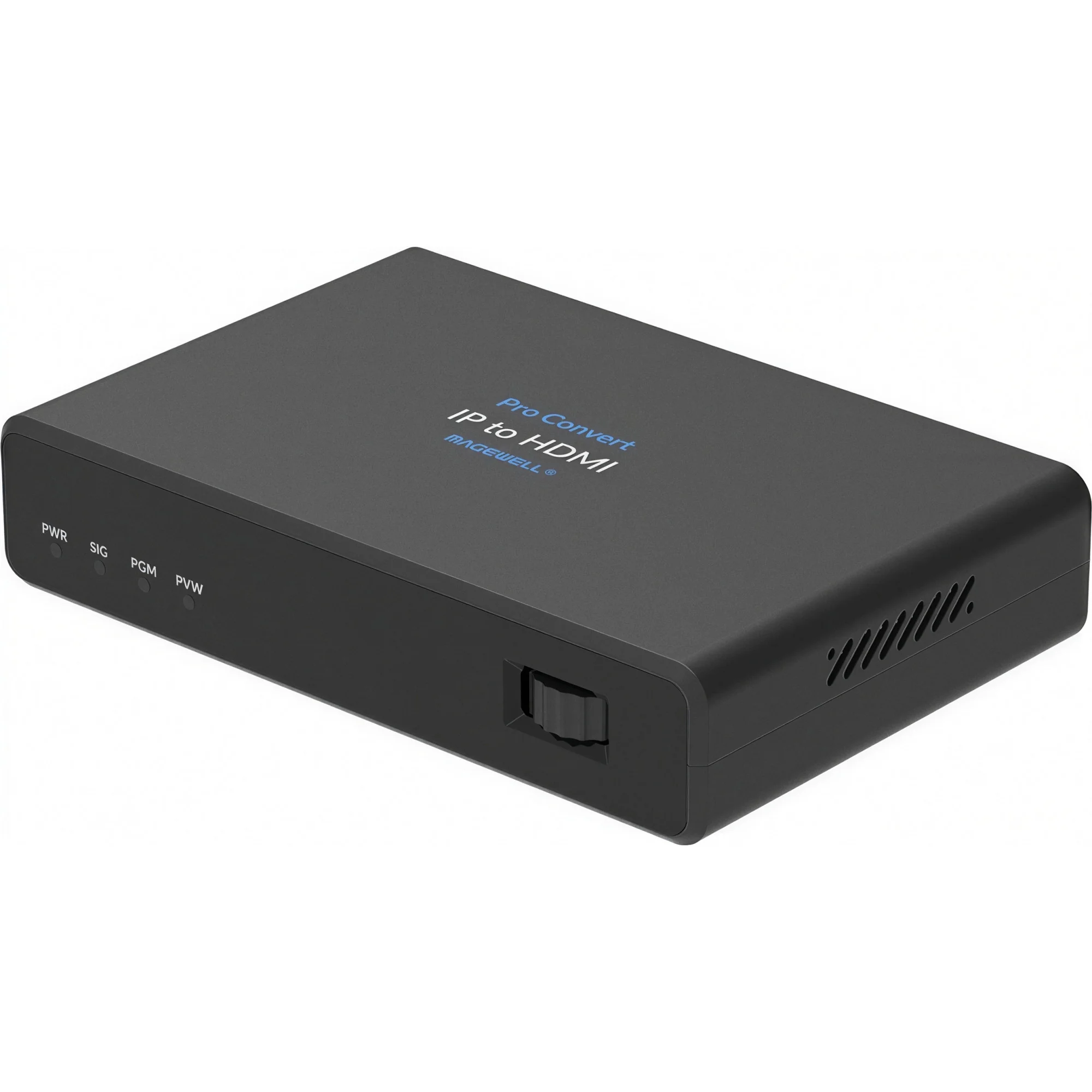

Magewell Pro Convert IP to HDMI (64430) Decoder

Magewell Pro Convert IP to HDMI (64430) Decoder

Name: Magewell Pro Convert IP to HDMI (64430) Decoder
Brand: Magewell
SKU: 644300000
Price: 499.00 EUR
Availability: InStock

MPN: 644300000

Price: €499.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

When an IP feed has to land on a monitor, projector, LED processor or HDMI input of a switcher without placing a computer at the destination, Magewell Pro Convert IP to HDMI answers that requirement directly. This standalone IP video decoder converts network media into a clean HDMI 1.4 output and can place up to four incoming sources on one screen. Depending on the monitoring task, it can run as a single full-screen view, picture-in-picture or quad multiview. In a control room, technical gallery, corporate presentation space or lecture hall, that means one compact decoder can show one main program feed or several contribution sources at the same time.

Protocol support is broad enough for mixed broadcast, ProAV and streaming installations. The unit decodes NDI High Bandwidth, NDI HX / HX2 / HX3, SRT, MPEG-TS over RTP, UDP or SRT, plus RTMP, RTSP, HTTP, HLS and ZIXI. In single-screen mode it handles one stream up to 2560 x 1440p60; in PiP it decodes two streams up to 1920 x 1080p60; in quad view it decodes four H.264 or H.265 signals up to 1920 x 1080p60. This is useful for confidence monitoring on stage, checking several camera returns near an LED wall, feeding a projector from an IP network in meeting rooms, or building a compact multiview position for live streaming and television support areas.

Image and sound parameters are strong enough for serious signal presentation. The HDMI output reaches up to 2560 x 1440 at 60 fps with 4:4:4 10-bit processing, supports BT.601 / BT.709 / BT.2020 colour spaces and HDR10, while embedded audio can be delivered at 48 or 96 kHz with up to eight channels. The decoder also supports AAC, MP3, AC3, Opus and G.711 audio formats. For operators, this matters in environments where source consistency is rarely guaranteed: digital signage endpoints, overflow rooms, OB support positions, esports production desks, remote guest monitoring and distributed AV systems can all benefit from one hardware endpoint that is easier to standardise than a PC-based decode point.

Daily operation is not limited to the front panel. Web GUI access provides live status information, preview images and stream control, while settings cover OSD, deinterlacing, output format, audio gain, sample rate, security and network parameters. Control Hub registration enables remote fleet management, HTTP APIs support system integration, and PoE / PoE+ reduces cabling at the destination. Add USB for local peripherals and USB NET support, and Magewell Pro Convert IP to HDMI becomes a practical decoder for broadcast facilities, event venues, education campuses, houses of worship and any installation where IP sources must appear on HDMI screens with predictable behaviour.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

The Pro Convert IP to HDMI is a powerful, compact IP decoder designed to bridge modern IP-based media networks with HDMI displays and baseband AV systems. Capable of converting up to four IP video streams into a single QHD HDMI output, it delivers exceptional flexibility for professional AV, broadcast, live production, and enterprise environments.

Built on Magewell’s proven reliability, this next-generation Pro Convert decoder expands protocol support, enhances video quality up to 2560×1440p60, and adds flexible multiview layouts—making it easy to visualize, monitor, and distribute IP media sources with confidence.

Pro Convert IP to HDMI Specifications

Decoding Features
Supports multiple output modes for decoding of different protocol signals.
Single Screen
Decoding Channels: 1
Supported Protocols: NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT, RTMP, RTSP, HTTP, HLS and ZIXI
Formats: H.264, H.265, SpeedHQ, MPEG2
Resolution: Up to 2560x1440p60

Picture-in-Picture
Decoding Channels: 2
Supported Protocols: NDI High Bandwidth*, NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT, RTMP, RTSP, HTTP, HLS and ZIXI
Formats: H.264, H.265, SpeedHQ, MPEG2*
Resolution: Up to 1920x1080p60
*Note: Only one channel of either NDI High Bandwidth or MPEG2 format video is supported for decoding.

Quad Screen
Decoding Channels: 4
Supported Protocols: NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT, RTMP, RTSP, HTTP, HLS and ZIXI
Formats: H.264, H.265
Resolution: Up to 1920x1080p60
Supports decoding of audio formats including AAC, MP3, AC3, Opus and G.711.
Supports NDI 6.2.

Output Features
Max output: 2560x1440 60fps 4:4:4 10-bit
Delivering video at the preferred video format according to the capabilities of the connected monitor. Supported output formats include:
2560x1440p60
2560x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080i 50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p50
720x576i50
720x480p59.94/60
720x480i59.94/60
Support color space: BT.601/BT.709/BT.2020
Support HDR10
Support 48/96KHz 8-channel audio output
HDMI interface: HDMI 2.0

Configuration Management
Support registration with Control Hub for remote centralized management
Provide WebUI tools
Provide comprehensive information regarding the device and decoded signals in real-time
Support preview of output images and PTZ control
Configure audio and video signal decoding and output parameters, including OSD, deinterlacing, video format, audio gain, sample rate, Ping test, security settings, configuration files import and export, and network connections
Support firmware upgrade
Support USB NET
Support Edge/Firefox/Chrome/Safari/Opera web browsers
Support HTTP APIs

On-board Control Buttons
Rotary encoder button:
Rotate: toggle options
Press: bring up menu, enter current option, or confirm the selection

Network Interfaces
10/100/1000Mbps Ethernet
Support IEEE 802.3af PoE and 802.3at PoE+

USB Interfaces
USB3.0 Type C
5V/12V 10W power supply
USB NET
USB3.0 Type A
Connecting peripherals (keyboard and/or mouse) to customize device settings

LED Indicators
Power Indicator (PWR)
On: Power connected
Off: Power disconnected
Decoding status Indicator (SIG)
Blue: All selected sources in single/multi-channel decoding are working normally
Red: All selected sources in single/multi-channel decoding are abnormal
Green: Both normal and abnormal decoding exist simultaneously in multi-channel decoding
Off: No sources selected in single/multi-channel decoding
Tally lights
Program Tally (PGM): The connected NDI source is live when illuminating red
Preview Tally (PVW): The connected NDI source is in preview when illuminating green

Form Factor
4.72“ (L) x 3.12” (W) x 0.96" (H) (as is 120 mm (L) x 79.3 mm (W) x 24.5 mm (H))

Screw Mounting Holes
¼–20 threaded hole

Power Consumption
5V maximum current: ~1.324A
12V maximum current: ~0.555A
Max power consumption: ~6.62W

Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
