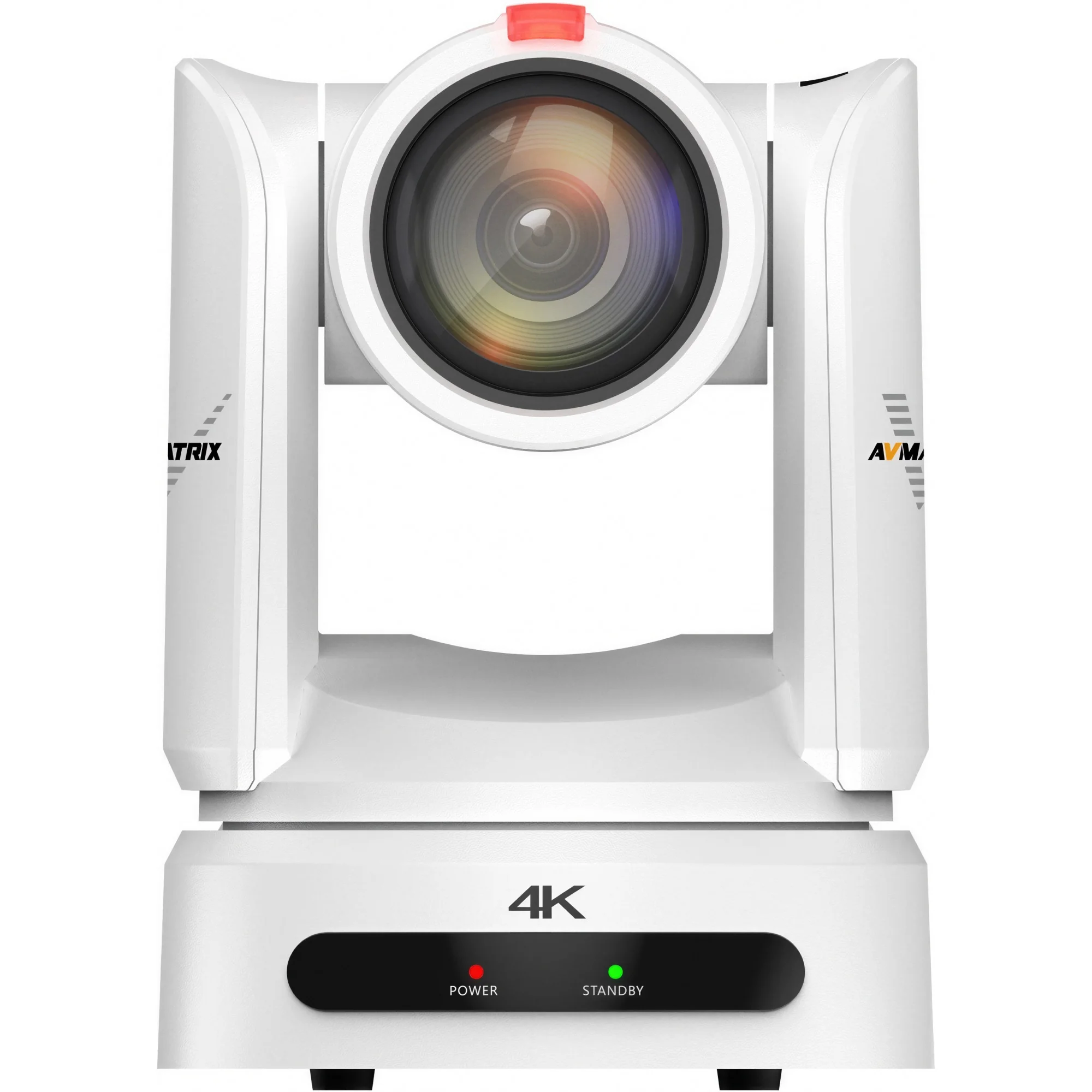

AVMATRIX EAGLE P20-12G-W is a white 4K PTZ camera for spaces where image precision, discreet installation and dependable signal routing all matter at the same time. Its 1/1.8-inch 8.3 MP CMOS sensor delivers up to 2160p60/59.94, while the 20x optical zoom supported by 12x digital zoom moves from wide room coverage to close framing of a presenter, speaker or performer without repositioning the camera. With a focal range of 7.1 to 141.3 mm and a horizontal viewing angle from 59.2° to 3.6°, it fits council rooms, lecture theatres, houses of worship, studios, courtrooms and broadcast environments where one camera often has to cover several framing needs during the same production.
The imaging section remains usable when light conditions are mixed or unstable. Sensitivity down to 0.05 lux at F1.61, combined with 2D and 3D noise reduction, helps maintain a cleaner picture in conference halls, stages and multipurpose venues. White balance modes, backlight compensation and direct adjustment of brightness, hue, saturation, contrast and sharpness give operators more control when the scene includes daylight, LED walls or strong practical lighting. The white housing is also a practical choice for ceiling or wall mounting in bright interiors, where a lighter finish blends more naturally into corporate, education or medical installations.
For signal distribution, HDMI 2.0, dual 12G-SDI, USB 3.0 UVC and Gigabit Ethernet can operate at the same time. One camera can therefore feed a hardware switcher, confidence monitor, recorder and software-based production system in parallel. Over IP, the camera supports RTSP, RTMP, RTMPS, SRT, ONVIF and GB28181 with H.265, H.264 or MJPEG compression, which makes it suitable for live streaming, remote contribution, lecture capture, hybrid meetings and fixed AV systems that need direct network delivery. The dual-channel 3.5 mm line input also supports audio embedding for stream-based production and recording scenarios.
Control options include VISCA, VISCA over IP, Pelco-D/P and ONVIF via RS-232, RS-422, LAN and USB. Pan covers -175° to +175°, tilt spans -30° to +90°, and movement speed reaches 100°/s for pan and 80°/s for tilt, giving the camera the pace required for live switching and preset recalls. Up to 255 presets, preset freeze, dual-colour tally, 360° IR reception, FreeD support and PoE make the AVMATRIX EAGLE P20-12G-W a strong fit for permanent studios, event venues, virtual production spaces and multi-camera streaming systems where repeatable positioning, clean cabling and 4K PTZ performance are part of daily operation.
AVMATRIX EAGLE P20-12G-W is a white 4K PTZ camera for spaces where image precision, discreet installation and dependable signal routing all matter at the same time. Its 1/1.8-inch 8.3 MP CMOS sensor delivers up to 2160p60/59.94, while the 20x optical zoom supported by 12x digital zoom moves from wide room coverage to close framing of a presenter, speaker or performer without repositioning the camera. With a focal range of 7.1 to 141.3 mm and a horizontal viewing angle from 59.2° to 3.6°, it fits council rooms, lecture theatres, houses of worship, studios, courtrooms and broadcast environments where one camera often has to cover several framing needs during the same production.
The imaging section remains usable when light conditions are mixed or unstable. Sensitivity down to 0.05 lux at F1.61, combined with 2D and 3D noise reduction, helps maintain a cleaner picture in conference halls, stages and multipurpose venues. White balance modes, backlight compensation and direct adjustment of brightness, hue, saturation, contrast and sharpness give operators more control when the scene includes daylight, LED walls or strong practical lighting. The white housing is also a practical choice for ceiling or wall mounting in bright interiors, where a lighter finish blends more naturally into corporate, education or medical installations.
For signal distribution, HDMI 2.0, dual 12G-SDI, USB 3.0 UVC and Gigabit Ethernet can operate at the same time. One camera can therefore feed a hardware switcher, confidence monitor, recorder and software-based production system in parallel. Over IP, the camera supports RTSP, RTMP, RTMPS, SRT, ONVIF and GB28181 with H.265, H.264 or MJPEG compression, which makes it suitable for live streaming, remote contribution, lecture capture, hybrid meetings and fixed AV systems that need direct network delivery. The dual-channel 3.5 mm line input also supports audio embedding for stream-based production and recording scenarios.
Control options include VISCA, VISCA over IP, Pelco-D/P and ONVIF via RS-232, RS-422, LAN and USB. Pan covers -175° to +175°, tilt spans -30° to +90°, and movement speed reaches 100°/s for pan and 80°/s for tilt, giving the camera the pace required for live switching and preset recalls. Up to 255 presets, preset freeze, dual-colour tally, 360° IR reception, FreeD support and PoE make the AVMATRIX EAGLE P20-12G-W a strong fit for permanent studios, event venues, virtual production spaces and multi-camera streaming systems where repeatable positioning, clean cabling and 4K PTZ performance are part of daily operation.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
EAGLE P20/P30 Series
EAGLE P20/P30 adopts a new ROBOTIC concept appearance & U Type design, more stable and more smoothly in Pan/Tilt move. It will provide users with Real 4K@60 ultra-high-definition video experience with More Really, More Colorful, More Clear.
Equipped with 1/1.8” New Generation Sony 4K High quality Sensor, with 20X/30X multiple Optical Zoom lenses, and abundant Video interface; Support USB3.0、HDMI2.0 and Dual 12G-SDI Video output, and it can support NDI/HX3, which can give User give users the option to join Ultra HD broadcast workflows or transmit low latency UHD video over IP networks; SRT & FreeD Protocol also will be help user in AR/VR filed. And Built-in VISCA/Visca Over IP/ PELCO P/D/ ONVIF communication Protocol to to seamlessly integrate system control applications,
It can be widely used in Broadcast studios, Education recording, Conferences AV, Telemedicine, Remote training, Court trial systems, Emergency command systems, and Sports & Events Streaming.
4K Ultra-High-Definition ultimate picture quality, More Really, More Colorful, More clear
EAGLE P20/P30 Adopt 8.3 Megapixels Sony high quality 4K CMOS sensor, can reach maximum 3840x2160 resolutions and output frame rate up to 60fp &59.94.
20/30X optical zoom lens to capture every detail of what you need
Equipped with a 1/1.8" new generation SONY sensor, a variety of optical zoom lenses such as 20x and 30x can be selected. with Fast zoom and focus capabilities to provide clear and smooth images for user.
Abundant Interface, Max support Dual 12G-SDI video synchronous Video output
Support HDMI 2.0 HD，2*12G-SDI and IP Streaming/NDI output, USB3.0 uncompressed UVC output, optional SDVoE uncompressed network output, and all HDMI, SDI, IP, USB, SDVoE interfaces can synchronous output 4K60 images, Especial UHD800 Dual SDI Video Output design.Multi-channel SDI signal output can be realized without SDI distributor.
Live VR/AR video production
EAGLE P20/P30 supports the FreeD protocol. This enables users to work with Virtual Reality and Augmented Reality sets without the need for additional sensors.
Support multiple communication ways in remote control
EAGLE P20/P30 Built-in Multiple Communication Protocol of VISCA/UDP/ONVIF/PELCO/P, PELCO D/UVC. it can support Communition Control by RS485/RS422/RS232/USB3.0/ IP interface.
More stable and More smoothly & Ultra-silent in Pan/Tilt move
Using high-precision stepping motor with "U" Type Structure design in our Ultra-unique silent Drive, More stable and More smoothly in Pan/Tilt move, Ultra-silent.
Supports the preset freeze function, scene switching
The camera supports the preset freeze function. Users can enable this function and use the preset function to realize free switching of scenes.
Max Support 255 Presets
The camera can setting & call Presets max to 255 presets. (The Remote controller max support 10 Presets), You can freely switch the image at will, even in complex scenes，Don't let you miss every important moment.
IP Streaming in your video production
Support ONVIF, RTSP, RTMP/s, NDI|HX3, SRT protocols, and can be expanded according to user needs.
Double Color Tally Light
The Tally light support 2 kinds of color Red & Green. and the brightness can be adjusted according to customize. Distributed in Front or Behind of Camera.
360° infrared remote control
Supports 360° infrared remote control, no matter what angle or position，the user can freely control the camera through Remote Controller.
Specifications
Model: EAGLE P20-12G
CMOS Sensor: 1/1.8” CMOS
Zoom: 20X
Effective Pixels: 8.3 Megapixels
Video Format: 2160P60/59.94, 2160P50, 2160P30/29.97, 2160P/25, 1080P60/59.94, 1080P50, 1080P30/29.97, 1080P25, 1080i60/59.94, 1080i50, 720P60/59.94, 720P50
Optical Zoom: 20x Optical Zoom, 12X Digital Zoom
Focal Length: f=7.1~141.3mm
HFOV: 3.6°(T) ~59.2°(W)
Iris: F1.61 ~ F5.19
Min Illumination: 0.05 lux (F1.61)
Digital Noise Reduction: 2D&3D Noise Reductio
White Balance: Manual/Auto/Indoor/outdoor/One Push//3000K/4000K/5000K/6500K/ATW
Focus mode: Manual/Auto/Z- Trigger
Iris mode: Manual/Auto
BLC: 1-8/OFF
Picture adjustment: Brightness, Hue, Saturation, Contrast, Sharpness

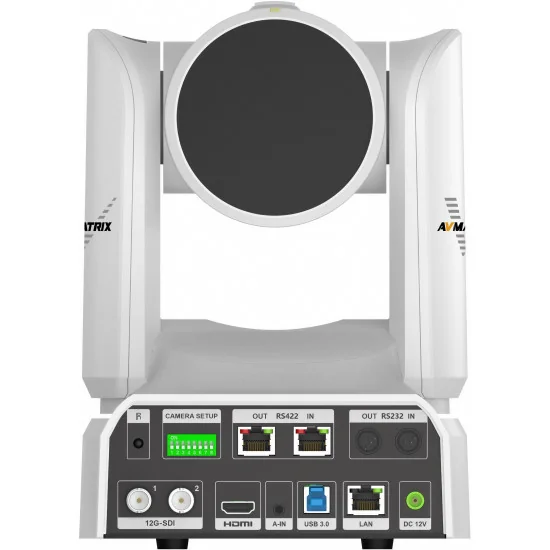

Video Output Interface: HDMI2.0, 12G-SDI*2, RJ45, USB3.0
Video Compression Format: H.264, H.265, MJPEG
Control interface: 1X RS232 IN, 1X RS232 Out, 1X RS422 IN, 1X RS422 Out , 1X RJ45
Control Protocol: VISCA /PELCO-D / PELCO-P, VISCA OVER IP, ONVIF, UVC（only for USB interface）
Baud Rate: 2400/4800/9600/19200/38400bps
Audio Input: Dual channel 3.5mm line input
Audio Compression: ACC, G711A, G711U
Network Interface: 1000M Internet Access(10/100BASE-TX)
Network Protocol: RTSP, RTMP, ONVIF, SRT, GB28181, VPN
NDI Protocol: Not Support
Power Interface: DC-038 Outlet(DC12V)
Pan Rotation Anglee: -175°~+175°
Tilt Rotation Angle: -30°~+90°
Horizontal rotation speed range: 0.1~100°/s
Vertical rotation speed range: 0.1-80°/s
Presets: Max Support 255 Presets
Power Adapter: AC100V~AC240V Input, DC12V/2A Output
Input Voltage: DV12V
Power Consumption: 15W(MAX)
Storage Environment: -10°C ~ +60°C / 20% ~ 95%
Working Environment: -10°C ~ +50°C / 20% ~ 80%
