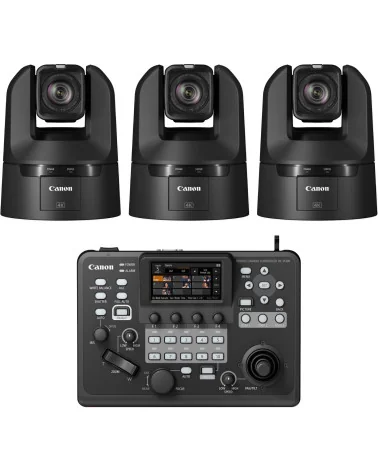

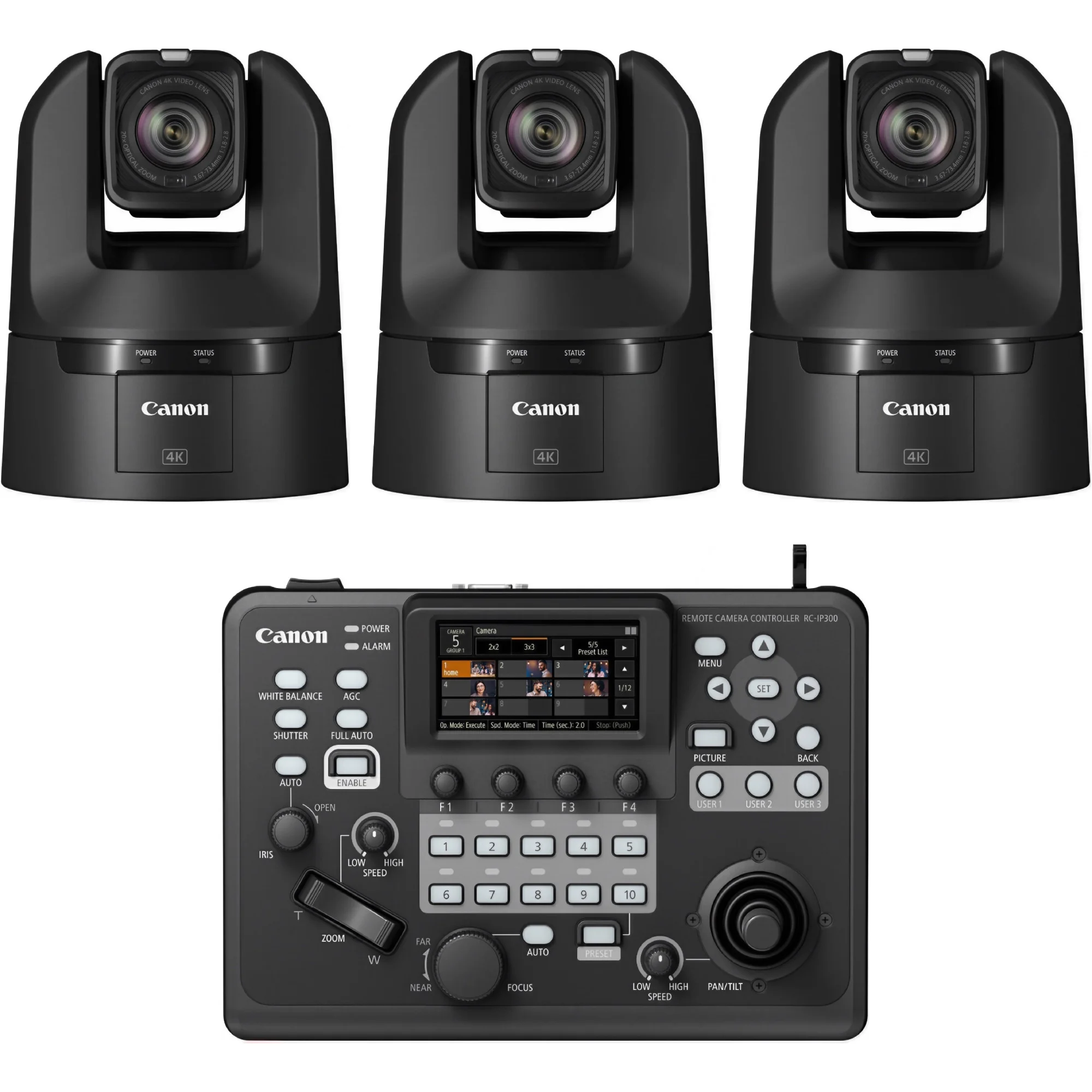

Three remote heads, one operator, and a control surface built around them — that is the operational logic behind the Canon CR-N400 Producer Bundle. Pairing a trio of black CR-N400 4K PTZ cameras with the new RC-IP300 multi-camera controller, the kit gives production houses, broadcast studios and live-event teams a ready-to-rack solution for multi-angle UHD capture without the per-seat staffing of a traditional crew.

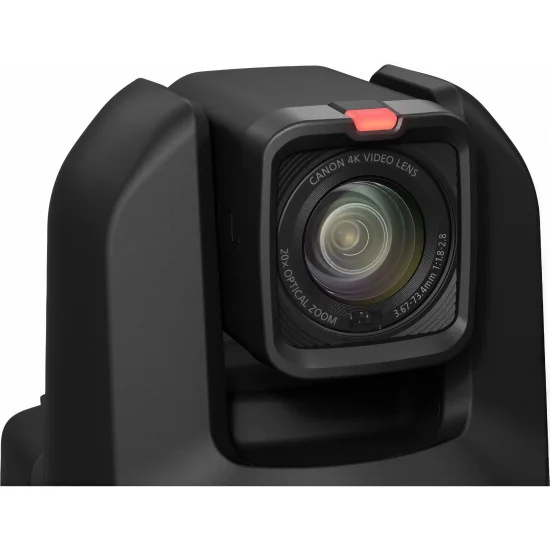

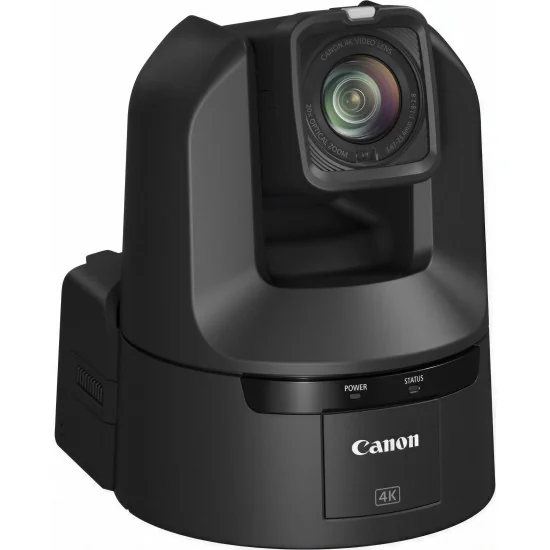

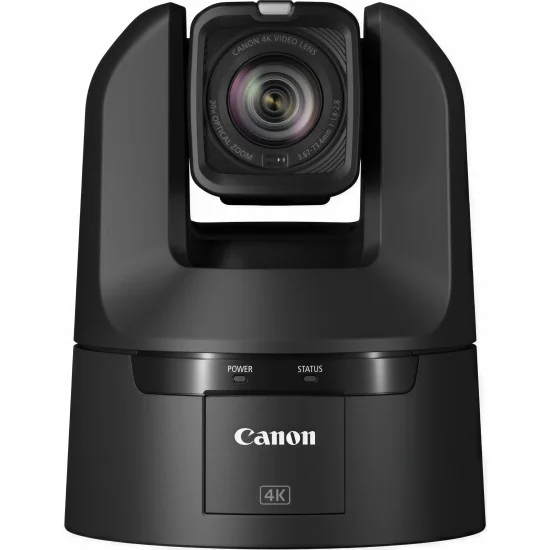

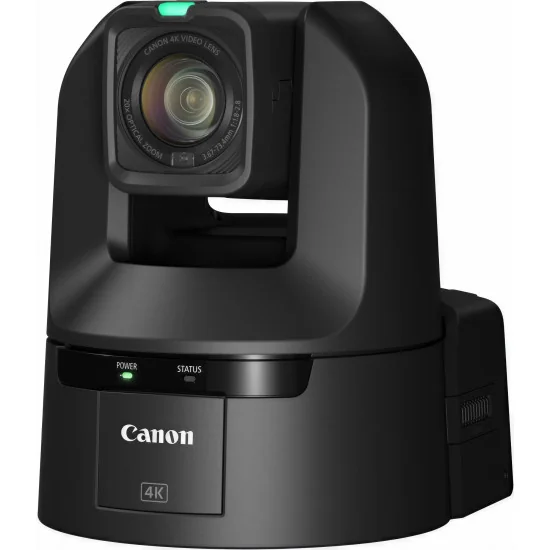

Each CR-N400 head pulls broadcast-grade imagery from a 1/2.3-inch CMOS sensor driven by the DIGIC DV7 processor, recording 4K UHD up to 59.94p in 4:2:2 10-bit. HDR pipelines are supported through Canon Log 3, PQ and HLG, while a fast f/1.8–2.8 lens delivers a 20x optical zoom stretched to a 40x extended reach in Full HD — equivalent to roughly 1202 mm in 35 mm terms, enough to pull a tight reaction shot from the back row of an arena or theatre balcony. Hybrid autofocus, optical stabilisation and refined pan/tilt drives keep moving subjects sharp, and the new Auto Tracking engine with face and head detection handles solo presenters or panel discussions on its own.

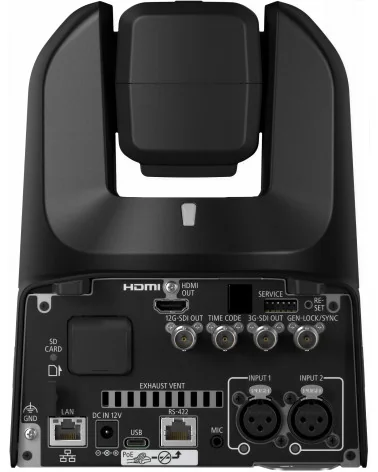

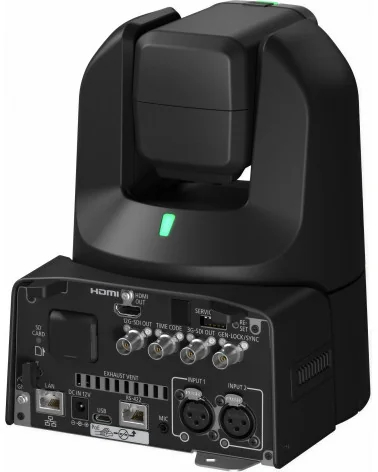

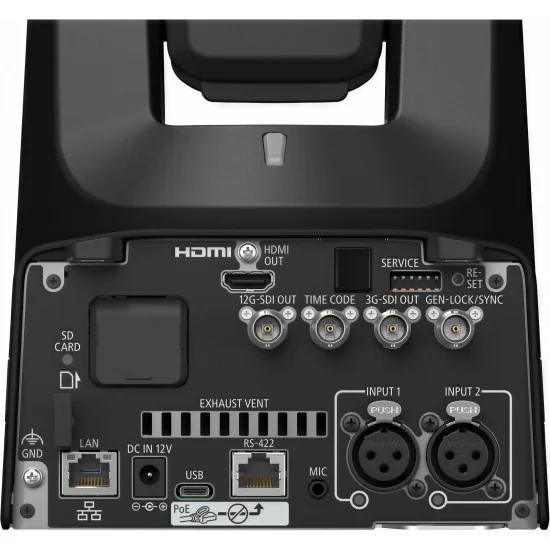

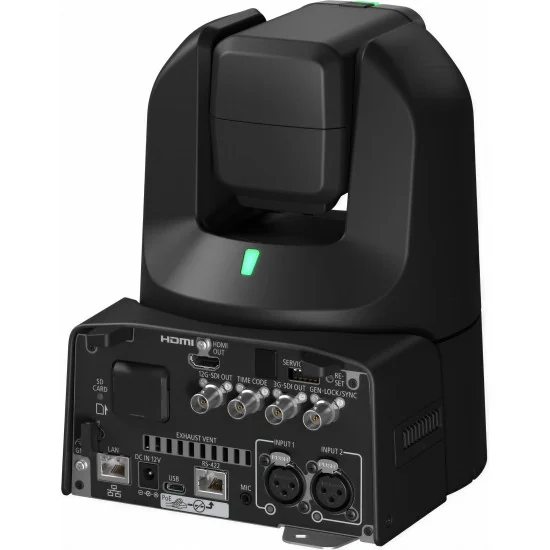

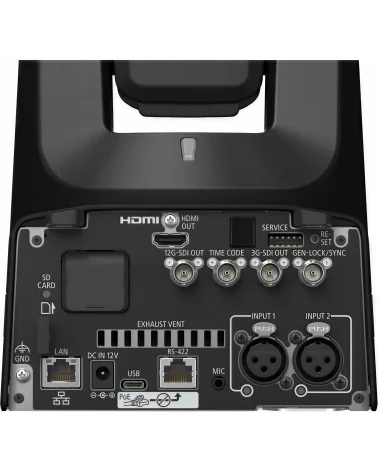

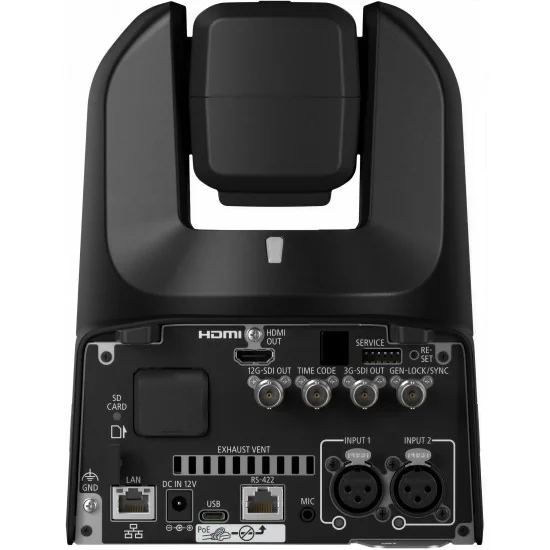

Connectivity reads like a studio rider: 12G-SDI, 3G-SDI, HDMI, NDI|HX2, RTMP/RTMPS, SRT, RTSP/RTP and FreeD, plus USB-C UVC for direct desktop ingest. Genlock and Time Code terminals lock the three heads to house sync, and dual 3-pin XLR inputs with phantom power feed embedded production audio. A single PoE++ (IEEE 802.3bt) run handles power, control and video to each camera — a meaningful saving on cabling, installation labour and downtime across a multi-room install.

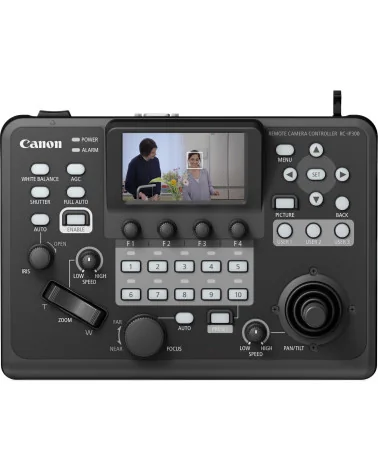

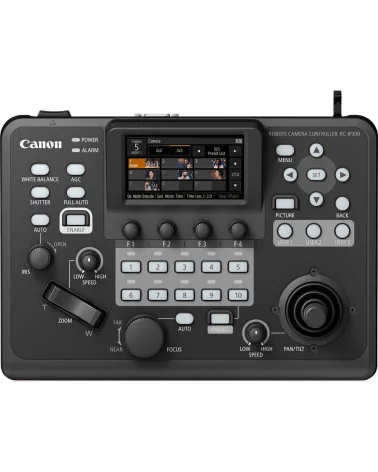

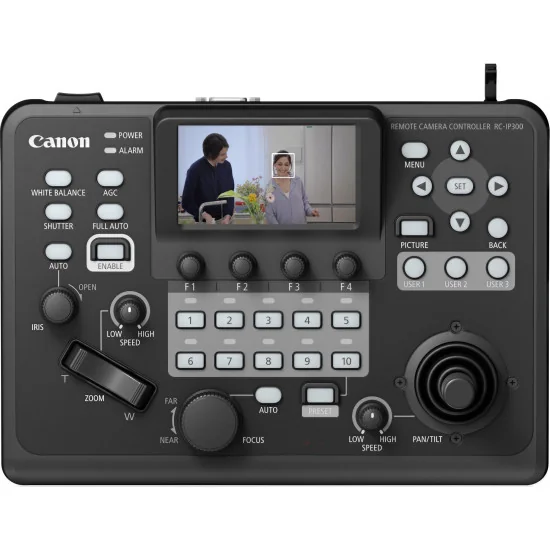

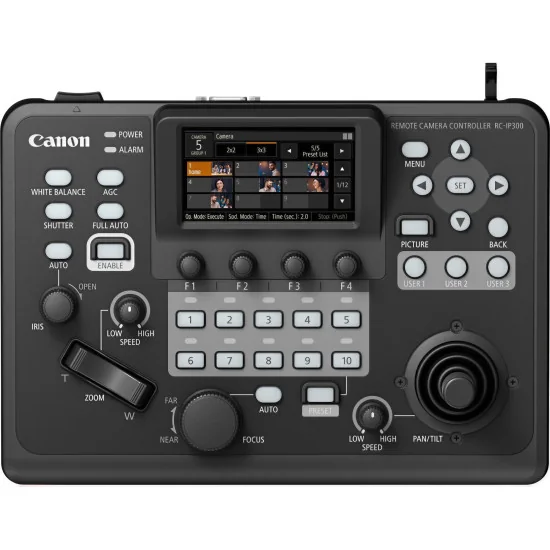

At the operator position, the Canon RC-IP300 brings a 3.5-inch touch panel for live IP preview, dedicated dials for pan, tilt, zoom, focus and iris, and twelve user-assignable buttons. It addresses up to 200 cameras across 20 groups, recalls 100 presets per head, switches with a 2×2 or 3×3 multi-camera view, and exposes 12G-SDI in/out, HDMI out, RJ45 serial, Tally/GPIO and USB-A. For AV Gear customers running corporate auditoriums, lecture capture, sports halls or hybrid event venues, the bundle ships pre-matched, firmware-aligned and backed by our specialist support team.
Instead of €16,276.00
Three remote heads, one operator, and a control surface built around them — that is the operational logic behind the Canon CR-N400 Producer Bundle. Pairing a trio of black CR-N400 4K PTZ cameras with the new RC-IP300 multi-camera controller, the kit gives production houses, broadcast studios and live-event teams a ready-to-rack solution for multi-angle UHD capture without the per-seat staffing of a traditional crew.
Each CR-N400 head pulls broadcast-grade imagery from a 1/2.3-inch CMOS sensor driven by the DIGIC DV7 processor, recording 4K UHD up to 59.94p in 4:2:2 10-bit. HDR pipelines are supported through Canon Log 3, PQ and HLG, while a fast f/1.8–2.8 lens delivers a 20x optical zoom stretched to a 40x extended reach in Full HD — equivalent to roughly 1202 mm in 35 mm terms, enough to pull a tight reaction shot from the back row of an arena or theatre balcony. Hybrid autofocus, optical stabilisation and refined pan/tilt drives keep moving subjects sharp, and the new Auto Tracking engine with face and head detection handles solo presenters or panel discussions on its own.
Connectivity reads like a studio rider: 12G-SDI, 3G-SDI, HDMI, NDI|HX2, RTMP/RTMPS, SRT, RTSP/RTP and FreeD, plus USB-C UVC for direct desktop ingest. Genlock and Time Code terminals lock the three heads to house sync, and dual 3-pin XLR inputs with phantom power feed embedded production audio. A single PoE++ (IEEE 802.3bt) run handles power, control and video to each camera — a meaningful saving on cabling, installation labour and downtime across a multi-room install.
At the operator position, the Canon RC-IP300 brings a 3.5-inch touch panel for live IP preview, dedicated dials for pan, tilt, zoom, focus and iris, and twelve user-assignable buttons. It addresses up to 200 cameras across 20 groups, recalls 100 presets per head, switches with a 2×2 or 3×3 multi-camera view, and exposes 12G-SDI in/out, HDMI out, RJ45 serial, Tally/GPIO and USB-A. For AV Gear customers running corporate auditoriums, lecture capture, sports halls or hybrid event venues, the bundle ships pre-matched, firmware-aligned and backed by our specialist support team.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
Zoom Further. Track Smarter. Perform Better
Capture live productions with stunning 4K60P HDR imagery and zoom in up to 20x optical – or 40x Advanced Zoom in Full HD – plus auto track subjects smoothly and integrate seamlessly with 12G-SDI, Time Code, Genlock and Dual XLR.
Track every move automatically
Rely on advanced Auto tracking with face and head detection, precision motion tracking, and smooth pan/tilt movements and enhanced pan/tilt drive unit to keep every subject framed and in focus – without a camera operator.
Capture every detail with HDR imagery
Reveal every highlight and shadow with HDR imaging thanks to the DIGIC DV7 processor that ensures sharp clarity, vivid contrast, and lifelike colour, no matter how challenging the lighting conditions.
Connect like a pro
Integrate seamlessly with 12G-SDI, Time Code, Genlock, and Dual XLR inputs. Built for professional workflows, it ensures fast setup, reliable performance, and total studio compatibility.
Zoom further than ever
Bring the action closer with the lineup’s longest 40x Advanced Zoom in Full HD. Perfect for arenas, stadiums, and auditoriums, it captures crystal-clear shots even from the furthest seats.
Match colours instantly
Achieve consistent, broadcast-ready colours with ease. The enhanced Camera Colour Matching Application quickly aligns the CR-N400 with your existing cameras for consistent, professional results.
Upgrade your content with a new firmware update available August 2025
Download the latest firmware and take advantage of newly added Auto Tracking App RA-AT001* features. Auto Framing features include Multi-Person Framing, that detects and includes multiple people in the frame, while Face Direction Framing and Sit/Stand Framing deliver natural composition for a single person in frame. Additionally, RTMP/SRT auto reconnection and improved camera control from the iOS app is now included.
*Free Auto Tracking App RA-AT001(Lite) available via FW, 1.1.0 or later. A paid license is necessary for full functionality of auto tracking.
| Feature | Auto Tracking Application (Lite) | Auto Tracking Application |
|---|---|---|
| Tracking subject | Auto-select only | Auto-/manual select possible |
| Tracking sensitivity | Fixed | Adjustable from 1 to 10 levels |
| Tracking subject display size | Can be set at two levels | Can be set at five levels |
| Tracking target display position | Fixed at center | Can be set to any area |
| Auto Framing | — | Multi-Person Framing, Face Direction Framing, Sit/Stand Framing |
| Priority display area | — | Can be set |
| Fixed angle of view | — | Can be set |
| Save tracking settings | One only | Up to five can be saved/recalled |
Specifications
| Camera | |
|---|---|
| Image Sensor | Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor |
| Effective Pixels | approx. 8.29 megapixels (3840 x 2160 at 23.98 / 25 / 29.97Hz) approx. 7.88 megapixels (3744 x 2104 at 50 / 59.94Hz) |
| Lens | f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed iris diaphragm |
| Optical Zoom | 20x optical zoom (40x with advanced zoom) |
| Digital Zoom | 20x digital zoom |
| Focal Length | 3.67 – 73.4 mm, f/1.8 – 2.8, 35mm equivalent focal length: Approx. 30.0 (W) - 616 mm (T) (50 / 59.94Hz) Approx. 29.3 (W) - 601 mm (T) (23.98 / 25 / 29.97Hz) |
| Angle of View | 59.94/50.00 Hz frame frequency: Horizontal: 63.3° (W) – 3.5° (T) Vertical: 38.9° (W) – 2.0° (T) 29.97/25.00/23.98 Hz frame frequency: Horizontal: 65.6° (W) – 3.6° (T) Vertical: 39.8° (W) – 2.0° (T) |
| Minimum Subject Illumination | ・59.94/29.97 Hz frame frequency: -Approx. 3 lux (with 1/60 sec. shutter speed, 59.94P frame rate, and 30.0 dB gain) -Approx. 1.5 lux (with 1/30 sec. shutter speed, 59.94P frame rate, and 30.0 dB gain) ・50.00/25.00 Hz frame frequency: -Approx. 2.5 lux (with 1/50 sec. shutter speed, 50.00P frame rate, and 30.0 dB gain) -Approx. 1.3 lux (with 1/25 sec. shutter speed, 50.00P frame rate, and 30.0 dB gain) |
| Shutter Speed | 1/3 – 1/2000 sec. (specific values depend on the frame frequency and frame rate) |
| Iris | Manual/Automatic aperture |
| Gain | 0.0 dB – 36 dB |
| ND Filter | Built-in (Off, 1/2, 1/4, 1/8), motor operated |
| Night Mode (IR Cut Filter Off) | No |
| Optical Low-Pass Filter | No |
| White Balance | AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K – 15,000 K), Manual |
| Focus | Focus mode: Manual, Continuous AF, Face / Eye AF, Tracking AF type: Hybrid AF, Contrast AF |
| Minimum Focusing Distance | 1 cm at wide end, 60 cm across entire zooming range |
| Gamma | BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, PQ, HLG |
| Pan and Tilt | Pan operation range: Horizontal ±170° Pan operation speed: 0.1° – 100°/sec. (Maximum speed at preset: 200.00°/sec.) Tilt operation range: Vertical -30° – +100° Tilt operation speed: 0.1° – 100°/sec. (Maximum speed at preset: 180.00°/sec.) |
| Server | |
| Video Output Format: SDI | [12G-SDI] / 4:2:2 10-bit 3840 x 2160: 59.94P, 50.00P, 29.97P, 25.00P, 23.98P 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P, 29.97PsF/25.00PsF 1280 x 720: 59.94P, 50.00P 720 x 576: 50.00i 720 x 480: 59.94i [3G-SDI] / 4:2:2 10-bit 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P, 29.97PsF/25.00PsF 1280 x 720: 59.94P, 50.00P 720 x 576: 50.00i 720 x 480: 59.94i |
| Video Output Format: HDMI | [HDMI] / 4:2:2 10-bit 3840 x 2160: 59.94P, 50.00P, 29.97P, 25.00P, 23.98P 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P, 29.97PsF/25.00PsF 1280 x 720: 59.94P, 50.00P 720 x 576: 50.00i 720 x 480: 59.94i |
| Video Output Format: IP | [Frame frequency 59.94 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 29.97 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 50.00 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 25.00 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 23.98 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) *59.94 fps/50.00 fps is only when H.265. – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 59.94/29.97 Hz: 14.99 fps, 50.00/25.00 Hz: 12.50 fps, 23.98 Hz: 11.99 fps |
| Video Output Format: USB | Motion JPEG: 1920 x 1080 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 1280 x 720 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps YUV: 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps |
| Video Transmission Protocol | Canon XC, RTSP/RTP, NDI|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD |
| Preset | Number of presets: Max. 100 (including home position) |
| Interface | |
| Communication Control | LAN, Wi-Fi, Serial, IR |
| Network Terminal | LAN x 1, RJ45, 1000Base-T |
| SDI OUT Terminal | 12G-SDI OUT Terminal BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, SMPTE ST 2082, 2081, 424, 425, 292, 259, 299, 272 compliant Embedded audio, Time code (VITC/LTC) 3G-SDI OUT Terminal BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC) |
| GEN-LOCK Terminal | BNC jack (also serves as the SYNC OUT terminal) |
| TIME CODE Terminal | BNC jack (for both input/output) |
| HDMI OUT Terminal | HDMI connector (Type A), both video and audio are output only |
| RS-422 Terminal | RJ45 connector x 1 |
| Audio INPUT 1/INPUT 2 Terminals | XLR 3-pin jack (balanced) ((1) shield, (2) hot, (3) cold), two lines Sensitivity (MIC): -60 dBu (manual volume center, -18 dB full scale) Sensitivity (LINE): +4 dBu (manual volume center, -18 dB full scale) Supply Voltage: 48 V DC (bias resistance: 6.8 kΩ) |
| MIC Terminal | ϕ 3.5 mm stereo mini-jack (unbalanced; supports plug-in power) Sensitivity (MIC): -72 dBu (manual volume center, -18 dB full scale) Sensitivity (LINE): -12 dBV (manual volume center, -18 dB full scale) Supply Voltage: 2.4 V DC (bias resistance: 2.2 kΩ) |
| USB Terminal | Type-C (USB 3.0) x 1 |
| Physical Features | |
| Operating Environment | Temperature 0°C – +40°C (+32°F – +104°F) Humidity 10% – 90% (without condensation) |
| Power Supply | PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant) – PoE and PoE+ cannot be used External power source: 12 V DC (using included AC adaptor) |
| Power Consumption | PoE++ Input: Approx. 34.4 W*/0.8 A max. (body only) DC Input: Approx. 33.8 W/2.9 A max. (body only) * Class 5 (40.0 W required) for power supply devices |
| Dimensions (W x H x D) | Approx. 176 x 220 x 194 mm (excluding protrusions) |
| Weight | Approx. 3.1 kg (6.8 lb.) (body only) |
| Noise | NC35 or less |

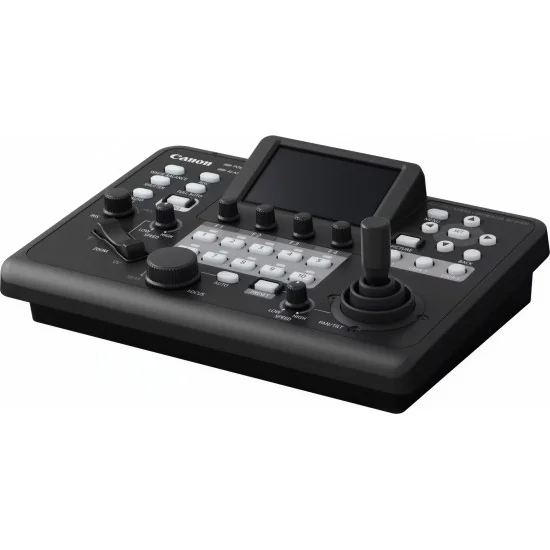

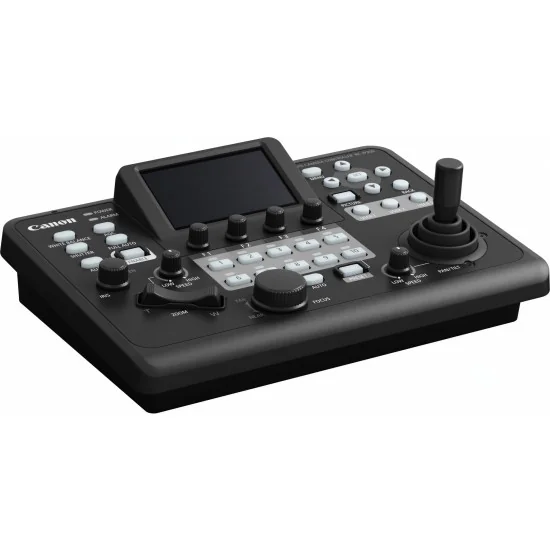

Crafted for precise multi‑camera control.

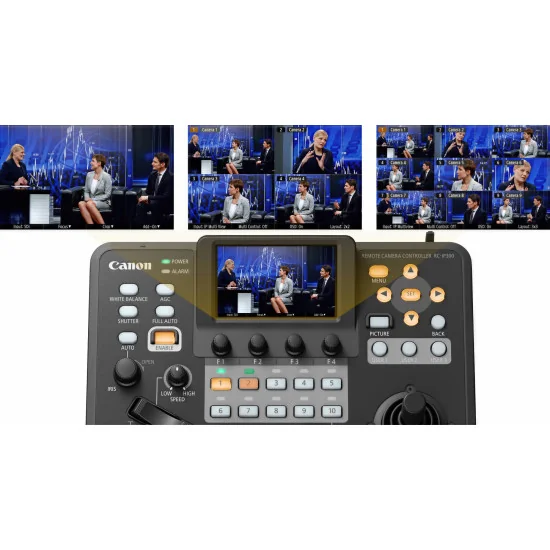

Ergonomic layout of buttons and dials, 3.5" touchscreen preview, IP video inputs, and Canon PTZ Auto Tracking support, keep control fast, familiar, and future‑ready.
| General | |
|---|---|
| Power Supply (Adapter) | DC12V |
| Power Supply (PoE) | Yes (PoE) |
| Exterior Dimensions | W 255mm x H 93mm x D 180mm (excluding protrusions) |
| Weight | approx. 1.3 kg |
| Operating Temperature | 0°C - 40°C |
| Display | 3.5-inch touch panel |
| Supported Protocols | XC protocol (IP) NU protocol (Serial) Standard Communication (Serial) |
| Connection Specifications | |
| Number of Camera Groups | 20 (10 units per 1 group) |
| Number of Connectible Cameras | 200 (IP), 1 (Serial) |
| Input / Output | |

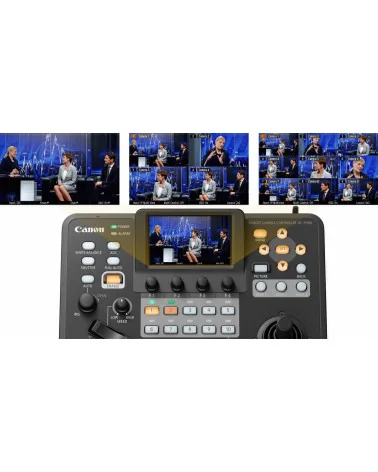

| Video Input / Output | IP IN (video switch with camera selection; 2x2/3x3 multi-camera video display) |
| Serial Interface | RJ45 x 1 |
| Tally / GPIO | D-sub 9pin x 1 |
| Video Display on Touch Panel | YES (IP) |
| USB | USB Type A x 1 (for firmware upgrades, saving settings, and Stream Deck connection) |
| Memory | |
| Presets | Up to 100 for each camera (depends on camera specs) |
| Hard Button Support for Presets | Yes (used with camera number buttons) |
| Memory Trace | Up to 10 for each camera (depends on camera specs) |
| Control Panel | |
| Menu Operation | Yes (touch panel or arrow button and SET/BACK buttons) |
| Number of User Buttons | 3 (USER1 to USER12 can be controlled from the touch panel) |
| Touch Focus from Panel | YES (IP) |
| Number of Camera Selectable Buttons | 10 (usable as preset select) |
| Other | |
| Initial Camera Settings without PC | YES |
| Simultaneous Multi-Camera Setup | YES |
