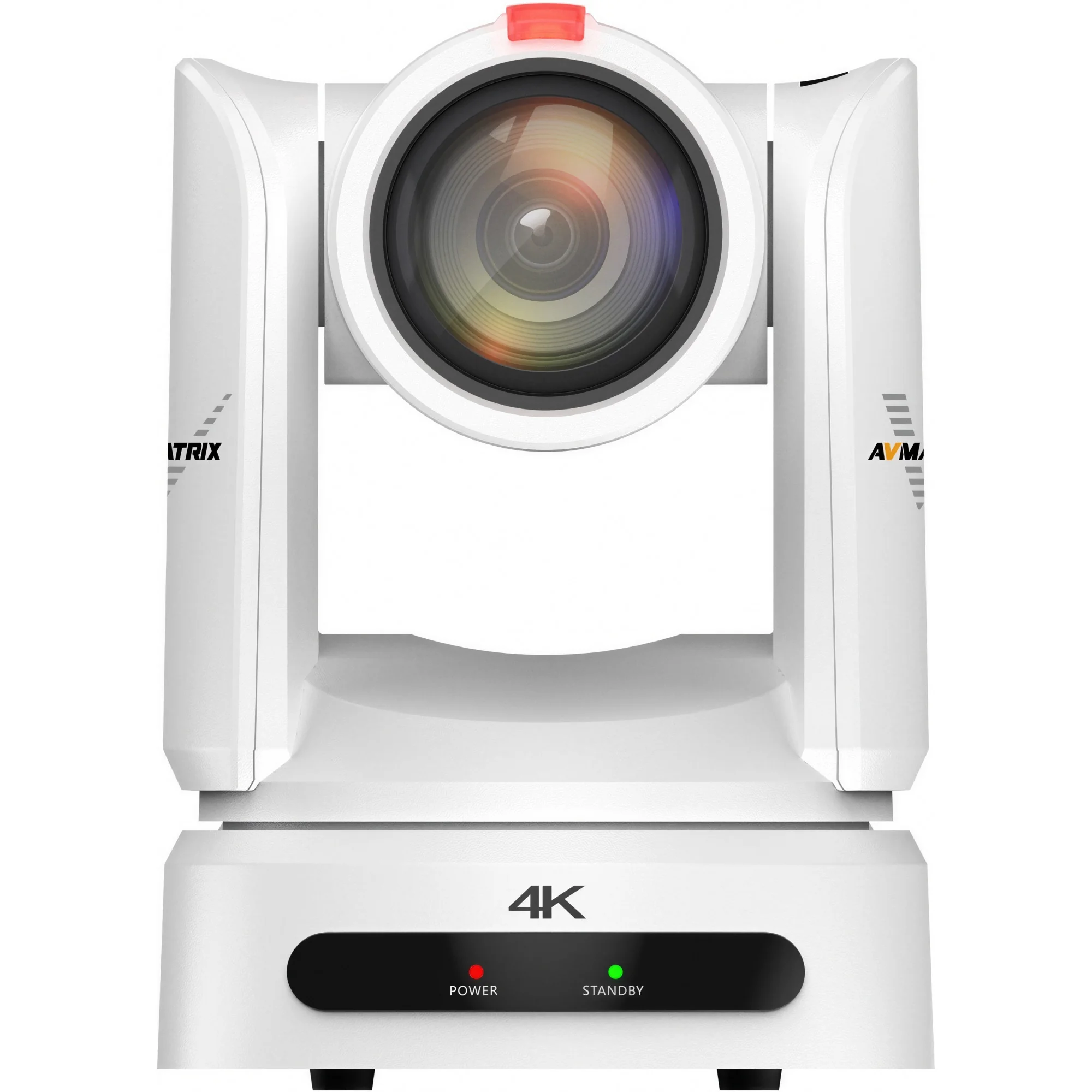

Finished in a clean white housing that blends into studio sets, church platforms and corporate rooms, the AVMATRIX EAGLE P30-12G-NDI-W brings a broadcast-grade 4K PTZ head to productions that need discreet presence and uncompromising image quality. At its core sits a 1/1.8" 8.3-megapixel CMOS sensor paired with a 30x optical zoom block (f=7.1–211.95 mm, F1.61–F5.19), backed by 12x digital extension for tight reaction shots without perceptible softening.
Picture output reaches UHD 2160p60 with full support for 2160p50/30/25, 1080p60/50/30/25, 1080i and 720p modes, giving operators a clean match against almost any existing studio standard. A low-light rating of 0.05 lux at F1.61, together with 2D/3D noise reduction, holds detail during evening services, black-box theatre and dim conference halls. Signal paths run in parallel: dual 12G-SDI, HDMI 2.0, USB 3.0 (UVC) and a 1 Gbps LAN carrying NDI|HX3, RTMP, RTSP, SRT and ONVIF — a combination that routes the same shot to a hardware switcher, a vision mixer, a laptop and a CDN at once.
The robotic U-type cradle drives smooth, quiet pan and tilt movements, with image-freeze during preset recalls so live cuts stay clean. Up to 255 positions can be stored over IP (10 via the bundled 360° IR remote), and FreeD metadata streams to AR/VR engines without external encoders — useful on virtual sets, esports desks and news studios running graphics overlays. Control arrives over VISCA, VISCA over IP, Pelco-D, Pelco-P and UVC, matching most joystick consoles and software switchers on the market.
Installation stays light: a single Cat6 run carries PoE power, control and NDI video, while the two-colour adjustable tally keeps talent informed across the floor. The EAGLE P30-12G-NDI-W suits multi-camera live switching, live-event relay, house-of-worship streaming, lecture capture, sports coverage and hybrid town-halls where a white finish sits more naturally than matte black.
Finished in a clean white housing that blends into studio sets, church platforms and corporate rooms, the AVMATRIX EAGLE P30-12G-NDI-W brings a broadcast-grade 4K PTZ head to productions that need discreet presence and uncompromising image quality. At its core sits a 1/1.8" 8.3-megapixel CMOS sensor paired with a 30x optical zoom block (f=7.1–211.95 mm, F1.61–F5.19), backed by 12x digital extension for tight reaction shots without perceptible softening.
Picture output reaches UHD 2160p60 with full support for 2160p50/30/25, 1080p60/50/30/25, 1080i and 720p modes, giving operators a clean match against almost any existing studio standard. A low-light rating of 0.05 lux at F1.61, together with 2D/3D noise reduction, holds detail during evening services, black-box theatre and dim conference halls. Signal paths run in parallel: dual 12G-SDI, HDMI 2.0, USB 3.0 (UVC) and a 1 Gbps LAN carrying NDI|HX3, RTMP, RTSP, SRT and ONVIF — a combination that routes the same shot to a hardware switcher, a vision mixer, a laptop and a CDN at once.
The robotic U-type cradle drives smooth, quiet pan and tilt movements, with image-freeze during preset recalls so live cuts stay clean. Up to 255 positions can be stored over IP (10 via the bundled 360° IR remote), and FreeD metadata streams to AR/VR engines without external encoders — useful on virtual sets, esports desks and news studios running graphics overlays. Control arrives over VISCA, VISCA over IP, Pelco-D, Pelco-P and UVC, matching most joystick consoles and software switchers on the market.
Installation stays light: a single Cat6 run carries PoE power, control and NDI video, while the two-colour adjustable tally keeps talent informed across the floor. The EAGLE P30-12G-NDI-W suits multi-camera live switching, live-event relay, house-of-worship streaming, lecture capture, sports coverage and hybrid town-halls where a white finish sits more naturally than matte black.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
EAGLE P20/P30 Series
EAGLE P20/P30 adopts a new ROBOTIC concept appearance & U Type design, more stable and more smoothly in Pan/Tilt move. It will provide users with Real 4K@60 ultra-high-definition video experience with More Really, More Colorful, More Clear.
Equipped with 1/1.8” New Generation Sony 4K High quality Sensor, with 20X/30X multiple Optical Zoom lenses, and abundant Video interface; Support USB3.0、HDMI2.0 and Dual 12G-SDI Video output, and it can support NDI/HX3, which can give User give users the option to join Ultra HD broadcast workflows or transmit low latency UHD video over IP networks; SRT & FreeD Protocol also will be help user in AR/VR filed. And Built-in VISCA/Visca Over IP/ PELCO P/D/ ONVIF communication Protocol to to seamlessly integrate system control applications,
It can be widely used in Broadcast studios, Education recording, Conferences AV, Telemedicine, Remote training, Court trial systems, Emergency command systems, and Sports & Events Streaming.
4K Ultra-High-Definition ultimate picture quality, More Really, More Colorful, More clear
EAGLE P20/P30 Adopt 8.3 Megapixels Sony high quality 4K CMOS sensor, can reach maximum 3840x2160 resolutions and output frame rate up to 60fp &59.94.
20/30X optical zoom lens to capture every detail of what you need
Equipped with a 1/1.8" new generation SONY sensor, a variety of optical zoom lenses such as 20x and 30x can be selected. with Fast zoom and focus capabilities to provide clear and smooth images for user.
Abundant Interface, Max support Dual 12G-SDI video synchronous Video output
Support HDMI 2.0 HD，2*12G-SDI and IP Streaming/NDI output, USB3.0 uncompressed UVC output, optional SDVoE uncompressed network output, and all HDMI, SDI, IP, USB, SDVoE interfaces can synchronous output 4K60 images, Especial UHD800 Dual SDI Video Output design.Multi-channel SDI signal output can be realized without SDI distributor.
Live VR/AR video production
EAGLE P20/P30 supports the FreeD protocol. This enables users to work with Virtual Reality and Augmented Reality sets without the need for additional sensors.
Support multiple communication ways in remote control
EAGLE P20/P30 Built-in Multiple Communication Protocol of VISCA/UDP/ONVIF/PELCO/P, PELCO D/UVC. it can support Communition Control by RS485/RS422/RS232/USB3.0/ IP interface.
More stable and More smoothly & Ultra-silent in Pan/Tilt move
Using high-precision stepping motor with "U" Type Structure design in our Ultra-unique silent Drive, More stable and More smoothly in Pan/Tilt move, Ultra-silent.
Supports the preset freeze function, scene switching
The camera supports the preset freeze function. Users can enable this function and use the preset function to realize free switching of scenes.
Max Support 255 Presets
The camera can setting & call Presets max to 255 presets. (The Remote controller max support 10 Presets), You can freely switch the image at will, even in complex scenes，Don't let you miss every important moment.
IP Streaming in your video production
Support ONVIF, RTSP, RTMP/s, NDI|HX3, SRT protocols, and can be expanded according to user needs.
Double Color Tally Light
The Tally light support 2 kinds of color Red & Green. and the brightness can be adjusted according to customize. Distributed in Front or Behind of Camera.
360° infrared remote control
Supports 360° infrared remote control, no matter what angle or position，the user can freely control the camera through Remote Controller.
Specifications
Model: EAGLE P30-12G
CMOS Sensor: 1/1.8” CMOS
Zoom: 30X
Effective Pixels: 8.3 Megapixels
Video Format: 2160P60/59.94, 2160P50, 2160P30/29.97, 2160P/25, 1080P60/59.94, 1080P50, 1080P30/29.97, 1080P25, 1080i60/59.94, 1080i50, 720P60/59.94, 720P50
Optical Zoom: 30x Optical Zoom, 12X Digital Zoom
Focal Length: f=7.1~211.95mm
HFOV: 2.5°(T) ~59.2°(W)
Iris: F1.61 ~ F5.19
Min Illumination: 0.05 lux (F1.61)
Digital Noise Reduction: 2D&3D Noise Reductio
White Balance: Manual/Auto/Indoor/outdoor/One Push//3000K/4000K/5000K/6500K/ATW
Focus mode: Manual/Auto/Z- Trigger
Iris mode: Manual/Auto
BLC: 1-8/OFF
Picture adjustment: Brightness, Hue, Saturation, Contrast, Sharpness

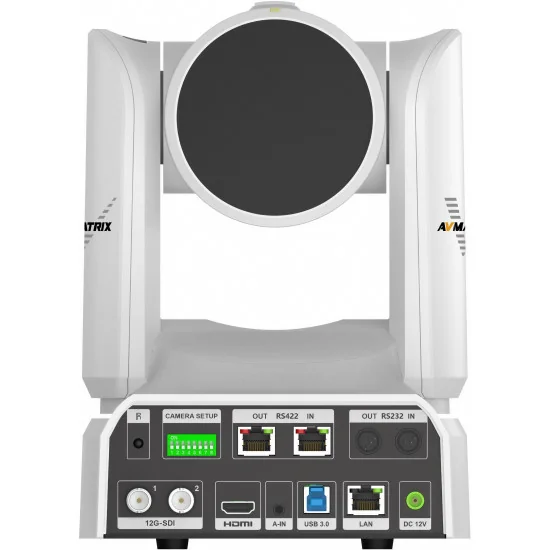

Video Output Interface: HDMI2.0, 12G-SDI*2, RJ45, USB3.0
Video Compression Format: H.264, H.265, MJPEG
Control interface: 1X RS232 IN, 1X RS232 Out, 1X RS422 IN, 1X RS422 Out , 1X RJ45
Control Protocol: VISCA /PELCO-D / PELCO-P, VISCA OVER IP, ONVIF, UVC（only for USB interface）
Baud Rate: 2400/4800/9600/19200/38400bps
Audio Input: Dual channel 3.5mm line input
Audio Compression: ACC, G711A, G711U
Network Interface: 1000M Internet Access(10/100BASE-TX)
Network Protocol: RTSP, RTMP, ONVIF, SRT, GB28181, VPN
NDI Protocol: NDI|HX3
Power Interface: DC-038 Outlet(DC12V)
Pan Rotation Anglee: -175°~+175°
Tilt Rotation Angle: -30°~+90°
Horizontal rotation speed range: 0.1~100°/s
Vertical rotation speed range: 0.1-80°/s
Presets: Max Support 255 Presets
Power Adapter: AC100V~AC240V Input, DC12V/2A Output
Input Voltage: DV12V
Power Consumption: 15W(MAX)
Storage Environment: -10°C ~ +60°C / 20% ~ 95%
Working Environment: -10°C ~ +50°C / 20% ~ 80%
