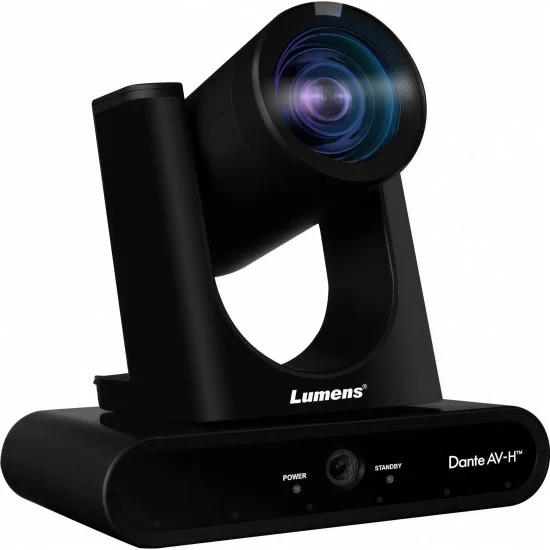

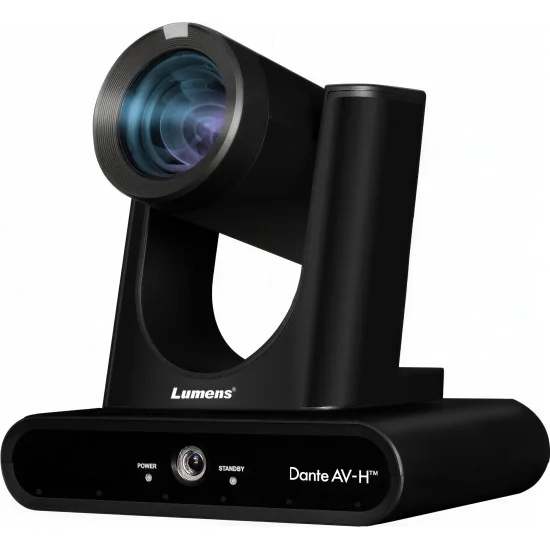

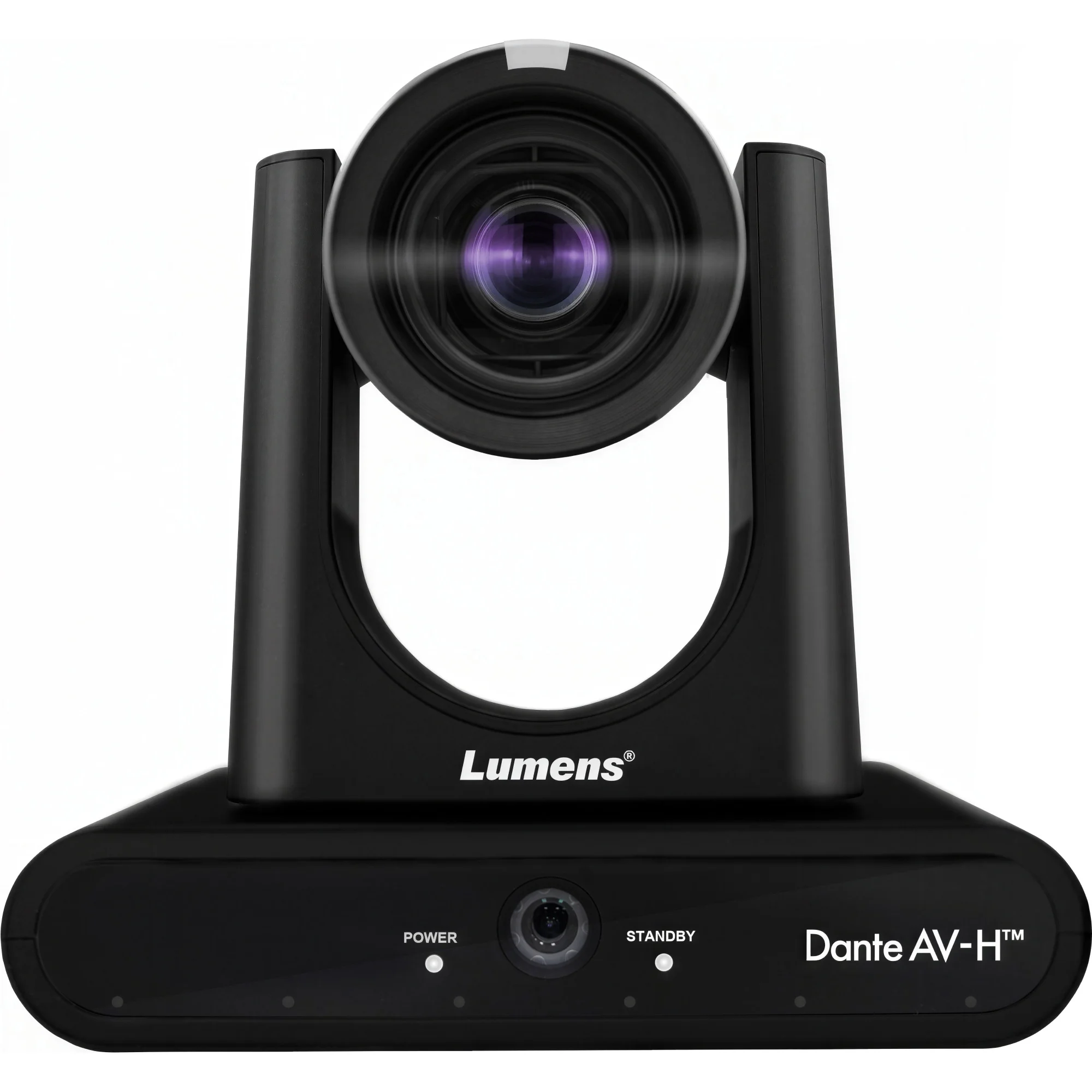

A single camera can cover both the room and the active speaker without forcing an operator to choose between context and detail. The Lumens VC-TR60A Dante AV-H-PB combines a 4K PTZ head with a fixed panoramic module, giving production teams a close shot and a wide reference from one position. The PTZ section uses a 1/2.8" 8.51 MP CMOS sensor, records up to 2160p60 and pairs an 81° horizontal view with 12x optical zoom plus 8x digital zoom. The panoramic lens also uses a 1/2.8" 8.51 MP sensor and covers 110° horizontal / 78° vertical, so presenters, tables and room layout remain visible even while the robotic head follows a speaker.
Speaker tracking is driven by integrated directional voice sensors, supported by a USB or line-in reference audio input to limit false reactions from remote participants. For presentations, panel discussions, lecture capture, training rooms and corporate studios, this matters: the camera can frame the person currently speaking, then re-frame as the conversation moves. Motion tracking and auto-framing add a second operating mode for presenters who walk, stand, sit or alternate between a screen and the audience.
For IP-centric installations, Dante AV-H sends video through a managed Dante environment and works with Dante Controller, Dante Domain Manager and Dante Director. HDMI, Ethernet and USB outputs can be used at the same time, with USB output up to 2160p30 and IP protocols including HTTP, RTSP, RTMP, RTMPS, SRT and Dante AV-H. PIP output can combine the panoramic image and the zoomed PTZ image over HDMI or USB, while dual IP streams let a media processor, capture system or live switcher receive a room view and a close camera angle from one device.
The camera is not only about automation. Exposure, gain, focus and white balance can be handled automatically or manually, with WDR, 3D noise reduction, image flip and a 0.5 lux low-light rating for less controlled rooms. VISCA and ONVIF control, RS-232, RS-422, Ethernet, USB, 256 presets and PoE+ installation give integrators the control depth needed for fixed AV rooms and repeatable live production. For B2B buyers, that means fewer camera positions, fewer cables and a more predictable capture setup for paid projects.
A single camera can cover both the room and the active speaker without forcing an operator to choose between context and detail. The Lumens VC-TR60A Dante AV-H-PB combines a 4K PTZ head with a fixed panoramic module, giving production teams a close shot and a wide reference from one position. The PTZ section uses a 1/2.8" 8.51 MP CMOS sensor, records up to 2160p60 and pairs an 81° horizontal view with 12x optical zoom plus 8x digital zoom. The panoramic lens also uses a 1/2.8" 8.51 MP sensor and covers 110° horizontal / 78° vertical, so presenters, tables and room layout remain visible even while the robotic head follows a speaker.
Speaker tracking is driven by integrated directional voice sensors, supported by a USB or line-in reference audio input to limit false reactions from remote participants. For presentations, panel discussions, lecture capture, training rooms and corporate studios, this matters: the camera can frame the person currently speaking, then re-frame as the conversation moves. Motion tracking and auto-framing add a second operating mode for presenters who walk, stand, sit or alternate between a screen and the audience.
For IP-centric installations, Dante AV-H sends video through a managed Dante environment and works with Dante Controller, Dante Domain Manager and Dante Director. HDMI, Ethernet and USB outputs can be used at the same time, with USB output up to 2160p30 and IP protocols including HTTP, RTSP, RTMP, RTMPS, SRT and Dante AV-H. PIP output can combine the panoramic image and the zoomed PTZ image over HDMI or USB, while dual IP streams let a media processor, capture system or live switcher receive a room view and a close camera angle from one device.
The camera is not only about automation. Exposure, gain, focus and white balance can be handled automatically or manually, with WDR, 3D noise reduction, image flip and a 0.5 lux low-light rating for less controlled rooms. VISCA and ONVIF control, RS-232, RS-422, Ethernet, USB, 256 presets and PoE+ installation give integrators the control depth needed for fixed AV rooms and repeatable live production. For B2B buyers, that means fewer camera positions, fewer cables and a more predictable capture setup for paid projects.
We ship across the EU for €20, free over €1,000.
B2B sales only, prices excl. VAT.
Official EU distribution and warranty.
Secure online payments via Stripe.
Send your enquiry via the form or email avgear@avgear.shop
Dante AV-H Video Streaming
VC-TR60A Dante AV-H uses popular streaming formats including Dante AV-H to deliver high quality, low latency video over IP networks. Dante AV-H is compatible with Dante Controller, Dante Domain Manager and Dante Director, allowing the camera’s video stream to be routed, controlled and secured, using familiar applications.
Intelligent Speaker Tracking
VC-TR60A incorporates an array of directional sound sensors that detect the location of active human voices. The camera head moves and zooms to shoot the current speaker, re-framing as other voices enter the discussion. VC-TR60A supports a reference audio input (USB or line in). This eliminates remote side audio interference, ensuring precise and reliable speaker tracking of speakers within the room.
AI Motion Tracking
VC-TR60A features sophisticated auto-tracking and framing modes. Its intelligent human detection algorithms deliver smooth tracking for conferences, presentations, meeting rooms, classrooms and studios.
PIP Output
VC-TR60A can combine the two video images in a picture-in-picture display with output over HDMI and USB. This allows the audience to watch a composite video that incorporates both the wide-angle view and the tight shot. This function can be activated independently, or at the same time as running motion or speaker tracking.
Dual Video Output
VC-TR60A generates two video streams from its panoramic fixed camera and the robotic zoom head. These can be delivered over IP into a media processor, IP-based production software or a lecture capture system to provide two camera angles from a single unit.
USB Audio Reference Line In
Attach a USB speakerphone directly to the VC-TR60A for single cable connection to your MTR or laptop. In speaker tracking mode, the camera's tracking algorithm will exclude sound produced by the speakerphone, ensuring that the VC-TR60A focuses only on individuals in the meeting space.
Specification:
PTZ Sensor: 1/2.8" CMOS 8.51M
PTZ Video Format: 2160p : 60 / 50
2160p : 30 / 25
1080p : 60 / 50 / 30 / 25
720p : 60 / 50 / 30 / 25
1080i : 60 / 50
Video Output (HD) Interface: HDMI / Ethernet / USB
Optical Zoom: 12x
Digital Zoom: 8x
PTZ Horizontal Viewing Angle: 81°
PTZ Vertical Viewing Angle: 50.5°
Diagonal Viewing Angle: 88.9°
PTZ Aperture: F1.8 ~ F3.6
PTZ Focal Length: 3.4 ~ 43.3 mm
Shutter Speed: 1/25 ~ 1/10,000 sec
Minimum Object Distance: Tele:1.5m / Wide:1m
Video S/N Ratio: > 50dB
Minimum Illumination: 0.5Lux (F1.8, AGC ON)
Focus System: Auto / Manual
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
PIP: Yes
Auto Tracking: Yes
Speaker Tracking: Yes
Auto Framing: Yes
Panoramic Sensor: 1/2.8" CMOS 8.51M
Panoramic Video Format: 2160p：30 / 25 , 1080p：60 / 50 / 30 / 25
Panoramic Horizontal Viewing Angle: 110°
Panoramic Vertical Viewing Angle: 78°
Panoramic Aperture: F2.0
Panoramic Focal Length: f=1.89mm
Panning Angle: +170° ~ -170°
Panning Speed: 0.1°~100°/sec
Tilting Angle: +90° ~ -30°
Tilting Speed: 0.1°/s ~ 60°/sec
Preset Positions: 256
HDMI: PTZ : 2160p 60 , Panoramic : 2160p 30
IP Stream
PTZ : Dante AV-H：2160p 30 , RTSP：2160p 30 / 720p 30
Panoramic : RTSP：1080p 60
IP Compression: H.264
USB Output: 2160p 30
USB Compression: H.264 / MJPEG / NV12
IP Protocol: HTTP / RTSP / RTMP / RTMPS / SRT / Dante AV-H
PoE: PoE+ (IEEE802.3at)
Audio Input: Line In
Ref Audio Input: USB / Line In
Audio Output: Ethernet / USB / HDMI / Dante
Audio Compression Format: AAC / PCM

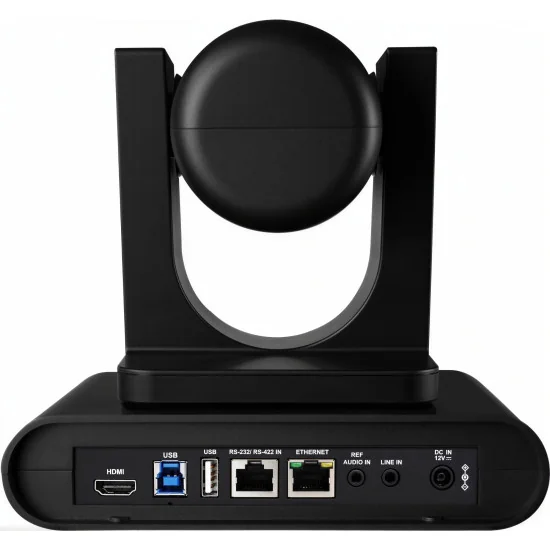

Interface: RS-232 / RS-422 / Ethernet / USB
Protocol: VISCA / ONVIF
UVC: Yes
UAC: Yes
DC In: 12V +/- 20%
Power Consumption: PoE: 15W
DC In: 14W
Body Color: Black / White
Weight: 1.5 kg
Dimension (WxHxD): 190 ×185 ×144 mm
