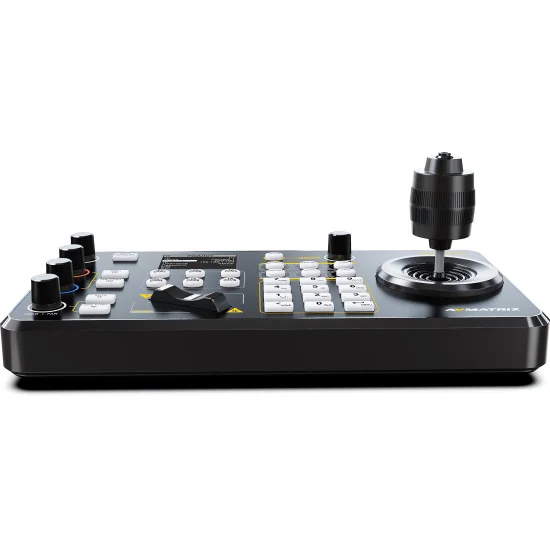

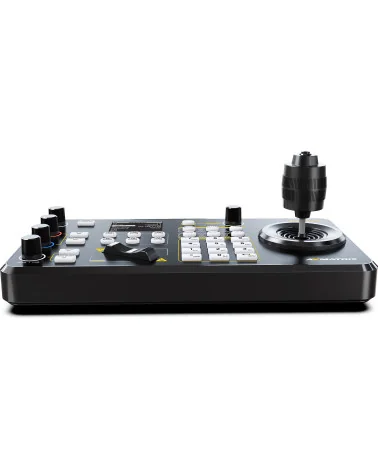

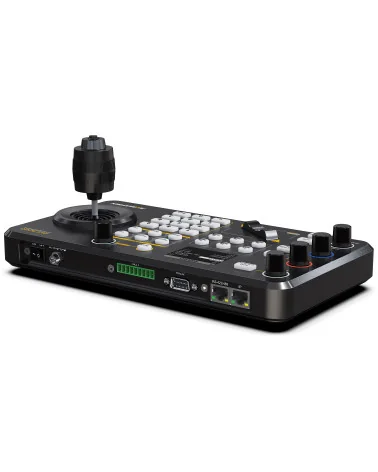

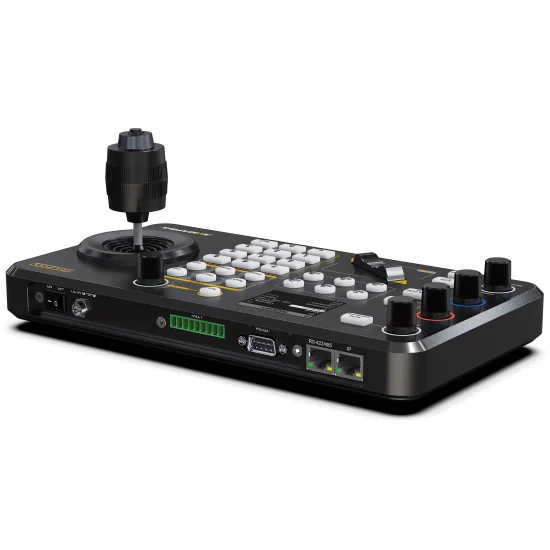

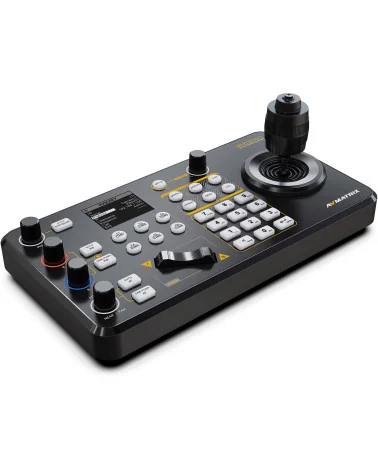

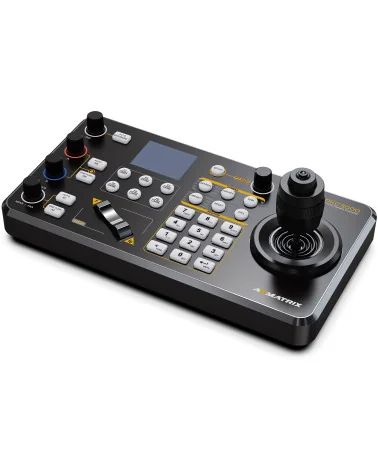

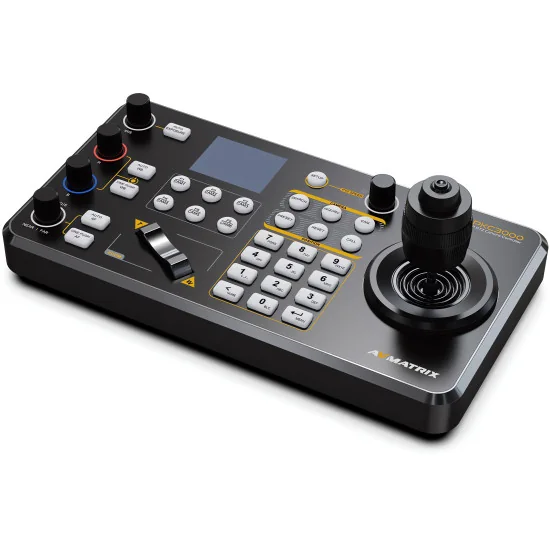

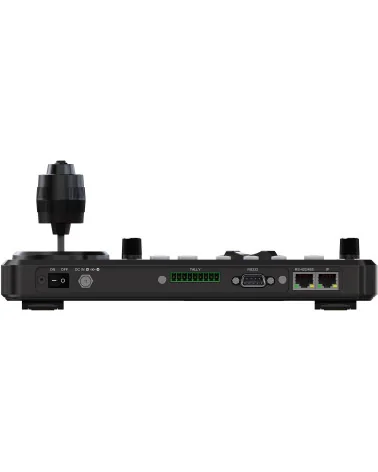

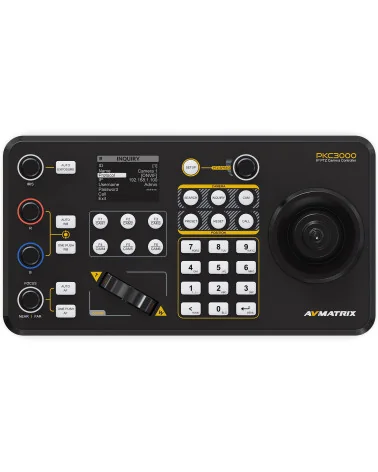

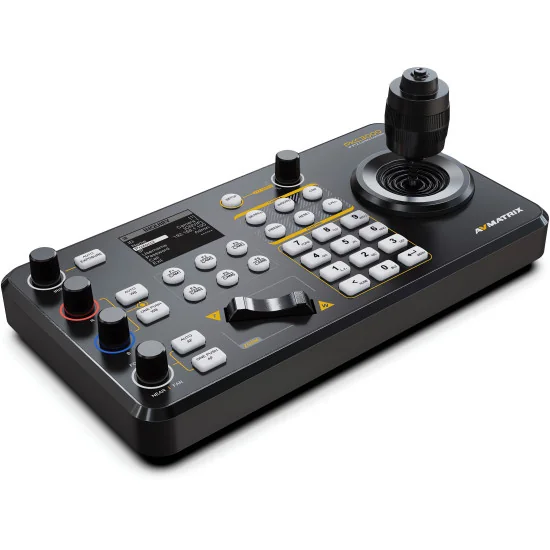

AVMATRIX PKC3000 PTZ Camera Controller
PKC3000
Price: €519.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Operating a multi-camera PTZ setup during a live broadcast, a church service, or a corporate conference demands precision — and the AVMATRIX PKC3000 delivers exactly that. This PTZ camera joystick controller bridges IP and serial camera ecosystems by supporting VISCA, VISCA Over IP, VISCA-SONY, ONVIF, and Pelco P/D protocols simultaneously. Whether your facility runs cameras over RS-422, RS-485, RS-232, or a networked RJ45 IP connection, a single PKC3000 handles them all — up to 255 cameras on one network.
At the heart of the unit sits a 4D joystick that governs pan, tilt, zoom, and focus with variable-speed response, giving operators a proportional feel during camera movements. A dedicated rocker switch and seesaw lever provide additional zoom control that many operators prefer during slow, cinematic pushes or fast snap zooms on live sports coverage. Five rotation knobs offer direct adjustment of iris, shutter speed, white balance, exposure compensation, and focus — no menu diving required.
Six camera shortcut keys let operators switch between feeds instantly, while six user-assignable function keys can be mapped to frequently used commands. The PKC3000 stores up to 255 preset positions, allowing rapid recall of pre-programmed camera angles — a significant time-saver during multi-camera productions where repeatable framing matters. A 2.2-inch LCD displays status information, and multi-colour key illumination provides clear visual feedback about which camera is active.
The AVMATRIX PKC3000 automatically scans the network for available IP PTZ cameras and simplifies address assignment, speeding up installation in temporary broadcast setups or touring productions. A tally GPIO output via a 9-pin connector signals which camera is currently live — practical when integrating with a video switcher. Powered by PoE or DC 12 V at just 5 W, the controller keeps cable runs simple. Its metal housing withstands on-location demands, and an operating range of −20 °C to 60 °C ensures reliability in outdoor broadcast environments, unheated venues, and climate-controlled studios. Configurable serial baud rates from 2 400 to 38 400 bps guarantee compatibility with virtually every PTZ camera on the market.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Main Features
- Cross protocol mix-control with IP/ RS-422/ RS-485/ RS-232
- Control protocol by VISCA, VISCA-Over-IP, VISCA-SONY, Onvif and Pelco P&D
- Control up to total of 255 IP cameras on a single network
- 6 camera quick call up keys, and 6 user-assignable keys to quickly invoke shortcut functions
- Quick control of exposure, shutter speed, iris, white balance, focus, pan/tilt speed, zoom speed
- Tactile feel with professional rocker/seesaw switch for zoom control
- Automatically search available IP cameras in a network and assign IP addresses easily
- Multi-color key illumination indicator directs operation to specific functions
- Tally GPIO output for indicating the camera be currently controlled
- Metal housing with 2.2 inch LCD display, 4D joystick, 5 rotation button
PKC3000 is a professional PTZ camera controller that supports RS-422 / RS-485 / RS-232 / IP control, connects up to 255 cameras, provides the ability to control aperture, focus, white balance, exposure, and real-time speed control, and provides more refined camera settings in controlling PTZ cameras, widely used in education, conference, remote medical, medical services and many other industry sectors.
Specification
CONNECTIONS

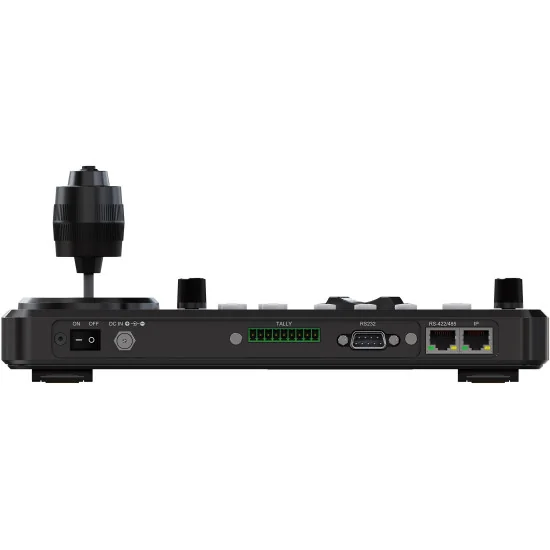

Interfaces: IP(RJ45), RS-232, RS-485/RS-422
Control Protocol: IP Protocol: ONVIF, VISCA Over IP, VISCA-SONY , Serial Protocol: PELCO-D, PELCO-P, VISCA
Serial Baud Rate: 2400, 4800, 9600, 19200, 38400 bps
USER INTERFACES
Display: 2.2 inch LCD
Joystick: 4D joystick (Pan/Tilt/Zoom/Lock)
Camera shortcut: 6 channel
Keyboard: User-assignable keys ×6, Rotation button ×5, Rocker ×1,Seesaw ×1
Camera Address: Up to 255
Preset: Up to 255 , Note: 95 preset bit part of the camera for menu call out
POWER
Power: PoE/ DC 12V
Power Consumption: PoE: 5W, DC: 5W
ENVIRONMENT
Working Temperature: -20℃~60℃
Storage Temperature: -40℃~80℃
DIMENSION
Dimension (LWD): 270mm(L)×145mm(W)×29.5mm(H)
Weight: 1181g
PKC3000
2 Items
Data sheet
- Interface
- Ethernet
- Control protocol for PTZ cameras
- ONVIF
PELCO-D
PELCO-P
RS-232
RS-422
RS-485
VISCA
VISCA IP - Network Connection
- Ethernet
- Device type
- PTZ Camera Controller
- Tally Light
- Yes
Specific References
- ean13
- 6971118001491
- mpn
- PKC3000
