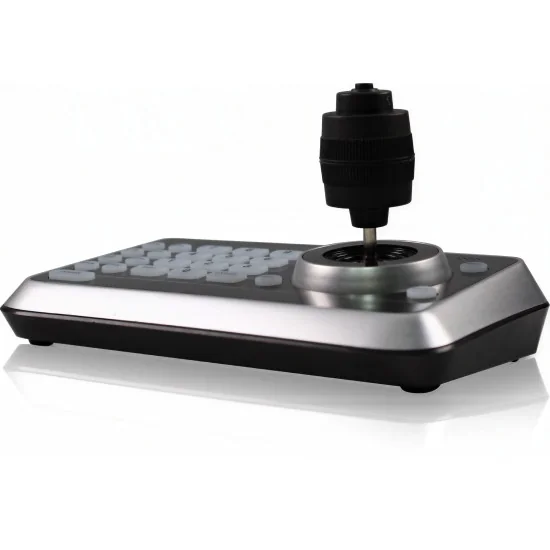

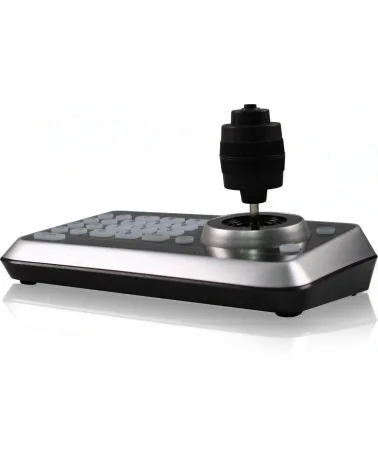

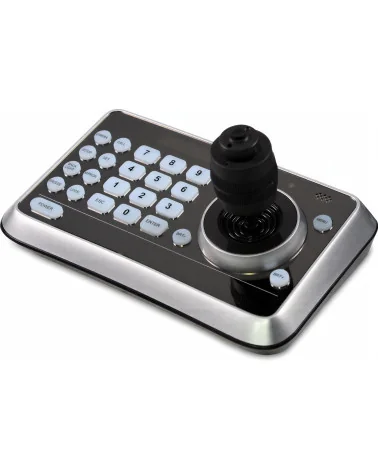

Lumens VS-K20 Serial PTZ Camera Controller

Operators running multi-camera productions know that switching angles in real time leaves no room for fiddly menus or laggy controls. The Lumens VS-K20 sits squarely in that pressure zone, offering a tactile serial controller that drives up to seven PTZ cameras from a single panel. Both VISCA and PELCO-D protocols are spoken natively, so a rig mixing different camera brands can still be steered from one tidy keyboard rather than juggling separate units across the gallery.

Long cable spans across a theatre, lecture hall or outside-broadcast vehicle are handled through the RS-232 and RS-422 serial interfaces, with a Mini-DIN 8-pin connection running at selectable 9600 or 38400 bps. The four-axis joystick takes care of pan, tilt, zoom and focus through one fluid grip — twist for zoom, nudge for framing, push into focus mode when a critical pull is needed. Movement speed and sensitivity can be tuned manually, letting an operator hold a slow architectural reveal one moment and chase a fast-moving subject the next without changing hands.

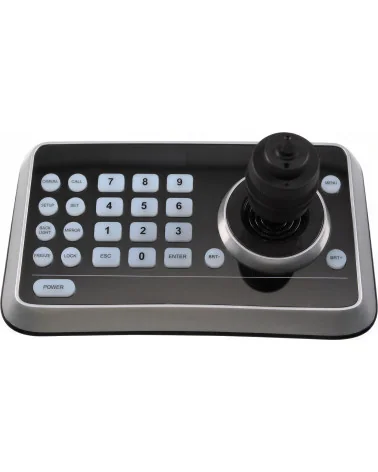

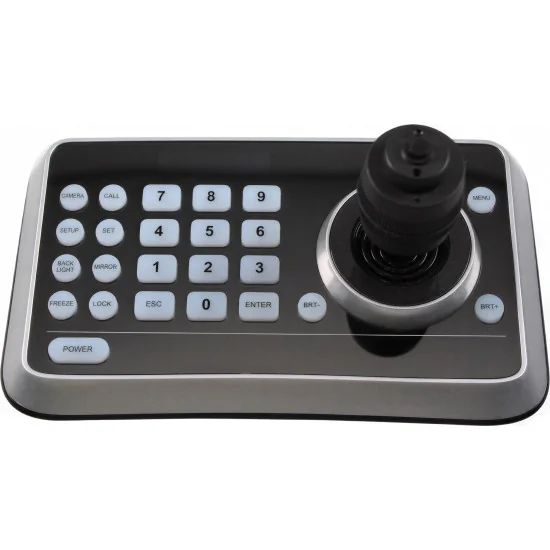

Camera addressing spans the full 1 to 255 range, with VISCA covering IDs 1–7 and PELCO-D handling the wider count for larger installations; batch programming saves hours when a venue is provisioning a whole roster of heads at once. Daily duties are mapped to dedicated keys — preset call, image flip, mirror, freeze, back-light compensation and zoom angle — while a crisp OLED display reports camera ID, status and menu information at a glance. Auto-sensing backlit keys stay legible in a dim control room, and multi-level protection with separate user and administrator PIN codes prevents accidental tampering during a live show.

Compact enough to travel between venues yet substantial enough for a permanent rack-side post, the Lumens VS-K20 draws only DC 12 V at under 2 W, so it slots into ENG flypacks, fixed broadcast galleries and corporate AV control rooms without straining a power loom. Production teams handling sports, concerts, lecture capture, court reporting and corporate streaming gain a serial-control hub that is quick to deploy, simple to train new staff on and dependable across long shifts — a piece of broadcast hardware that earns its place by quietly doing its job, shoot after shoot.
