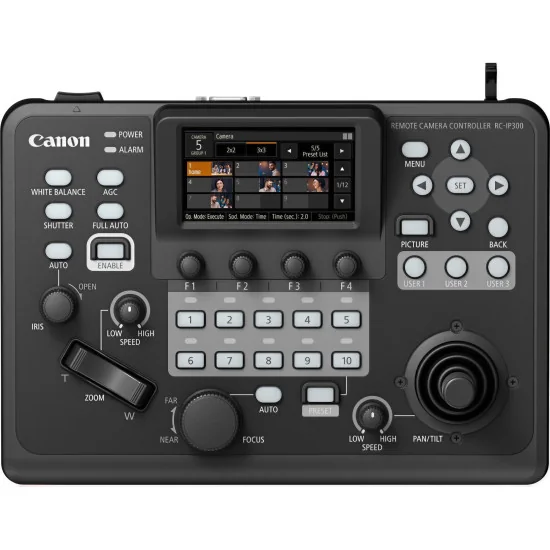

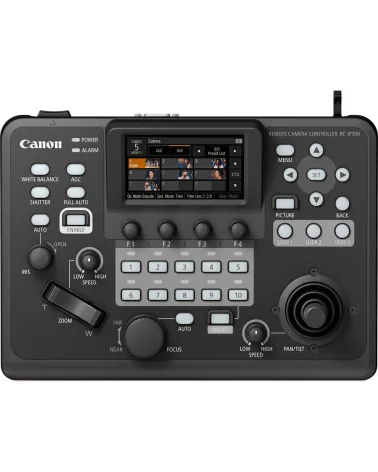

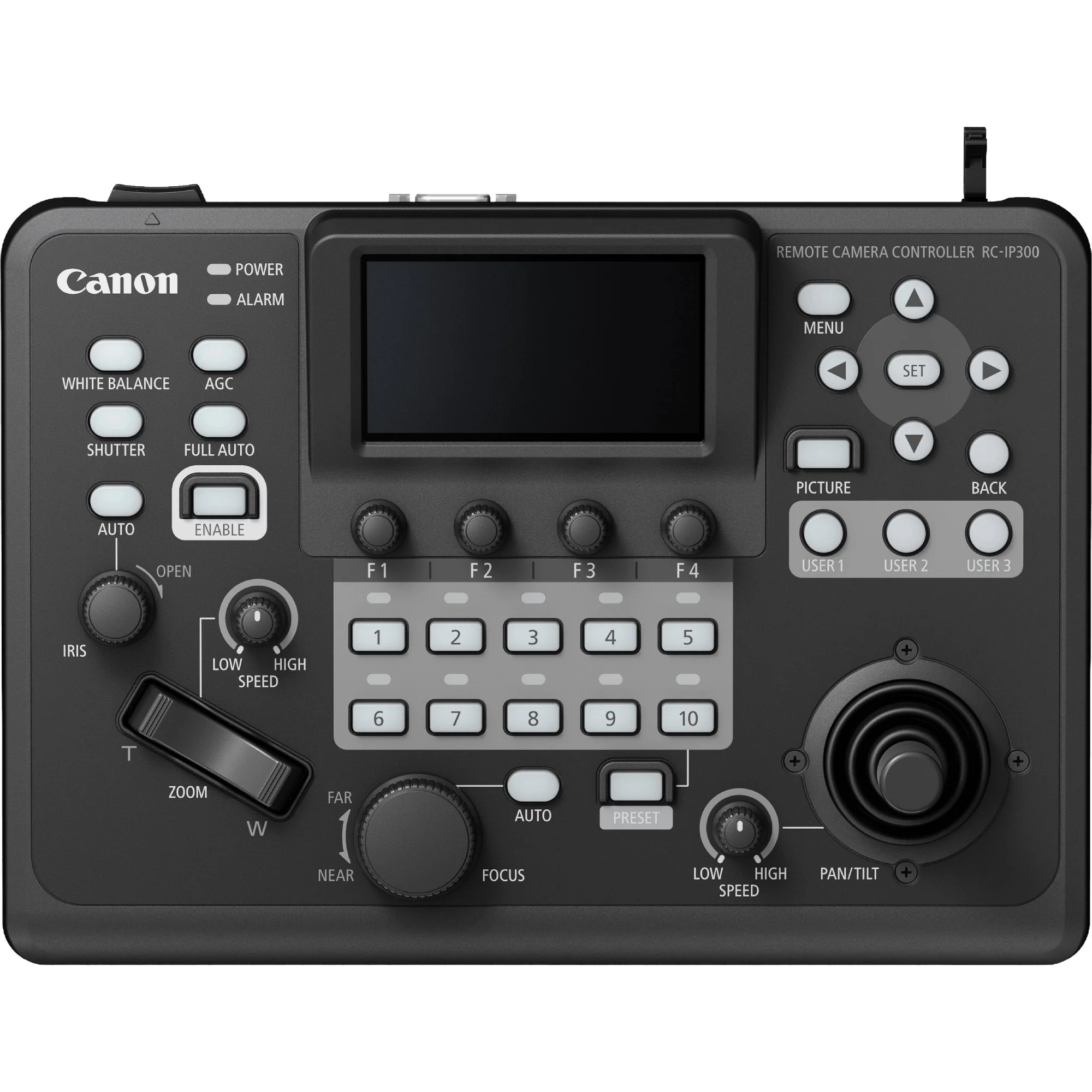

Canon RC-IP300 PTZ Controller
RC-IP300
Price: €1,879.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

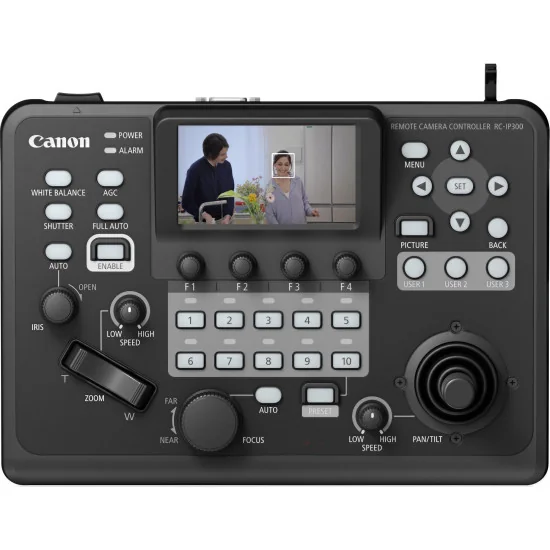

Production houses that have grown past the single-operator stage need a desk that scales with the camera count without complicating the gallery. The Canon RC-IP300 answers that brief: a hardware PTZ controller built around a 3.5-inch touchscreen, a joystick, a zoom rocker, a focus dial and a bank of mechanical knobs, giving studios one point of command for fleets reaching up to 200 cameras pushed over IP. Subject selection happens on the panel, while pan, tilt, zoom, focus, iris and their independent speed values stay under physical controls — the tactile response a live gallery still demands.
Compatibility runs across the full Canon remote-camera lineup: CR-N700, CR-N500, CR-N400, CR-N350, CR-N300, CR-N100, plus the CR-X500 and CR-X300 outdoor heads. The RC-IP300 also drives Cinema EOS bodies such as the EOS C400, C500 Mark II, C300 Mark III, C70, C80 and C50, alongside the XF605 camcorder. For each connected camera, up to 100 presets can be stored and recalled instantly, which smooths the rehearsal-to-broadcast handover during corporate AGMs, sports captures, theatre productions and conference streaming.
The rear panel sticks to IP-first broadcast logic. One RJ45 carries LAN and IP camera control, a second RJ45 handles RS-422, and a dedicated RJ45 video input feeds the on-board mosaic in 2x2 or 3x3 layouts, so a single operator can preview up to nine live camera feeds on the 3.5-inch touchscreen without a separate monitor wall. PoE keeps cabling tidy in fixed installations, the supplied 12 V adapter handles rack and OB-van scenarios, a DE-9 GPIO port routes tally to the switcher, and a USB-A connector covers configuration. Canon XC protocol over IP plus RS-422 support let the desk drop into existing infrastructures without protocol rewrites.
For studios planning around Canon's Multi-Camera Orchestration (MCO) software, the RC-IP300 is the natural hardware anchor: it pairs proven Canon reliability with PTZ Auto Tracking support, twelve user-assignable buttons, three hard buttons and four function keys for menu navigation. The result is a console rental crews and in-house production managers can deploy on tight schedules, with servicing, parts and protocol support backed by Canon's professional ecosystem.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop

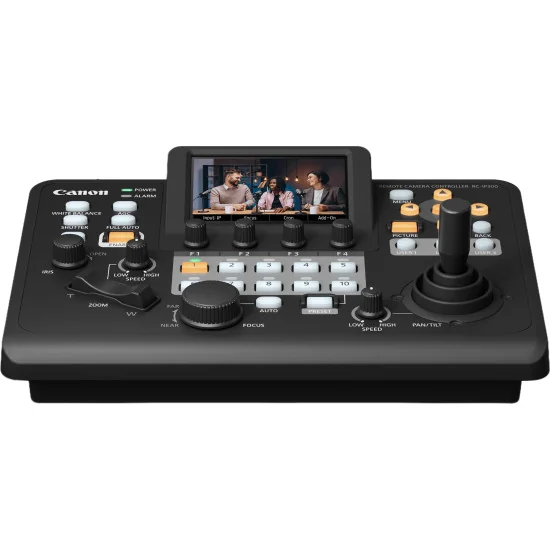

Crafted for precise multi‑camera control.
Ergonomic layout of buttons and dials, 3.5" touchscreen preview, IP video inputs, and Canon PTZ Auto Tracking support, keep control fast, familiar, and future‑ready.

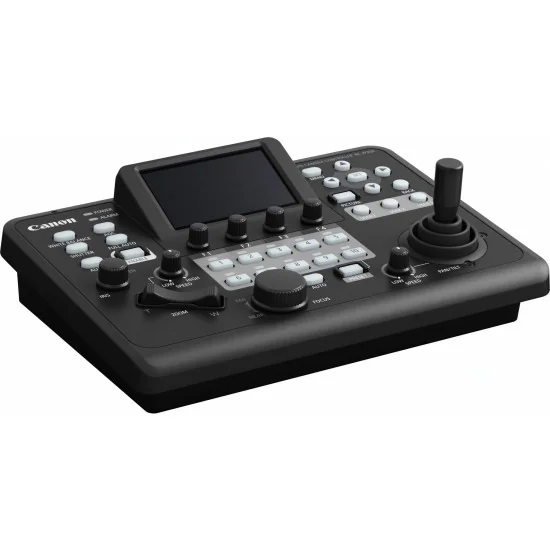

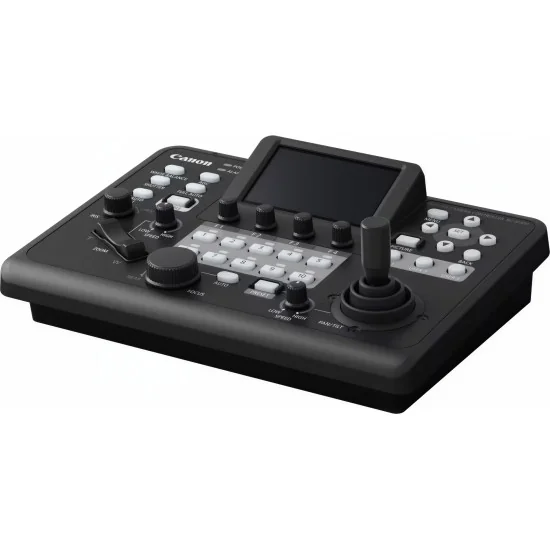

Compact design, desk‑friendly power
A space‑saving design, ideal for control room or auditorium while delivering pro‑grade performance and reliability. Simple cabling with PoE or included 12v power adapter.

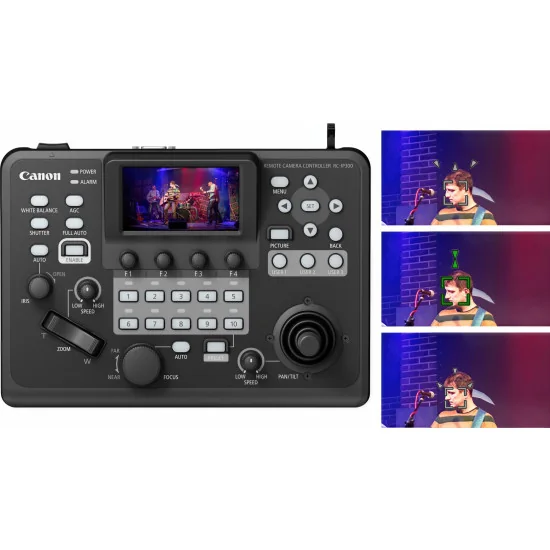

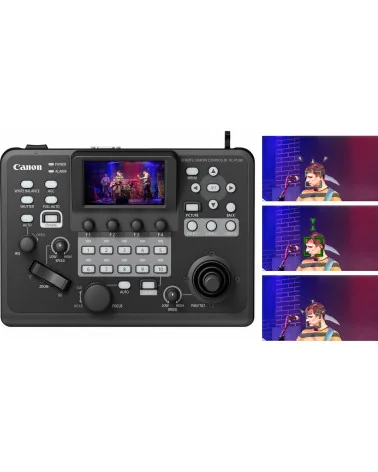

Auto Tracking App RA-AT001 Support
Auto Tracking Application RA-AT001. Unlock the potential to track one or more speakers with head/face detection as they move around the stage, automatically. Optimise production efficiency for lectures, corporate events, houses of worship, live performances and broadcast.

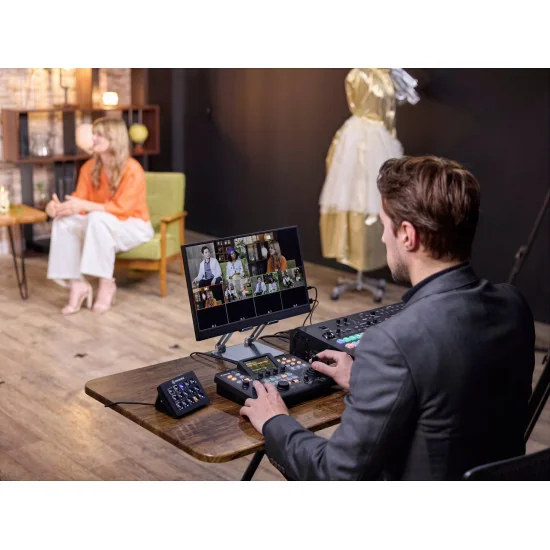

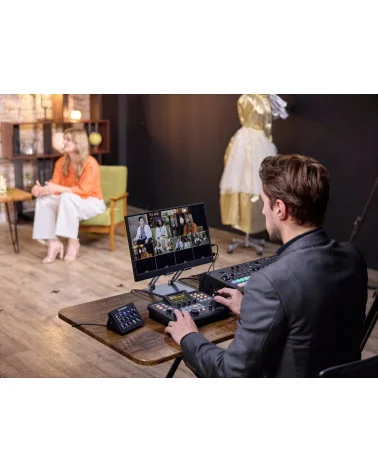

Built for single‑operator speed
Natural layout of joystick, touchscreen, plus camera and preset buttons enable one person to run complex, multi‑camera broadcasts with confidence and consistency.
Scale: 200 cameras, up to 100 presets each
Expand effortlessly: control up to 200 cameras in up to 20 groups, and store and recall up to 100 presets per camera for instant, repeatable, high‑quality results. Intial setup can be done without a pc.

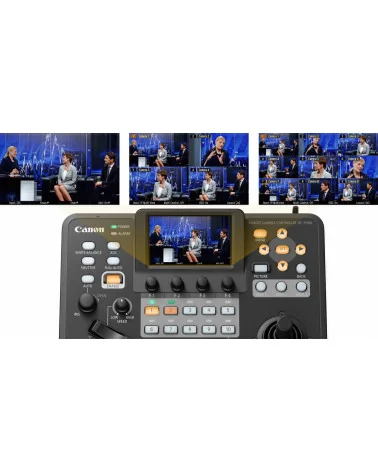

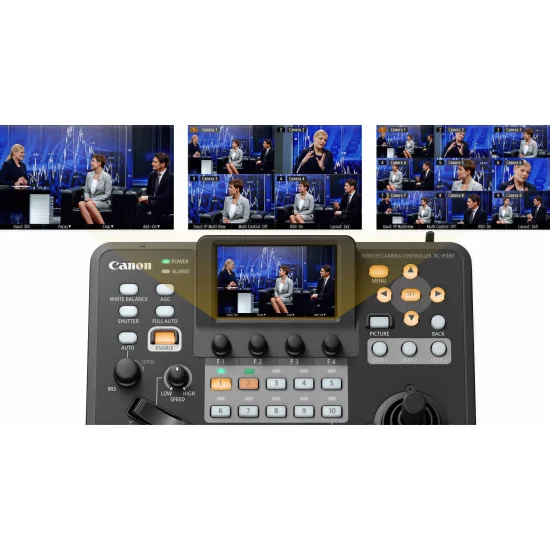

3.5" preview & video I/O

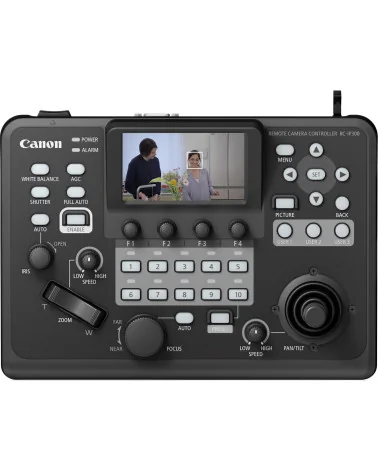

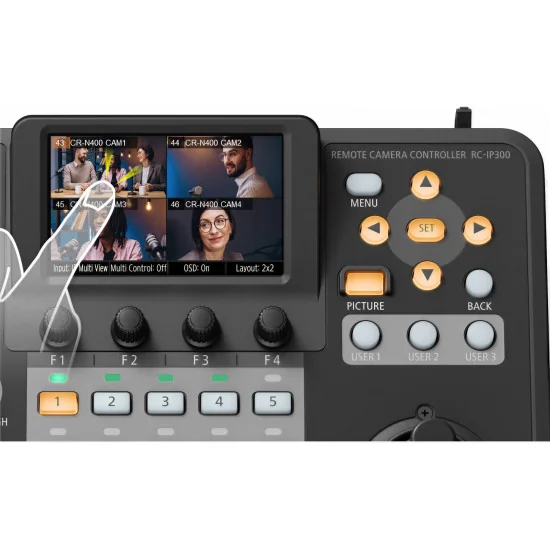

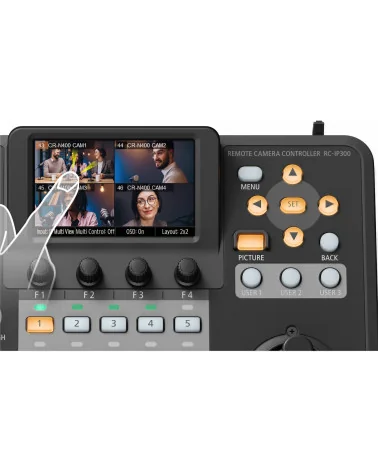

Monitor with a crisp 3.5" touchscreen video preview and streamline networks with IP video inputs. Supports Touch AF and Face Detection AF. Also supports PoE, GPIO D-sub 9 pin to link tally signal with switcher.
Canon apps & Stream Deck ready
Deep ecosystem support: works with Canon PTZ apps and integrates with Stream Deck for customisable, fast access control.
Control Canon’s imaging ecosystem
Canon’s XC Protocol delivers fast IP control of multiple Canon products through one interface, connecting PTZ cameras, Cinema EOS and camcorder models for smooth, unified operation.
Specifications:
| General | |
|---|---|
| Power Supply (Adapter) | DC12V |
| Power Supply (PoE) | Yes (PoE) |
| Exterior Dimensions | W 255mm x H 93mm x D 180mm (excluding protrusions) |
| Weight | approx. 1.3 kg |
| Operating Temperature | 0°C - 40°C |
| Display | 3.5-inch touch panel |
| Supported Protocols | XC protocol (IP) NU protocol (Serial) Standard Communication (Serial) |
| Connection Specifications | |
| Number of Camera Groups | 20 (10 units per 1 group) |
| Number of Connectible Cameras | 200 (IP), 1 (Serial) |
| Input / Output | |
| Video Input / Output | IP IN (video switch with camera selection; 2x2/3x3 multi-camera video display) |
| Serial Interface | RJ45 x 1 |
| Tally / GPIO | D-sub 9pin x 1 |
| Video Display on Touch Panel | YES (IP) |
| USB | USB Type A x 1 (for firmware upgrades, saving settings, and Stream Deck connection) |
| Memory | |
| Presets | Up to 100 for each camera (depends on camera specs) |
| Hard Button Support for Presets | Yes (used with camera number buttons) |
| Memory Trace | Up to 10 for each camera (depends on camera specs) |
| Control Panel | |
| Menu Operation | Yes (touch panel or arrow button and SET/BACK buttons) |
| Number of User Buttons | 3 (USER1 to USER12 can be controlled from the touch panel) |
| Touch Focus from Panel | YES (IP) |
| Number of Camera Selectable Buttons | 10 (usable as preset select) |
| Other | |
| Initial Camera Settings without PC | YES |
| Simultaneous Multi-Camera Setup | YES |
RC-IP300
1 Item
Data sheet
- Interface
- Ethernet
RS-422 - Control protocol for PTZ cameras
- Canon NU
Canon XC - Network Connection
- Ethernet
- Device type
- PTZ Camera Controller
- PoE Technology
- Yes
- Tally Light
- Yes
- Screen Size
- 3.5"
Specific References
- ean13
- 4549292263510
- mpn
- 7657C003
