AVMATRIX PKC4000-NDI gives one operator direct command of a multi-camera PTZ system without splitting control between software panels, browser tabs and separate keyboards. The 5-inch touch screen is paired with a 4D joystick, dedicated knobs and illuminated keys, so pan, tilt, zoom, focus, iris, shutter, gain, white balance and exposure can be adjusted from a single surface. In lecture capture rooms, corporate studios, conference systems, telemedicine suites and event control positions, that means faster reaction when framing, lighting or speaker movement changes.
This NDI PTZ camera controller works across IP and serial infrastructures. Verified protocol support includes NDI, ONVIF, VISCA, VISCA over IP, Pelco-P and Pelco-D, with control via RJ45, RS-232 and RS-422/RS-485. The controller can manage up to 100 IP cameras in 10 groups, and multiple retail and distribution sources also specify control of up to 7 serial cameras. That makes the PKC4000-NDI suitable for mixed PTZ systems in education, conferencing, streaming rooms and medical sites where operators need one control point.
Preset handling is built for repeatable camera positions during live operation. The controller stores up to 255 presets, includes quick preset recall, supports track recording and playback for repeated pan, tilt and zoom moves, and provides six user-assignable keys for often-used functions. Real-time preview on the integrated screen is available under supported network protocols, helping the operator verify movement and framing directly on the controller. Tally/GPIO integration is also present, which is useful when PTZ positions must follow preview and program logic inside a switcher-based production chain.
PoE support reduces local power cabling on a desk, in a rack drawer or inside a mobile flypack, while DC powering remains available for standalone control stations. For teams searching for a PTZ joystick controller, a professional PTZ controller, or an NDI camera control panel for streaming, conference AV or campus production, AVMATRIX PKC4000-NDI brings tactile camera operation, repeatable preset management and broad protocol compatibility into one compact control surface.

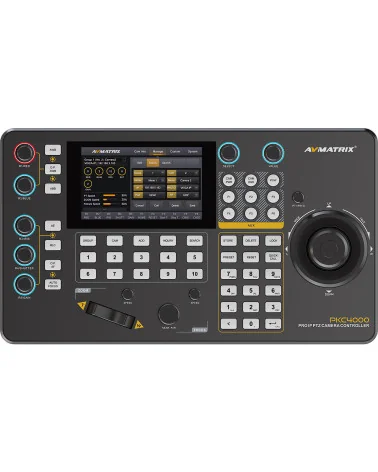

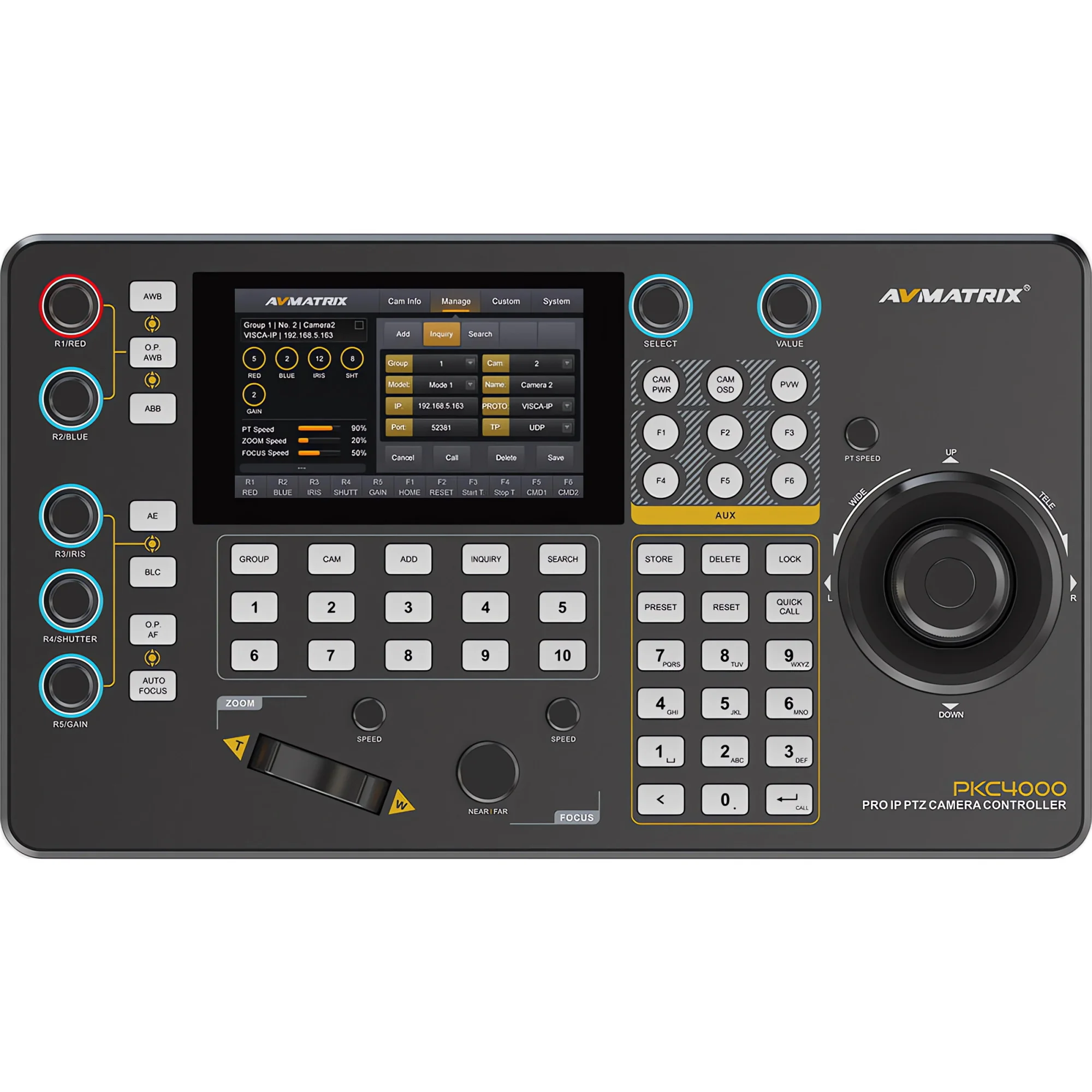

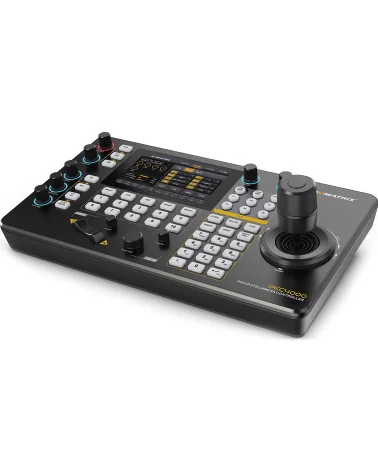

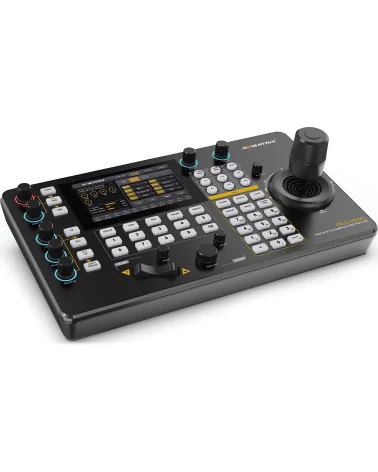

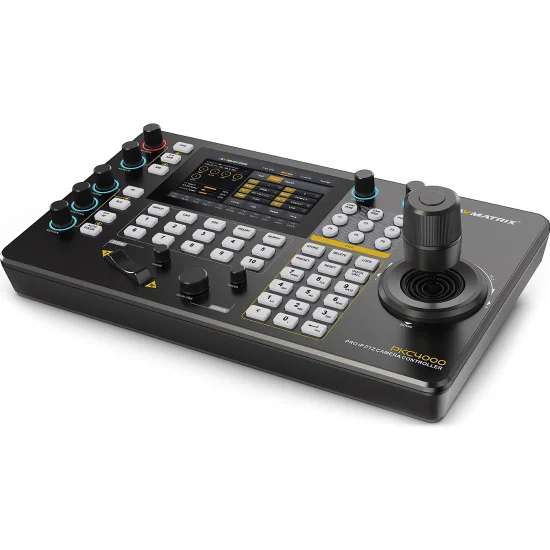

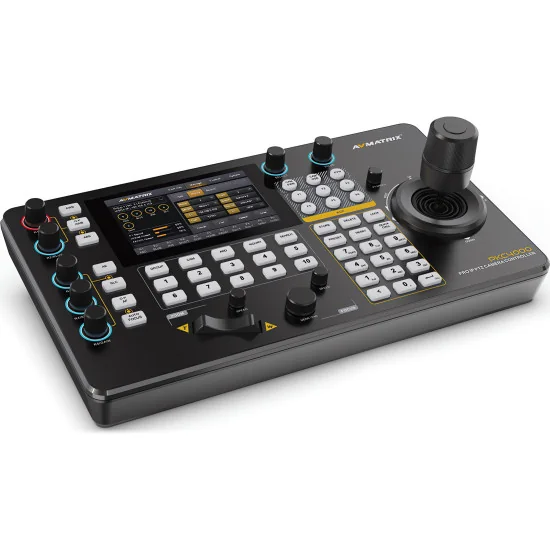

AVMATRIX PKC4000-NDI PTZ Camera Controller
PKC4000-NDI
Price: €599.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
AVMATRIX PKC4000-NDI gives one operator direct command of a multi-camera PTZ system without splitting control between software panels, browser tabs and separate keyboards. The 5-inch touch screen is paired with a 4D joystick, dedicated knobs and illuminated keys, so pan, tilt, zoom, focus, iris, shutter, gain, white balance and exposure can be adjusted from a single surface. In lecture capture rooms, corporate studios, conference systems, telemedicine suites and event control positions, that means faster reaction when framing, lighting or speaker movement changes.
This NDI PTZ camera controller works across IP and serial infrastructures. Verified protocol support includes NDI, ONVIF, VISCA, VISCA over IP, Pelco-P and Pelco-D, with control via RJ45, RS-232 and RS-422/RS-485. The controller can manage up to 100 IP cameras in 10 groups, and multiple retail and distribution sources also specify control of up to 7 serial cameras. That makes the PKC4000-NDI suitable for mixed PTZ systems in education, conferencing, streaming rooms and medical sites where operators need one control point.
Preset handling is built for repeatable camera positions during live operation. The controller stores up to 255 presets, includes quick preset recall, supports track recording and playback for repeated pan, tilt and zoom moves, and provides six user-assignable keys for often-used functions. Real-time preview on the integrated screen is available under supported network protocols, helping the operator verify movement and framing directly on the controller. Tally/GPIO integration is also present, which is useful when PTZ positions must follow preview and program logic inside a switcher-based production chain.
PoE support reduces local power cabling on a desk, in a rack drawer or inside a mobile flypack, while DC powering remains available for standalone control stations. For teams searching for a PTZ joystick controller, a professional PTZ controller, or an NDI camera control panel for streaming, conference AV or campus production, AVMATRIX PKC4000-NDI brings tactile camera operation, repeatable preset management and broad protocol compatibility into one compact control surface.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
AVMatrix PKC4000 is a PTZ camera controller with IP and serial interface, touch screen and joystick.
- Easy operation with 5" touch screen and 4D joystick
- Supports video decoding for real-time signal monitoring
- Supports Visca, Visca Over IP, Pelco P&D and Onvif protocols, NDI version also supports NDI|HX
- Control over IP, RS-422, RS-485 and RS-232
- Automatic IP address assignment for quick setup
- Manage up to 100 IP cameras on a single network
- Six user-assignable buttons for quick access to functions
- Quickly control exposure, aperture, focus, pan, tilt, etc.
- Supports PoE and external 12 V= power supply
The touchscreen installation camera controller offers easy and intuitive operation with a 5" touchscreen and 4D joystick. It supports Visca, Visca Over IP, Pelco P&D and Onvif protocols and allows control via IP, RS-422, RS-485 and RS-232 interfaces. With real-time video monitoring, automatic IP address assignment and management of up to 100 IP cameras, it ensures efficient PTZ camera operation. Support for video decoding enables real-time signal monitoring and provides users with live feedback for accurate setup. Automatic IP address assignment simplifies the setup process, while the controller's ability to manage up to 100 IP cameras on a single network makes it suitable for large-scale productions. In addition, the panel features six user-assignable buttons for quick access to basic functions and offers dedicated controls for adjusting exposure, aperture, focus, pan, tilt and more. The device can be powered via PoE or a 12V DC power supply, and an NDI version is available for those requiring advanced IP video workflows.
CONNECTIONS
Interfaces: IP(RJ45)×1, RS-232×1, RS-485/RS-422×4, TALLY×1, USB-C (For upgrade)
IP Protocol: ONVIF, VISCA-IP, NDI
Serial Protocol: PELCO-D, PELCO-P, VISCA
Serial Baud Rate: 2400, 4800, 9600, 19200, 38400, 115200 bps
LAN Port: 100M×1 (PoE/PoE+: IEEE802.3 af/at)
USER INTERFACES
Display: 5 Inch Touch Screen
Joystick: Pan/Tilt/Zoom
Knob: Quickly control iris, shutter speed, gain, auto exposure, white balance, etc
Camera Group: 10 (Each group connect up to 10 cameras)
Camera Address: Up to 100
Camera Preset: Up to 255
POWER
Power: PoE+ / DC 7~24V
Power Consumption: PoE+: < 8W, DC: < 8W
ENVIRONMENT
Working Temperature: -20°C~60°C
Storage Temperature: -20°C~70°C
DIMENSION
Dimension(LWD): 340mm×195mm×49.5mm, 340mm×195mm×110.2mm (With joystick)
Weight: 1730g
PKC4000-NDI
1 Item
Data sheet
- Interface
- Ethernet
- Control protocol for PTZ cameras
- NDI
ONVIF
PELCO-D
PELCO-P
RS-232
RS-422
RS-485
VISCA
VISCA IP - Network Connection
- Ethernet
- Device type
- PTZ Camera Controller
- Tally Light
- Yes
Specific References
- ean13
- 6971118002863
- mpn
- PKC4000-NDI
