Hollyland Wireless Tally System 4 Lights | Wireless Multi-Camera Tally System 4 Lamps kit
€575.00
Enhance your production workflow with the Hollyland Wireless Tally System 4 Lights. This multi-camera tally solution includes four distinct LED...
Multi-camera productions rely on clear, instant communication between the director and each camera operator — and that is exactly where the AVMATRIX TS3019-4 proves its worth. This wireless tally system ships as a ready-to-deploy kit containing one tally box and four tally lamps, with the capacity to address up to 16 lamps on a single network. Operating on the 433 MHz band, the system maintains a stable wireless link over distances reaching 200 metres in unobstructed conditions, while an RS-485 wired fallback ensures reliability when RF interference or building structures limit the radio path.
Each tally lamp carries both front and rear LED indicators, so the on-air camera is visible to the talent facing the lens as well as to the operator behind it. Brightness can be set across four discrete levels — bright enough for outdoor daytime shoots, yet dimmable for intimate studio environments where spill light matters. A real-time display on every lamp reports signal strength and remaining battery charge at a glance, removing the guesswork that slows down a fast-paced live show. Power comes from either a USB Type-C connection or a standard 18650 li-ion cell, which sustains operation for up to nine hours depending on brightness and conditions — a full day of conference coverage or a marathon church service without swapping batteries.
On the control side, the tally box accepts GPIO, RS-232, RS-485, and USB Type-C connections. GPIO mode works directly with switchers from AVMATRIX, Roland, Sony, NewTek, Panasonic, and Datavideo, while the USB port enables VMix integration for software-driven live productions. An RS-485/RS-232 pass-through also opens the door to PTZ camera control, letting a single operator handle both tally status and remote camera movement from one position — particularly useful during unmanned multi-camera worship services or small-crew corporate webcasts. Each lamp mounts via a standard 1/4-inch hot shoe, attaching securely to the top of virtually any broadcast or cinema camera. Whether you are cutting a five-camera concert, directing a sports side-line package, or running a news set, the AVMATRIX TS3019-4 keeps every operator informed without trailing cables across the floor.

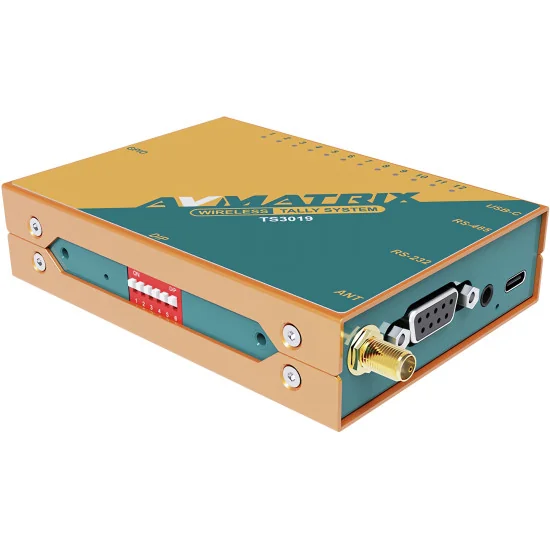

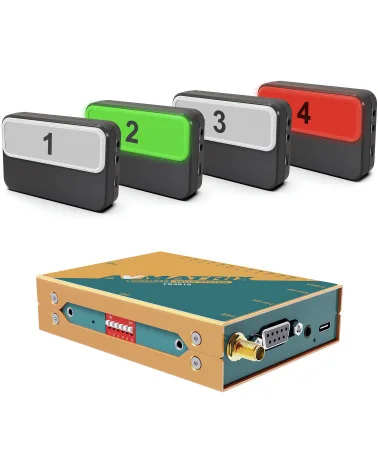

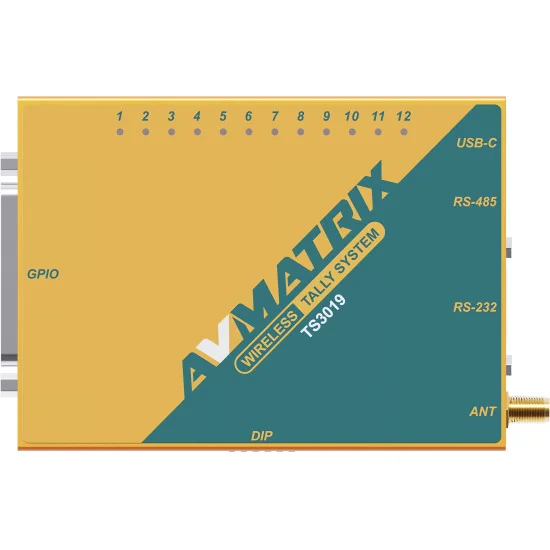

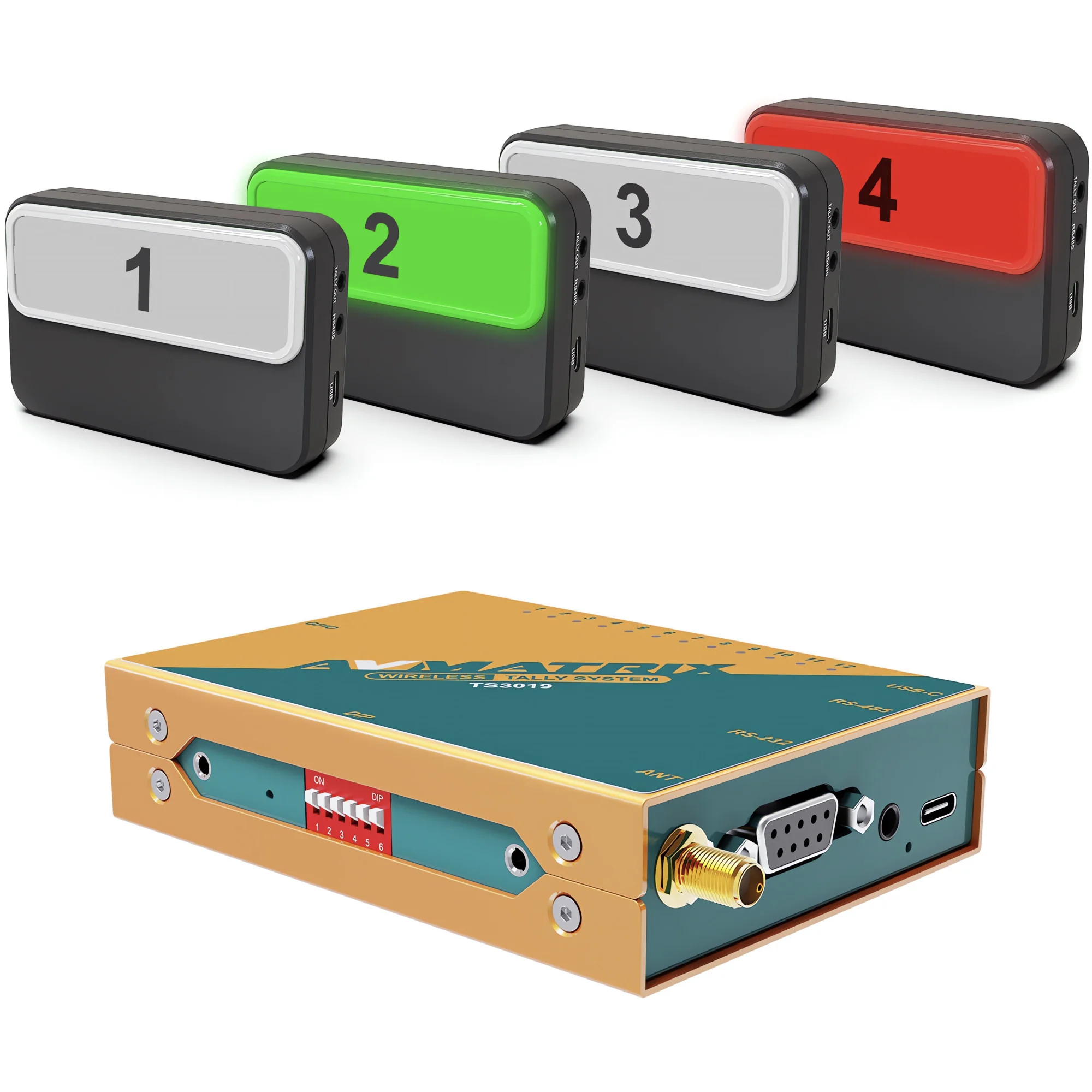

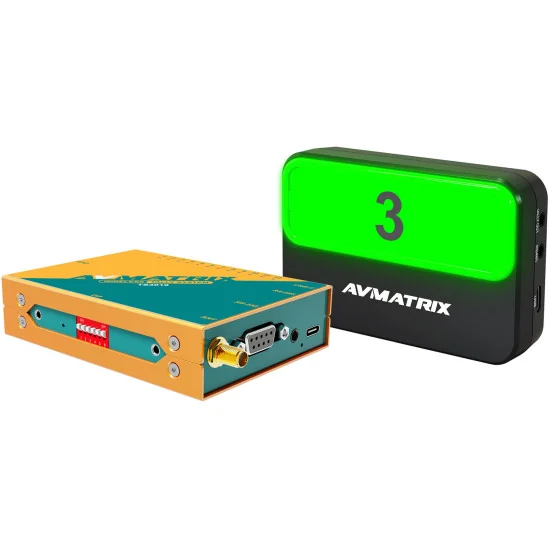

AVMATRIX TS3019-4 Wireless Tally System
TS3019-4
Price: €395.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Multi-camera productions rely on clear, instant communication between the director and each camera operator — and that is exactly where the AVMATRIX TS3019-4 proves its worth. This wireless tally system ships as a ready-to-deploy kit containing one tally box and four tally lamps, with the capacity to address up to 16 lamps on a single network. Operating on the 433 MHz band, the system maintains a stable wireless link over distances reaching 200 metres in unobstructed conditions, while an RS-485 wired fallback ensures reliability when RF interference or building structures limit the radio path.
Each tally lamp carries both front and rear LED indicators, so the on-air camera is visible to the talent facing the lens as well as to the operator behind it. Brightness can be set across four discrete levels — bright enough for outdoor daytime shoots, yet dimmable for intimate studio environments where spill light matters. A real-time display on every lamp reports signal strength and remaining battery charge at a glance, removing the guesswork that slows down a fast-paced live show. Power comes from either a USB Type-C connection or a standard 18650 li-ion cell, which sustains operation for up to nine hours depending on brightness and conditions — a full day of conference coverage or a marathon church service without swapping batteries.
On the control side, the tally box accepts GPIO, RS-232, RS-485, and USB Type-C connections. GPIO mode works directly with switchers from AVMATRIX, Roland, Sony, NewTek, Panasonic, and Datavideo, while the USB port enables VMix integration for software-driven live productions. An RS-485/RS-232 pass-through also opens the door to PTZ camera control, letting a single operator handle both tally status and remote camera movement from one position — particularly useful during unmanned multi-camera worship services or small-crew corporate webcasts. Each lamp mounts via a standard 1/4-inch hot shoe, attaching securely to the top of virtually any broadcast or cinema camera. Whether you are cutting a five-camera concert, directing a sports side-line package, or running a news set, the AVMATRIX TS3019-4 keeps every operator informed without trailing cables across the floor.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Support 433Mhz wireless or wired tally connection
Up to 200m wireless connection distance (line-of-sight)
The tally box with multiple interfaces including GPIO/USB/RS-485/RS-232
GPIO compatible with AVMATRIX and other video switchers
Compatible with VMix via USB type-c
Wireless PTZ camera control via RS-232/RS-485 pass through
Up to 16 tally lamps can be supported
Both front and rear indicators on the lamps with 4-level adjustable brightness
Visible signal strength and battery status on the tally lamp
Tally lamp can be powered by USB type-c or 18650 li-ion battery
1/4 inch hot shoe for tally lamp
WIDESPREAD APPLICATION
The wireless tally system can be widely used in various field events such as interviews, concert, live sports, live weddings, churches and other live broadcast activities.
200M WIRELESS TRANSMISSION
Tally lamps can receive the tally signal transmitted from video switcher, up to 200m (line-of-sight) wireless transmission distance. And the wireless tally system supports both 433Mhz wireless and RS-485 wired connection with long and stable signal transmission.
PTZ REMOTE CONTROL
The wireless tally system also support PTZ camera control via RS-485/232, which can fully meet the needs of directors and can control cameras simultaneously.
HIGH COMPATIBILITY
The tally box supports various interfaces such as GPIO/USB/RS-232/RS-485, which can be compatible with video switchers, Vmix. The rich interfaces can meet users different needs and applications.
INTUITIVE STATUS DISPLAY
The tally system supports up to 16 tally lamps. There are both front and rear indicator light on the tally lamp with 4-level brightness can be adjusted. Users can also check signal strength and power status easily on the tally lamp.
DUAL POWER SUPPLY
The tally lamp can be powered by USB type-C or 18650 li-ion battery. It supports large-capacity battery installation, which is convenient for outdoor application. It's also can be charging by USB.
HOT SHOE MOUNTING
The tally lamp is designed with a 1/4 inch hotshoe hole. It is easy for installation and operation and can be widely used in different application scenarios.
TECHNICAL SPECIFICATION
TALLY BOX PARAMETERS
Connections: 1×GPIO, 1xRS-232 terminal, 1xRS-485 terminal, 1xUSB type-c
Number of Lamps: Support up to 16 tally lamps(12 LED indicator)
Wireless Distance: Transmission up to 200m (line-of-sight)
Wireless Frequency: 433MHz
Wireless Connectivity: RS-485 serial connection
Application Support: Vmix, Video switchers with GPIO-tally interface such as AVMATRIX, Roland, SONY, NewTek, Panasonic, DataVideo, or tally converter box with GPIO such as BMD's GPI and tally interface
Power: Working Voltage: 5V, Power Consumption: ≤ 0.2W
TALLY LAMP PARAMETERS
Connections: 1×USB Type-C,1xRS-485,TALLY OUT
Power supply: 5V USB power supply or 18650 li-ion battery (optional) power supply
Brightness: Support 4-level brightness
Battery Operating Time: Up to 9 hours (depending on battery capacity & lamp brightness & usage environment)
Power: Working Voltage: 5V; Power Consumption: ≤2.5W; Battery Charging Current: 5V 1A
Mouting Hole: 1/4 inch hotshoe hole
OTHERS
Dimension (LWD): Tally box: 104*75.5*24.5mm; tally lamp: 98.5*65*26.5 mm
Weight: Tally box: 327g; tally lamp: 90g (without battery)
Temperature: Working temperature: -20 °C~60 C; storage temperature: -30 C-70°C
Accessories: TS3019-4(4 Lamp Suits): 1xTally Box, 4xTally Lamps, 1×Suitcases, 1xPower Supply(5V 1A), USB2.0 Type-C Cables, 1×Antenna, 1×GPIO Connector
TS3019-4
7 Items
Data sheet
- Interface
- DE-9/DB-9
GPIO / DB-25
RS-232
RS-485
Tally Out
USB - Transmission Range
- 200m
- Number of Lights
- 4
- Wireless
- Yes
- Maximum number of channels
- 16
Specific References
- ean13
- 6971118001507
- mpn
- TS3019-4
