AVMATRIX TS3019-6 Wireless Tally System
€545.00
In multi-camera live productions, knowing which camera is on-air at any given moment is critical. The AVMATRIX TS3019-6 is a wireless tally...
Multi-camera live productions depend on clear, instant communication between the director and camera operators — and the AVMATRIX TS3019-8 delivers exactly that. This wireless tally system ships as a complete 8-lamp kit with one transmitter box and eight individual tally lamps, all organized in a rugged carrying case. Operating on the 433 MHz frequency band, the system reaches up to 200 metres in line-of-sight conditions, making it suitable for large studio floors, outdoor sports broadcasts, and concert stages.
Each tally lamp carries both front and rear LED indicators: the front-facing light tells presenters and guests which camera is live, while the rear indicator keeps the operator aware of program (red) and preview (green) status. Brightness is adjustable across four levels — up to 2000 cd/m² — so the signal stays visible even under strong stage lighting or direct sunlight. A standard 1/4-inch hotshoe thread on the bottom of every lamp lets operators mount it directly onto the camera shoe without extra brackets.
The tally box provides GPIO, RS-232, RS-485, and USB Type-C ports. GPIO tally input works natively with switchers from AVMATRIX, Roland, Sony, NewTek, Panasonic, and DataVideo, as well as with Blackmagic Design units through a GPI and tally interface. VMix connects directly over USB Type-C. Beyond tally signaling, the RS-485/232 pass-through enables PTZ camera control from the same box, reducing cable clutter in remote-head setups. If wireless conditions become unreliable, the system falls back to a wired RS-485 serial link for uninterrupted operation.
Power options include USB Type-C or a removable 18650 li-ion battery delivering up to nine hours of runtime depending on brightness and conditions. The tally box draws just 0.2 W from a 5 V supply, so a compact USB power bank keeps it running throughout an entire production day. With a working range of −20 °C to +60 °C, the AVMATRIX TS3019-8 handles sub-zero outdoor remotes and summer festival coverage equally well. A single box addresses up to 16 lamps — extra units are available separately as your camera count grows.

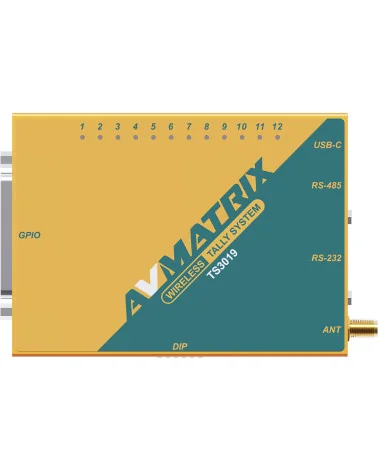

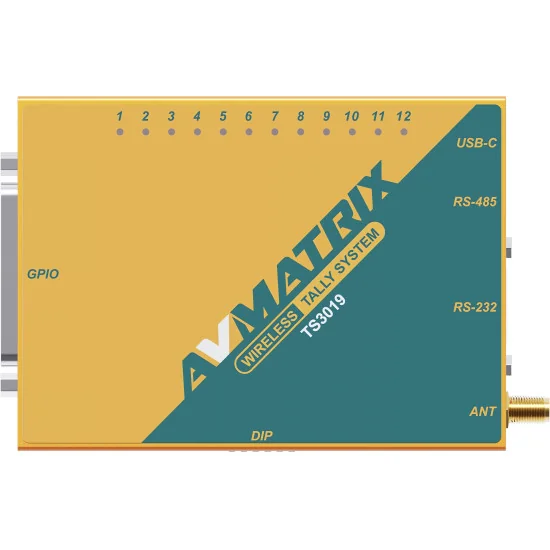

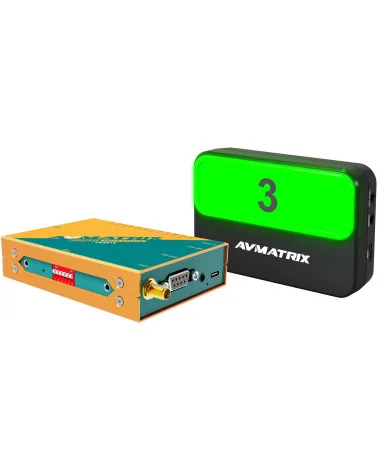

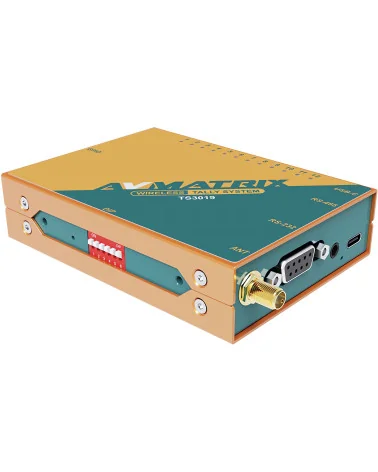

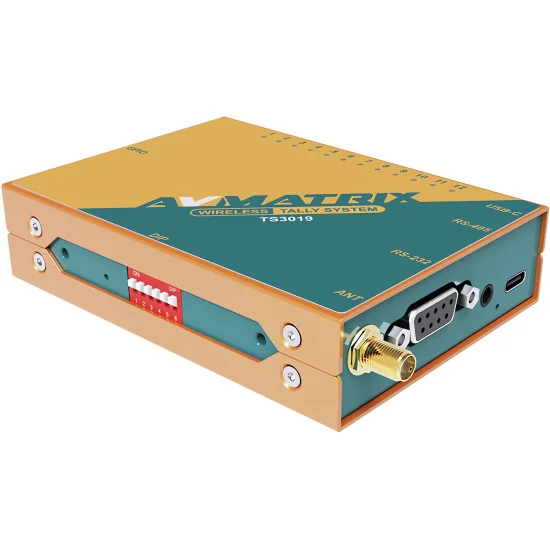

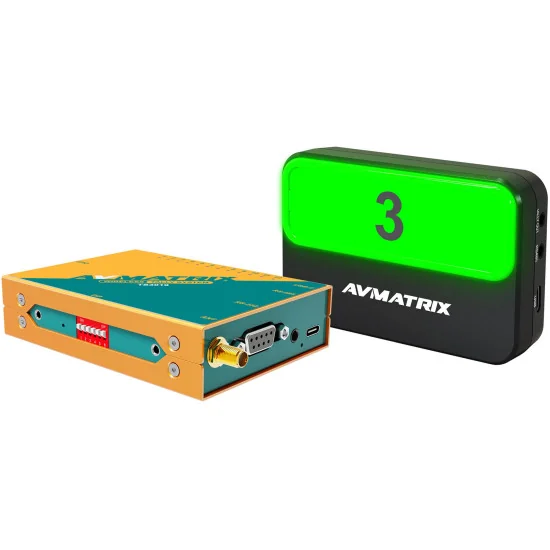

AVMATRIX TS3019-8 Wireless Tally System
TS3019-8
Price: €689.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Multi-camera live productions depend on clear, instant communication between the director and camera operators — and the AVMATRIX TS3019-8 delivers exactly that. This wireless tally system ships as a complete 8-lamp kit with one transmitter box and eight individual tally lamps, all organized in a rugged carrying case. Operating on the 433 MHz frequency band, the system reaches up to 200 metres in line-of-sight conditions, making it suitable for large studio floors, outdoor sports broadcasts, and concert stages.
Each tally lamp carries both front and rear LED indicators: the front-facing light tells presenters and guests which camera is live, while the rear indicator keeps the operator aware of program (red) and preview (green) status. Brightness is adjustable across four levels — up to 2000 cd/m² — so the signal stays visible even under strong stage lighting or direct sunlight. A standard 1/4-inch hotshoe thread on the bottom of every lamp lets operators mount it directly onto the camera shoe without extra brackets.
The tally box provides GPIO, RS-232, RS-485, and USB Type-C ports. GPIO tally input works natively with switchers from AVMATRIX, Roland, Sony, NewTek, Panasonic, and DataVideo, as well as with Blackmagic Design units through a GPI and tally interface. VMix connects directly over USB Type-C. Beyond tally signaling, the RS-485/232 pass-through enables PTZ camera control from the same box, reducing cable clutter in remote-head setups. If wireless conditions become unreliable, the system falls back to a wired RS-485 serial link for uninterrupted operation.
Power options include USB Type-C or a removable 18650 li-ion battery delivering up to nine hours of runtime depending on brightness and conditions. The tally box draws just 0.2 W from a 5 V supply, so a compact USB power bank keeps it running throughout an entire production day. With a working range of −20 °C to +60 °C, the AVMATRIX TS3019-8 handles sub-zero outdoor remotes and summer festival coverage equally well. A single box addresses up to 16 lamps — extra units are available separately as your camera count grows.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
Support 433Mhz wireless or wired tally connection
Up to 200m wireless connection distance (line-of-sight)
The tally box with multiple interfaces including GPIO/USB/RS-485/RS-232
GPIO compatible with AVMATRIX and other video switchers
Compatible with VMix via USB type-c
Wireless PTZ camera control via RS-232/RS-485 pass through
Up to 16 tally lamps can be supported
Both front and rear indicators on the lamps with 4-level adjustable brightness
Visible signal strength and battery status on the tally lamp
Tally lamp can be powered by USB type-c or 18650 li-ion battery
1/4 inch hot shoe for tally lamp
WIDESPREAD APPLICATION
The wireless tally system can be widely used in various field events such as interviews, concert, live sports, live weddings, churches and other live broadcast activities.
200M WIRELESS TRANSMISSION
Tally lamps can receive the tally signal transmitted from video switcher, up to 200m (line-of-sight) wireless transmission distance. And the wireless tally system supports both 433Mhz wireless and RS-485 wired connection with long and stable signal transmission.
PTZ REMOTE CONTROL
The wireless tally system also support PTZ camera control via RS-485/232, which can fully meet the needs of directors and can control cameras simultaneously.
HIGH COMPATIBILITY
The tally box supports various interfaces such as GPIO/USB/RS-232/RS-485, which can be compatible with video switchers, Vmix. The rich interfaces can meet users different needs and applications.
INTUITIVE STATUS DISPLAY
The tally system supports up to 16 tally lamps. There are both front and rear indicator light on the tally lamp with 4-level brightness can be adjusted. Users can also check signal strength and power status easily on the tally lamp.
DUAL POWER SUPPLY
The tally lamp can be powered by USB type-C or 18650 li-ion battery. It supports large-capacity battery installation, which is convenient for outdoor application. It's also can be charging by USB.
HOT SHOE MOUNTING
The tally lamp is designed with a 1/4 inch hotshoe hole. It is easy for installation and operation and can be widely used in different application scenarios.
TECHNICAL SPECIFICATION
TALLY BOX PARAMETERS
Connections: 1×GPIO, 1xRS-232 terminal, 1xRS-485 terminal, 1xUSB type-c
Number of Lamps: Support up to 16 tally lamps(12 LED indicator)
Wireless Distance: Transmission up to 200m (line-of-sight)
Wireless Frequency: 433MHz
Wireless Connectivity: RS-485 serial connection
Application Support: Vmix, Video switchers with GPIO-tally interface such as AVMATRIX, Roland, SONY, NewTek, Panasonic, DataVideo, or tally converter box with GPIO such as BMD's GPI and tally interface
Power: Working Voltage: 5V, Power Consumption: ≤ 0.2W
TALLY LAMP PARAMETERS
Connections: 1×USB Type-C,1xRS-485,TALLY OUT
Power supply: 5V USB power supply or 18650 li-ion battery (optional) power supply
Brightness: Support 4-level brightness
Battery Operating Time: Up to 9 hours (depending on battery capacity & lamp brightness & usage environment)
Power: Working Voltage: 5V; Power Consumption: ≤2.5W; Battery Charging Current: 5V 1A
Mouting Hole: 1/4 inch hotshoe hole
OTHERS
Dimension (LWD): Tally box: 104*75.5*24.5mm; tally lamp: 98.5*65*26.5 mm
Weight: Tally box: 327g; tally lamp: 90g (without battery)
Temperature: Working temperature: -20 °C~60 C; storage temperature: -30 C-70°C

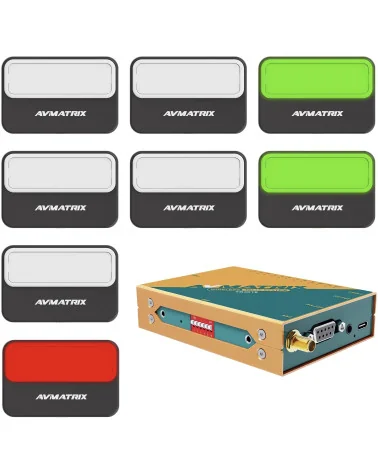

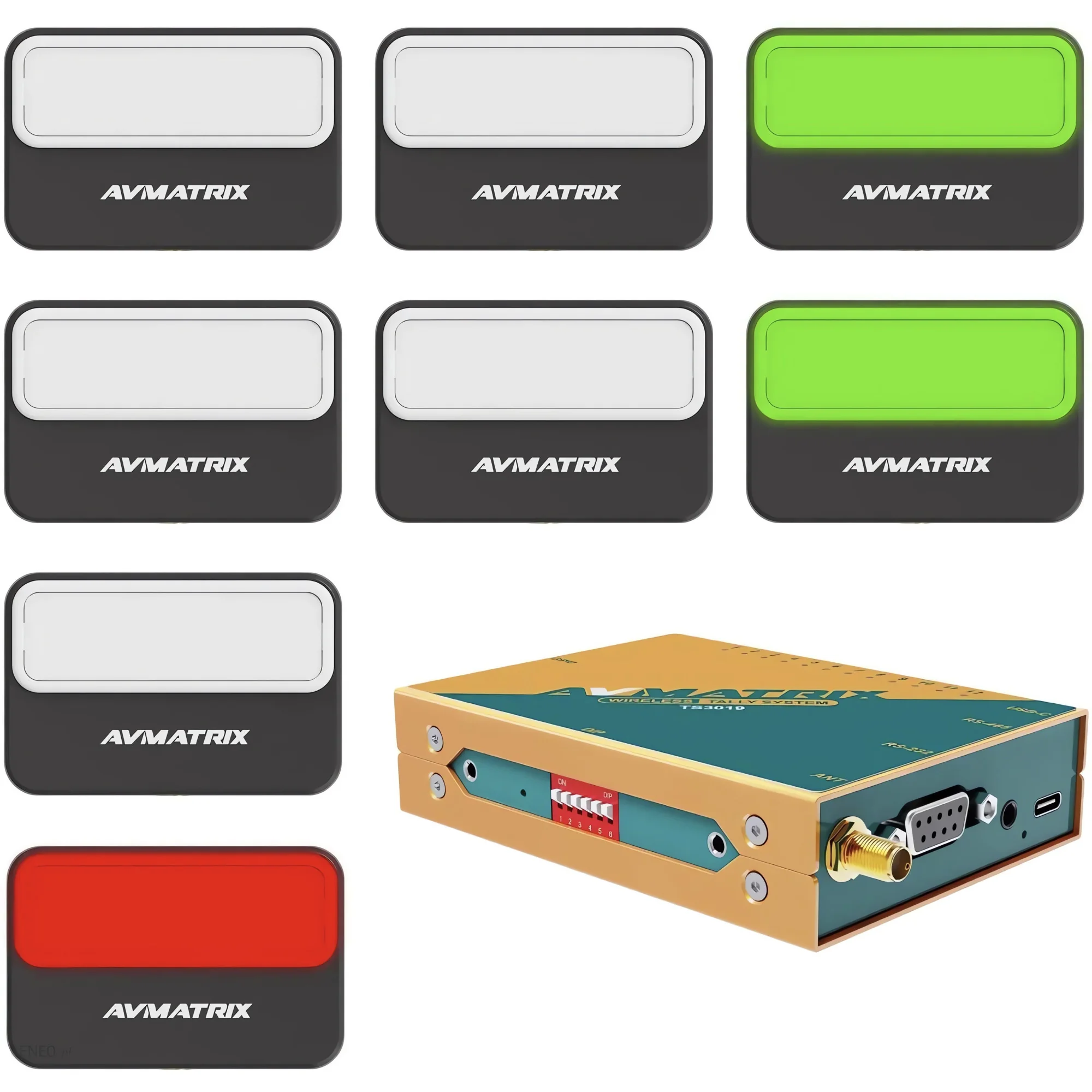

Accessories: TS3019-8(8 Lamp Suits): 1xTally Box, 8xTally Lamps, 1×Suitcases, 1xPower Supply(5V 1A), USB2.0 Type-C Cables, 1×Antenna, 1×GPIO Connector
TS3019-8
Data sheet
- Interface
- DE-9/DB-9
GPIO / DB-25
RS-232
RS-485
Tally Out
USB - Transmission Range
- 200m
- Number of Lights
- 8
- Wireless
- Yes
- Maximum number of channels
- 16
Specific References
- ean13
- 6971118002221
- mpn
- TS3019-8
