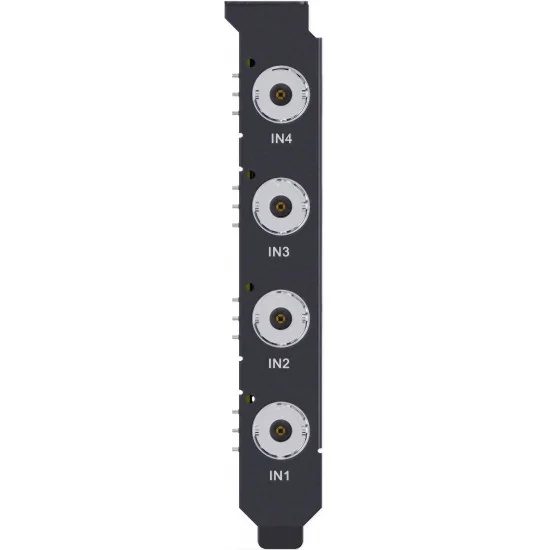

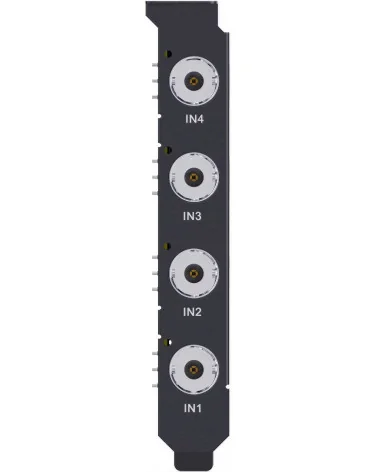

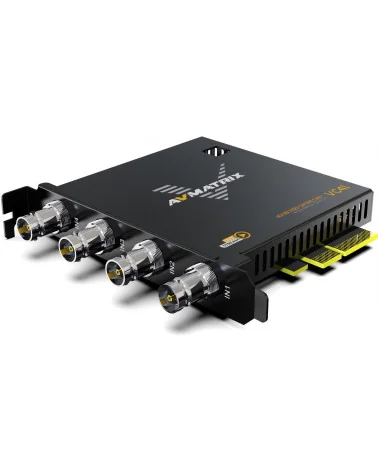

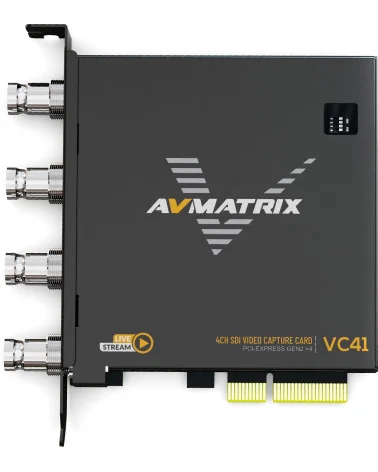

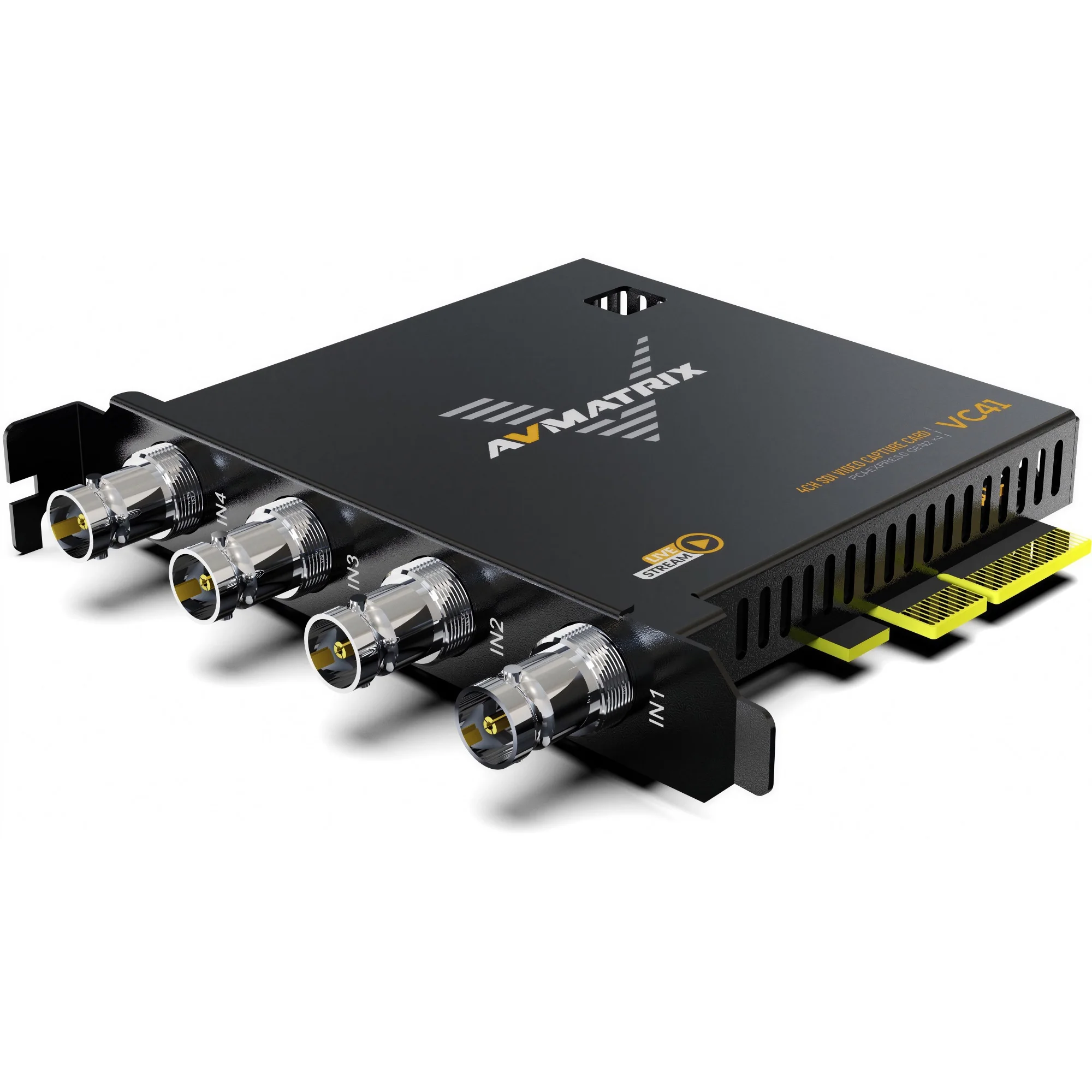

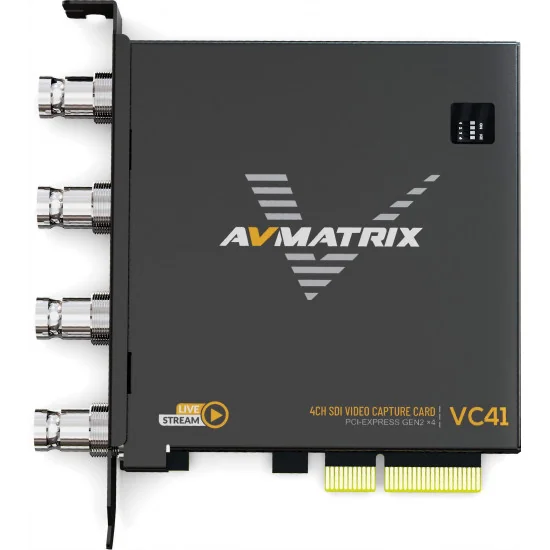

Four SDI feeds on one capture card can simplify a dense ingest station. AVMATRIX VC41 places 4-channel SDI capture on a PCIe 2.0 x4 board, with four independent SD/HD/3G-SDI inputs ready for cameras, vision mixers, replay outputs or other BNC sources. Each channel can be captured up to 1080p60 with bit rates up to 200 Mb/s, so a compact studio PC can take in several program lines at once for live production, recording or streaming. In a church control room, a school media lab or a small sports venue, that means fewer external boxes and fewer points of failure between the source and the software.
The card accepts SDI signals in YCbCr 4:4:4 and 4:2:2, then captures in YUY2 uncompressed, which matters in graphics-heavy productions, chroma-critical feeds and archive recording where compression artefacts are unwelcome. It also supports embedded SDI audio capture on all four inputs, recorded as 16-bit PCM at 48 kHz. Hardware 1080i de-interlacing and a 3D noise-reduction algorithm help with interlaced legacy cameras or noisier contribution feeds, while portrait capture up to 1080 × 1920 makes sense for mobile-first clips, vertical ad delivery and social output prepared from the same machine.
Software support is broad enough for mixed broadcast and streaming environments: OBS, vMix, XSplit, VLC, VirtualDub, Wirecast and other DirectShow, V4L2 or AVCaptureSession-based applications are supported, with Windows 7 or newer and Linux 18.04 or newer. That gives the AVMATRIX VC41 SDI Video Capture Card room in lecture capture systems, virtual studios, game streaming rigs, live sports setups and healthcare presentation rooms where operators need several SDI feeds visible inside one workstation instead of scattered across separate USB devices.
Bandwidth is handled through the card’s 2.5 GB/s host connection, and AVMATRIX also allows multiple cards in one computer for higher channel counts, using DIP-switch addressing so each board can run alongside the next. For long sessions, the card is specified for 24-hour continuous operation. If the job calls for stable multi-source SDI ingest, clean audio capture and low-latency transfer inside a desktop or rackmount PC, AVMATRIX VC41 is a practical fit for control rooms that need density and signal quality.
AVMATRIX VC41 SDI Video Capture Card
VC41
Price: €469.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Available from supplier (Delivery time to be confirmed.)
Four SDI feeds on one capture card can simplify a dense ingest station. AVMATRIX VC41 places 4-channel SDI capture on a PCIe 2.0 x4 board, with four independent SD/HD/3G-SDI inputs ready for cameras, vision mixers, replay outputs or other BNC sources. Each channel can be captured up to 1080p60 with bit rates up to 200 Mb/s, so a compact studio PC can take in several program lines at once for live production, recording or streaming. In a church control room, a school media lab or a small sports venue, that means fewer external boxes and fewer points of failure between the source and the software.
The card accepts SDI signals in YCbCr 4:4:4 and 4:2:2, then captures in YUY2 uncompressed, which matters in graphics-heavy productions, chroma-critical feeds and archive recording where compression artefacts are unwelcome. It also supports embedded SDI audio capture on all four inputs, recorded as 16-bit PCM at 48 kHz. Hardware 1080i de-interlacing and a 3D noise-reduction algorithm help with interlaced legacy cameras or noisier contribution feeds, while portrait capture up to 1080 × 1920 makes sense for mobile-first clips, vertical ad delivery and social output prepared from the same machine.
Software support is broad enough for mixed broadcast and streaming environments: OBS, vMix, XSplit, VLC, VirtualDub, Wirecast and other DirectShow, V4L2 or AVCaptureSession-based applications are supported, with Windows 7 or newer and Linux 18.04 or newer. That gives the AVMATRIX VC41 SDI Video Capture Card room in lecture capture systems, virtual studios, game streaming rigs, live sports setups and healthcare presentation rooms where operators need several SDI feeds visible inside one workstation instead of scattered across separate USB devices.
Bandwidth is handled through the card’s 2.5 GB/s host connection, and AVMATRIX also allows multiple cards in one computer for higher channel counts, using DIP-switch addressing so each board can run alongside the next. For long sessions, the card is specified for 24-hour continuous operation. If the job calls for stable multi-source SDI ingest, clean audio capture and low-latency transfer inside a desktop or rackmount PC, AVMATRIX VC41 is a practical fit for control rooms that need density and signal quality.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
3G-SDI Simultaneous Input And Capture
Support 4 channels of SDI signal source input, connected to 4 SI interface devices, such as game consoles, cameras, switchers, etc., and multiple PCIE capture cards can be installed on a single PC, support multiple devices running simultaneously to achieve simultaneous live streaming on multiple platforms.
1080p60 FAD Recording
The PCIE capture card provides more superior performance,single-channel input and capture up to 1080p60 with bit rates up to 200Mbp, YUY lossless compression HD video capture, capture HD uncompressed video in real time, providing true picture quality to the extreme.
High-bandwidth And Ultra-low Latency
Using PCIE GEN 2 interface with 2.5GB/s transmission bandwidth, it provides faster data transfer speed for gaming and live streaming, bringing uncompressed and ultra-low latency live streaming experience.
24 Hours Non-stop Work
The PCIE card has a thick gold-plated PCIE interface for more stable contact and transmission. Work continuously for ultra-long time.
Specs.
CONNECTIONS
Host Interface: PCIE2.0x4, 2.5GB/s transfer bandwidth
Video Interfaces: 4×SD/HD/3G-SDI inputs
STANDARDS
SDI Input Format: Support up to 1080p60
Support HD/3Ga/3Gb/3Gb-DL/3Gb-DS standard
Support YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Note: 3Gb-DS can only capture the first stream
Capture Format: 1920×1200, 1920×1080, 1600×1200, 1600×900, 1440×900, 1280×1024, 1280x800, 1280x720, 1080×1920, 1024×768, 800x600, 720x576, 720×480 - 60fps
1920×1080, 1280×720, 1080×1920 - 59.94 fps
1920×1080, 1280×720 - 50fps
1920×1080, 1280×720, 1080×1920, 800×600, 720×576, 720×480 - 30fps
1920×1080, 1280×720, 1080×1920 - 25fps
Capturte Color Space: YUY2, uncompressed
Audio Capture: 4xSDI embedded audio capture
Audio Codec: 16 bit PCM, 48kHz, 1536kbps
Other Features: Support 1080i hardware de-interlacing, 3D noise reduction algorithm
SUPPORTS
Device Support: Support camera, camcorder, video switcher and other devices
OS Support: Windows 7 and above, Linux 18.04 and above
Software Compatible: OBS, Split, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, Any other DirectShow/V4L2/ AVCaptureSession encoding/streaming software
APIs Support: Windows(DirectShow, DirectSound/ASAPI), Linux(V4L2, ALSA)
OTHERS
Power consumption: s2.0W
Temperature: Operating temperature: 0°C~60°C, Storage Temperature: -20°C~70°C, Relative Humidity: 5%~90% non-condensing
Dimension: 120.1 × 88.4 × 21.6mm
Weight: Net weight: 150g, Gross Weight: 195g
VC41
Data sheet
- Video Input
- SDI
- Video Output
- PCIe
- Audio Input
- SDI Embedded
- Audio Output
- PCIe
- Interface
- PCIe
- Max Output Resolution
- 1080p 50/60 fps
- For Operating System
- Linux
Windows - Video input channels
- 4
Specific References
- ean13
- 6971118001880
- mpn
- VC41
