Osprey Video Raptor 927 Capture card
€1,089.00
The Osprey Video Raptor 927 Capture Card is a versatile solution for professionals seeking reliable video capture capabilities. It features...
Built for SDI capture and playback inside a production workstation, the AVMATRIX VP51 gives an operator five 3G-SDI connections on one PCIe x4 Gen3 card: one dedicated input, one dedicated output, and three ports that can be assigned as input or output. That layout suits systems that need to ingest a camera or router feed, send programme out to a monitor or recorder, and still keep extra channels available for graphics playout, replay returns or additional SDI sources. Video support reaches 1080p60, with 1080p59.94, 1080p50, interlaced HD, PsF and SD formats also listed.
Signal handling is specified at YUV 4:2:2 8-bit with Rec. 601 and Rec. 709 colour space support, while embedded audio runs at 48 kHz / 24-bit. That keeps the card aligned with common HD-SDI production standards and makes it practical for camera ingest, programme recording and HD playout from a rackmount PC. The published compliance list covers SMPTE 259M, 292M, 296M, 372M and 425M together with ITU-R BT.601 and BT.656, which is useful in mixed installations where current HD gear and older SD sources may share the same machine room.
The AVMATRIX VP51 works with Windows and Linux and is listed for OBS, vMix, XSplit, VLC, VirtualDub, VidBlaster, Wirecast and other DirectShow/V4L2 software. For webcast studios, event control rooms and corporate production spaces, that opens several practical roles: ingest SDI cameras into OBS, send a clean or branded feed from vMix, or dedicate one workstation to capture on some channels and playback on others. The control utility adds output preview, video-format selection and I/O mode assignment, so the same card can be tuned for capture-heavy or output-heavy jobs without replacing hardware.
The specification also states 24-hour continuous operation and support for multiple cards in one system. For integrators building higher channel counts, that matters. A single computer can be scaled for multi-camera streaming, lecture capture, internal broadcast or permanent venue installation while keeping SDI signals close to the software layer handling switching, recording, graphics and distribution.

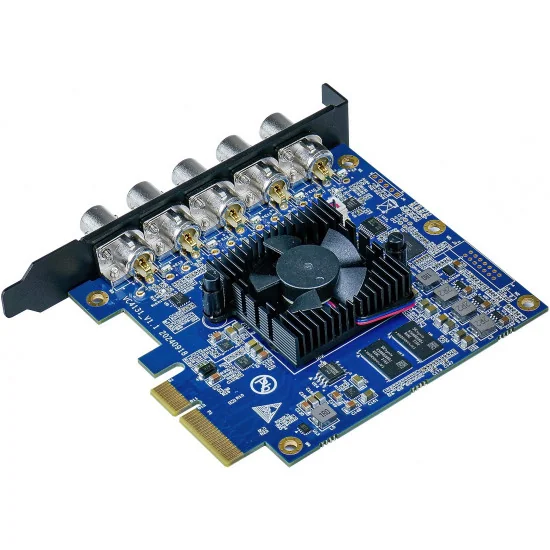

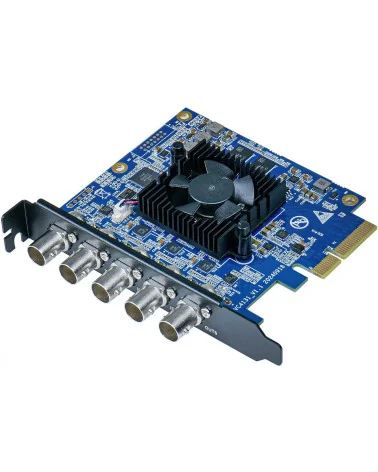

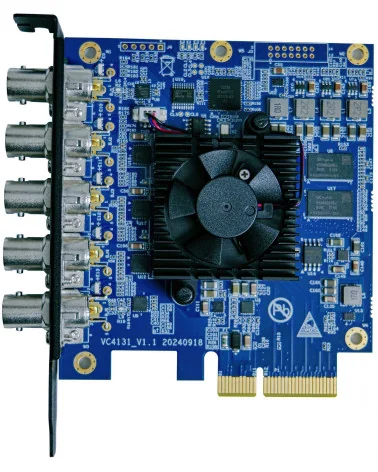

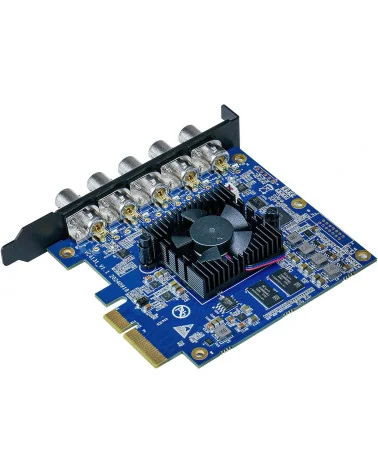

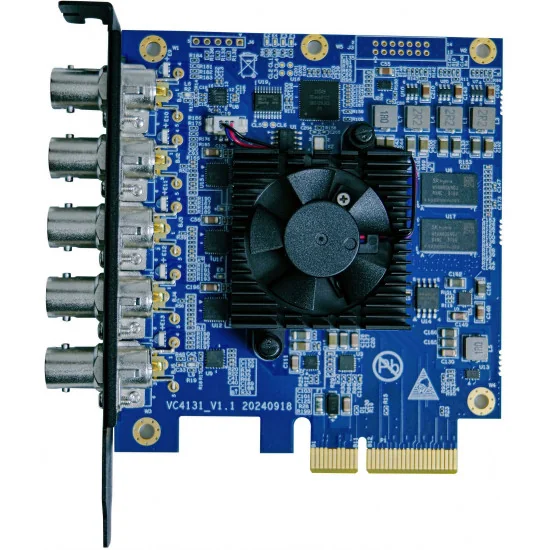

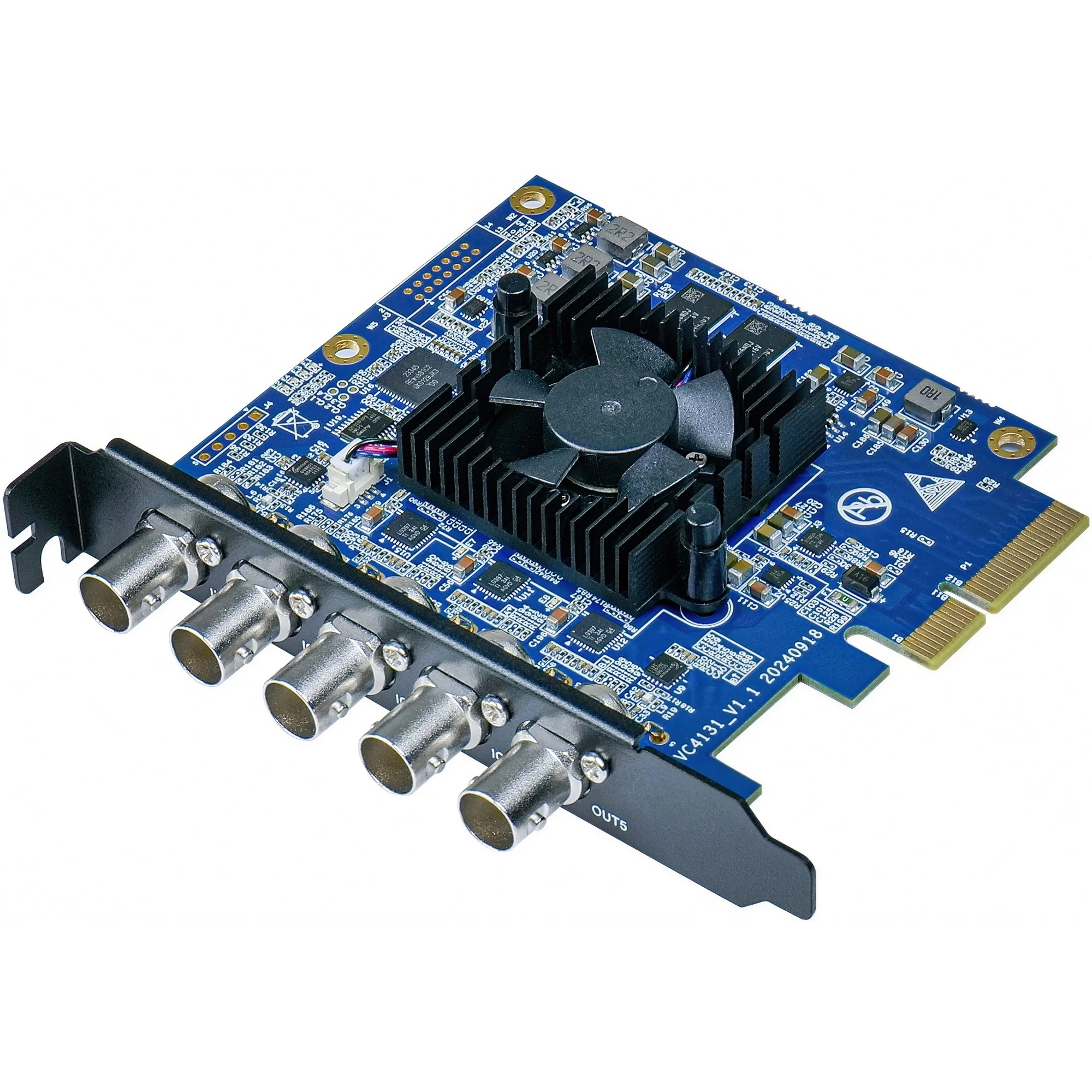

AVMATRIX VP51 SDI Video Capture Card
VP51
Price: €519.00
No tax
We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
Built for SDI capture and playback inside a production workstation, the AVMATRIX VP51 gives an operator five 3G-SDI connections on one PCIe x4 Gen3 card: one dedicated input, one dedicated output, and three ports that can be assigned as input or output. That layout suits systems that need to ingest a camera or router feed, send programme out to a monitor or recorder, and still keep extra channels available for graphics playout, replay returns or additional SDI sources. Video support reaches 1080p60, with 1080p59.94, 1080p50, interlaced HD, PsF and SD formats also listed.
Signal handling is specified at YUV 4:2:2 8-bit with Rec. 601 and Rec. 709 colour space support, while embedded audio runs at 48 kHz / 24-bit. That keeps the card aligned with common HD-SDI production standards and makes it practical for camera ingest, programme recording and HD playout from a rackmount PC. The published compliance list covers SMPTE 259M, 292M, 296M, 372M and 425M together with ITU-R BT.601 and BT.656, which is useful in mixed installations where current HD gear and older SD sources may share the same machine room.
The AVMATRIX VP51 works with Windows and Linux and is listed for OBS, vMix, XSplit, VLC, VirtualDub, VidBlaster, Wirecast and other DirectShow/V4L2 software. For webcast studios, event control rooms and corporate production spaces, that opens several practical roles: ingest SDI cameras into OBS, send a clean or branded feed from vMix, or dedicate one workstation to capture on some channels and playback on others. The control utility adds output preview, video-format selection and I/O mode assignment, so the same card can be tuned for capture-heavy or output-heavy jobs without replacing hardware.
The specification also states 24-hour continuous operation and support for multiple cards in one system. For integrators building higher channel counts, that matters. A single computer can be scaled for multi-camera streaming, lecture capture, internal broadcast or permanent venue installation while keeping SDI signals close to the software layer handling switching, recording, graphics and distribution.
local_shipping
UE Shipping
We ship across the EU for €20, free over €1,000.
business_center
B2B Shop
B2B sales only, prices excl. VAT.
security
Safe Shopping
Official EU distribution and warranty.
payment
Secure checkout
Secure online payments via Stripe.
contact_mail
Individual quotation
Send your enquiry via the form or email avgear@avgear.shop
The AvMatrix VP51 is a high-performance SDI video processing card with flexible input/output configurations, delivering HD video up to 1080p60. It ensures stable 24/7 operation and seamless compatibility with popular streaming and production software.
The AvMatrix VP51 is a professional-grade SDI video processing card designed for reliable, high-definition video transmission. Featuring 1 SDI input, 1 SDI output, and 3 configurable SDI input/output channels, it offers exceptional flexibility for live streaming, video production, and broadcasting. Supporting resolutions up to 1080p60, it delivers crisp, high-quality visuals. The VP51 is fully compatible with Windows and Linux operating systems and integrates effortlessly with popular software like Vmix, OBS, ZOOM, Teams, and Twitch. Designed for continuous operation, it runs stably for 24 hours and supports multiple cards working simultaneously, making it an ideal choice for demanding video workflows.
Specifications
INTERFACE
Slot Interface: PClex4 (Gen3)
Video Output Interface: 1×3G-SDI Input
1x3G-SDI Output
3x3G-SDI input and output (I/O)
FORMAT
3G Video Format: 1080p60, 1080p59.94, 1080p50
HD Video Format: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080PsF30, 1080PsF29.97, 1080PsF25, 1080PsF24, 1080i60, 1080i59.94, 1080i50
SD Video Format: 525i59.94 NTSC, 625i50 PAL
Audio Sampling: 48kHz 24bit
Color Precision: YUV 4:2:2 8bit
Color Space: REC 601, REC 709
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE425M, ITU-R BT.656, ITU-R BT.601
Device Support: Support for XBOX, Video Players, TV Boxes, Media Boxes, etc.
SUPPORT
System Support: Windows 7/8/10/11, 64-bit Linux
Software Compatibility: OBS, Split, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, any other DirectShow/V4L2 encoding/streaming software
OTHER
Operating Temperature: 5-40°C
Relative Humidity: 0%~90% non-condensing
Power Consumption: 12W
Dimension: 102.21x89.51mm (PCB)
Weights: Net weight: 120g
VP51
3 Items
Data sheet
- Video Input
- SDI
- Video Output
- PCIe
SDI - Audio Input
- SDI Embedded
- Audio Output
- PCIe
SDI Embedded - Interface
- PCIe
- Max Output Resolution
- 1080p 50/60 fps
- For Operating System
- Linux
Windows - Output colour sampling
- YUV/YCbCe/YPbPr 4:2:2 8-bit
- Video input channels
- 5
Specific References
- ean13
- 6971118003129
- mpn
- VP51
